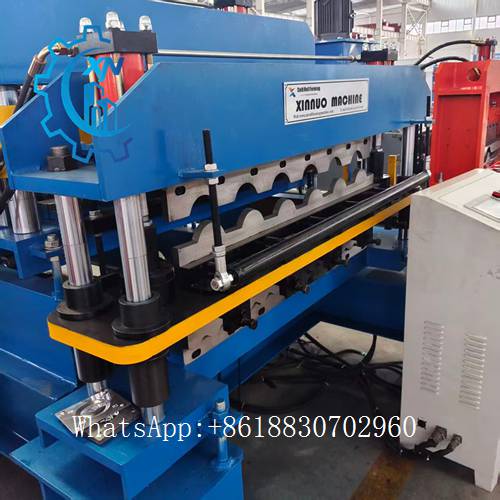

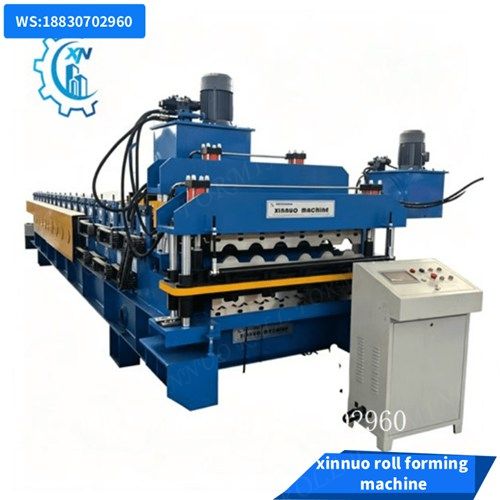

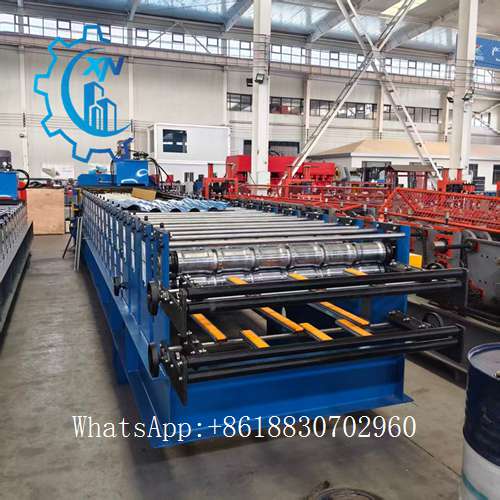

Glazed Tile Roll Forming Machine
Glazed tle roll forming machine can produce diferent shapes of glazed tile roof sheets in various thickness and colors.
Comparedwith traditional ceramic tiles, it is much popular because of their economic cost, light weight, short building period; re-cycle use,and elegant appearance.
It can be used as the roof of villas, luxury houses, theaters, exhibition centers, etc.
1.Product Overview (EU / US / AU Exclusive)
This full-servo high-precision glazed tile roll forming machine is a customized premium model exclusively for European, North American and Australian high-standard construction markets.
Fully compliant with strict Western mechanical safety regulations, environmental noise standards and architectural engineering tolerance requirements, it adopts full servo drive, precision CNC control
and modular safety protection structure. It features ultra-high forming accuracy, low-noise operation, energy efficiency, customizable patterns and full certification compliance.
Specially designed for high-end villa renovation, historic building restoration, green energy-saving construction and premium commercial landscape projects in Europe, America and Australia.

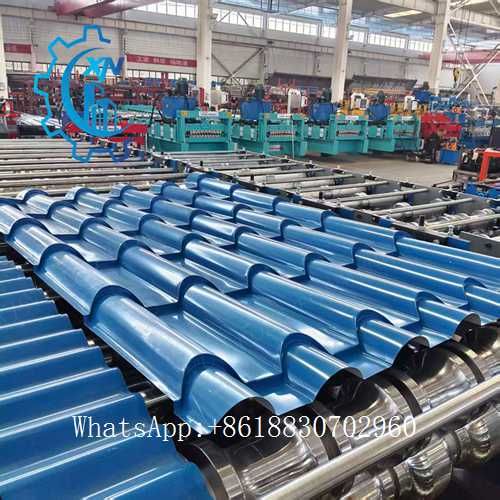

The machine produces high-flatness, high-consistency metal glazed roof tiles that meet strict Western architectural aesthetics and engineering acceptance standards. It is the ideal high-end equipment for
local building material processors and professional construction contractors.
2.Machine parameters
|
Item
|
Premium Custom Specification
|
|
Applicable Material
|
Galvanized steel, PPGI, 0.4–1.0mm
|
|
Forming Accuracy
|
±0.1mm (high-end engineering standard)
|
|
Driving System
|
Full servo drive + ball screw transmission
|
|
Control System
|
Imported PLC + 10-inch touch screen
|
|
Operating Noise
|
≤75dB (EU industrial noise compliant)
|
|
Energy Saving Rate
|
≥25% compared with traditional machines
|
|
Customization
|
Tile pattern, profile curve, width, color mold customizable
|
|
Certification
|
CE / UL / AU standard compliant
|
|
Working Environment Adaptation
|
UV resistant, freeze-thaw resistant, all-climate stable operation
|
3. Core Advantages & Market Adaptability
2.1 Full Certification Compliance — Smooth Customs Clearance & Local Approval
Manufactured in strict accordance with EU, US and Australian industrial standards. The machine is CE, UL certified and compliant with Australian AS building standards. Complete official English technical documents are provided,
including operation manuals, safety guidelines, circuit diagrams and factory test reports. It eliminates certification risks, customs obstacles and local safety inspection problems, allowing immediate installation and stable mass production.
2.2 Full-Servo High-Precision Forming — Meet Strict Engineering Tolerances
Equipped with full servo motor drive and precision ball screw transmission system, the machine maintains a stable forming accuracy of ±0.1mm. Produced tiles feature flat surface, uniform radian and consistent splicing gap without distortion or deformation.
It completely solves the common defects of ordinary machines and fully meets strict Western engineering acceptance standards. It stably processes 0.4–1.0mm high-precision galvanized steel sheets for luxury villas, heritage restoration projects and modern
green buildings.
2.3 Low Noise & Energy Saving — Comply with Western Environmental Regulations
Factories in Europe, America and Australia enforce strict noise and energy consumption control. This machine adopts fully enclosed silent frame structure and frequency conversion energy-saving system. The operating noise is lower than 75dB,
fully meeting industrial noise limits. The intelligent frequency conversion system automatically adjusts power output according to production load, reducing energy consumption by over 25%. It complies with EU energy efficiency regulations,
Australian green factory standards and North American low-carbon manufacturing requirements.
2.4 Premium Customization — Match Regional Architectural Aesthetics
Western markets pursue personalized and differentiated roof styles rather than generic standard tiles. This machine supports customized patterns, curved profiles, effective widths and surface textures. It can reproduce European retro tiles,
Australian classic glazed profiles and American villa-style roof tiles. Ideal for historic building restoration, high-end community renovation, private villa customization and commercial landscape projects, helping manufacturers provide high-value
differentiated roofing products.
2.5 Intelligent Automatic Operation — Adapt to High-Labor-Cost Markets
Fully automatic intelligent production system designed for high labor cost areas. Equipped with imported PLC controller and 10-inch touch screen, it realizes automatic feeding, punching, forming, fixed-length cutting and counting in one continuous process.
It supports one-click parameter saving and recall, requiring no full-time operator. Built-in self-diagnosis system monitors real-time machine status, effectively reducing downtime and maintenance costs, perfectly matching automated and lean production modes
in Europe, America and Australia.
2.6 Heavy-Duty & Climate-Adaptive Structure — Ultra-Low Maintenance
The whole frame adopts thickened steel plate welding and stress relief treatment, ensuring no deformation or shaking during long-term high-speed operation. Key transmission parts adopt high wear-resistant alloy materials for extended service life.
The machine adapts to temperate European climates, strong UV radiation in Australia, and extreme temperature alternations in North America. It delivers stable high-precision output with extremely low failure rate, perfectly fitting the low-maintenance
and high-reliability demands of Western factories.
4. Machine Components & Brief Description
This premium servo glazed tile machine consists of standardized, high-grade component modules, all optimized for Western high-standard operation and long service life.
- Automatic Uncoiler: Heavy-duty passive uncoiling structure, stable load-bearing, suitable for high-strength PPGI and galvanized steel coils, ensuring smooth and uniform feeding without material deviation.
- Leveling Device: Multi-group precision leveling rollers, correcting plate flatness effectively, eliminating raw material bending defects to lay a foundation for high-precision forming.

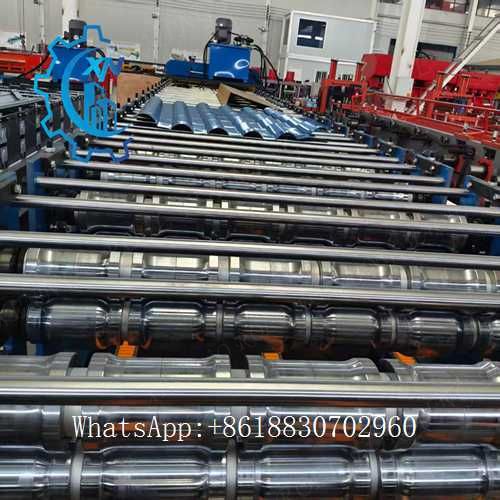

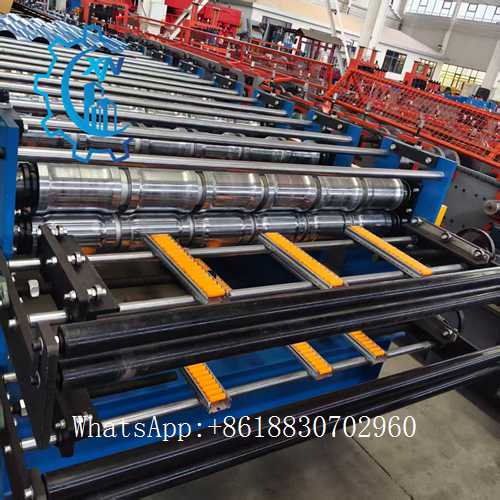

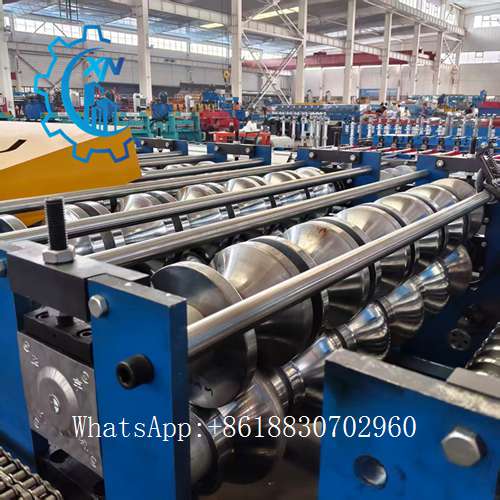

- Precision Forming Roller Group: Alloy steel rollers with hard treatment, anti-wear and anti-deformation, ensuring consistent tile radian and texture for long-term mass production.
- Full-Servo Cutting System: Servo fixed-length cutting, seamless incision, no burrs, fully compliant with high-end engineering tile flatness requirements.
- Intelligent Control Cabinet: Imported PLC system with touch screen operation, supporting one-key parameter setting, data storage and automatic fault alarm, realizing unmanned automatic production.

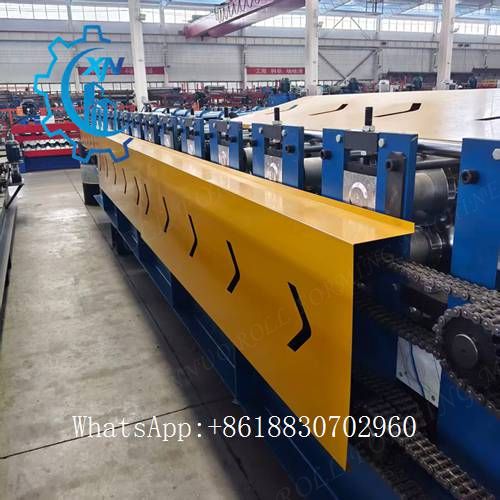

- Safety Protection System: Full enclosed safety guard, emergency stop device and safety interlock design, meeting CE/UL safety production specifications.
5.Production Process Flow
Strict standardized production process ensures consistent high precision, stability and safety of each equipment, matching EU/US/AU high-quality manufacturing standards.
Raw Material Cutting & Welding → Stress Relief Treatment → Precision Machining → Roller Heat Treatment & Polishing → Assembly & Debugging → Electrical System Calibration → Low-Noise & Load Test → Full Machine Inspection &
Certification Test → Packaging & Shipment
