Double Layer Glazed Tile Roll Forming Machine

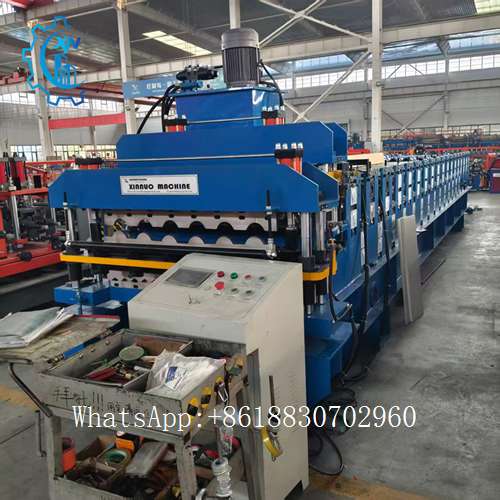

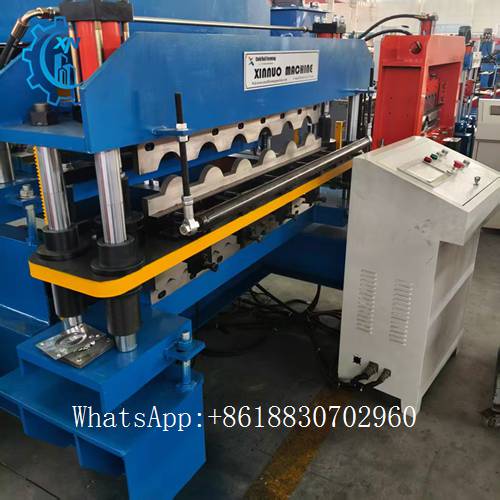

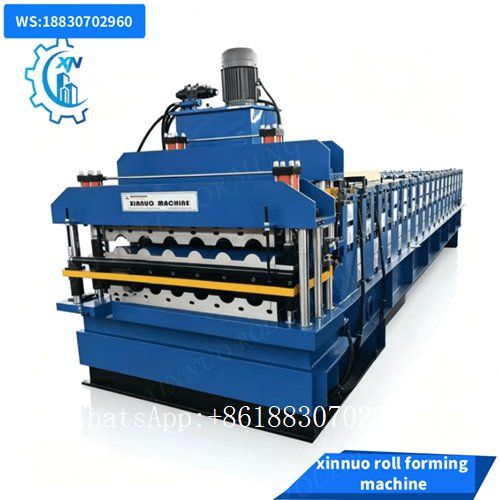

Hebei Xinnuo Machinery double layer glazed tile roll forming machine is a mainstream one-machine-two-profiles automatic cold forming equipment. It integrates two popular antique glazed tile profiles in one set, with independent upper and lower layer forming without mutual interference.

Designed for color steel processing factories, steel structure projects, antique roof buildings, villa roofing and cultural & tourism ancient building projects, this machine can produce two tile types with one-time investment. It greatly saves workshop space, equipment investment and labor cost, making it a cost-effective and versatile production equipment for antique roof tiles.

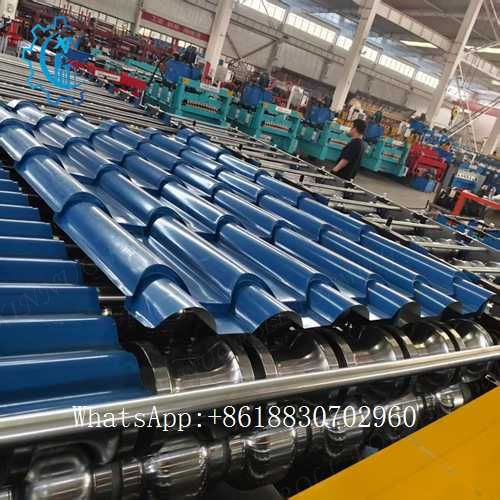

It commonly supports the combination of 840 bamboo-joint glazed tile + 800/900 resin-style glazed tile. It can roll form pre-painted steel sheet, galvanized sheet, galvalume sheet, thin aluminum sheet and other materials. The finished tiles feature full three-dimensional shape, clear bamboo-joint texture, tight overlapping and excellent waterproof performance. Widely applied in new countryside construction, antique courtyards, scenic buildings, factory roofing, villa roof renovation and other projects.

Core Advantages

One machine for two profiles, double productivity: Independent forming structure for upper and lower layers. Two different tile profiles can be produced separately without mould replacement. One machine replaces two single-layer machines to improve order adaptability and return on investment.

Space & cost saving: Integrated frame design, occupying only half the floor area of two single machines. No need to expand workshop, cutting down site rental and equipment procurement cost, ideal for small & medium processing plants.

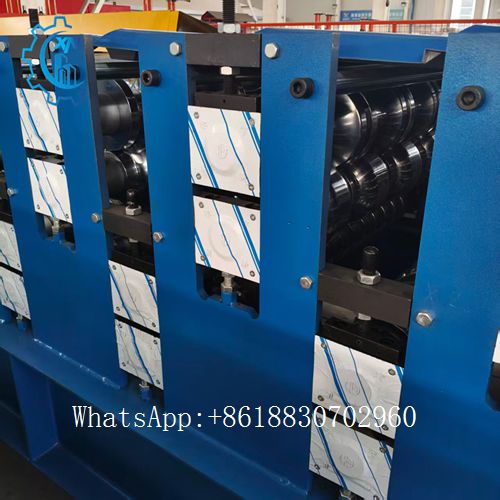

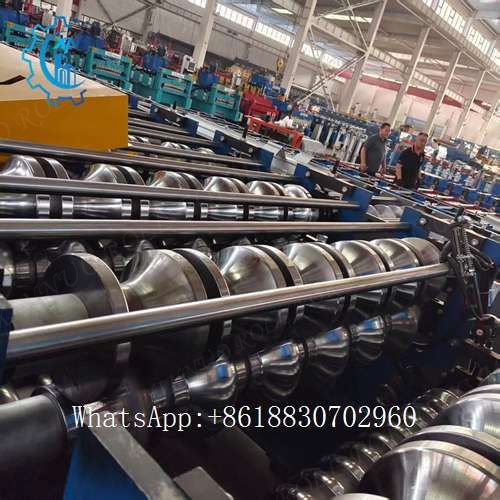

High forming precision without surface damage: Adopts thickened welded frame, precision chromium-plated rollers and progressive multi-pass forming process. No wrinkling, scratching or deformation on sheets; uniform bamboo-joint patterns with neat and high-end finished appearance.

Fully automatic CNC operation & simple handling: Equipped with industrial PLC control system and closed-loop encoder length counting. Set length, quantity and speed with one click. Automatic profiling, punching and hydraulic cutting, length tolerance ≤ ±1mm, smooth cutting edge without burrs.

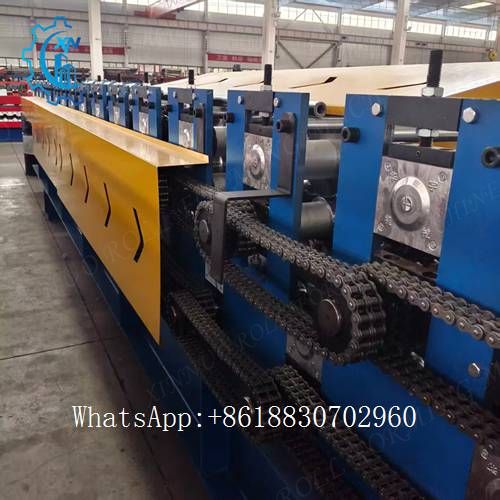

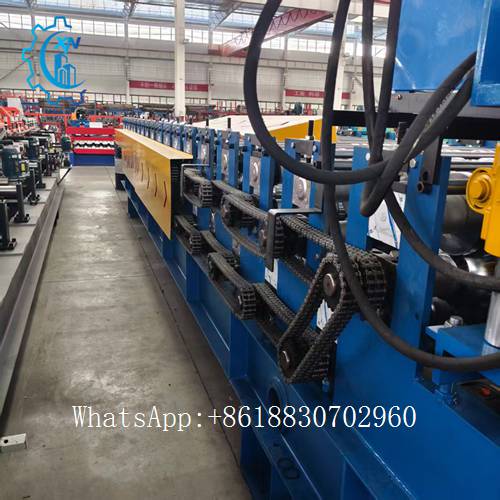

Stable operation & low failure rate: Standard frequency conversion speed regulation, thickened welded frame and heavy-duty transmission chains. Supports long-time continuous mass production with strong wear and vibration resistance.

Wind & waterproof finished tiles for wide engineering use: Tight interlocking overlap, outstanding roof waterproof performance, wind resistance and aging resistance, fully meeting construction standards of modern antique building roofing.

Working Flow

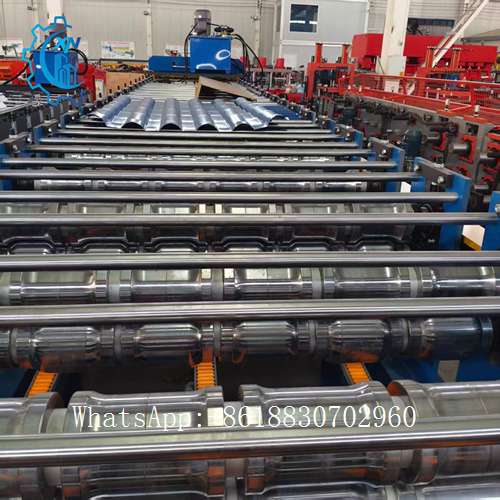

Coil raw material is fed by uncoiler, then goes through multiple groups of precision forming rollers for gradual cold bending shaping, bamboo-joint stamping and leveling. Finally cut automatically by CNC fixed-length system for neat output. Upper and lower layers have independent transmission and control, can run separately to meet flexible multi-order production.

Process Flow: Uncoiling → Guiding → Multi-pass Roll Forming → Bamboo-joint Stamping → Leveling → CNC Fixed-length Cutting → Finished Tile Discharge

Application Scenarios

Antique glazed tiles produced by this machine have classic profiles, premium texture and durable waterproof property. Widely used in ancient town renovation, cultural tourism scenic buildings, Chinese-style courtyards, villa roofing, steel structure factory antique roofs, corridors, pavilions and gatehouse roofing. It is core production equipment for antique new Chinese-style roof color steel materials.

Xinnuo Service & Warranty

Direct manufacturer supply, transparent configuration and competitive price

Custom non-standard tile profiles, widened/thickened and high-speed upgraded models available

Strict machine test before delivery after full commissioning

Free installation guidance, technical training and lifelong technical consultation

1-year whole machine warranty, long-term spare parts support for key components
