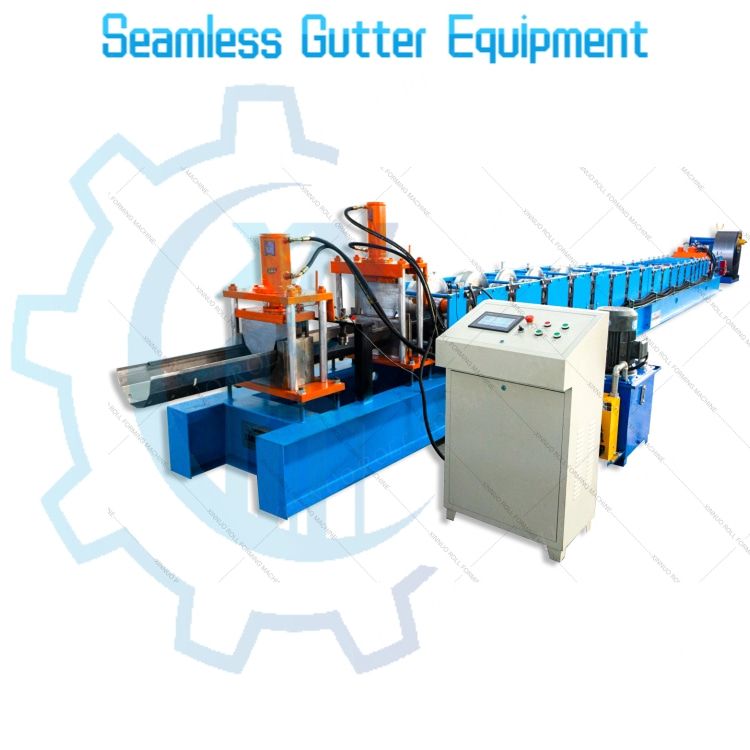

Seamless Gutter Equipment
Product Description

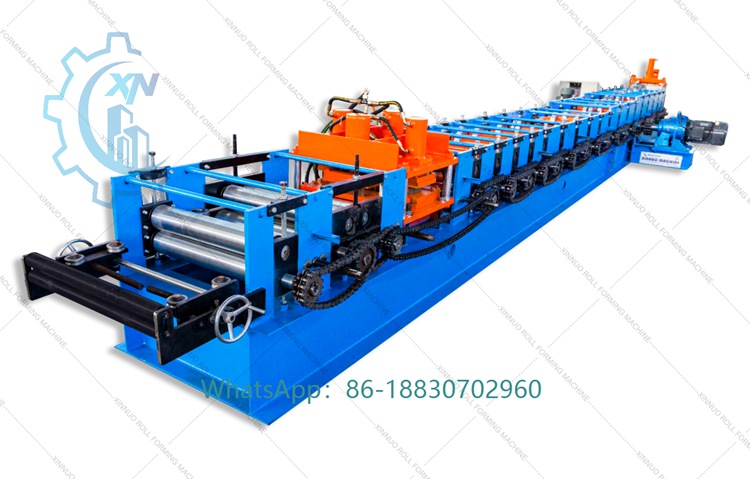

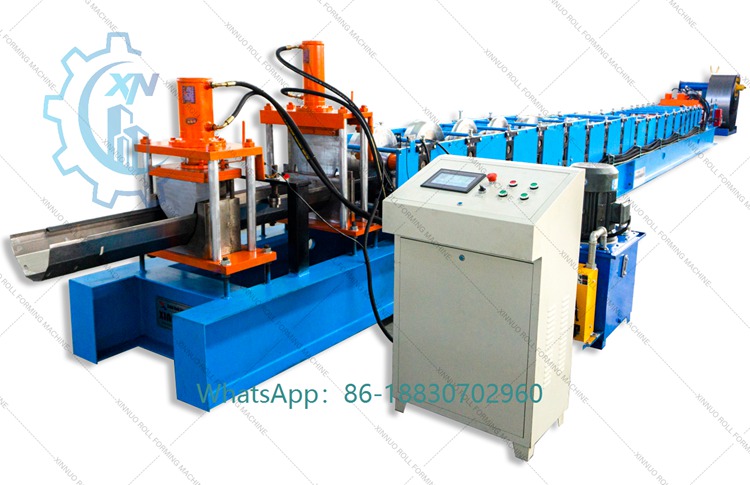

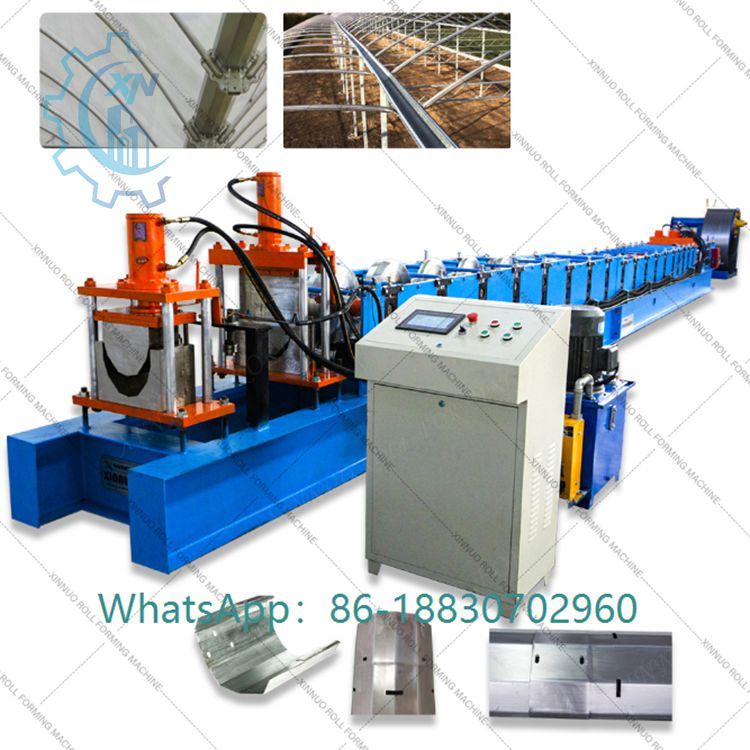

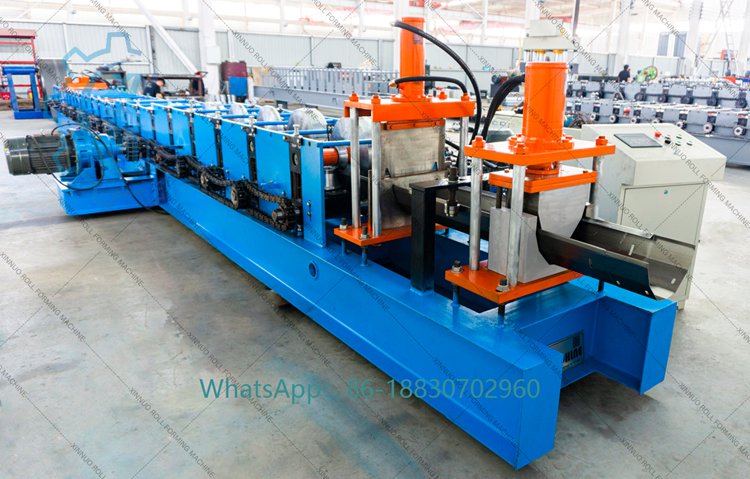

The Seamless Gutter Equipment is a high-performance roll forming solution specially engineered for producing rain gutters in various profiles, including K-style, half-round, and custom designs. Ideal for residential, commercial, and light industrial roofing systems, this machine ensures clean, uniform gutter shapes with superior strength and water drainage performance.
Constructed with a heavy-duty steel frame and hardened rollers, the machine is capable of processing galvanized steel, aluminum, copper, and pre-painted coils with thicknesses ranging from 0.3 mm to 0.8 mm. Its user-friendly interface, optional PLC control system, and hydraulic or manual cutting ensure easy operation, precise adjustments, and high output efficiency.
The machine can be configured for in-factory production or mounted on a trailer/truck for mobile on-site forming, which significantly reduces transport and installation time, especially for roofing contractors and gutter installation services.

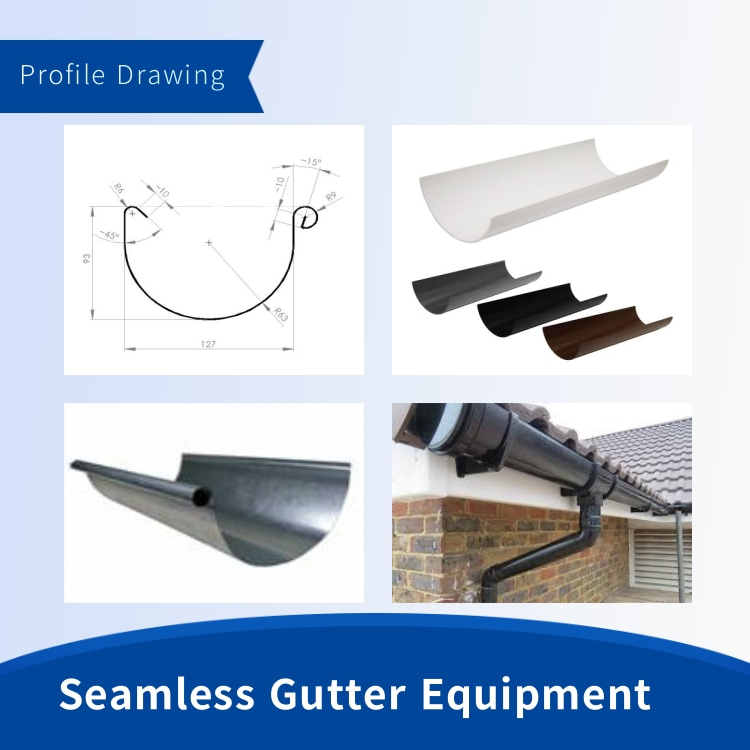

Profile Drawing
Product Details
Machine Parameters
|
No
|
Item
|
Parameters |
|
1
|
Raw material width
|
300-600 mm
|
|
2
|
Sheet effective width
|
80-200 mm
|
|
3
|
Raw material
|
Color steel sheet , Stainless steel or galvanized steel sheet
|
|
4
|
Material thickness
|
0.3-0.8 mm or customized
|
|
5
|
Forming roller material
|
45# steel plated with chrome
|
|
6
|
Shaft diameter
|
40 mm
|
|
7
|
Forming roll station
|
8-16 steps
|
|
8
|
Main motor power
|
3 KW 4 KW 5.5 KW(according to type)
|
|
9
|
Hydraulic power
|
4 KW (according to type)
|
|
10
|
Control system
|
PLC control
|
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
