1.Weight of Main Machine Frame：3,500 - 6,000 kg
2.Overall Length：8,500 - 12,000 mm (varies by roll forming stations and auxiliary components)
3.Overall Width：1,200 - 2,000 mm (depends on tile width capacity and frame structure)
4.Overall Height:1,500 - 2,200 mm (includes control panel and roll forming unit height)
5.Payment Terms:30% T/T in advance,70% when shipping
6.Email:xinnuo05@xinnuomachine.com
7.whatsapp：+8618830702960
structure)

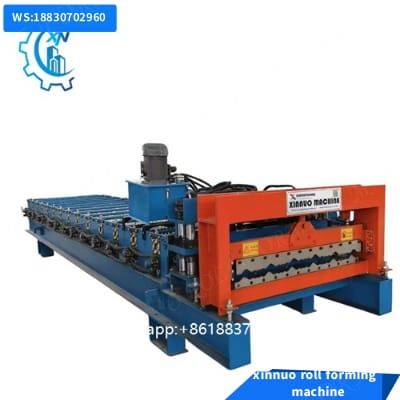

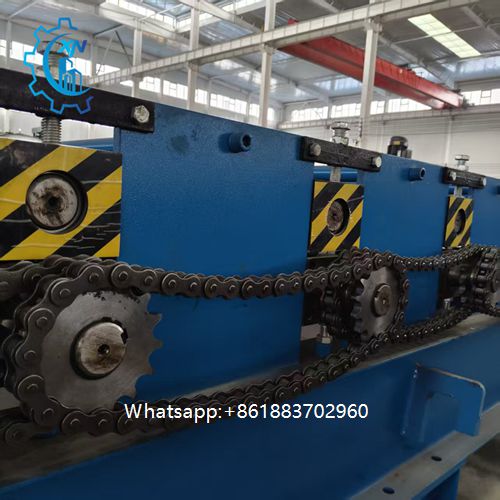

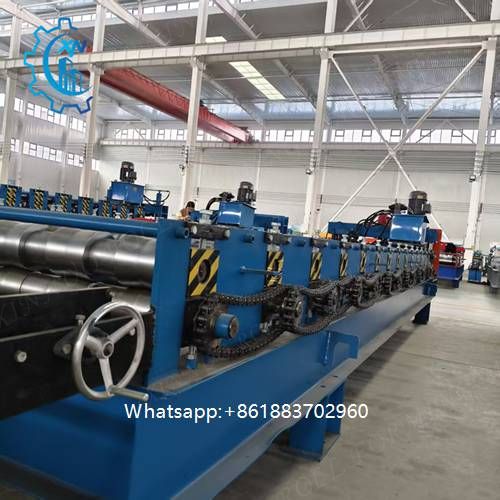

Metal Glazed Tile Roll Forming Machine

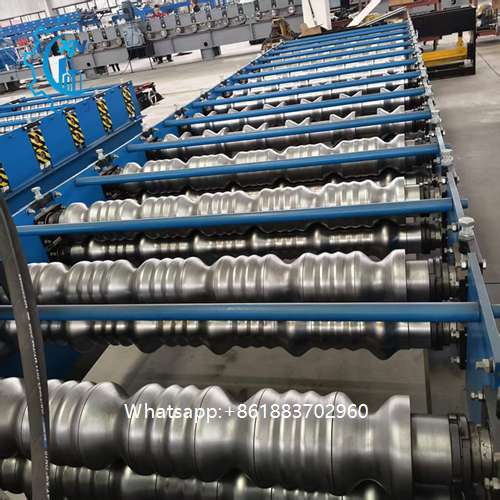

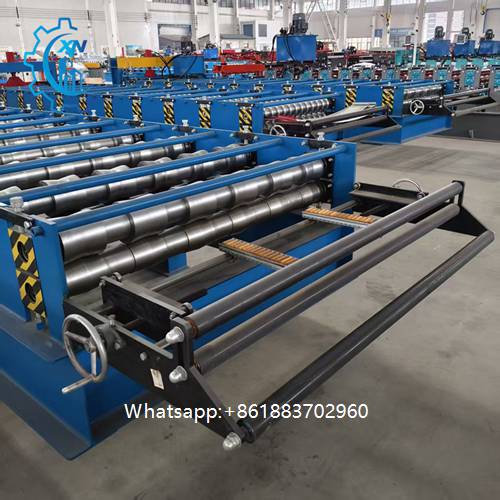

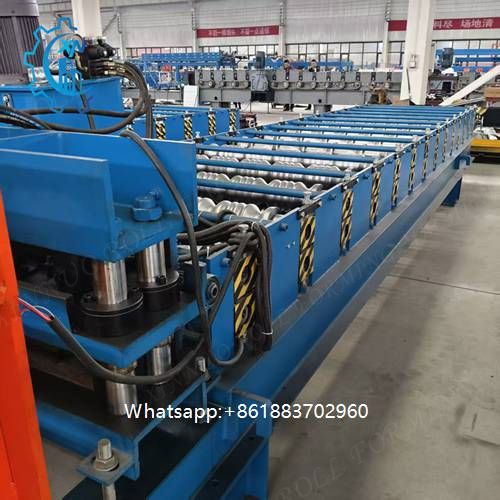

This high-efficiency metal glazed tile roll forming machine is professional industrial equipment for automated production of premium metal glazed tiles (ideal for residential/commercial roofing). It features a multi-station alloy steel roll system (HRC 58-62) to shape galvanized/aluminum-zinc steel coils into Roman/Spanish/wave tiles, paired with a PLC touchscreen control (±0.1mm feeding accuracy) and automatic hydraulic cutting for burr-free cuts. Compliant with CE/ISO 9001, it supports customization (0.3-1.2mm tile thickness, 300-1200mm width), boosting production efficiency while ensuring stable tile quality and long service life.
| Applicable Material | Galvanized steel, aluminum-zinc alloy steel, colored steel coils |
| Material Thickness Range | 0.3 - 1.0mm |
| Tile Width Range | 300 - 1200 mm (customizable per client needs) |

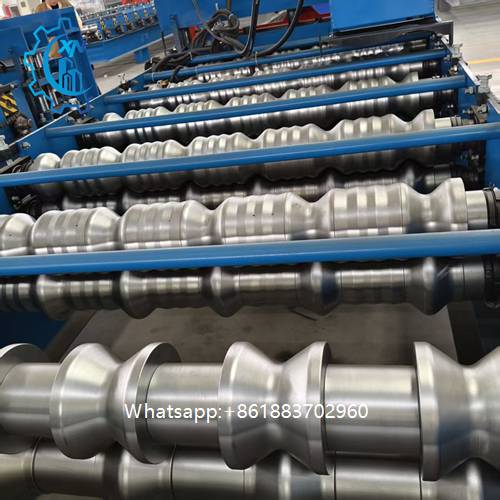

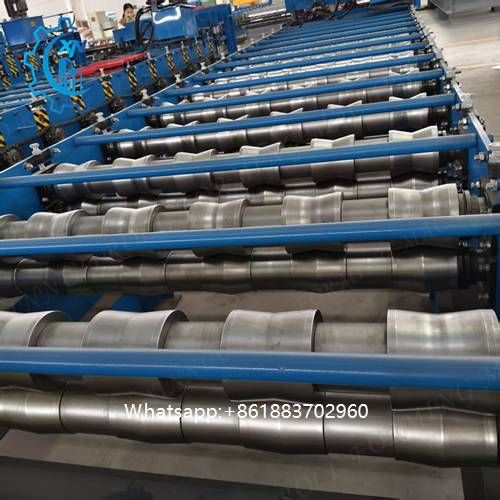

| Roller Material & Hardness | Alloy steel, surface quenched; hardness up to HRC 58 - 62 |
| Roll Forming Stations | 12 - 18 stations (adjustable based on tile profile) |
| Feeding Accuracy | ±0.2 mm (driven by high-precision servo motor) |
| Production Speed | 8 - 15 m/min (varies with tile complexity and material thickness) |

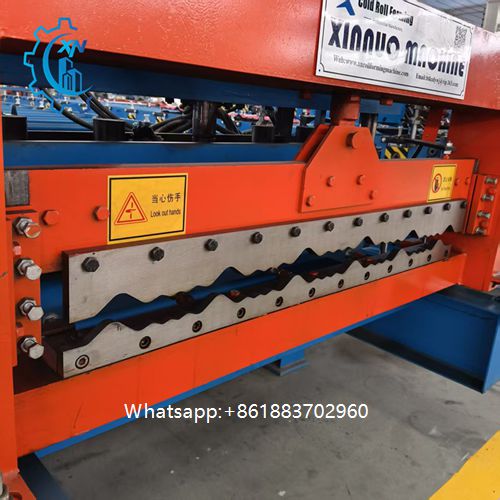

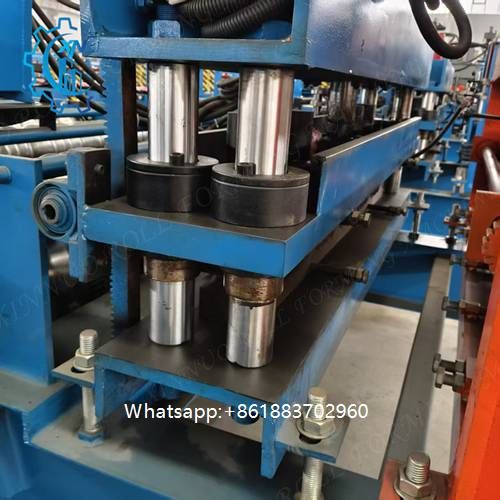

| Cutting Mode | Automatic hydraulic cutting; cutting speed: 0.5 - 1 second per tile |
| Control System | PLC touchscreen control; supports storage of up to 50 sets of production parameters |
| Power Supply | 380V/50Hz (3-phase; customizable for 220V/60Hz based on regional standards) |
Advantage
1.High Efficiency & Automation: Equipped with a high-precision servo feeding mechanism (±0.1mm accuracy) and automatic hydraulic cutting unit (0.5-1s per tile), it realizes continuous automated production. With a speed of 8-15m/min, it significantly reduces manual intervention and downtime, boosting overall production efficiency by over 30% compared to semi-automatic equipment.
2. Superior Tile Quality & Versatility: Features 12-18 alloy steel roll stations (HRC 58-62 hardness) for gradual, non-destructive shaping, ensuring consistent tile dimensions, smooth surfaces, and no edge warping. It supports customizing tiles (300-1200mm width, 0.3-1.2mm thickness) into Roman, Spanish, or wave profiles, meeting diverse architectural roofing needs.
3. Durability & Safe Compliance: Built with a thickened Q235 steel frame (robot-welded for high strength) and dust-proof lubrication systems for moving parts, core components boast a service life of over 8,000 working hours. It meets CE, ISO 9001 standards, with emergency stops and safety light curtains, ensuring long-term stable operation and operator safety.

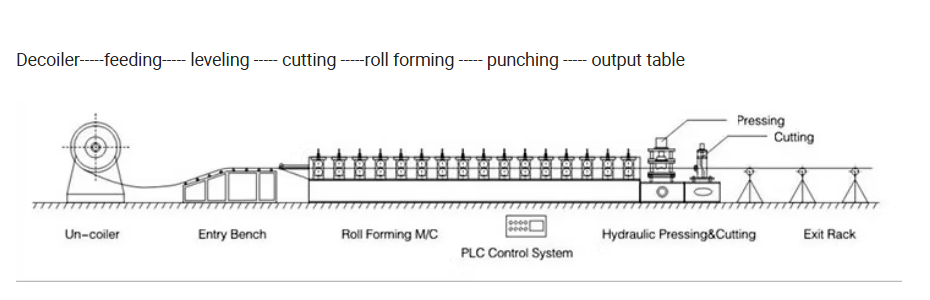

Workflow
Package
For different machines or production line parts, we have different packing solutions:
a. For the machine or production line, we will use plastic film to cover and wrap. Then will be loaded to the container by
forklift or crane
b. For the key parts such as the roll forming rollers set, we will use the metal frame to package.
C. For the electrical cabinets, molds set, we will use wooden carton to package and load.
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
8618830702960
