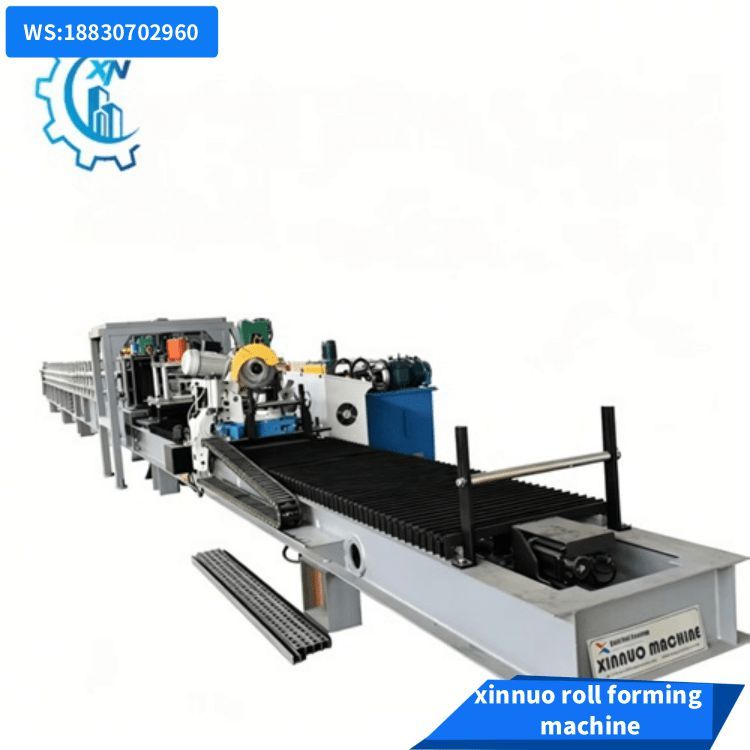

Solar Strut Roll Forming Machine
Xinnuo solar strut roll forming machine is a high-precision, fully automatic roll forming equipment tailored for the new energy photovoltaic industry, dedicated to manufacturing standard solar mounting struts, PV support C-channel and U-channel profiles. Integrating full-process automated production, it completes raw coil feeding, leveling, multi-pass rolling forming, precision hole punching, profile straightening, fixed-length servo cutting and automatic discharging in one continuous workflow. With mature industrial configuration and reliable mechanical performance, this machine serves as essential core equipment for mass, standardized production of solar bracket components for rooftop and ground PV power stations.
This machine adopts advanced progressive cold roll forming process with 12-18 groups of precision forming rollers, which gradually shapes metal strips to avoid stress concentration, effectively preventing profile torsion, bending and surface scratches. All forming rollers are made of high-quality alloy steel, processed by precise turning and grinding and treated with high-temperature quenching, ensuring high hardness, wear resistance and long service life. The whole machine adopts heavy-duty integrated welded steel structure, with strong overall rigidity and stable vibration resistance. It supports 24-hour continuous industrial operation, with no deformation of the body and no attenuation of forming accuracy after long-term high-speed production.
Equipped with industrial PLC intelligent control system and full servo drive system, the equipment realizes fully digital precise control of feeding, punching and cutting. The dimensional tolerance of finished profiles is strictly controlled within ±0.5mm, with neat cutting sections and consistent hole positions. It supports custom setting of production speed, profile width and cutting length, and can store dozens of sets of production formulas. Users can switch different strut specifications in a short time, realizing fast batch production of diversified products. The finished solar struts feature excellent flatness, high structural stability and perfect interchangeability, fully complying with international PV installation standards and outdoor anti-corrosion and load-bearing requirements.
The equipment supports multi-material processing, compatible with galvanized steel, hot-dip galvanized sheet, stainless steel and aluminum alloy strips, covering common thickness ranges of solar support profiles. It can produce various sizes of photovoltaic C-struts, U-struts and reinforced mounting brackets, widely applicable for residential rooftop PV systems, commercial photovoltaic projects and large-scale ground power station supporting component manufacturing. Featuring high automation, simple touchscreen operation, low failure rate and convenient daily maintenance, the machine effectively reduces manual operation and production waste, helping new energy manufacturers achieve high-efficiency and low-cost standardized production and enhance core market competitiveness.
