glazed tile making machine

Product Attributes :

1.Forming Material:Color Steel Coil, Galvanized Coil

2.Forming Stations:11-17 Stations

3.Production Speed : 8-15m/min

4.Email:xinnuo05@xinnuomachine.com

5.WhatsApp:+8618830702960

Product Description

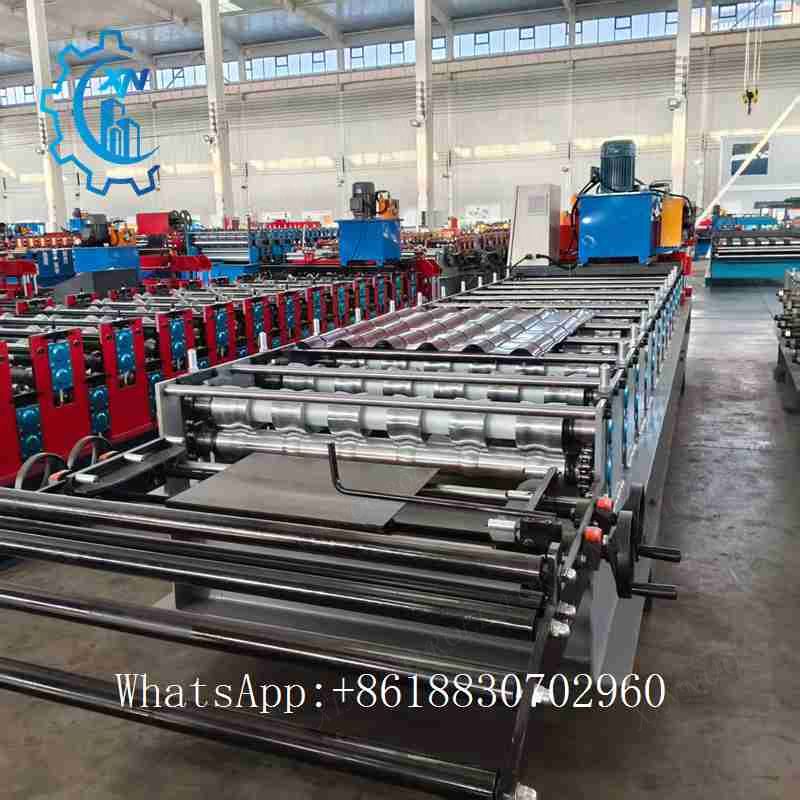

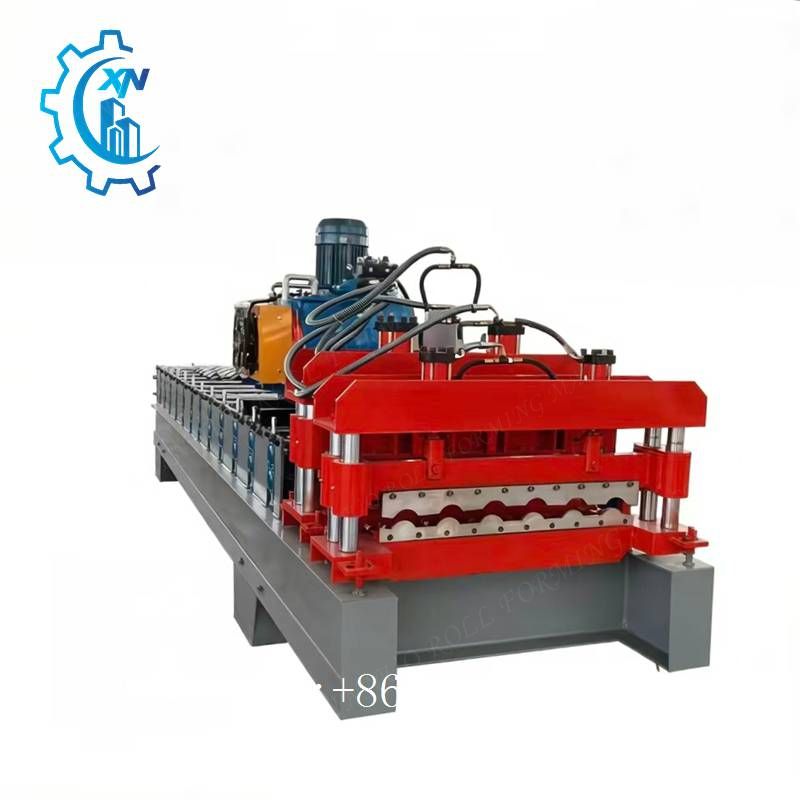

Glazed Tile Roll Forming Machine

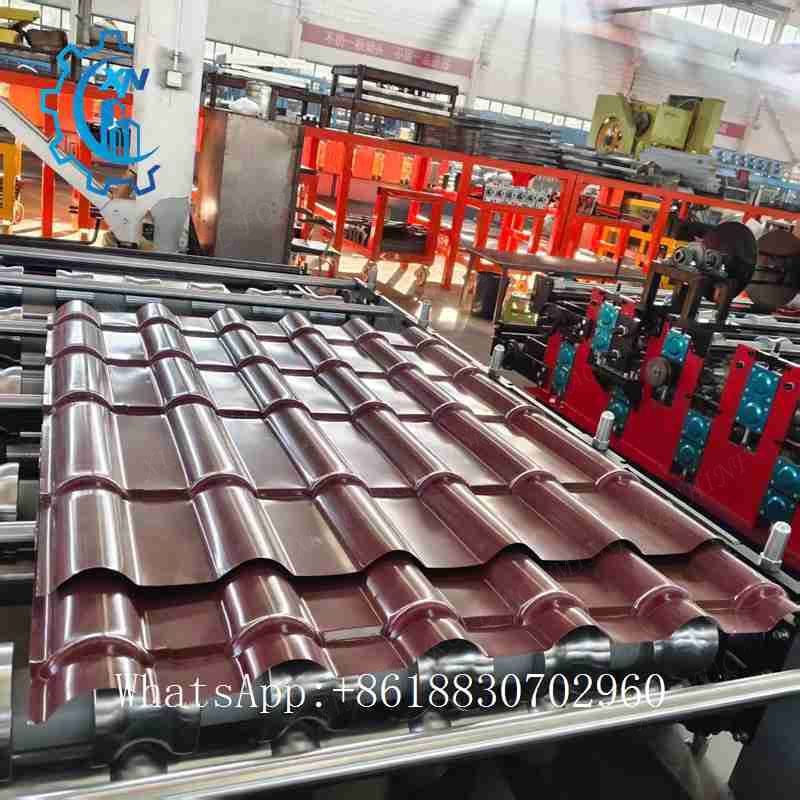

Glazed tile roll forming machine can produce diferent shapes of glazed tile roof sheets in various thickness and colors. Comparedwith traditional ceramic tles, itis much popular because of their economic cost, light weight, short building period; re-cycle use,

and elegant appearance.

It can be used as the roof of villas, luxury houses, theaters, exhibition centers, etc.

The compositiono of the Glazed Tile Roll Forming Machine

Decoiler (Uncoiler)
Feeding & Leveling System

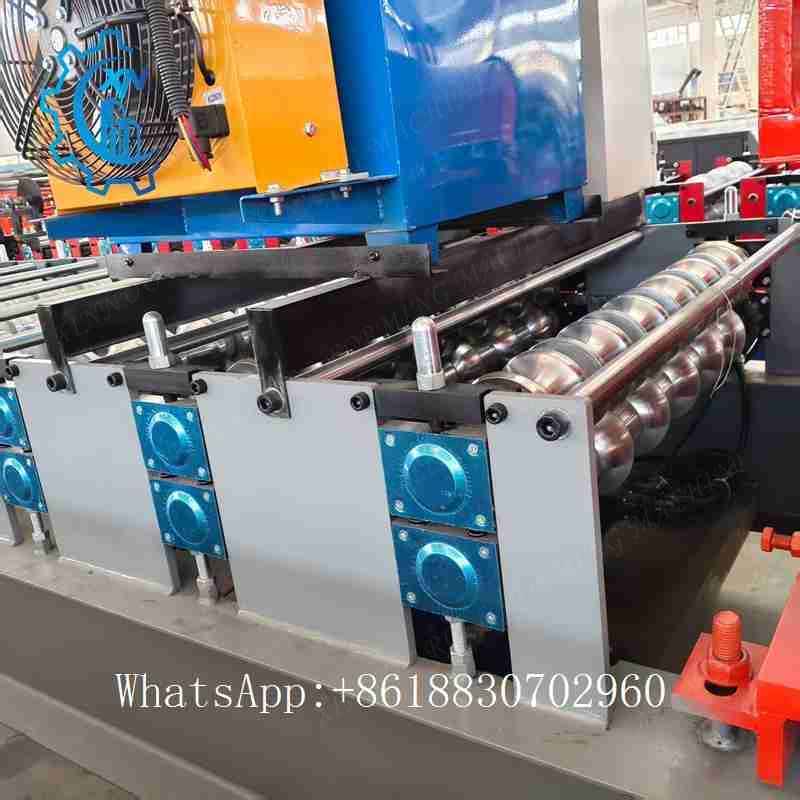

Roll Forming Mainframe

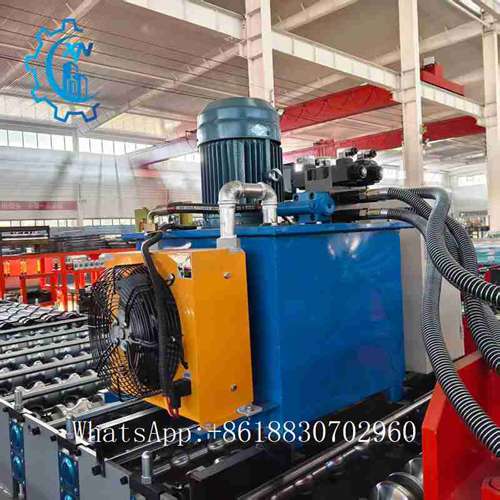

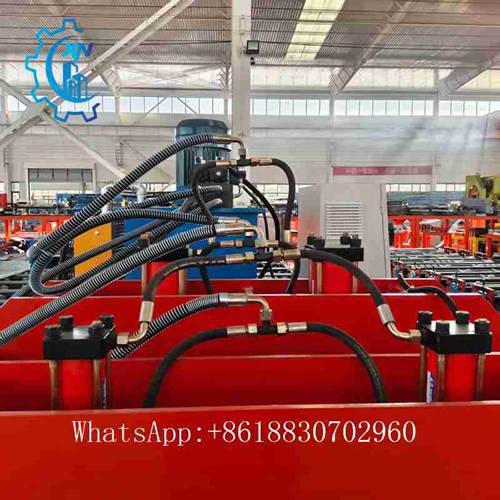

Hydraulic Cutting System

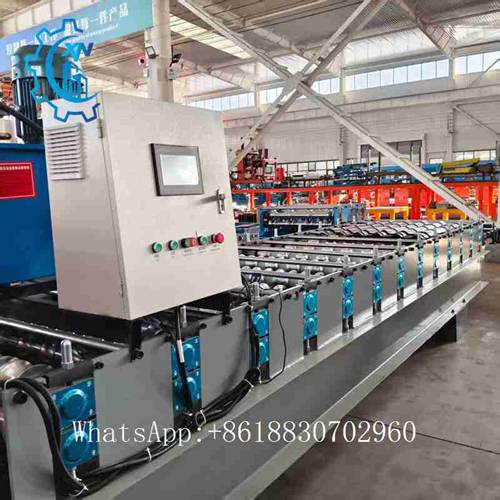

PLC Control System
Product Rack / Stacker

Parameter Name	Specification
Forming Material	Color Steel Coil, Galvanized Coil, Thickness 0.3-0.8mm
Forming Stations	11-17 Stations, Customizable on Demand
Main Motor Power	5.5-7.5kW, 380V/50Hz
Production Speed	8-15m/min, Frequency Conversion Adjustable

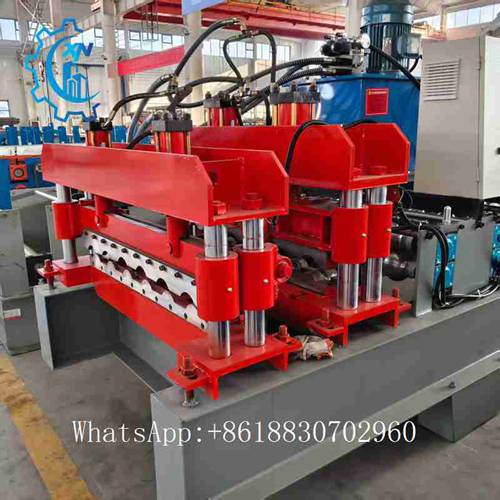

Cutting Method	Hydraulic Cutting, Flat and Burr-Free Cut
Length Accuracy	±1.5mm, Equipped with Encoder for Precise Control
Uncoiler Load Capacity	3-5 Tons, Hydraulic Automatic Tensioning
Machine Weight	About 3.5-5.5 Tons (Customizable on Demand)

Glazed Tile Roll Forming Machine Product Advantages

High Forming Precision: Equipped with 11-17 professional forming stations and high-precision encoder, the tile shape is standard, the size error is within ±1.5mm,

and it perfectly meets the construction requirements.

Efficient and Energy-Saving: Adopts frequency conversion control system, the production speed can be adjusted between 5-15m/min freely, and the main motor

adopts energy-saving design, which reduces power consumption while ensuring production efficiency.

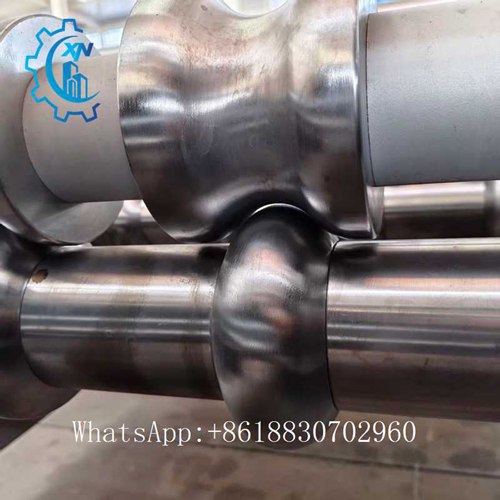

Durable and Wear-Resistant: The forming rolls are made of CR12MOV steel, after quenching and hard chrome plating treatment, the hardness reaches HRC58-62,

which is wear-resistant and corrosion-resistant, and the service life is prolonged by 30% compared with ordinary rolls.

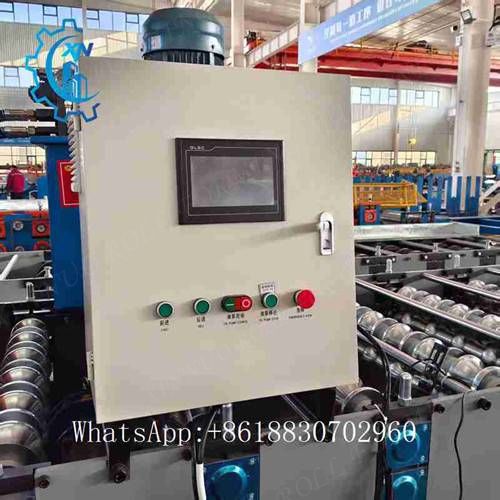

Full Automatic Operation: Controlled by PLC and touch screen, the whole process from uncoiling, leveling, forming to cutting is fully automatic, which reduces

manual operation, avoids human error and improves production stability.

Strong Customization: It can be customized according to the customer's needs for tile type, thickness and length, and is compatible with various specifications of

color steel coils and galvanized coils, adapting to different construction scenarios.
