roof tile glazed tile roll forming machine

Product Attributes :

Min.Order Quantity:1 Pieces

Develivry time:45-60 workdays

Working speed:15-20m/min

Payment Terms:40% T/T in advance,60% when shipping

Email:xinnuo05@xinnuomachine.com

WhatsApp：+8618830702960

Product Description

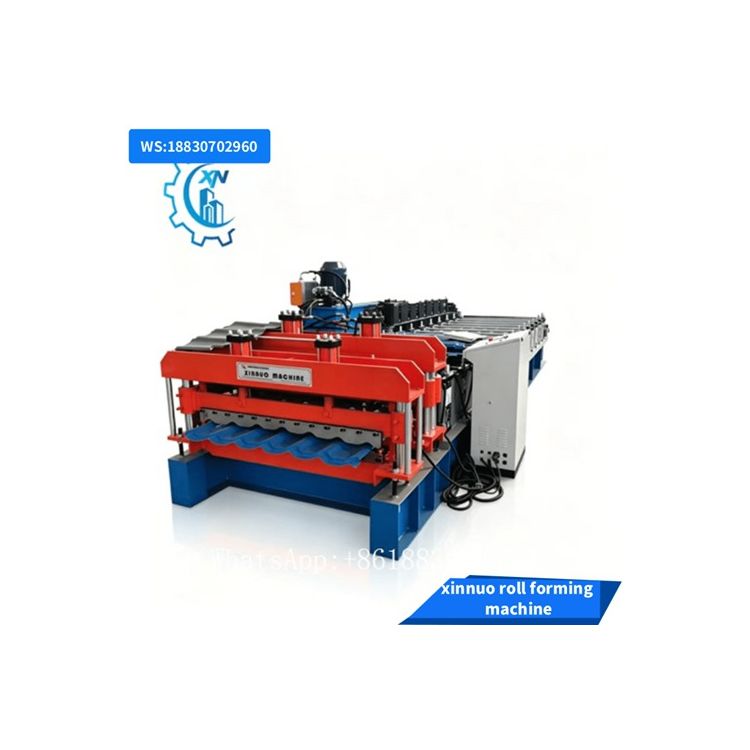

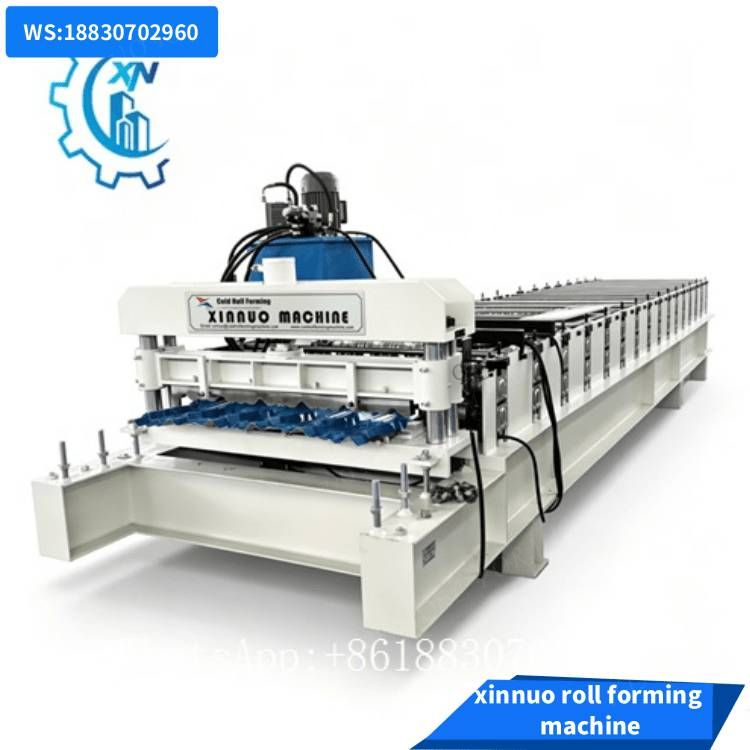

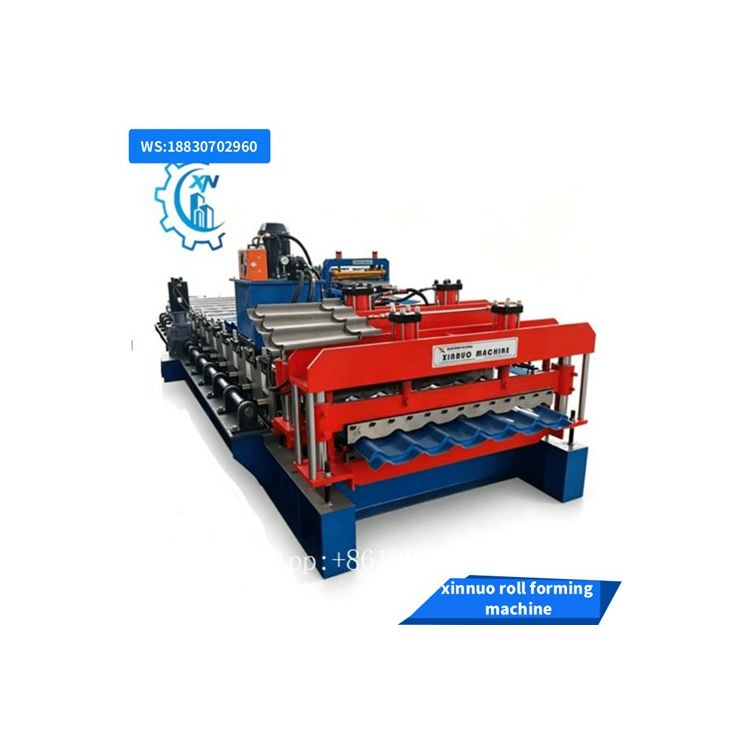

The XINNUO Glazed Tile Roll Forming Machine is a high-performance cold roll forming system engineered for the continuous production of metal glazed roofing tiles. Designed to replicate the classic aesthetics of traditional clay tiles in durable,

lightweight steel, this machine delivers precision, efficiency, and reliability for modern roofing manufacturers.

Featuring a heavy-duty steel frame, multi-station progressive roller forming, PLC automatic control, and an integrated hydraulic cutting system, the XINNUO glazed tile former converts galvanized or color-coated steel coils directly into finished roofing panels — all in one seamless production line.

Key Features

Feature	Description
High-Precision Roll Forming	18+ progressive roller stations ensure accurate tile profile geometry with smooth, consistent surface finish.
Hydraulic Cutting System	Independent hydraulic power unit with precision shear die — cuts panels to exact length without deformation.
PLC Automatic Control	Touchscreen PLC system with intuitive interface for speed adjustment, length setting, batch counting, and fault diagnosis.
Heavy-Duty Construction	Welded steel frame with reinforced I-beam base — built for 24/7 continuous production with minimal vibration.
Quick Roller Change	Modular roller cassette design enables fast profile changeover, reducing downtime between production runs.
Wide Material Compatibility	Processes galvanized steel, galvalume, pre-painted coils, and aluminum-zinc alloy sheets — thickness 0.3–0.8mm.

Technical Specifications

Parameter	Specification

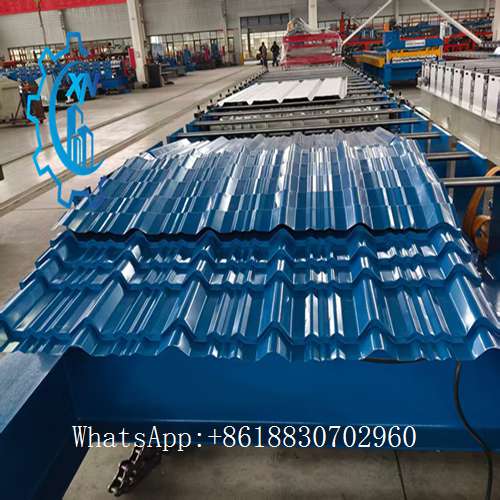

Product Profile	Glazed / Spanish / Stepped tile roofing panel
Raw Material	Galvanized steel, color-coated steel coil
Material Thickness	0.3 – 0.8 mm
Forming Speed	8 – 15 m/min
Roller Stations	18 stations (customizable)
Roller Material	45# steel with hard chrome plating
Cutting System	Hydraulic shear, post-cut
Cutting Tolerance	±2 mm
Control System	PLC with touchscreen HMI
Main Motor Power	7.5 – 11 kW
Hydraulic Power	5.5 kW
Power Supply	380V / 50Hz / 3-Phase (customizable)
Machine Dimensions	Approx. 8500 × 1500 × 1600 mm
Machine Weight	Approx. 8 – 10 tons

Applications

Residential villa roofing
Steel structure factory and warehouse roofing
Commercial building and shopping mall roofing
Resort, hotel, and scenic area architecture
Prefabricated housing and modular construction

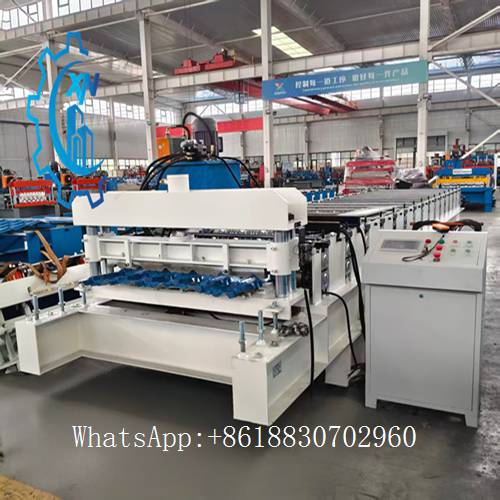

Machine Composition

	Component	Function
1	Manual / Hydraulic Decoiler	Holds and feeds the steel coil into the line; supports 3–5 ton coil weight with adjustable tension control.
2	Feeding & Leveling Unit	Guides the flat strip into the machine with alignment rollers and pre-leveling to eliminate coil curvature.

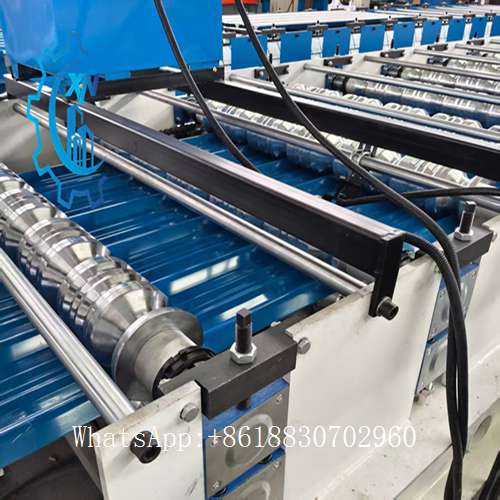

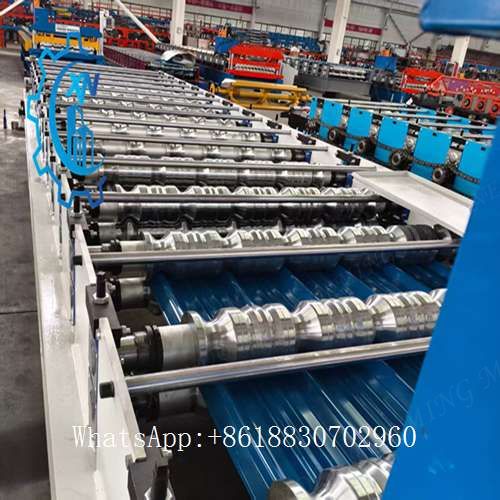

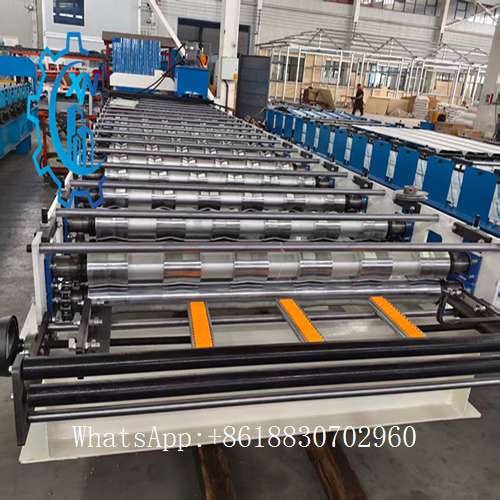

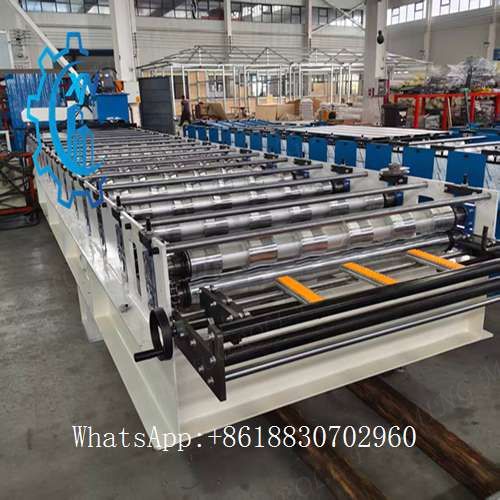

3	Roll Forming Main Unit	18 progressive roller stations with chrome-plated forming rollers that gradually shape the flat sheet into the glazed tile profile.

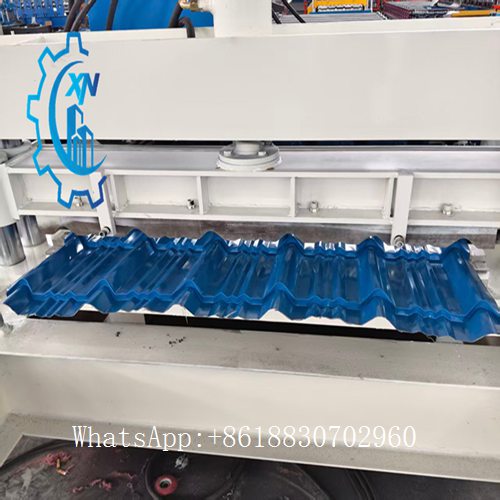

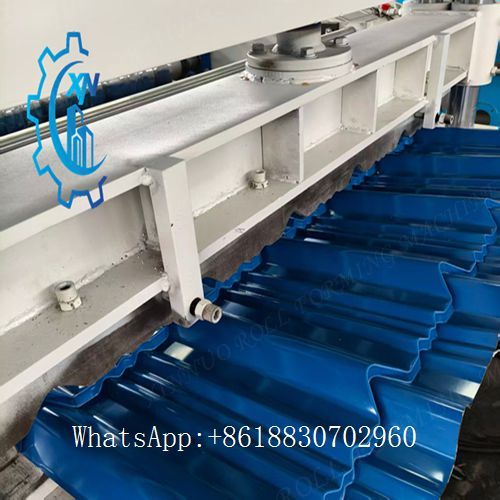

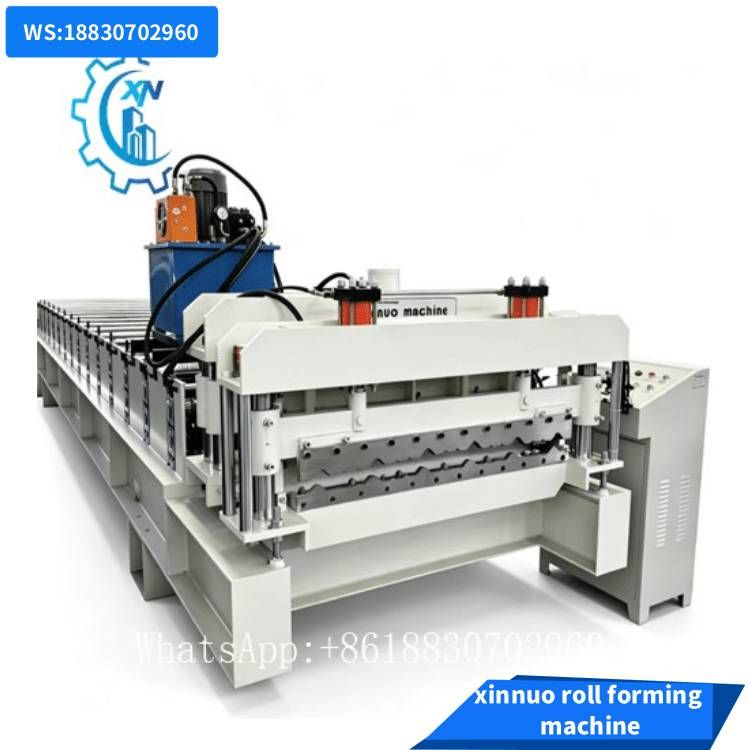

4	Hydraulic Cutting System	Post-cut hydraulic shear with profile-matched die; cuts panels to preset length with ±2 mm accuracy.
5	Hydraulic Power Station	Independent blue hydraulic tank with electric motor and pump; supplies controlled pressure to the cutting unit.

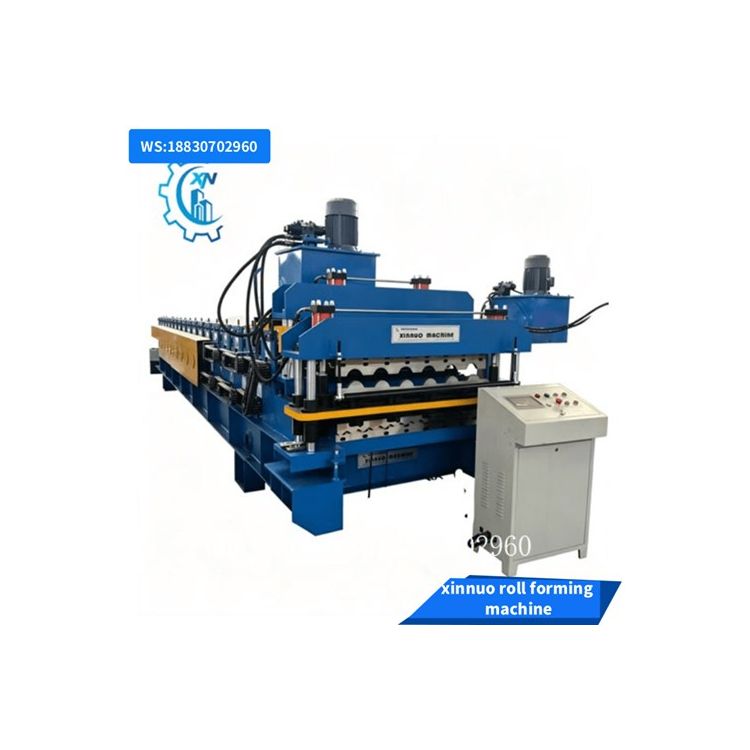

6	PLC Control Cabinet	Touchscreen HMI with programmable logic controller; manages speed, length setting, batch counting, and fault alarms.
7	Run-Out / Discharge Table	Output conveyor rollers that support finished panels as they exit the cutting station for manual or automatic stacking.
8	Electrical System	Heavy-duty cabling, sensors, and motor drives; compatible with 380V/50Hz/3-Phase (customizable).
