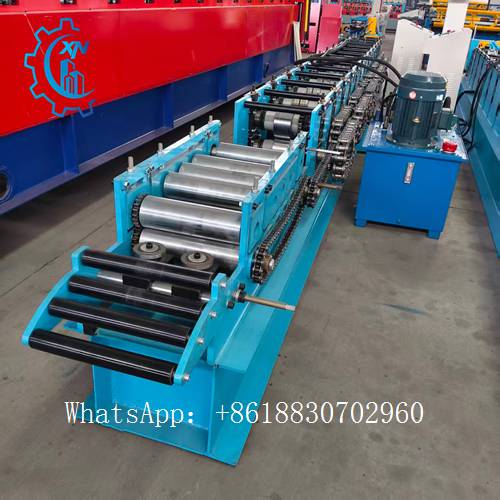

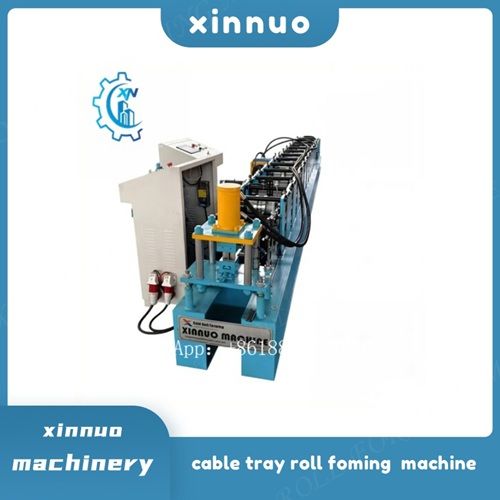

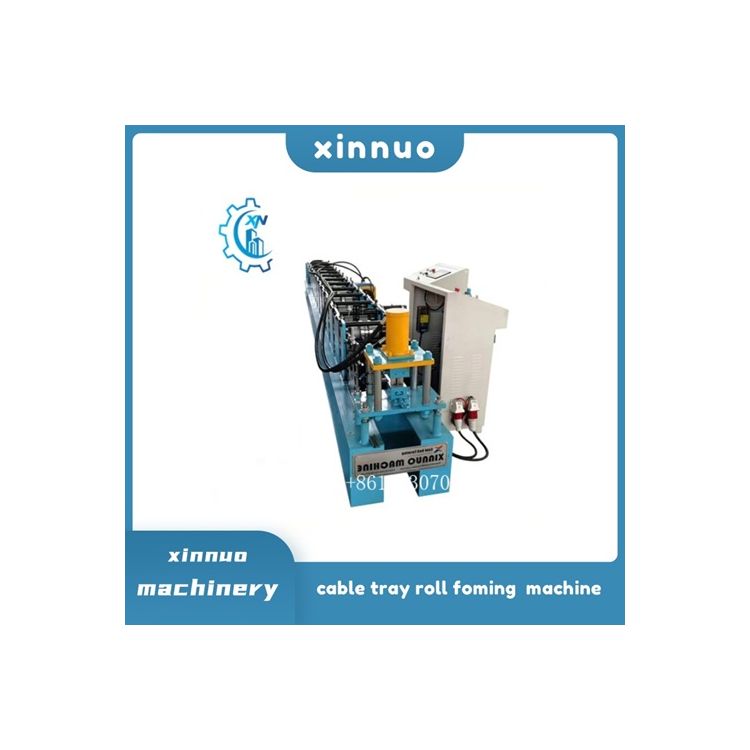

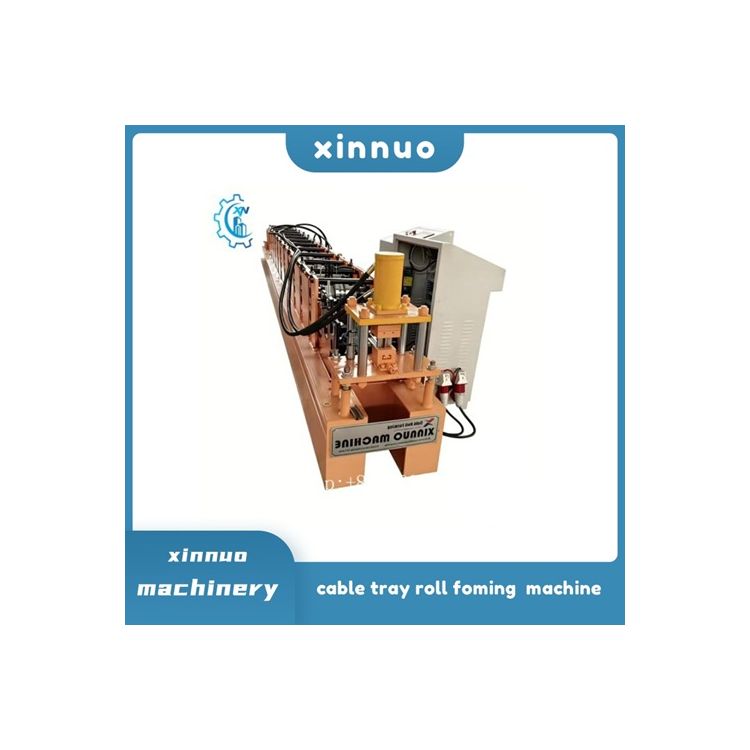

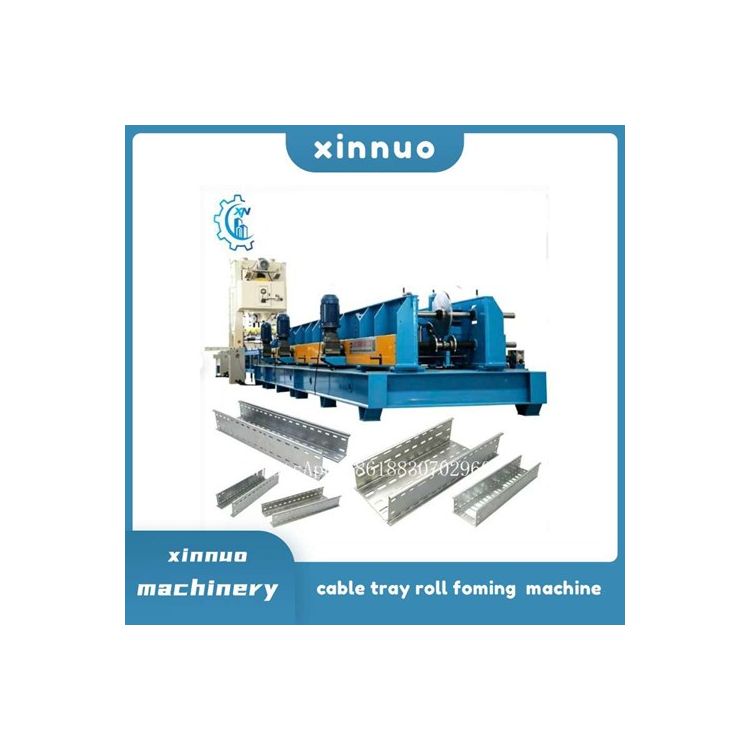

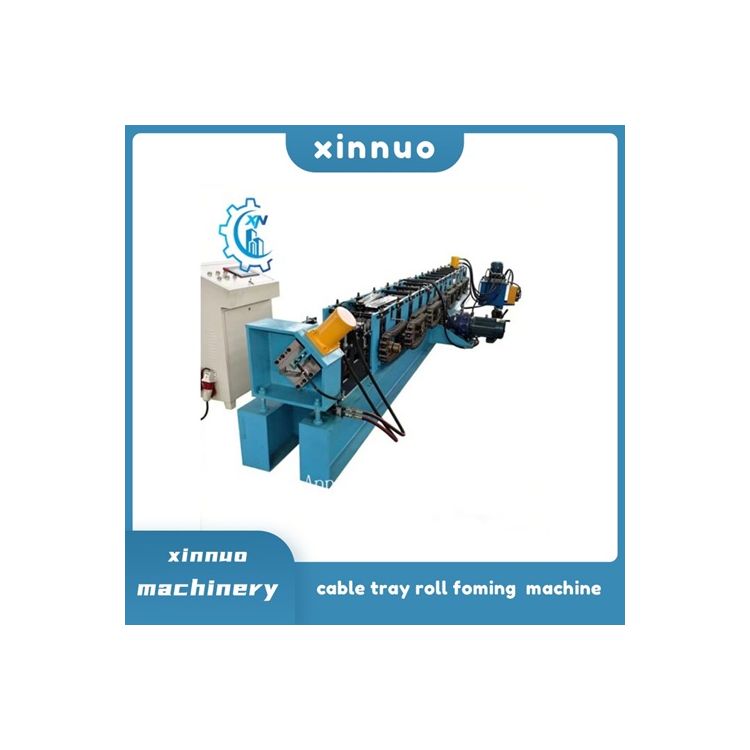

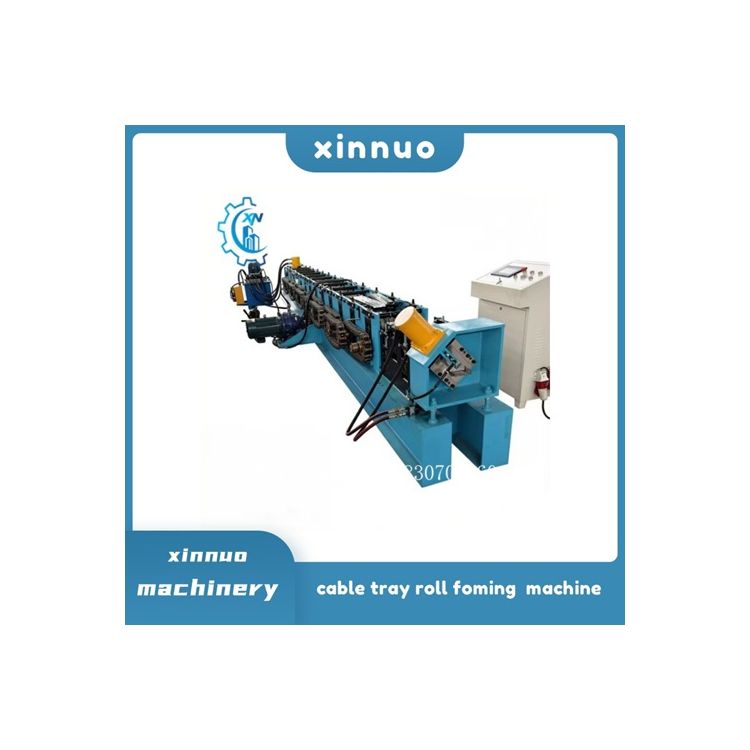

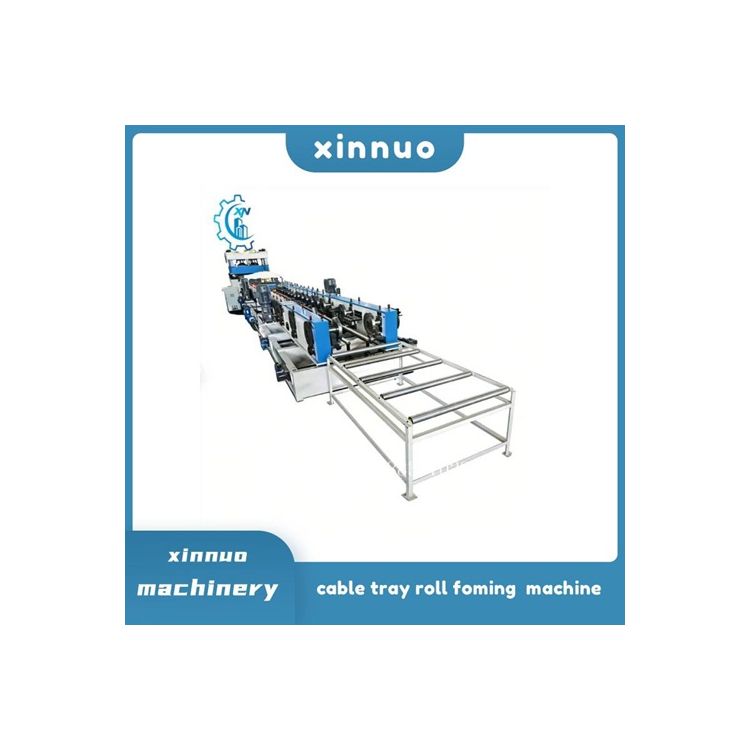

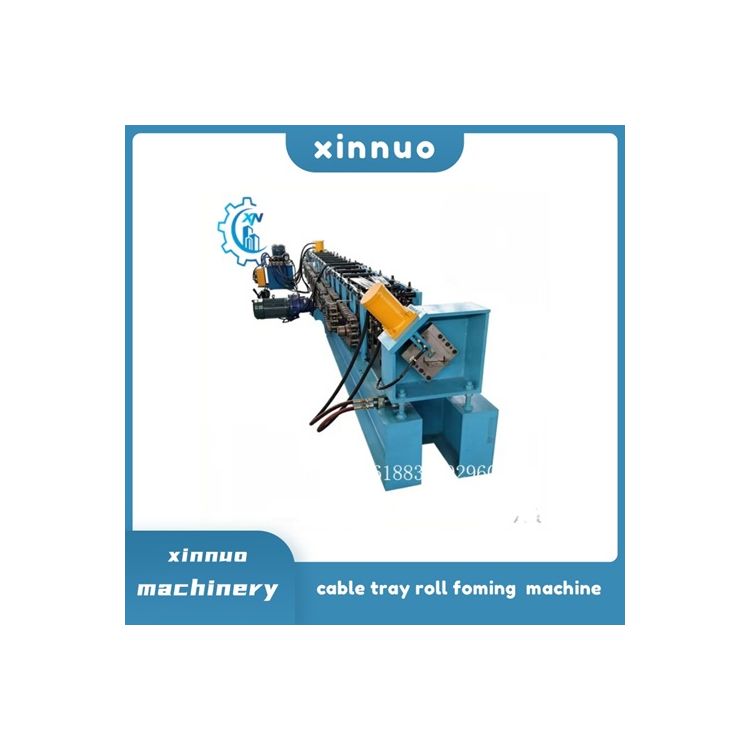

perforated cable tray machine

XINNUO Cable Tray Making Machine is used to produce cable trays. The system can safely transport wires and cables to prevent collisions, overheating and fire.

XINNUO can provide customers with different types of cable tray machine manufacturing solutions, including:

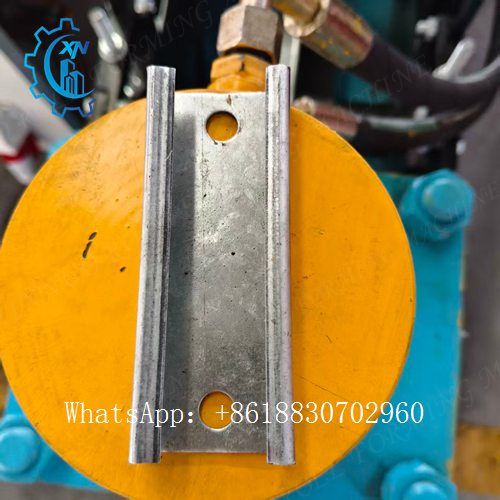

Din Rail Channel Machine,

Cable Ladder Machine,

Cable Tray Cover Machine,

Solid Bottom Cable Tray Forming Machine,

Perforated Cable Tray Machine,

Trough Cable Tray Machine.

And according to the different production needs of customers, such as the width, thickness, height of the metal coil, the parameter components of the

cable tray machine will be adjusted to complete the final cable tray making machine design.

Application of Cable Tray Machine

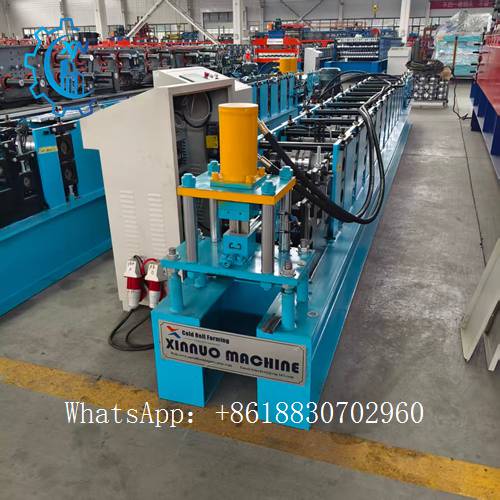

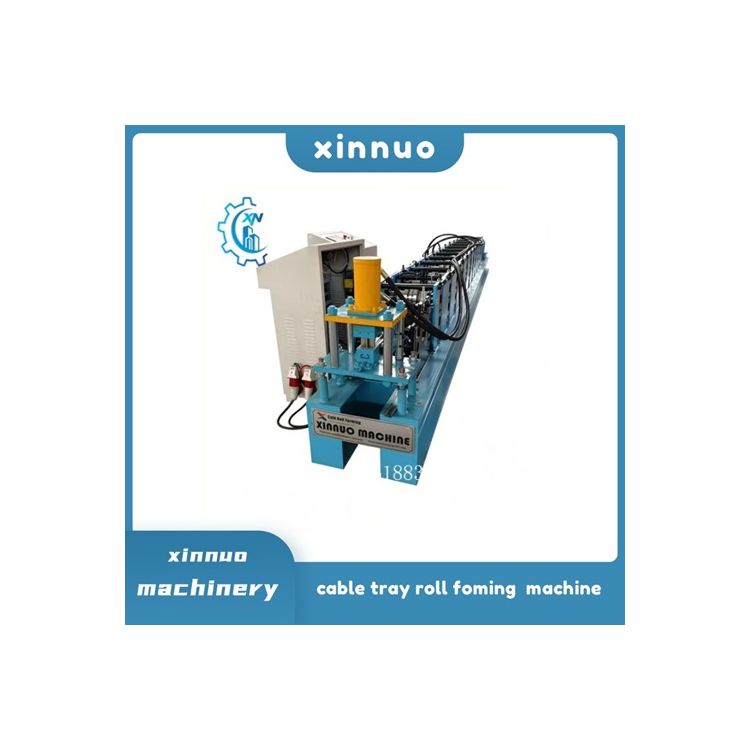

 Cable Tray Cutting Unit for Cable Tray Making Machine

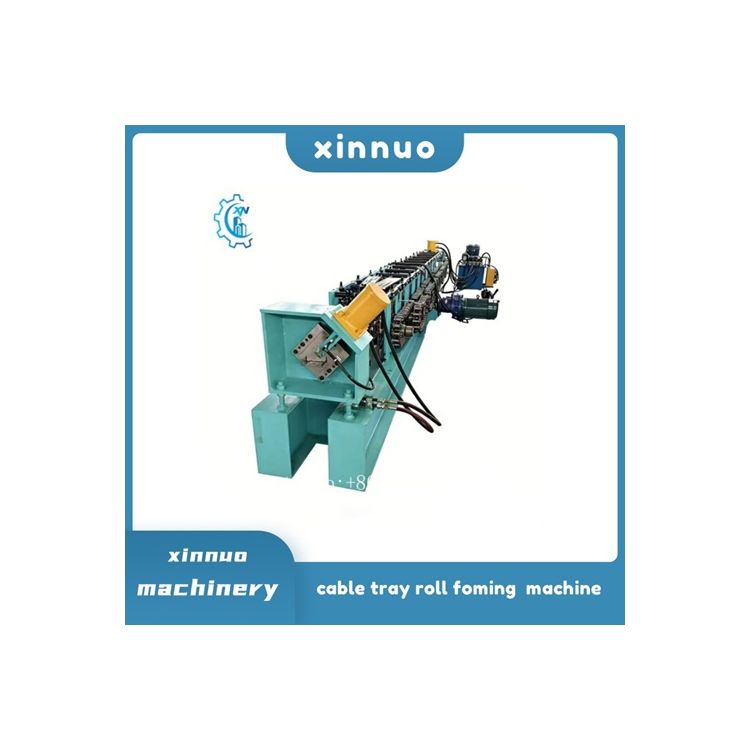

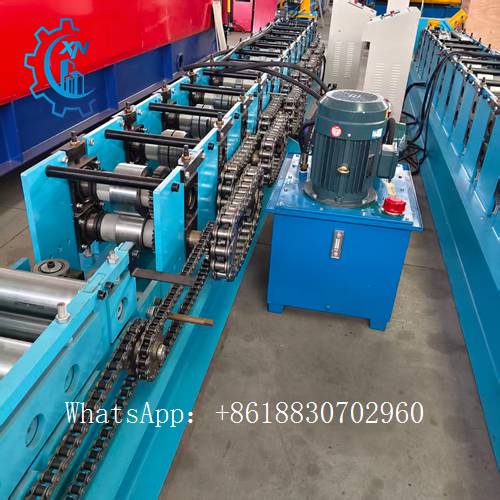

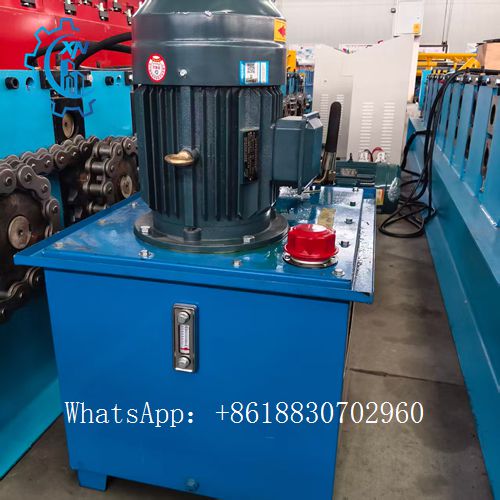

The cutting system of XINNUO cable tray machine adopts hydraulic cutting, and the cutting die is made of SKD11 steel, manufactured by CNC machine tools, and heat treated to 55-60HRC.

This material selection and manufacturing process ensures the durability and stability of the shearing tool, which can remain sharp during long-term production and reduce maintenance costs.

 The high efficiency of the hydraulic shearing system enables the cable tray making machine to cut quickly, ensuring the length accuracy and cutting quality of the cable tray, and avoiding material

waste caused by improper cutting. By optimizing the shearing process, the efficiency of the cable tray machine has been significantly improved.

Parameters of Cable Tray Making Machine

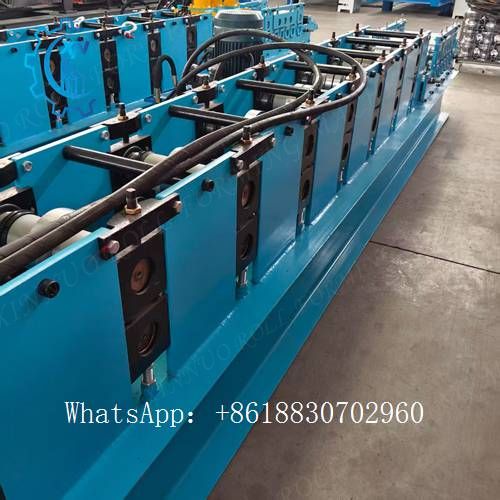

cable tray roll formign machine

1. The cable tray making machine adopts hydraulic cutting to accurately cut according to the customer's preset length.

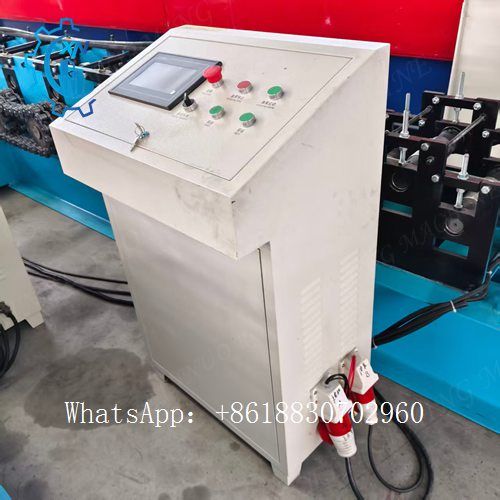

2. The intelligent control panel facilitates workers to operate, monitor and adjust parameters of the cable tray machine.

3. The cable tray making machine can automatically punch holes with high hole accuracy and strong consistency.

4. The cable tray machine adopts high-strength and durable components to ensure production stability and reduce maintenance costs.

5. The cable tray machine can produce cable trays of different sizes by adjusting the roller group.

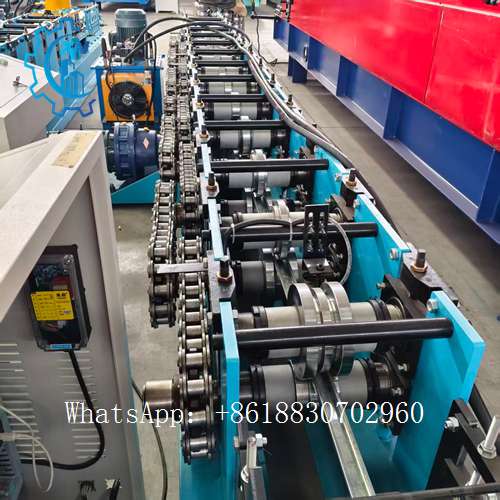

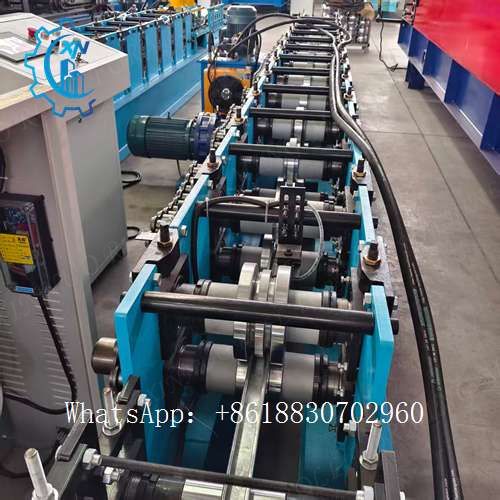

6. The cable tray machine adopts advanced roll forming technology to produce accurate and high-quality cable trays.

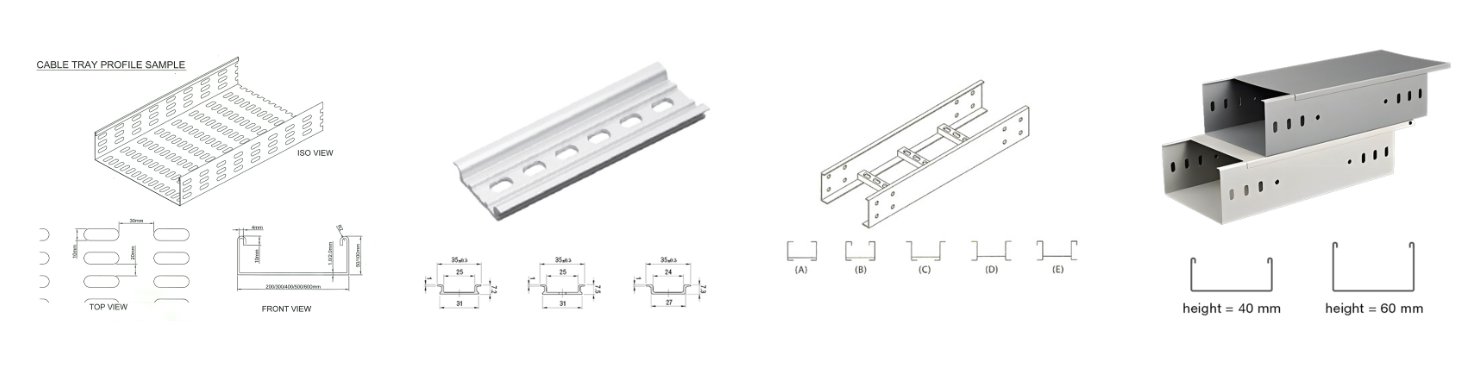

Drawing About Cable Tray System

2026 Industry Trends for Cable Tray Roll Forming Machines

• Digital setup and verification: Vision systems verify hole patterns and flange geometry; digital twins optimize roll flower design before production.
• Faster, cleaner operations: Servo-driven punching racks reduce die wear; VFDs and regenerative drives cut energy use.
• Sustainability and EPDs: Project specs increasingly require Environmental Product Declarations for trays; OEMs support high-recycled-content steel processing.
• Safety by design: Performance Level d/e safety circuits, light curtains, and interlocked guards are standard for export markets.
• End-to-end automation: Inline punching, embossing, perforation, logo marking, flying shear, auto nesting, and robotic stacking/palletizing shrink labor content per ton.
• Regional demand shift: Data center and renewables buildouts accelerate tray demand in North America, India, and MENA.
