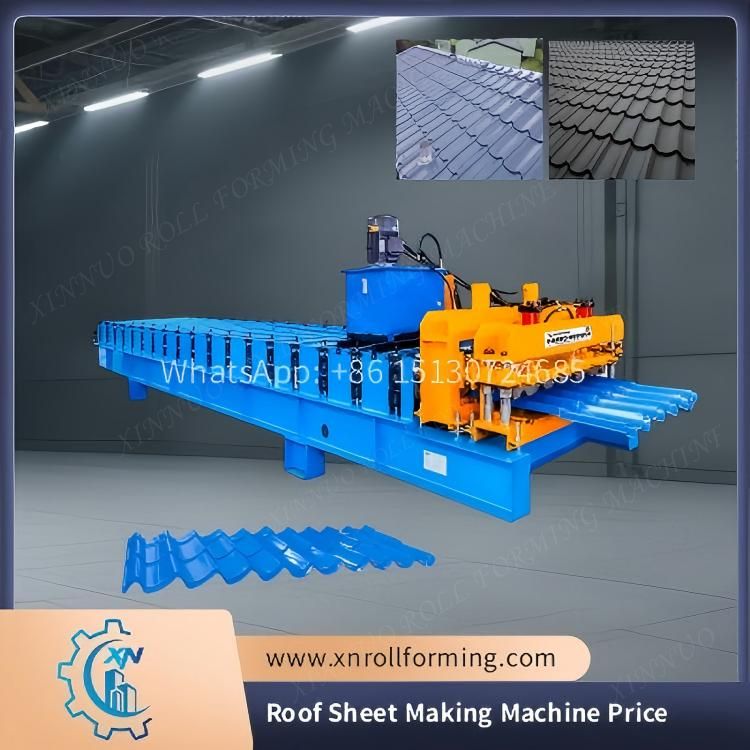

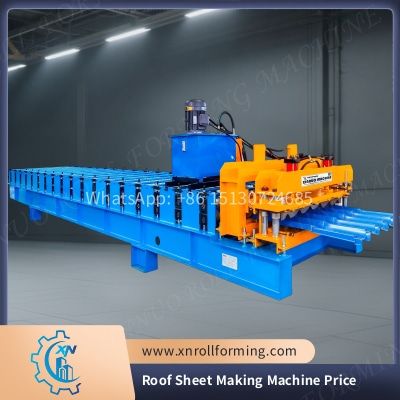

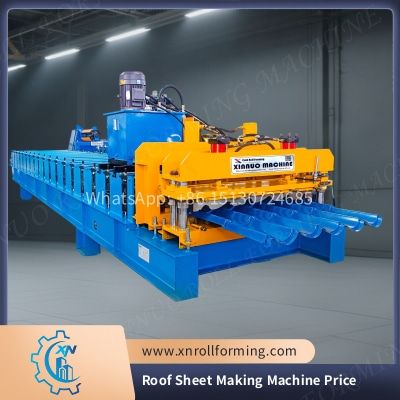

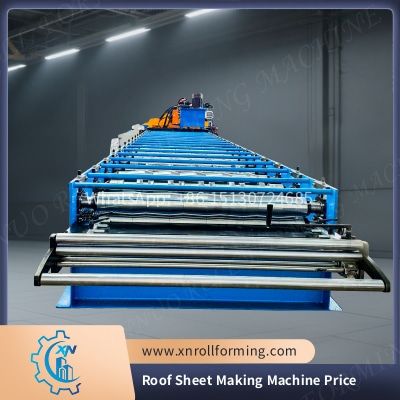

Xinnuo 828 Single-Layer Hydraulic Circular-Arc Glazed-Tile Roofing Panel Machine — the silent power behind roofs that look hand-forged yet roll off the line like clockwork. Built around the iconic 828 mm effective cover width, this cold-roll marvel transforms ordinary 1000 mm color-steel coils into gracefully arched glazed tiles whose fluid curves catch and reflect sunlight like traditional ceramic, yet weigh a fraction and install in hours.
|
NO.
|
Main parameter of Single layer hydraulic circular arc 828 glazed tiles roofing panel sheet making machinery metal cold roll forming machine
|
|
1
|
Suitable to process
|
Color steel plate
|
|
2
|
Width of the plate
|
1000mm
|
|
3
|
Thickness of the plate
|
0.3-0.7mm
|
|
4
|
De-coiler
|
Manual one,can load 5 tons raw material
|
|
5
|
Rollers for forming
|
9 rows
|
|
6
|
Diameter of the roller
|
70mm
|
|
7
|
Rolling material
|
Carbon Steel 45#
|
|
8
|
Main motor power
|
4kw
|
|
9
|
Productivity
|
0-3m/min
|
|
10
|
Cutting method
|
Hydraulic mould cutting
|
|
11
|
Material of the cutting blade
|
Cr12
|
|
12
|
Hydraulic cutting power
|
3kw
|
|
13
|
Processing precision
|
Within 1.00mm
|
|
14
|
Control system
|
Delta PLC control
|
|
15
|
Side panel of machine
|
14mm
|
|
16
|
Main structure of the machine
|
300 H steel
|
|
17
|
Weight
|
About 4.0T
|
|
18
|
Dimensions
|
7.0+1.5+1.55m
|
|
19
|
Voltage
|
380V 50Hz 3phases(changeable as needs)
|
|
20
|
Certificate
|
CE/ISO
|
|
21
|
Custom
|
According to customer’s requirements
|

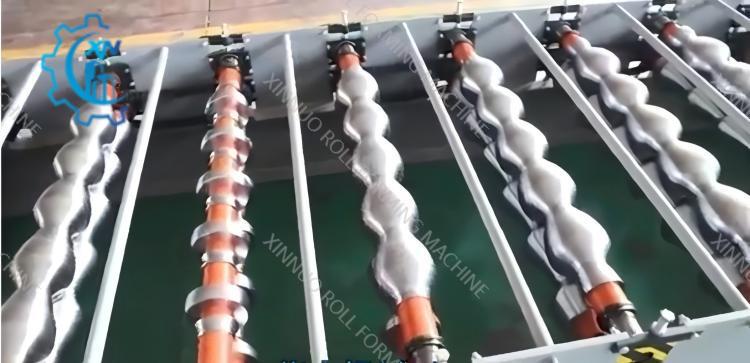

Every journey begins at the manual 5-ton de-coiler. A simple lever swing locks the mandrel, air brakes feather tension, and the strip glides into the forming section without a single wave or buckle. Nine forming stations, each roller forged from carbon-steel 45# and ground to a precise 70 mm diameter, shape the metal in progressive arcs. The secret is the final curved station: a hydraulic micro-positioning slide lets operators fine-tune the crown radius by fractions of a millimetre, ensuring every tile stacks perfectly on the pallet and every roof line looks laser-true.

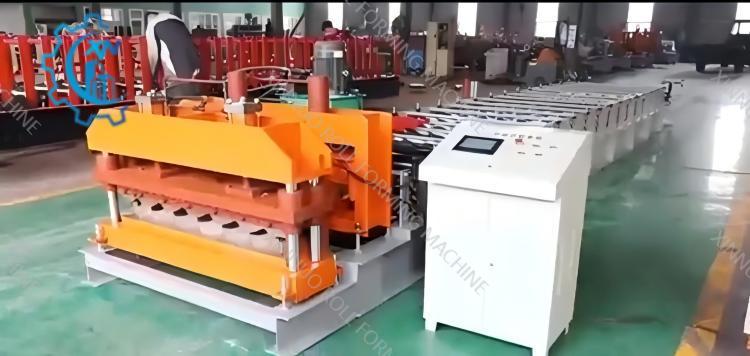

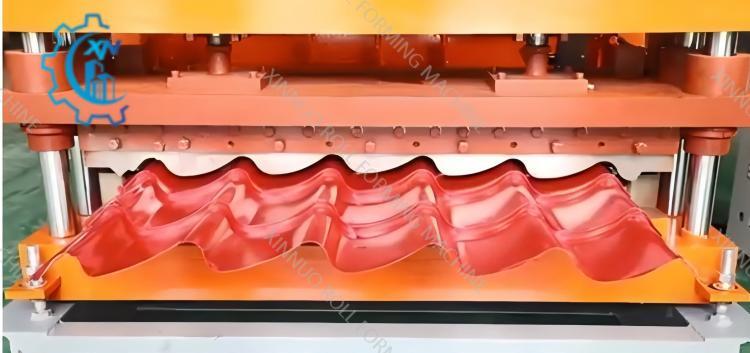

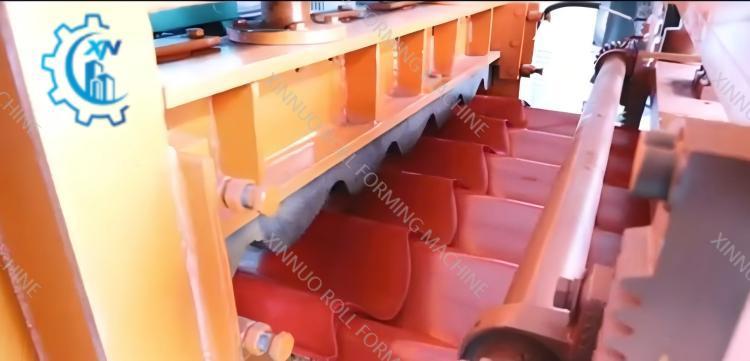

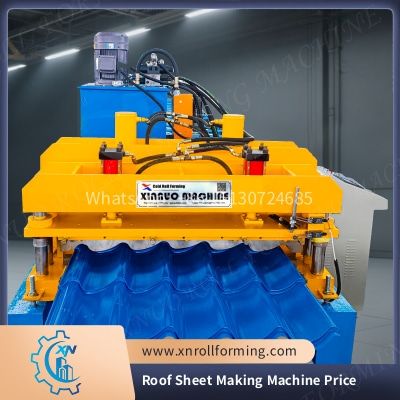

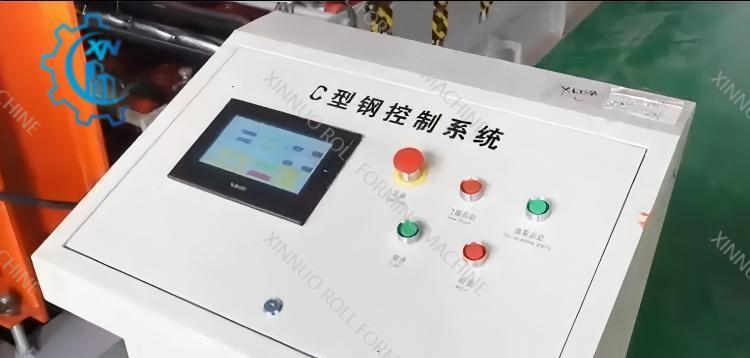

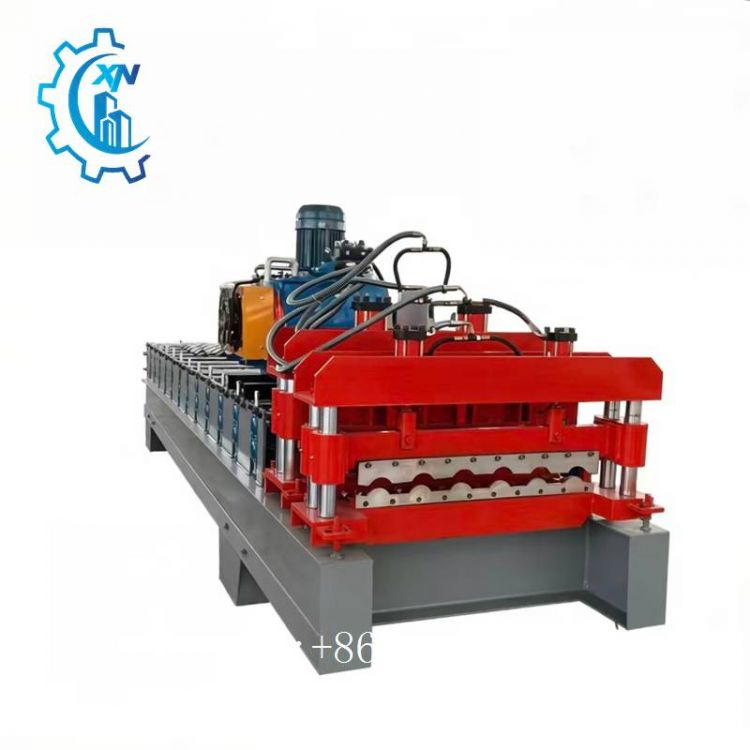

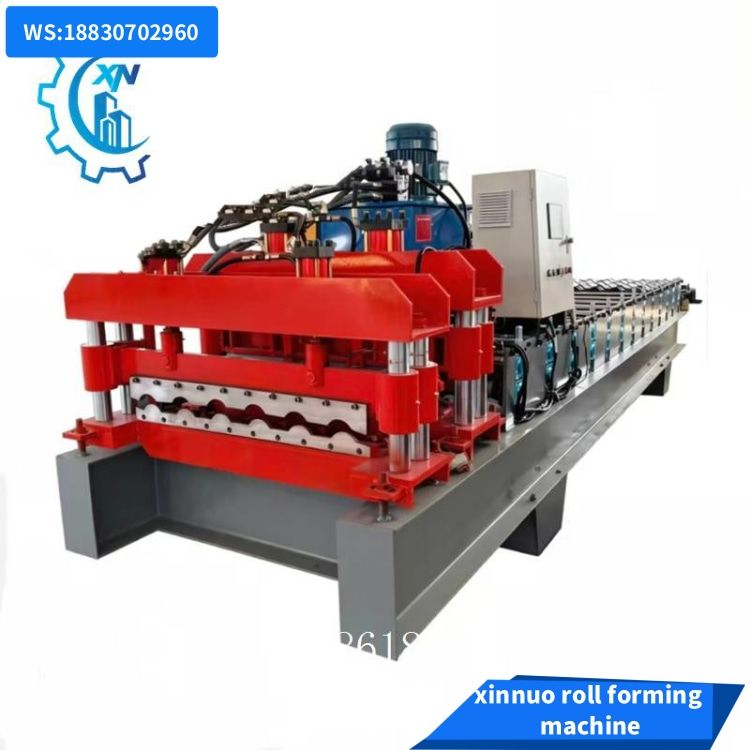

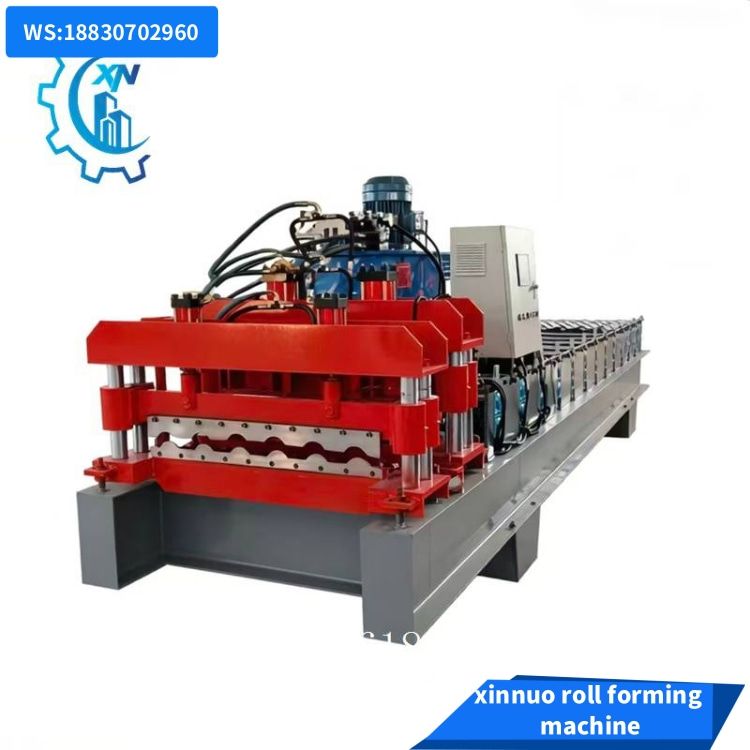

Power is delivered by a 4 kW motor coupled to a hardened gearbox. Speed is infinitely variable from crawl (for operator training) up to 3 m/min for full production, always monitored by Delta PLC with encoder feedback for length accuracy within 1 mm. When the target dimension is reached, a 3 kW hydraulic station actuates a Cr12 mould blade that slices cleanly through the curved profile without distorting the arc. The off-cut drops away, the finished tile exits onto a powered roller table, and the cycle repeats with zero operator intervention.
The frame is engineered for decades of vibration-free service: 300 mm H-steel spine, 14 mm laser-cut side plates, and a total weight of 4 tons that anchors the line to the floor yet fits within a modest 7.0 m forming bed plus 1.5 m entry guide and 1.55 m run-out. Electrical requirements are 380 V 50 Hz three-phase as standard, but Xinnuo’s modular control cabinet accepts 220 V or 60 Hz variants on request, making relocation between continents a plug-and-play affair. CE and ISO certificates accompany every shipment, accelerating customer audits and insurance approvals.
Customization is limitless. Need a deeper crown for alpine snow load? Additional forming stations can be added. Want embossed wood-grain texture? Quick-change texture rollers install in minutes. From coastal villas to industrial warehouses, the 828 machine delivers timeless aesthetics with modern efficiency—one flawless arc at a time.
