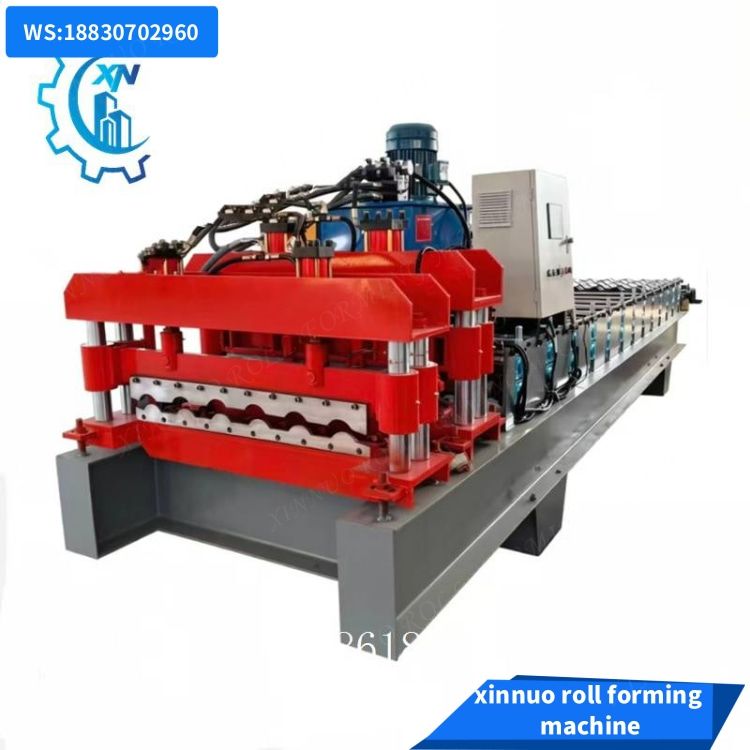

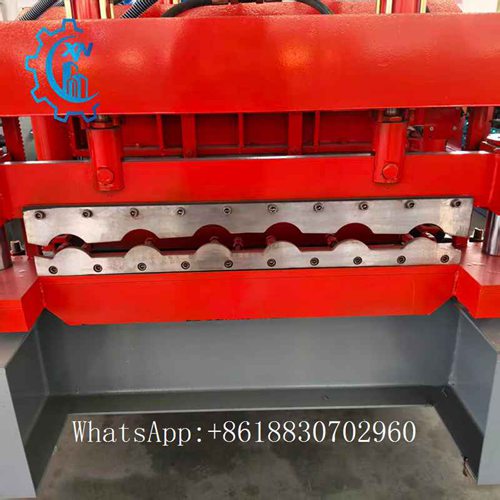

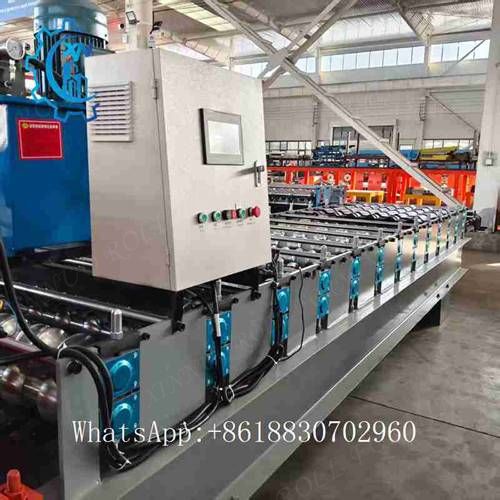

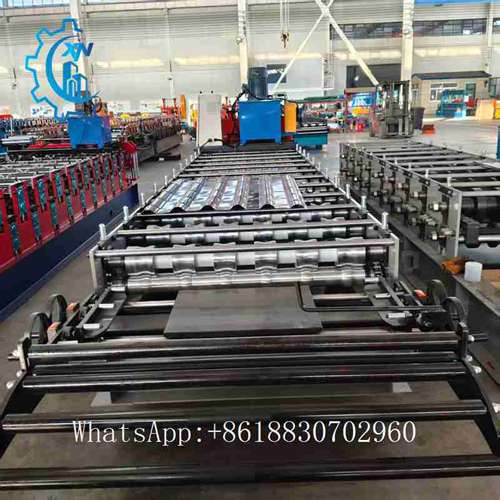

Model:metal roof glazed tile roll forming machine
Min.Order Quantity:1 Pieces
Develivry time:45-60 workdays
Working speed:8-15m/min
Payment Terms:40% T/T in advance,60% when shipping
Raw material: Galvanized steel coil/ Galvalume steel coil/ Color steel coil/ Aluminum steel coil/ Stainless steel coil
Feeding thickness: 0.3-1.0mm(Galvanized steel coil/ Galvalume steel coil/ Color steel coil/ Stainless steel coil); 0.3-1.2mm (Aluminum steel coil)
| Parameter Name | Specification |
|---|---|
| Suitable Material | Color steel coil, galvanized steel coil, aluminum coil |
| Material Thickness | 0.3 – 1.0 mm |

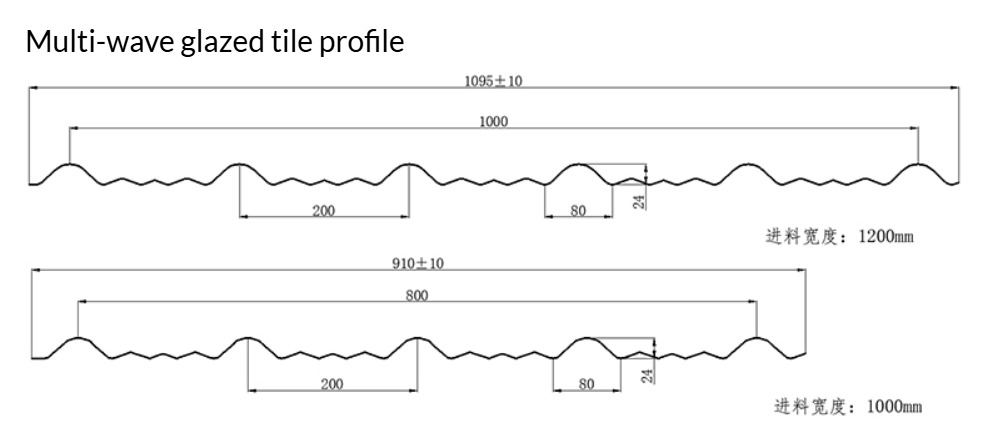

| Effective Width | 900 – 1200 mm |

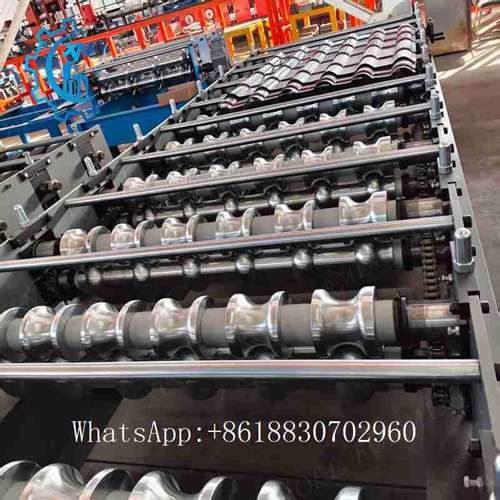

| Forming Stations | 14 – 20 stations |

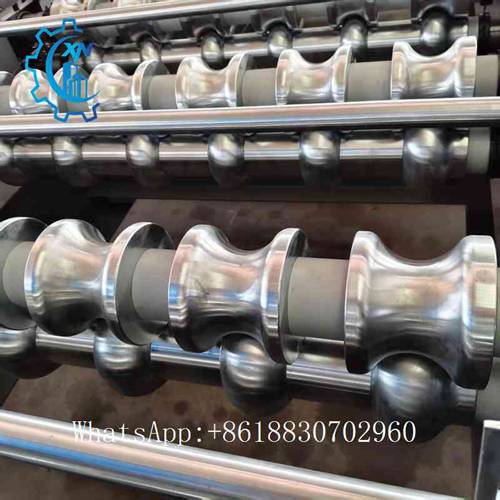

| Roller Material | Cr12MoV |
| Main Motor Power | 7.5 – 15 kW |
| Working Speed | 8 – 20 m/min |
| Control System | PLC + touch screen + encoder |

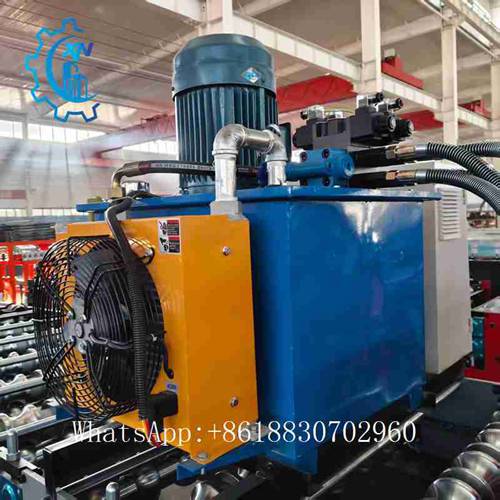

| Cutting Type | Hydraulic post-cutting |
| Power Supply | 220V/380V/480V, 50/60Hz, 3-phase |
metal roof glazed tile roll forming machine package and loading
1. The main machine is covered by plastic film.
2. PLC control box, spare parts and other small parts are packed by wooden carton box.
3. If the machine is too long, we will divide it into two parts and pack them in one package with steel wire.
4. Rollers and shafts are covered with anti-rust oil.
5. Manual decoiler was nude packing.
6. The output-table put into a carton box.
7. Fit for ocean shipping.
8. Spare parts in a carton box.
9. Manual decoiler was nude packing
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
