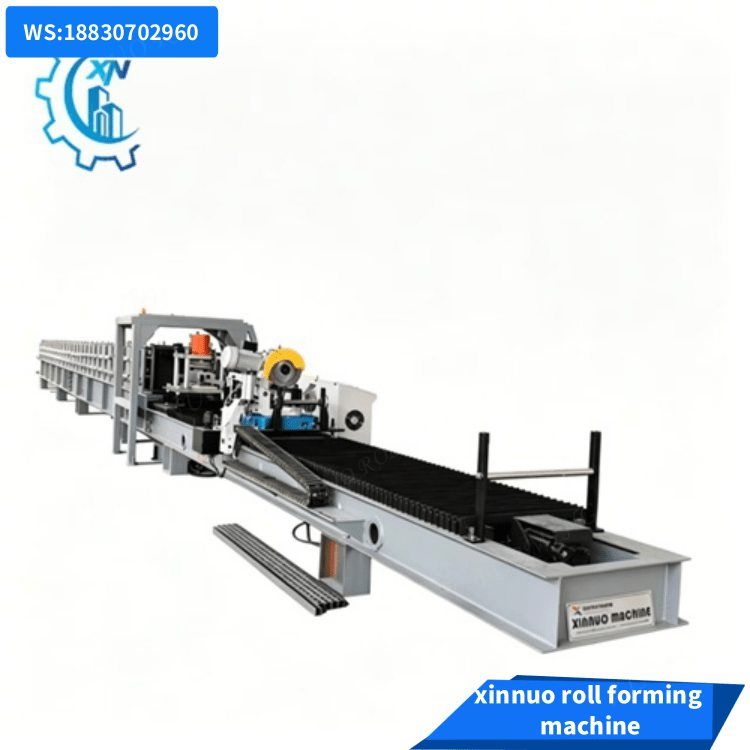

CU Solar Channel Making Machines are XINNUO Roll Former specialty machines. This Solar Unistrut Channel Making Machine is used to produce specialized solar channels for mounting solar panels, which are used to install solar frame power generation systems and secure solar panels. Typical materials used are carbon steel, galvanized steel, and stainless steel. XINNUO Roll Former provides customized CU Solar Channel Making Machine manufacturing solutions for customers from various countries.
Working Process of CU Solar Channel Machine

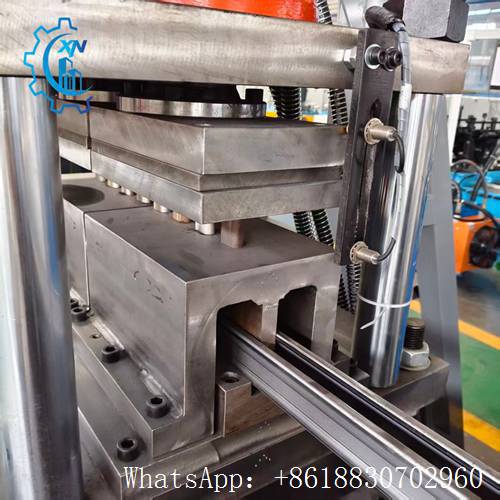

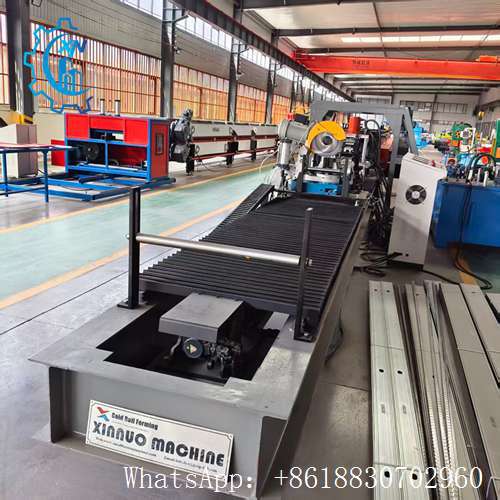

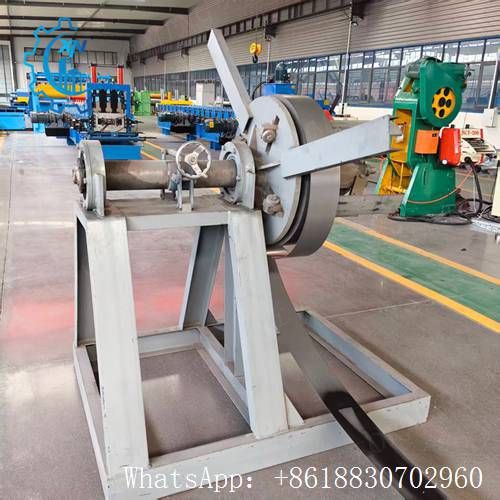

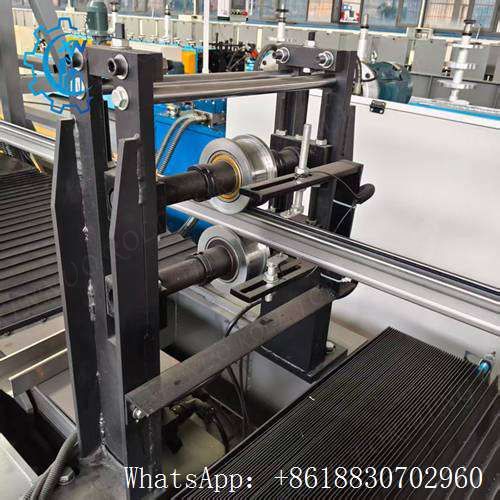

Decoiler - Leveling Machine - Metal Punching Machine- Roll Forming Machine - Cutting Station- Output Table
The primary materials used in Solar Uni strut Channel Making Machines include carbon steel, galvanized steel, and stainless steel. These materials offer excellent corrosion resistance and strength,
effectively extending the solar channel's service life. Hot-dip galvanized carbon steel channels, in particular, can withstand rust-free outdoor use for up to 30 years, which is crucial for the long-term
stability of solar photovoltaic support systems.
CU Solar Channel Roll Forming Machine Parameter Table
| No. | Parameter Item | Technical Specification |
|---|---|---|
| 1 | Equipment Name | CU Solar Channel Roll Forming Machine |
| 2 | Material Feed Width Range | 40–200 mm |
| 3 | Strip Thickness Range | 2–2.5 mm |
| 4 | Raw Strip Material | Q235 Hot-Dip Galvanized Steel Strip |
| 5 | Operating Production Speed | 1–15 m/min |
| 6 | Minimum Workpiece Length | 2000 mm |
| 7 | Linear Length Tolerance | 1–1.5 mm per 1500 mm |
| 8 | Workpiece Angular Tolerance | ≤ ±1.5 mm per 1000 mm |

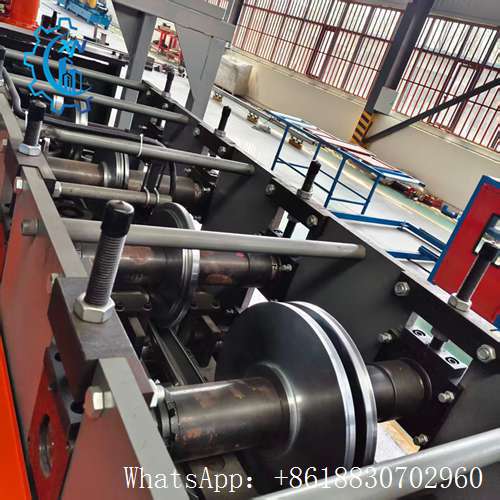

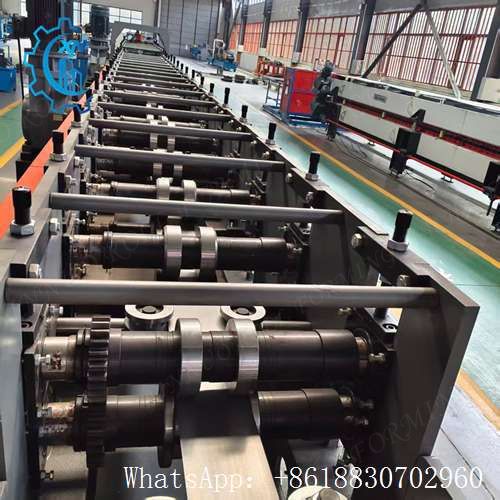

| 9 | Forming Process | Continuous Cold Roll Forming |
| 10 | Application | Solar PV Support Bracket & Guide Rail Production |

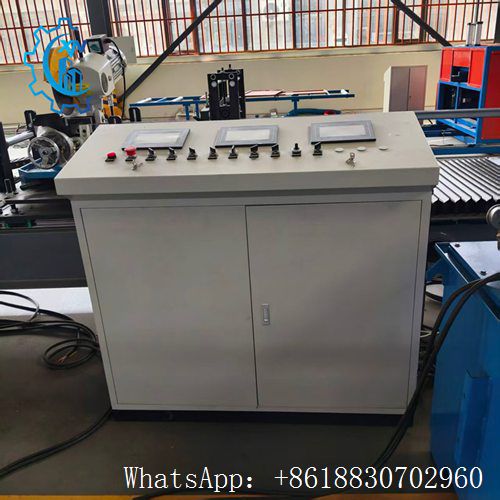

The PLC electric control cabinet serves as the intelligent core for CU solar channel forming machines. Equipped with international brand PLC and touch screen HMI,
it realizes fully automatic length cutting, speed regulation and tolerance control. Built-in overload, short-circuit and emergency stop protection, stable anti-interference
performance ensures long continuous operation. Simple parameter setting, easy maintenance, supports remote debugging and meets CE industrial standards.

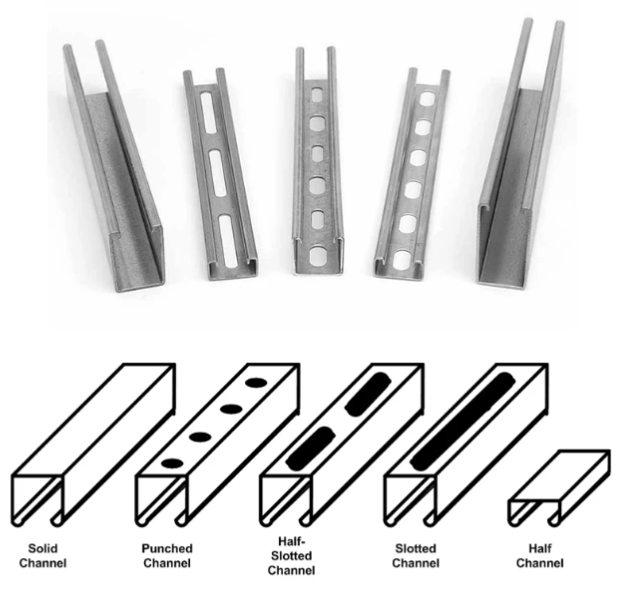

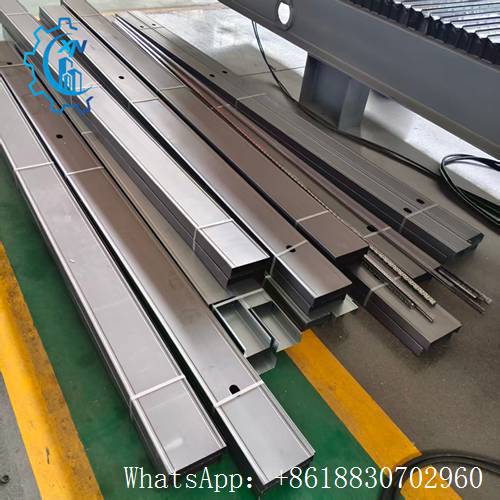

XINNUO solar mounting strut channel making machine has xcellent flexibity and versatility and is capable of producing solarmounting strutchannels of various sizes and types including solid channel.
perforated channe, half slotted chonnel, slotted channeland half channel. These products are designed to meet the needs of different devices and installation environments.
In addition. the solar mounting strut channel production line can also efficienty produce C channel and u channel.further brocdening the solar mounting strut ohannel production line and ensuring that
customers can find suitable photovoltcic bracket solutions in various applicationscenorios. whether tis a residontial, commercialor industrial project,XINNUO solar mounting strut channe making machine
can provide rolable support to promote the development of renewable energy.
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
