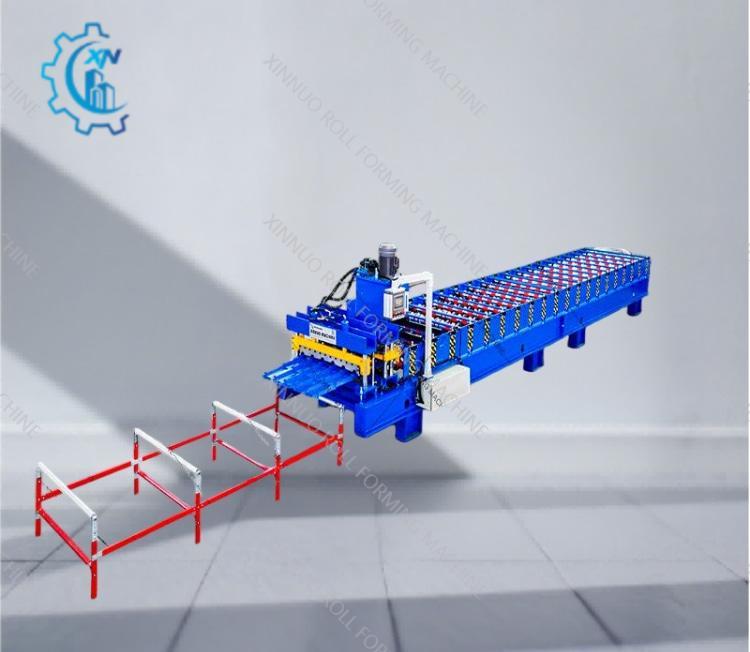

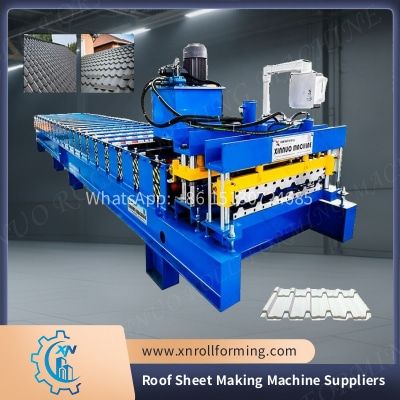

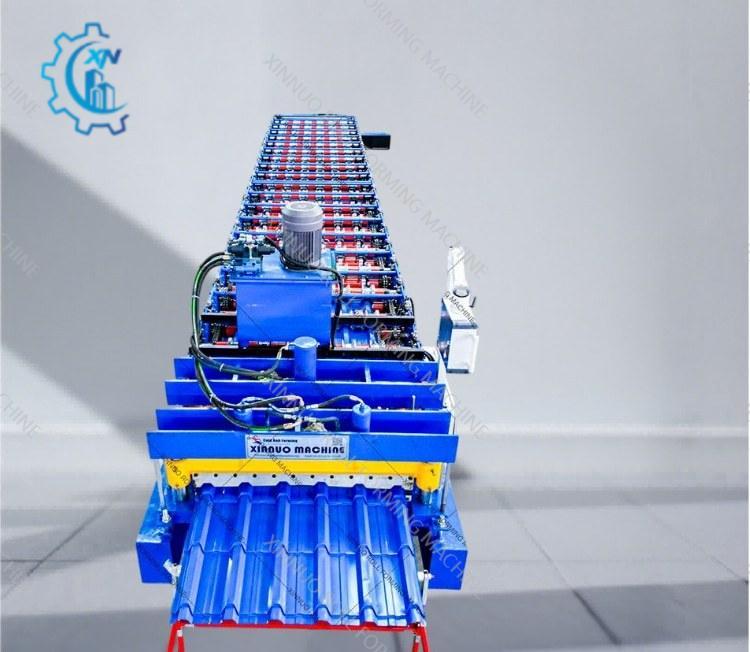

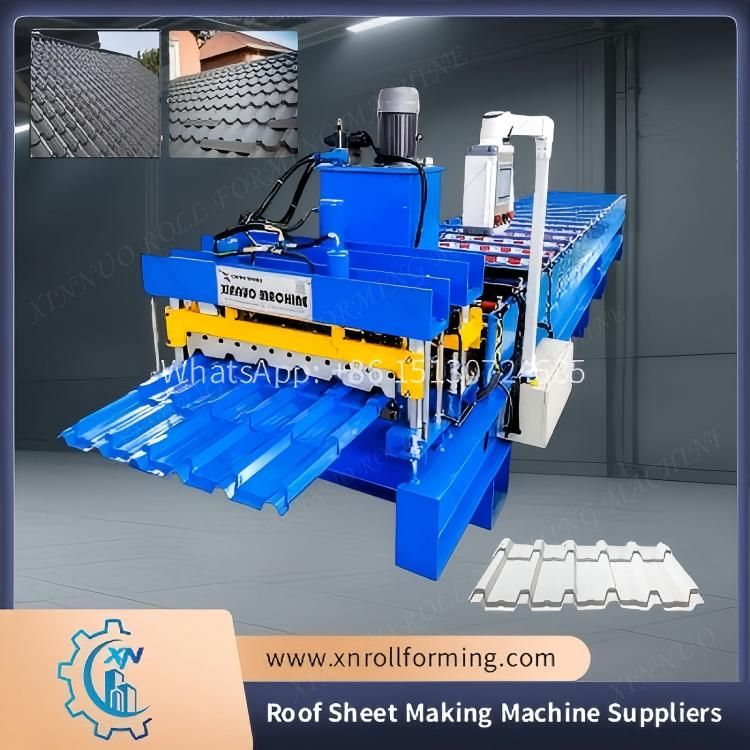

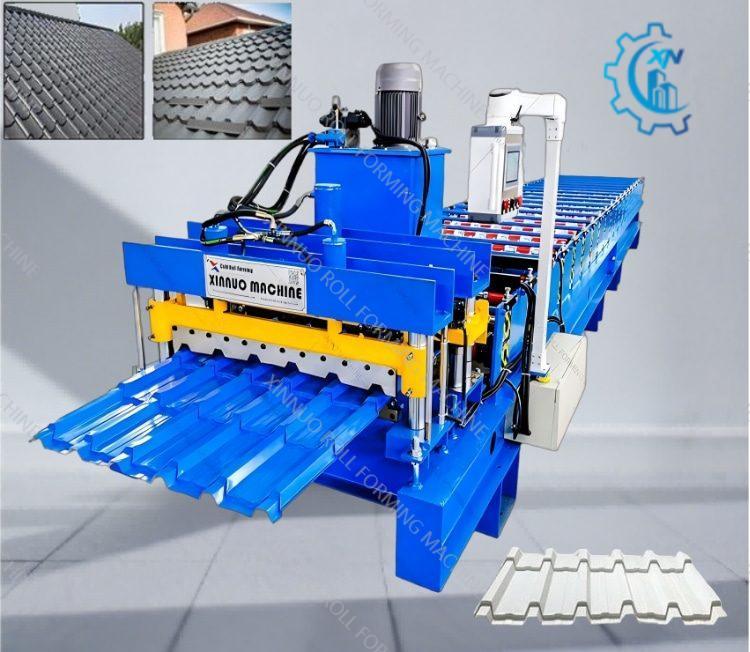

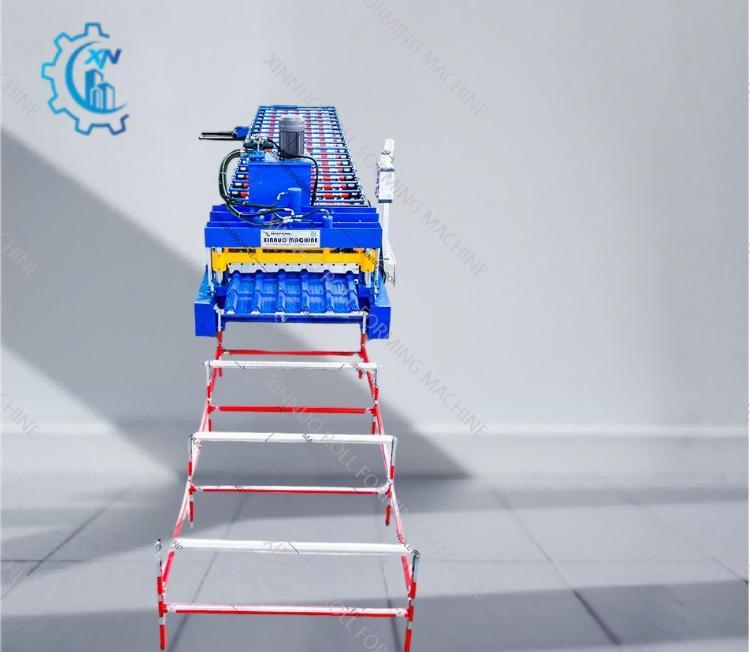

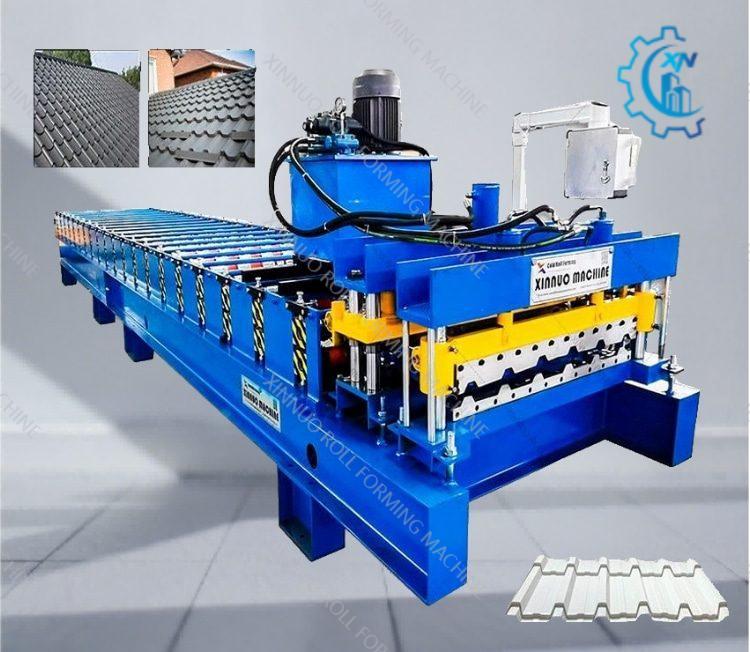

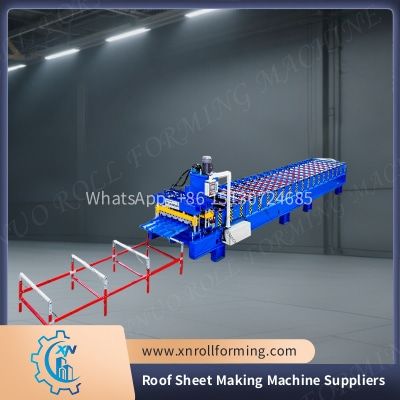

XN 990 Glazed Tile Metal Steel Sheet Cold Roll Forming Machine
Engineered by Xinnuo for suppliers who refuse to choose between beauty and brawn, the XN 990 rewrites the rules of heavy-gauge roofing. While most lines tap out at 0.6 mm, this powerhouse cheerfully processes 900 mm-wide color-steel coils from 0.8 mm up to an industry-leading 1.8 mm. The result is a deep, shadow-rich 990 mm cover-width glazed tile that looks forged by hand yet rolls off the line with industrial rhythm.
|
NO.
|
XN Professional tile making machinery glazed tile machine roll forming machine
|
|
1
|
Suitable to process
|
Color steel plate
|
|
2
|
Width of the plate
|
900mm
|
|
3
|
Thickness of the plate
|
0.8-1.8mm
|
|
4
|
De-coiler
|
Manual one,can load 5 tons raw material
|
|
5
|
Rollers for forming
|
9 rows
|
|
6
|
Diameter of the roller
|
70mm
|
|
7
|
Rolling material
|
Carbon Steel 45#
|
|
8
|
Main motor power
|
4kw
|
|
9
|
Productivity
|
0-3m/min
|
|
10
|
Cutting method
|
Hydraulic mould cutting
|
|
11
|
Material of the cutting blade
|
Cr12
|
|
12
|
Hydraulic cutting power
|
3kw
|
|
13
|
Processing precision
|
Within 1.00mm
|
|
14
|
Control system
|
Delta PLC control
|
|
15
|
Side panel of machine
|
14mm
|
|
16
|
Main structure of the machine
|
300 H steel
|
|
17
|
Weight
|
About 4.0T
|
|
18
|
Dimensions
|
4200+1200+2500MM
|
|
19
|
Voltage
|
380V 50Hz 3phases(changeable as needs)
|
|
20
|
Certificate
|
CE/ISO
|
|
21
|
Custom
|
According to customer’s requirements
|
Frame & Strength
A single-piece 300 mm H-steel frame, skinned with 14 mm laser-cut side plates, gives the machine its 4-ton mass. That weight is not for show: it annihilates vibration, allowing the nine precision-ground 70 mm rollers—each machined from carbon-steel 45#—to form even 1.8 mm material without ripple or spring-back. Operators describe the sound as “library quiet,” a testament to the balanced drivetrain and sealed-for-life bearings.
Drive & Control
A 4 kW premium-efficiency motor, coupled to a hardened helical gearbox, delivers infinitely variable speed from 0-3 m/min. Delta PLC with encoder feedback measures every millimetre; the touchscreen stores 200 recipes and speaks twelve languages. Should a sensor detect overload, the system feathers torque in real time, protecting both tooling and coil.
Hydraulic Cutting
When the target length is reached, a 3 kW hydraulic station fires a Cr12 mould blade through the sheet in 0.8 s. The curved cut mirrors the tile profile, eliminating secondary flashing and allowing panels to stack perfectly on the 2.5 m powered run-out table. Scrap is limited to one profile pitch per coil change.
Logistics & Footprint
Despite its muscle, the line needs only 4.2 m × 1.2 m of floor space plus 2.5 m for exit rollers—smaller than two family cars. A manual 5-ton de-coiler with pneumatic brakes keeps heavy coils under perfect tension; quick-swap mandrels allow 508 mm or 610 mm ID coils without downtime.
Global Power & Certification
Shipped standard at 380 V 50 Hz, the control cabinet is plug-and-play for 220 V, 415 V or 60 Hz grids. CE and ISO certificates are supplied; TUV inspection is available on request.
Customization & ROI
Need deeper ribs for snow loads? Add two forming stations. Want a wood-grain embosser? Swap cassettes in fifteen minutes. From coastal resorts to alpine lodges, the XN 990 delivers tiles that sell at premium prices while keeping production costs low.
