1.Utilize cutting-edge roll forming technology tocreate precise, high-quality cable trays.

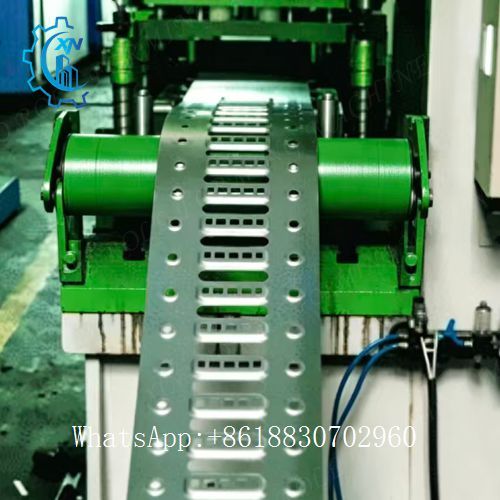

2.Feature automatic punching and cuttingsystems for efficient and accurate production.
3.Build with high-strength steel and durablecomponents for long-lasting performance and minimal maintenance.
4.Allow for adjustable width settings to accommodate different cable tray sizes and configurations.

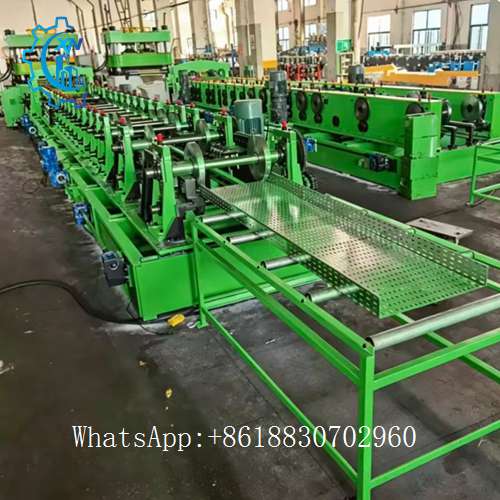

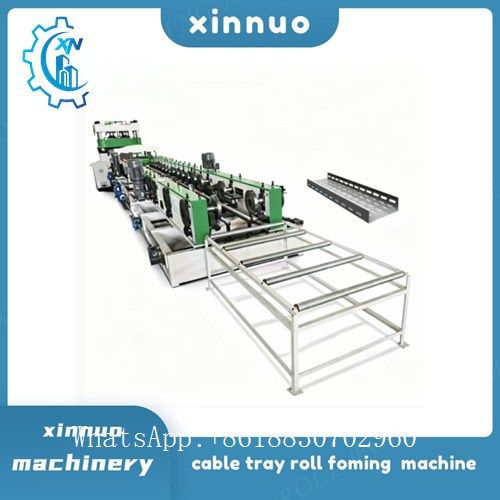

CABLE TRAY ROLL FORMING MACHINE (100 MM - 900 MM)
Cable Tray Roll Forming Machine designed and Manufactured according to Cients needs and requirement for producing High Quality Cabletrays wth fast working capabilty and long Hours of production.
This Cable Tray Roll Forming Machine can produce Multiple Sizes of Cable Trayfrom 100 MM - 600 MM with its Interchangeable Rolls technology.

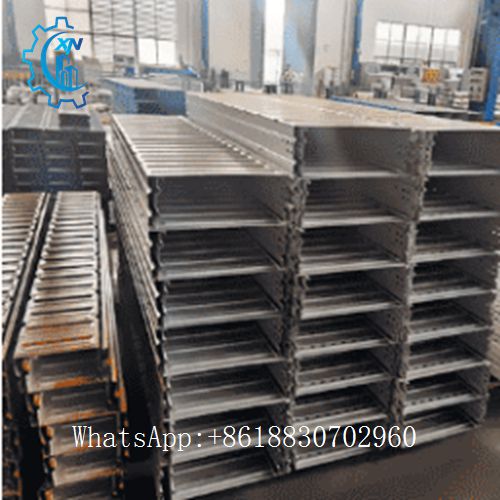

We offer a variety of cable trays to meet different needs:

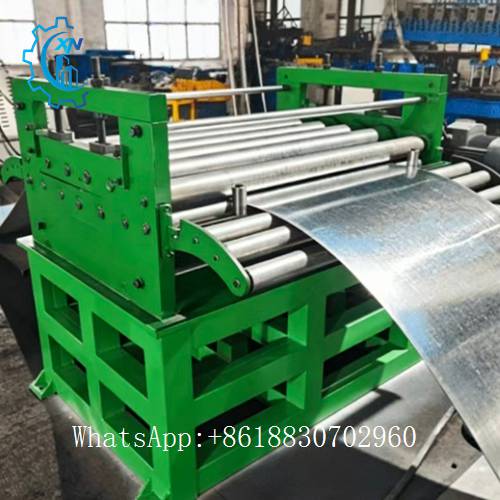

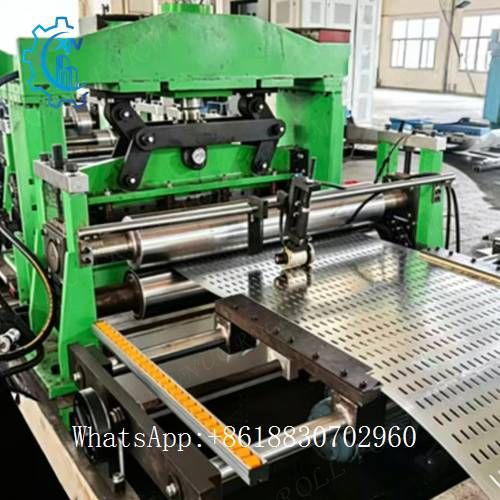

6-up 7-down leveling feeding system
Adopts 6 upper and 7 lower roller layout. It levels and feeds sheet simultaneously, corrects plate deformation steadily with high feeding precision, perfectly matching roll forming machines.
|
Roll Forming Machine |
|||||||

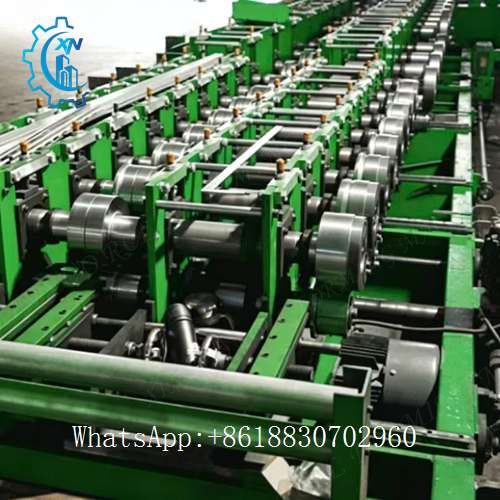

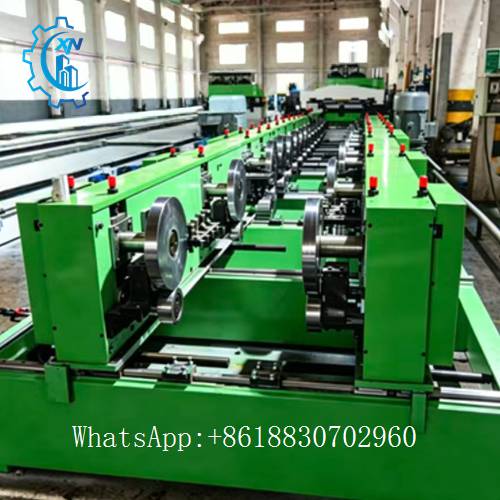

| 1 | Roller groups | 23 stations | |||||
| 2 | material roller | GCr15 with heat treatment, HRC58-62° | |||||
| 3 | Roller shaft dia. | Φ85mm | |||||
| 4 | Shaft material | 45# Steel with quenching and tempering | |||||
| 5 | Motor | 5.5KW+11KW | |||||
| 6 | Transmission way | Chain with automatic changeable size | |||||
| 7 | Machine frame body | Welded by 500BH H-beam, Stress-Relieving | |||||
| 8 | Roller supporter | duplex | |||||
| 9 | bearing | HRB, NU1108 | |||||
| 10 | Automatic moving motor | 1.5KW * 4 sets | |||||
FAQ:
1. What is a Cable Tray Roll Forming Machine?

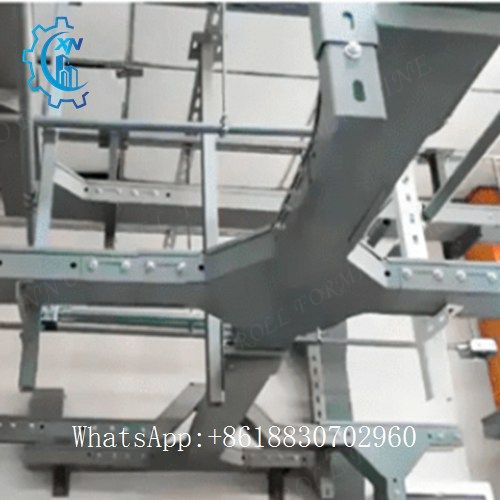

A Cable Tray Roll Forming Machine is a high-performance production line designed to manufacture metal cable trays used for supporting and organizing electrical cables in industrial and commercial buildings. It forms steel coils into perforated or solid cable trays with precise dimensions and strong structural integrity.
2. What materials can be used in cable tray production?
cable tray roll forming machines can process galvanized steel, stainless steel, pre-painted steel, and aluminum coils, typically ranging from 0.6 mm to 3.0 mm in thickness.
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
