Roll Forming Systems for Cable Trays

A cable tray system used to support insulated electrical cables used for power distribution control and communication as an alternative to open wiring or electrical conduit systems.

In addition, Cable tray systems are the right solution for running large quantities of data cables overhead or under-floor. so, these systems are known as baskets, trunking, or cable ladders.

in fact, Our full line of ▷ Cable Tray Roll Forming Machine | Cable Tray applications .

we aim to be the leading provider of information and solutions for design and engineering professionals engaged in the design of cable tray roll forming machines.

What are Cable Trays?

Cable trays are essential structures used to support insulated electrical cables for power distribution, control, and communication. They serve as an efficient

alternative to open wiring or electrical conduit systems, providing a secure pathway for cables in various environments. Cable trays are ideal for running large

quantities of data cables overhead or under-floor and are commonly referred to as baskets, trunking, or cable ladders.

Types of Cable Trays

We offer a variety of cable trays to meet different needs:

• Ladder Type Cable Tray
• Solid Bottom Cable Tray
• Trough Cable Tray
• Channel Cable Tray
• Wire Mesh (Basket) Cable Tray
• Single Rail Cable Tray
• Fiberglass Cable Tray
• Perforated Cable Tray

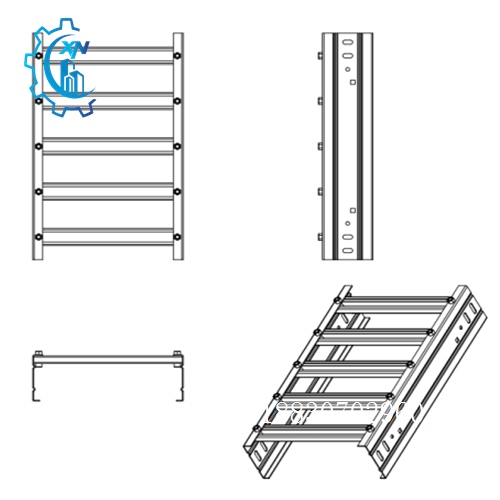

Ladder Cable Tray Machine

• Solid side rail protection and system strength with smooth radius fittings and a wide selection of materials and finishes.
• maximum strength for long-span applications with standard widths of 150, 300, 450, 600, 750, and 900 millimeters.
• standard depths of 50, 75, 100, 125, and 150 millimeters.
•  the standard lengths of 3 to 6 meters.
• the rung spacing of 150, 225, 300, and 450 millimeters.
•  A ladder cable tray is generally used in applications with intermediate to long support spans, 3 meters to 6 meters.

Machine design capacity

1. Raw material thickness: 0.7-2.0mm
2. Material: Galvanized, Carbon Steel, HR coils
3. Input material width: depends on cable tray size
4. Raw material yield limit: 245MPA
5. Production line working speed: 6-8m/min
6. Working area: about L8,000*W1,200mm

Machine componets

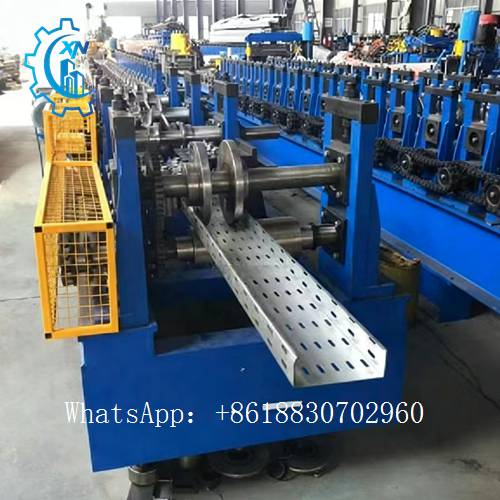

    This cable channel production line will be combined with automatic hydraulic decoiler, leveling system, hydraulic punch machine with dies, roll forming machine part, hydraulic cutting unit,

    output table, hydraulic oil pump, and electrical control cabinet and so on.

Application of Cable Tray：

 HEBEI XINNUO MACHINERY is a leading supplier of cable tray roll forming lines in China.

We design and manufacture high-speed, fully automatic machines for producing various cable trays, such as channel cable trays, ladder cable trays, cable tray covers and side rails.

Our machines feature easy operation, fast size adjustment, low failure rate and long service life.

With rich export experience, we provide reliable equipment and professional service to customers around the world.
