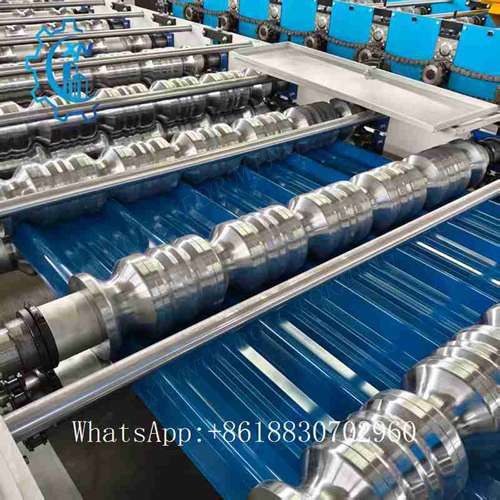

Model:metal roof glazed tile roll forming machine
Min.Order Quantity:1 Pieces
Develivry time:25-30 days
Working speed:6-8m/min
Payment Terms:30% T/T in advance,70% when shipping
Email:xinnuo05@xinnuomachine.com
WhatsApp:+8618830702960
metal roof glazed tile roll forming machine specification
| Product | metal roof glazed tile roll forming machine |
| A.General details | |
| Suitable Material | HRB60 or equivalent(PPGI/PPGL/GI/GL) |
| Materials thickness | 0.3mm-0.8mm |
| Dimension | About 6.5*1.5*1.5m(L*W*H) , as per the drawing |
| Length of the Sheet |
can set the length according to your infact need. It is controlled by PLC which can ensure the accuracy of ±1mm. |
| Cutting | Automatically stop and cutting when it comes to the set length. |
| B.Components Details | |

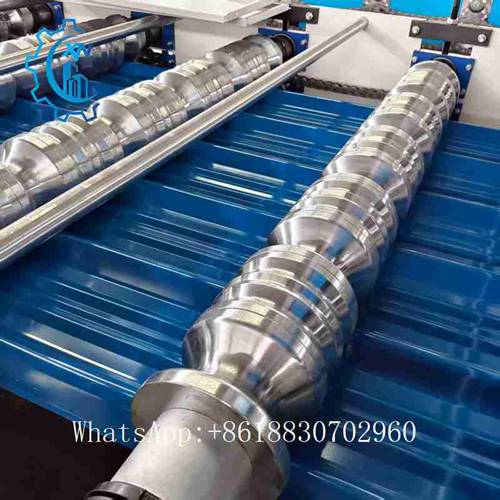

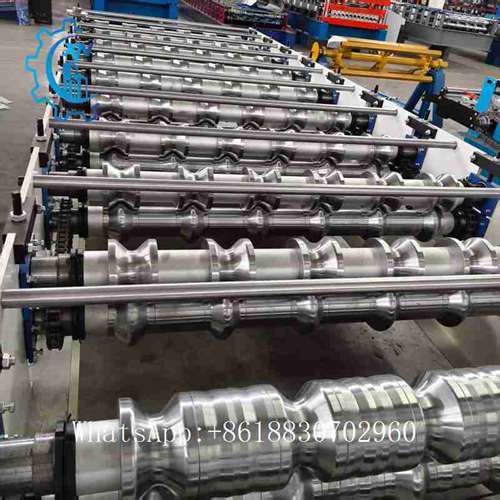

| Roller Material | High grade 45# steel. Hard chrome plating, 0.05mm. |
| Main Frame | 350# steel. More stable and no shaking. |
| Middle Plate | 16mm. We use thicker plates to ensure stability of our products. |
| Forming Steps | 14steps, according to the drawing. |
| Shaft Material | Φ70 mm, high grade 45# steel. Treating process: tempering- finish turning, high rigidity, hard to deform. |
| Cutting Blade Material |
Cr12, hardness HRC60-62. Treating process: heat treatment- plane abrasion- wire electrode cutting. |
| C.Electric Components | |
| Suitable Power | 380V, 50 Hz, 3 phase or according to your need. |
| Screen | 7 inch touch screen, easy to operate.Brand Delta or based on your need |
| PLC | Delta Brand (Or Panasonic /Siemens ) Well-adapted to various conditions, such as moisture, electromagnetic disturbance. |
| Frequency Converter | delta ; It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm). |
| Length Measurement Device |
Omron, made in Japan. It features with high accuracy and stability. |
metal roof glazed tile roll forming machine package and loading
1. The main machine is covered by plastic film.
2. PLC control box, spare parts and other small parts are packed by wooden carton box.
3. If the machine is too long, we will divide it into two parts and pack them in one package with steel wire.
4. Rollers and shafts are covered with anti-rust oil.
5. Manual decoiler was nude packing.
6. The output-table put into a carton box.
7. Fit for ocean shipping.
8. Spare parts in a carton box.
9. Manual decoiler was nude packing
