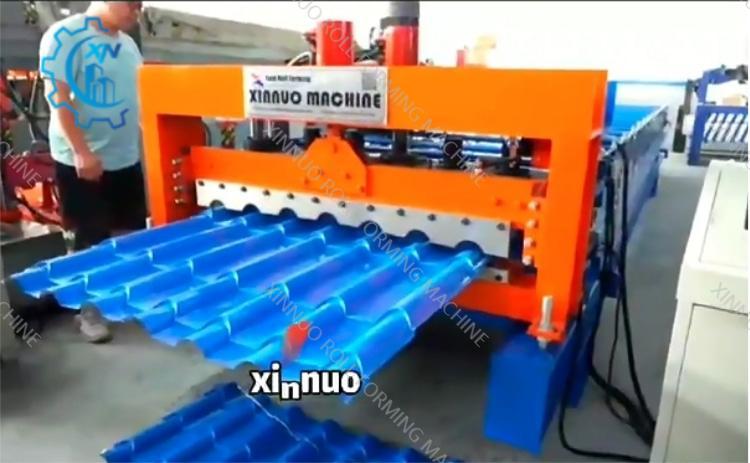

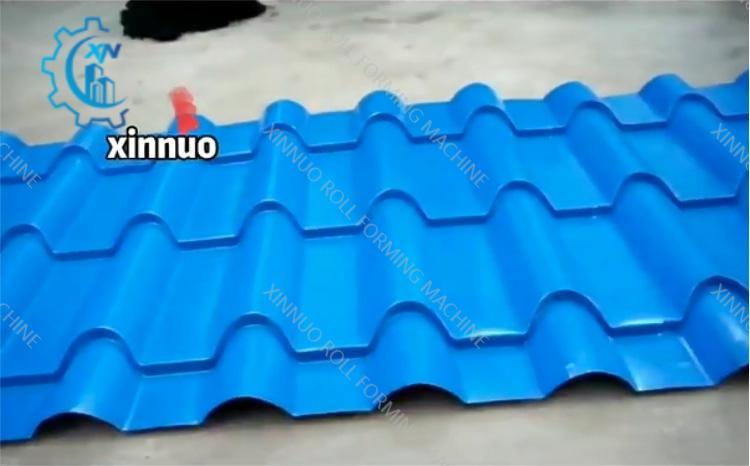

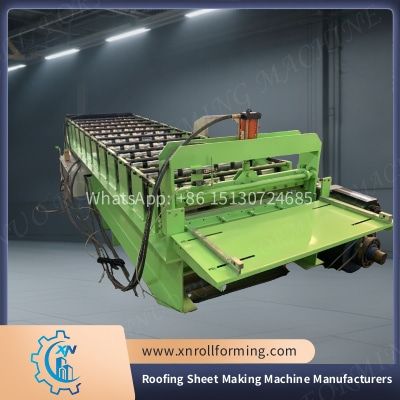

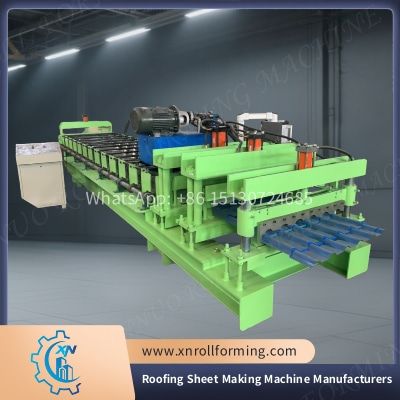

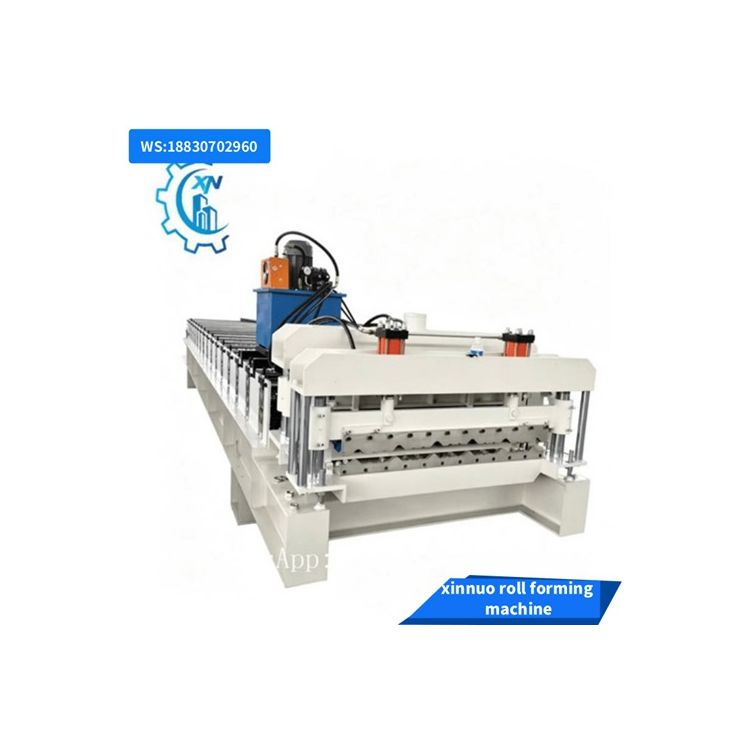

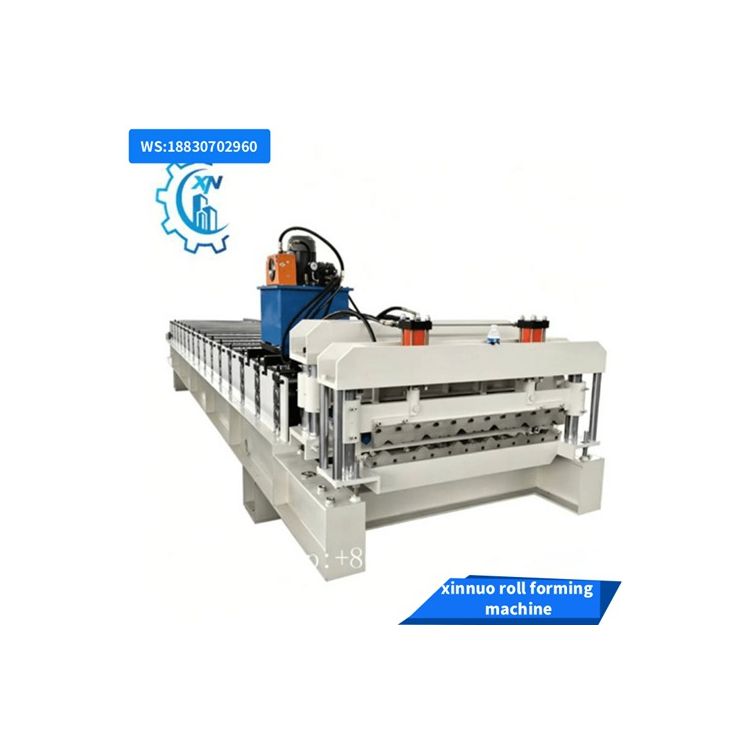

XN-Color Tile Making Roof and Wall Panel Roll Forming Machinery – the definitive answer when architects demand both the timeless elegance of traditional glazed tile and the speed of modern mass production. Designed and manufactured by Xinnuo at our ISO-monitored facility, this machine turns ordinary color-coated steel coils into market-dominating roof and wall panels whose sharp corrugations, deep shadow-lines and mirror-bright finishes raise property values the moment they are installed.
|
No.
|
Main parameter of the machine for reference
|
|
1
|
Suitable to process
|
Color steel plate
|
|
2
|
Width of the plate
|
1000/1220/1250mm
|
|
3
|
Thickness of the plate
|
0.3-0.8mm
|
|
4
|
De-coiler
|
Manual one,can load 5 tons raw material
|
|
5
|
Rollers for forming
|
11-18 rows
|
|
6
|
Diameter of the roller
|
70-80mm
|
|
7
|
Rolling material
|
Carbon Steel 45#
|
|
8
|
Main motor power
|
4kw
|
|
9
|
Productivity
|
8-12m/min
|
|
10
|
Cutting method
|
Hydraulic mould cutting
|
|
11
|
Material of the cutting blade
|
Cr12mov
|
|
12
|
Hydraulic cutting power
|
3kw
|
|
13
|
Processing precision
|
Within 1.00mm
|
|
14
|
Control system
|
Delta PLC control
|
|
15
|
Side panel of machine
|
14mm
|
|
16
|
Main structure of the machine
|
300 H steel
|
|
17
|
Weight
|
About 3.5T
|
|
18
|
Dimensions
|
more than 6.5*1.9*1.25m
|
|
19
|
Voltage
|
380V 3phases 50hz
|
|
20
|
Certificate
|
CE/ISO/TUV
|
|
Customized according to customer requirements
|

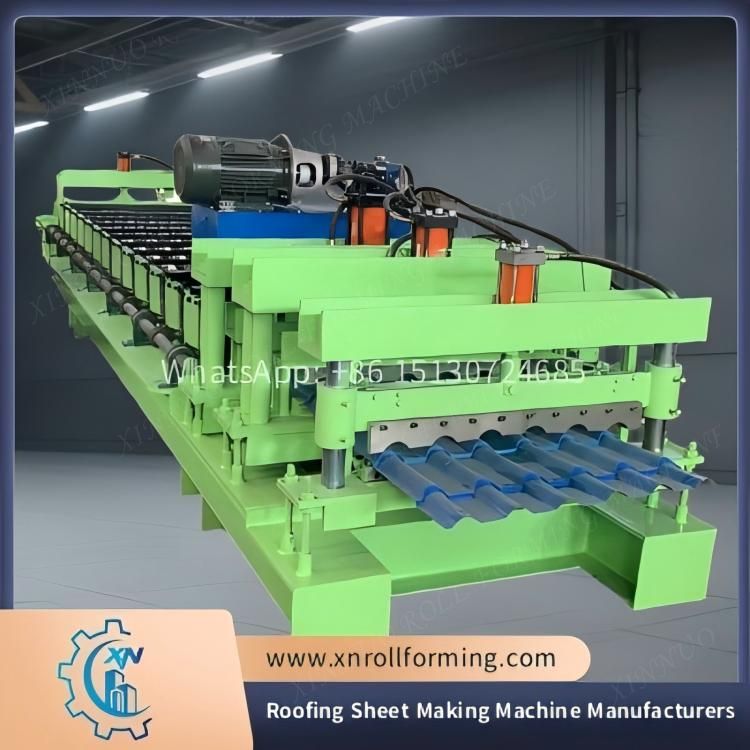

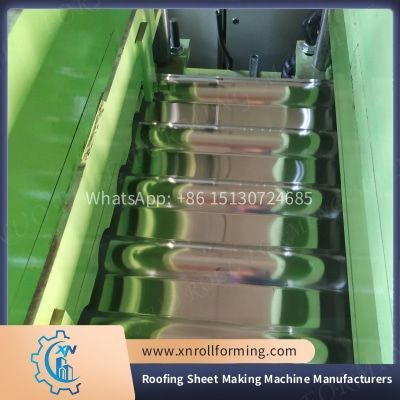

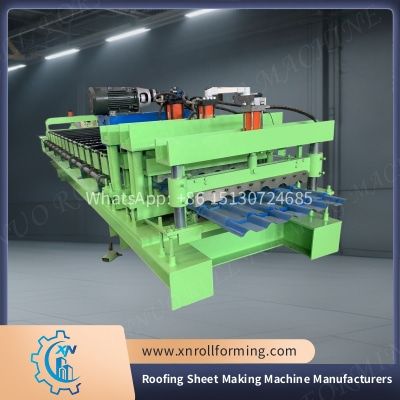

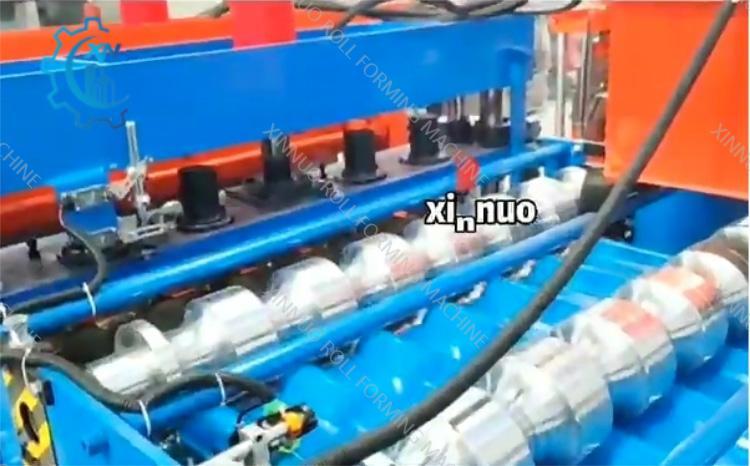

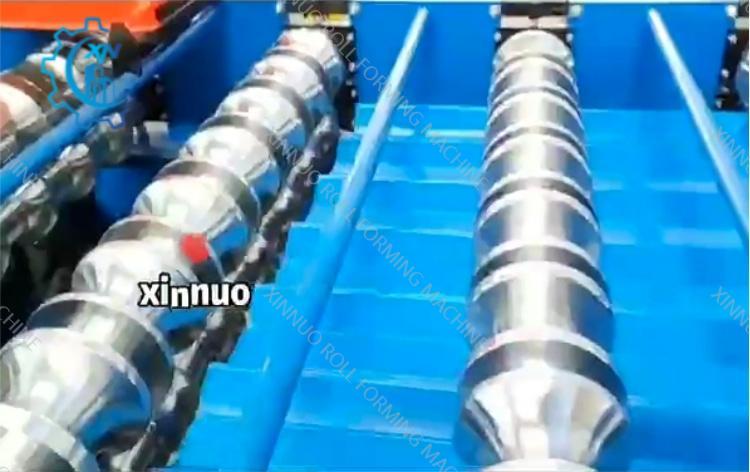

At the heart of the line is a 300 mm H-steel frame so rigid that even at its top speed of 12 m/min no harmonic vibration reaches the sheet, guaranteeing a finished tolerance within 1.00 mm across any batch. The forming train adapts to your market: choose anywhere from 11 to 18 stations, each roller forged from carbon steel 45# and precision-ground to diameters between 70 mm and 80 mm. This modular concept lets you switch from lightweight 0.3 mm tiles for tropical markets to robust 0.8 mm panels for snow-load zones without ever removing shafts—simply swap cassette inserts and resume production in under twenty minutes.

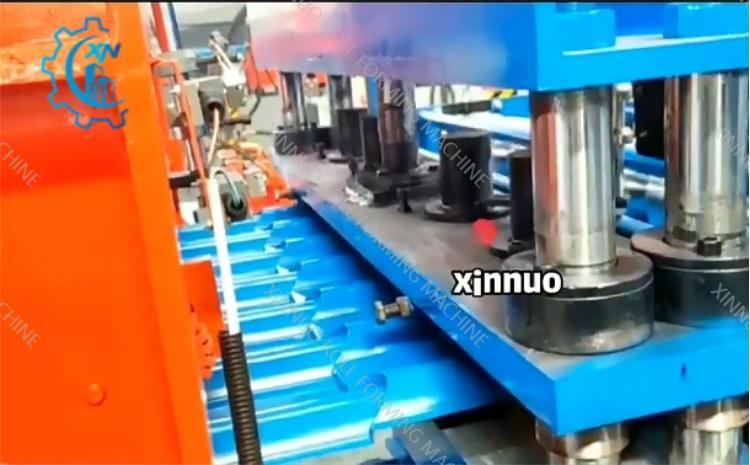

Raw material versatility is equally impressive. The standard decoiler accepts 5-ton coils in 1000, 1220 or 1250 mm widths; pneumatic brakes and hydraulic expansion keep the strip perfectly flat as it enters the first forming station. A 4 kW energy-efficient motor drives the line through a hardened gearbox, while Delta PLC with full-color touchscreen stores up to 200 recipes for length, pitch and embossing pattern. When the programmed dimension is reached, a 3 kW hydraulic station actuates a Cr12MoV mould blade that slices cleanly through high-tensile steel without burrs, then retracts in less than two seconds to maintain cycle rhythm.
Space constraints are never an issue. The entire line—forming bed, pre-shear, and powered run-out—occupies roughly 6.5 m × 1.9 m × 1.25 m, a footprint smaller than two parking spaces, yet the total weight of 3.5 tons ensures rock-solid stability and decades of fatigue-free service. Electrical requirements are 380 V three-phase 50 Hz as standard, but every transformer, VFD and encoder can be re-configured to 220 V or 60 Hz without factory return, allowing immediate relocation from Asia to the Americas.
CE, ISO and TUV certificates accelerate customer audits and insurance approvals, while Xinnuo’s lifetime technical support—delivered by multilingual engineers via secure remote diagnostics—keeps downtime statistically below 0.5 %. Optional extras include embossing rollers for wood-grain textures, quick-change cassette systems for mixed production, and cloud-connected production dashboards that display real-time OEE on any smartphone.
Choose XN-Color Tile Making Roof and Wall Panel Roll Forming Machinery and turn color steel into profit, beauty and lasting reputation—one flawless sheet at a time.
