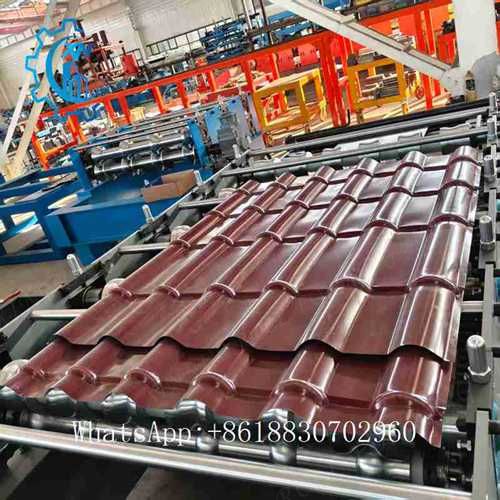

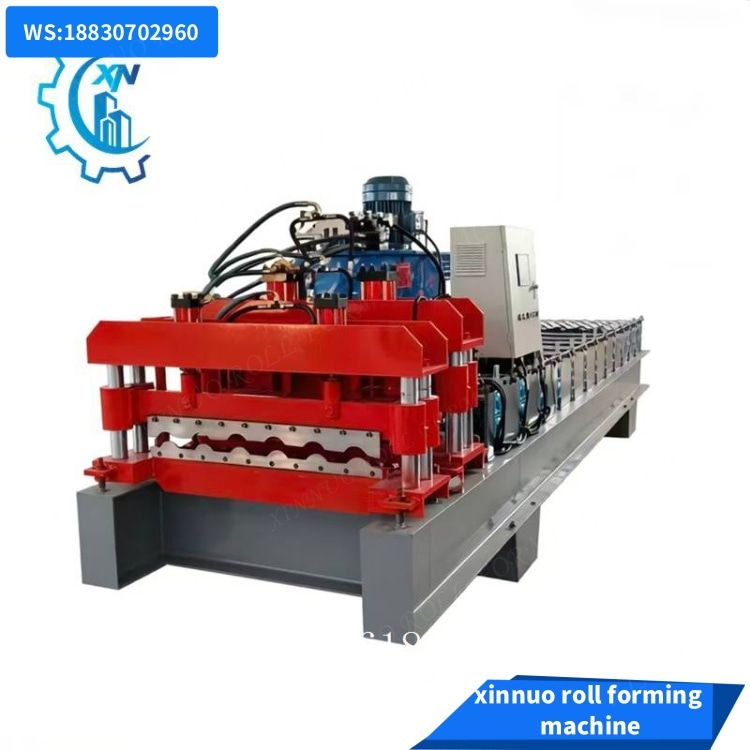

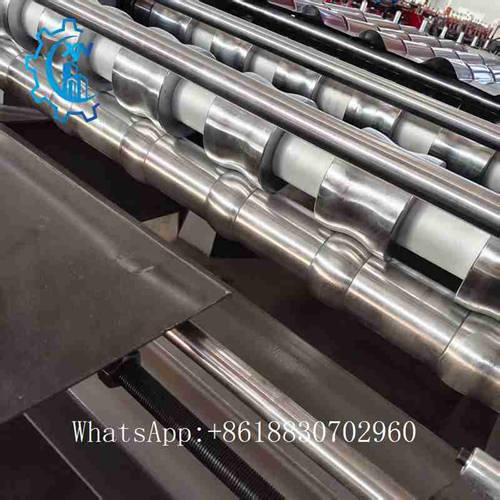

Roofing Tile & Glazed Tile Making Machine is for continuously roll forming andpressing step tiles sheets.
The step length of this glazed tile roll forming machineseries can be set up and the depth of each step is adjustable.
Main Technical Parameters
- Suitable Material: Color steel coil, galvanized steel coil
- Material Thickness: 0.3 – 0.8 mm
- Effective Width: 800 – 1250 mm (customizable)
- Forming Stations: 12 – 18 stations

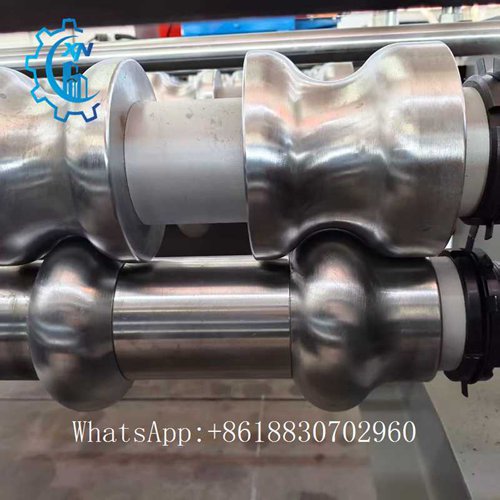

- Roller Material: Cr12MoV, quenched & hard chrome plated
- Main Motor Power: 5.5 – 11 kW
- Working Speed: 8– 18 m/min
- Control System: PLC + touch screen automatic control
- Cutting Type: Hydraulic cutting, precise and stable
- Voltage: 380V 50Hz 3-phase (customizable)
Standard Configuration List
-
Hydraulic Automatic Uncoiler
-
Feeding Guide + Leveling Device
-

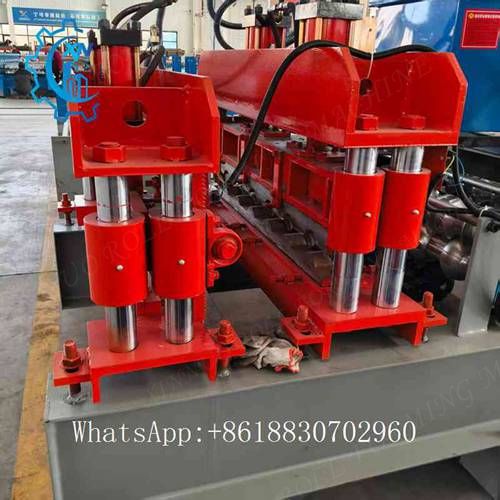

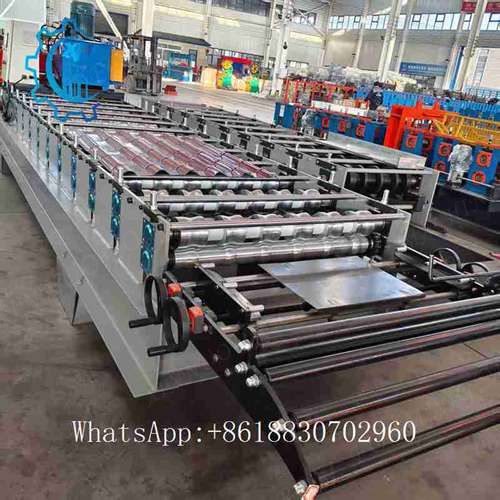

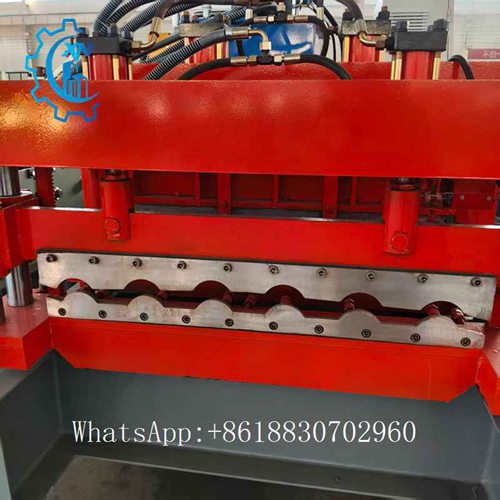

Glazed Tile Roll Forming Main Machine (Including Shaping)
-
Hydraulic Fixed-Length Cutting Machine
-

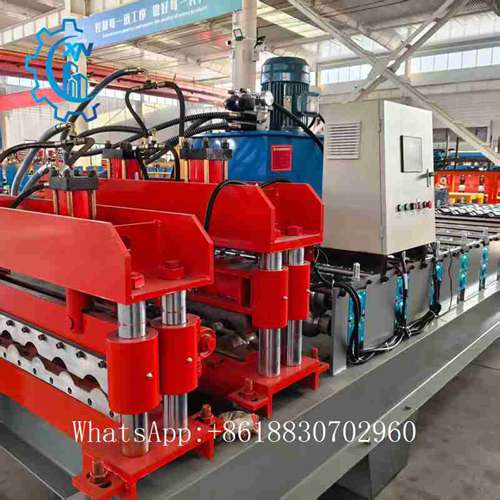

Hydraulic Power Unit
-

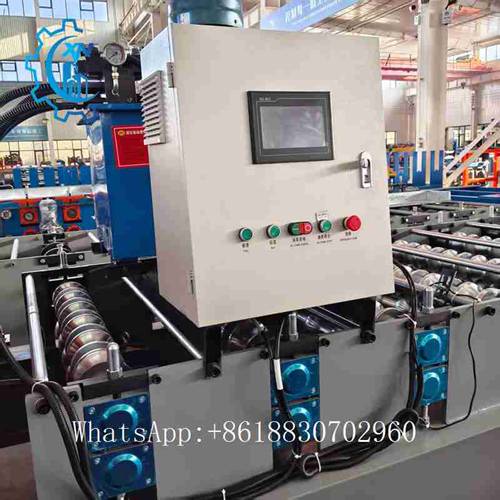

PLC Touch Screen Control System
-
Finished Product Discharge Rack
-
Tool Box & Wear Part Kit
Our Company Introduction
Hebei Xinnuo Roll Forming Machine Co., Ltd. is a professional manufacturer integrating R&D, production and sales of cold roll forming equipment.
With thirty years of experience, we focus on glazed tile roll forming machines and various roof tile making lines. Our glazed tile machines feature
PLC control, high precision, stable performance and long service life, widely used for color steel and galvanized coil processing. We have advanced
production equipment, strict quality control and customized service. Products are exported to Central Asia, Russia, Middle East and worldwide,
trusted by global partners.
