A) General Introduction

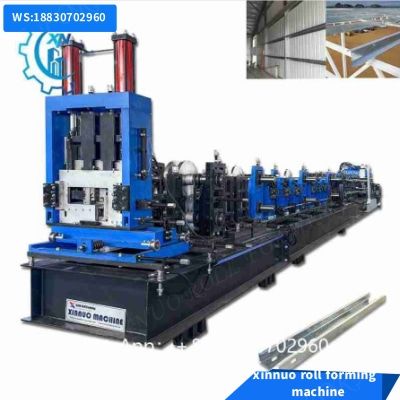

CZ Purlin Roll Forming Machine

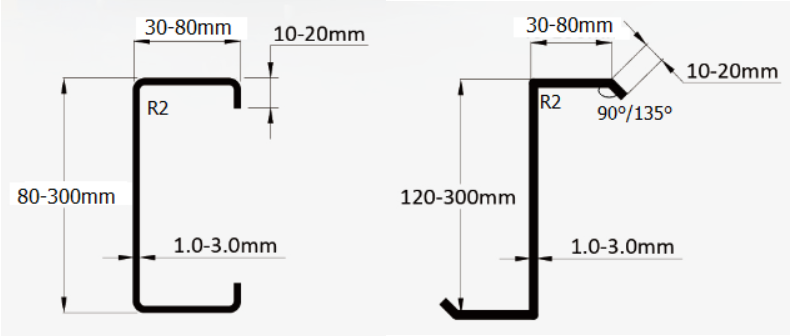

The CZ Purlin Roll Forming Machine is a professional device for producing C/Z-shaped steel purlins, widely used in steel structure buildings. It processes 0.8-3.0mm galvanized or carbon steel into 80-250mm high purlins via 18-22 roller stations. With 8-15m/min adjustable speed, hydraulic cutting (±0.5mm tolerance), and PLC touchscreen control, it ensures efficient, precise, and continuous production. Compact (≈6500×1500×1800mm) and durable, it meets diverse construction needs.用

B) High speed Purlin Roll Forming Machine Main Components

1. Hydraulic Uncoiler with Coil Car

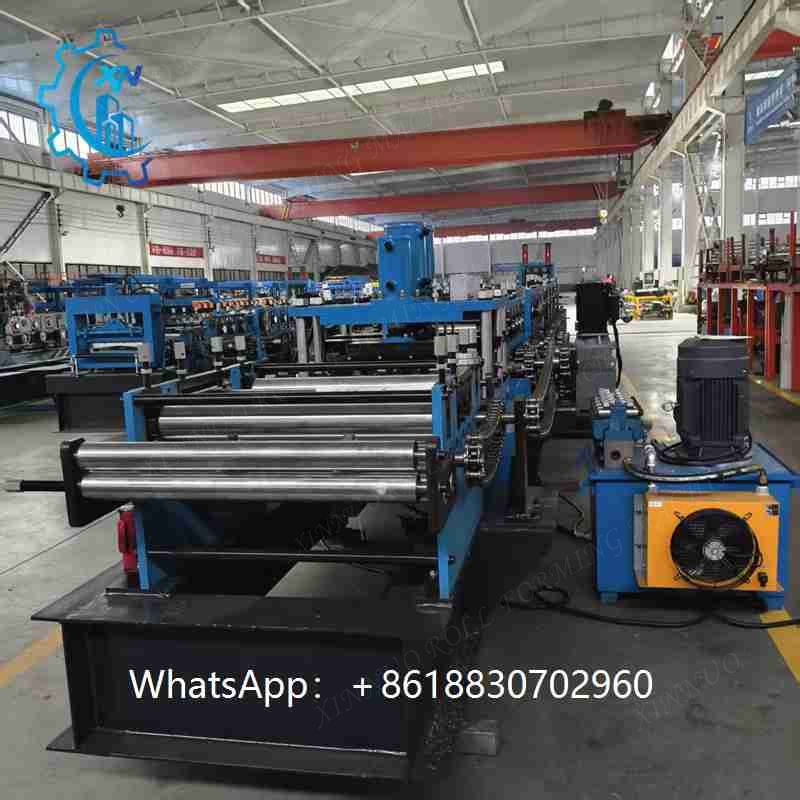

2. Flattening Station

3.Punch Station

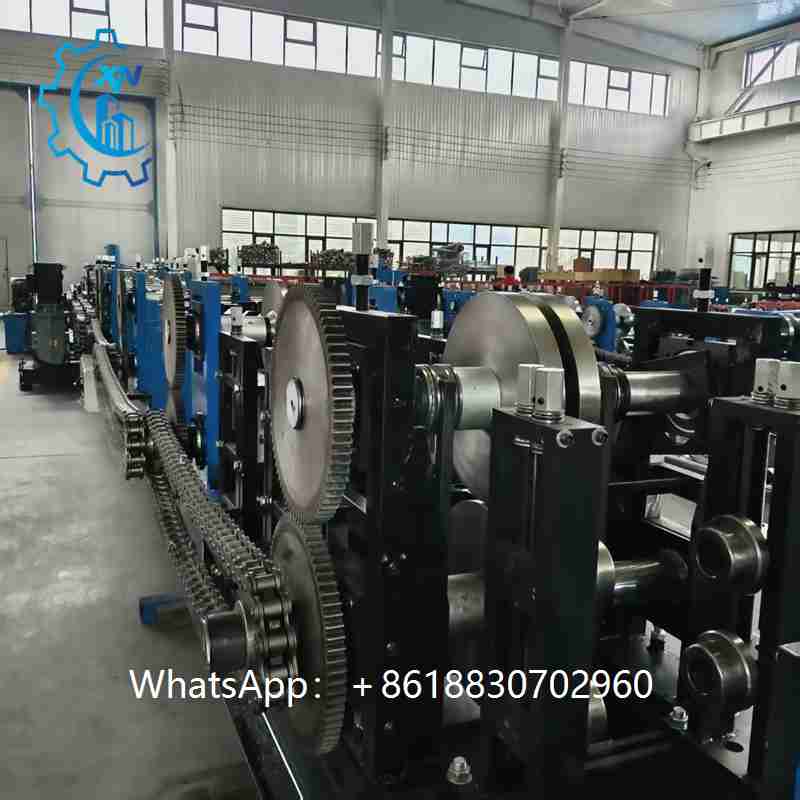

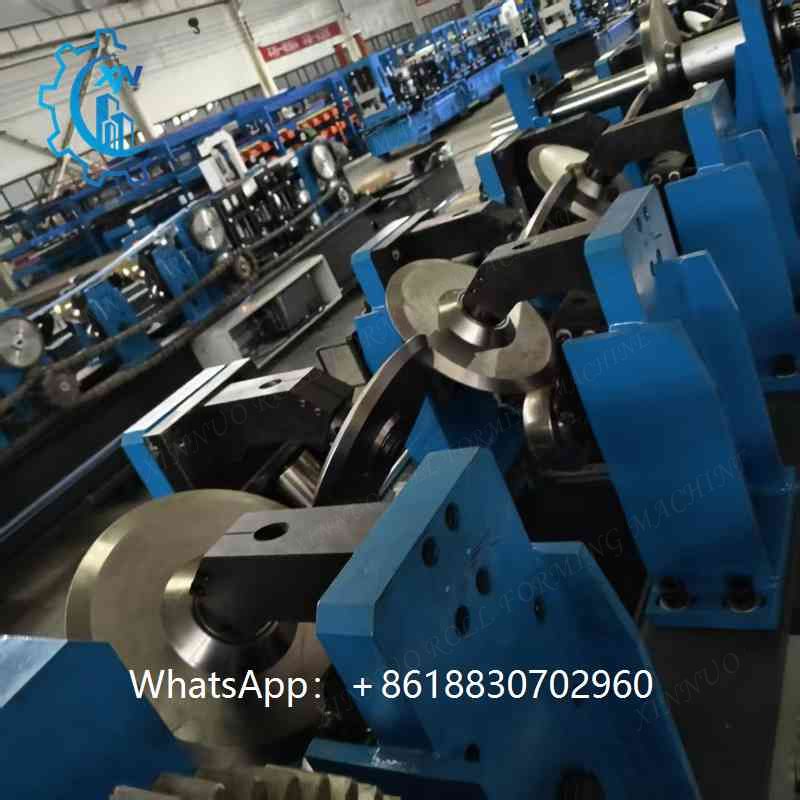

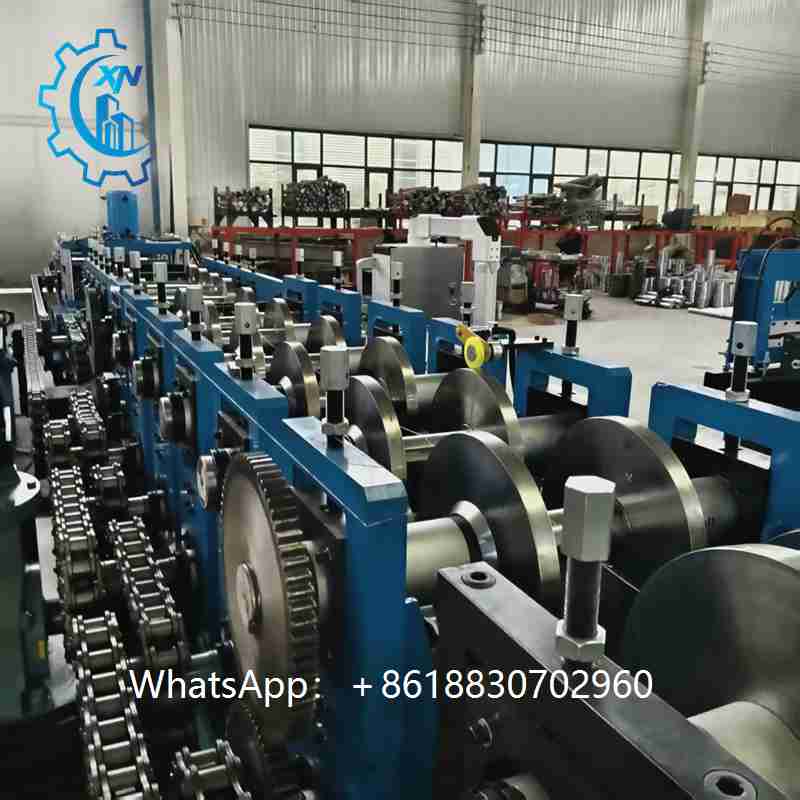

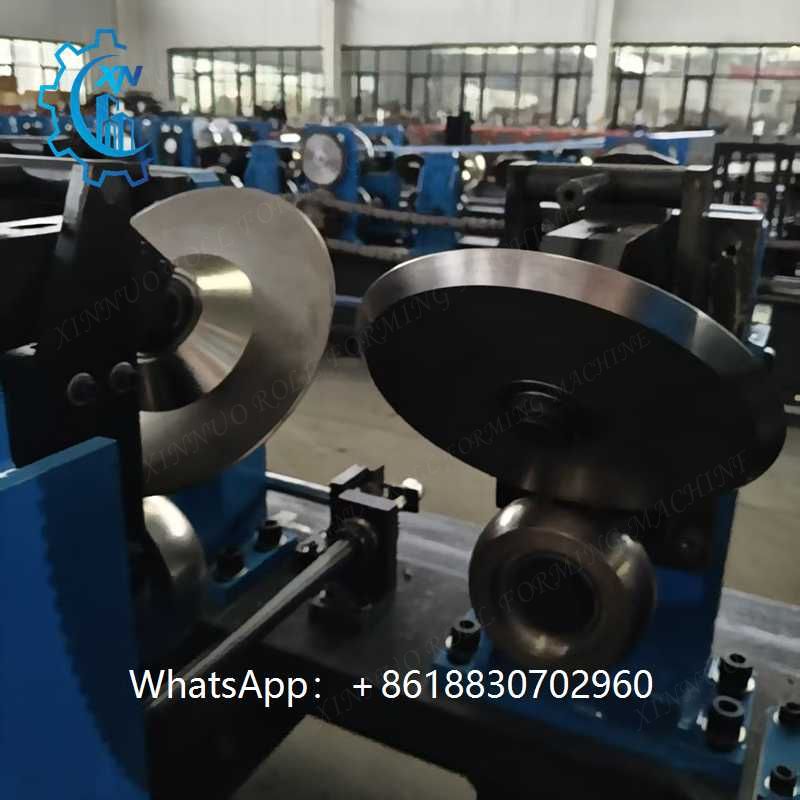

4. Main Roll Forming Line

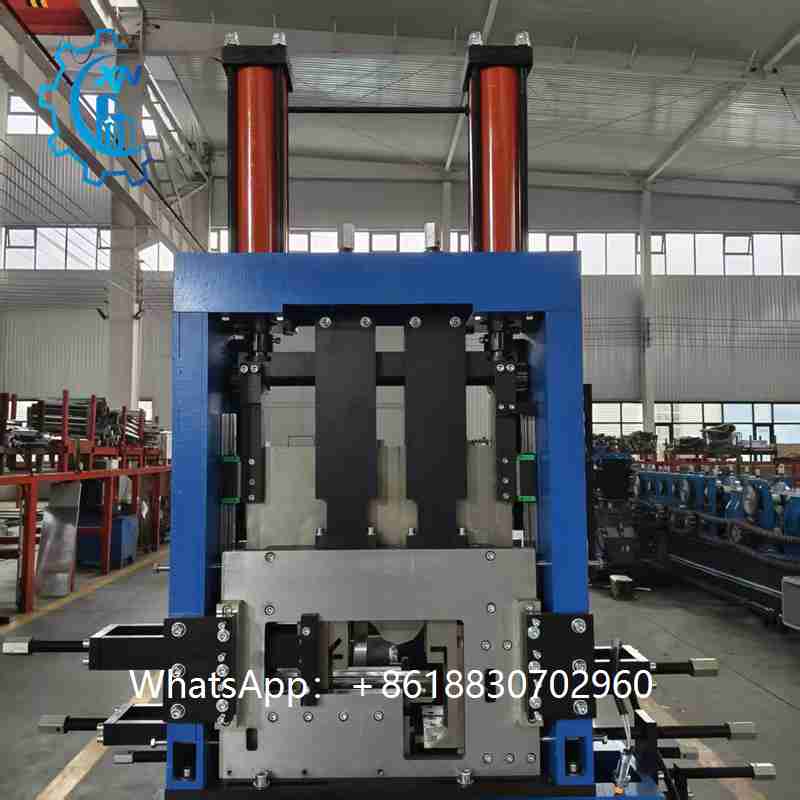

5. Fly Cut

6. Power Supply & Control System7. Roller Conveyor, Auto-Stacker, Chain Conveyor

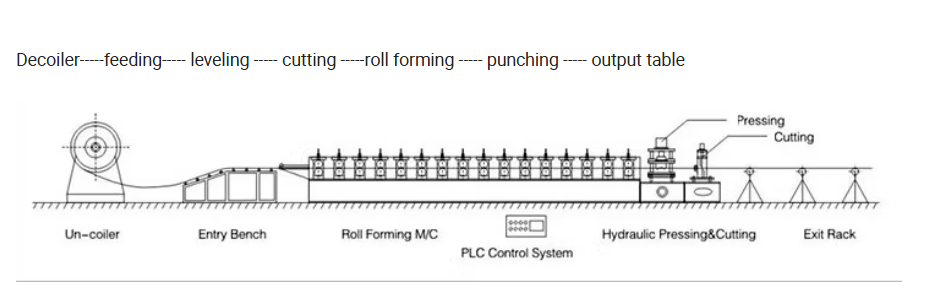

C) Roll Forming Machine Layout Flow

Uncoiler - Leveling Station - Punch Station - Main Roll Forming Line - Fly Cut -Auto Stacker

C) Detailed Parameter Table of the Machine

Our Company

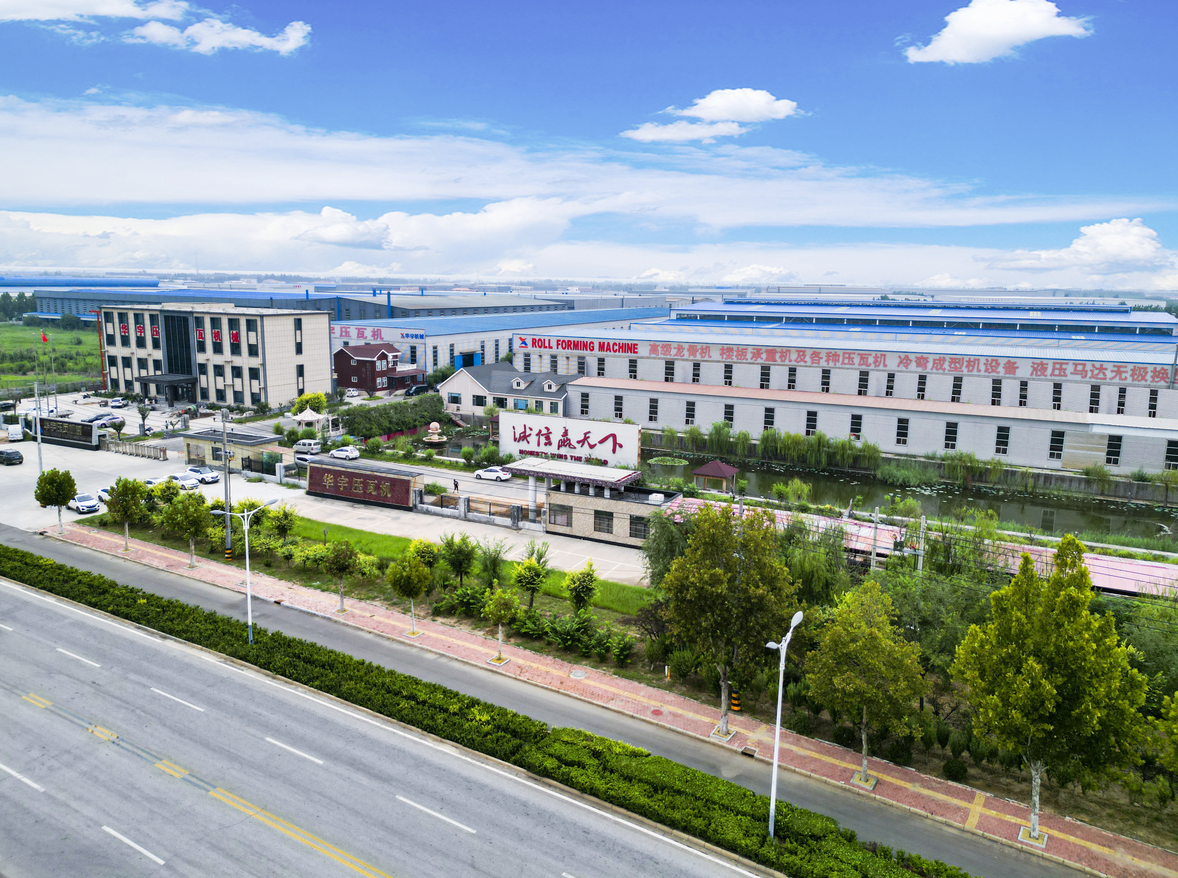

     Xinnuo Roll Forming Machine Co.,Ltd Established in 1998, is a leading manufacturer specializing in the design and production of C/Z purlin roll forming machines, high-speed purlin lines, and other customized roll forming equipment. Our facilities cover over 100,000 square meters, including 2 modern factorys and 12 warehousing bases. Since 2002, Xinnuo machines have been successfully exported to over 180 countries worldwide, earning consistent praise fortheir performance, ease of operation, and our comprehensive customer service. Looking ahead, Xinnuo remains commited to the principle of "Quality First, Service First, Customer First." We continue to focson R&D in energy-saving and intelligent machinery for the construction sector, aiming to deliver fully automated, unmanned production solutions that drive efficiency and innovation for our global partners.

Why Choose us

30 years’ manufacturing experience in CZ purlin roll former

Competitive price and good quality

One year free warranty

Fast response of after sale service

Auto web size changing from 80mm to 300mm in 2 minutes

Can be customized by clients’ requirements

Easy operate and easy to maintain

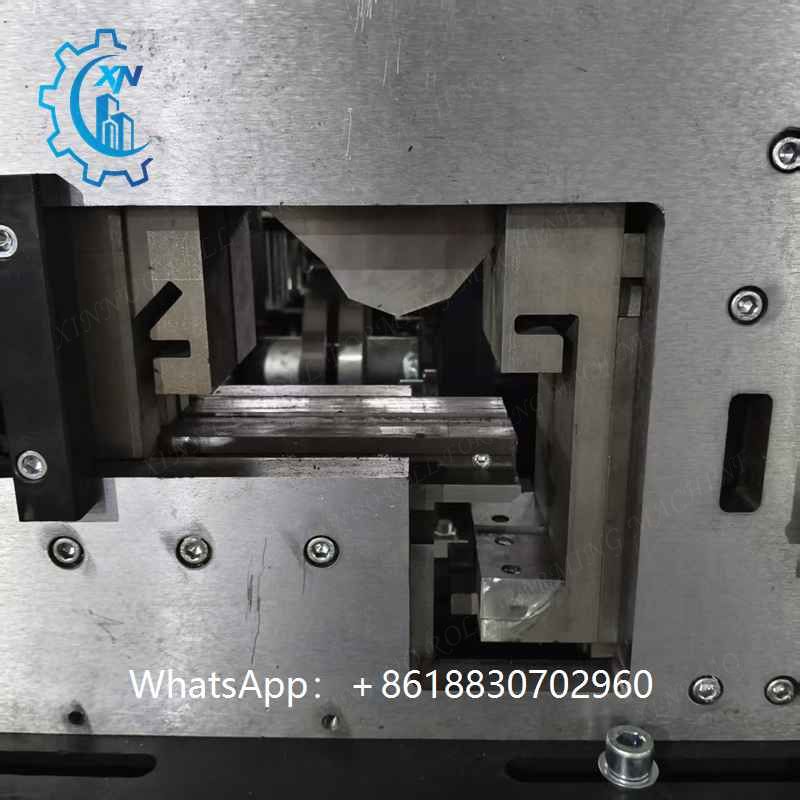

Self-developed of post cutter, one blade to cutter all size of final products
