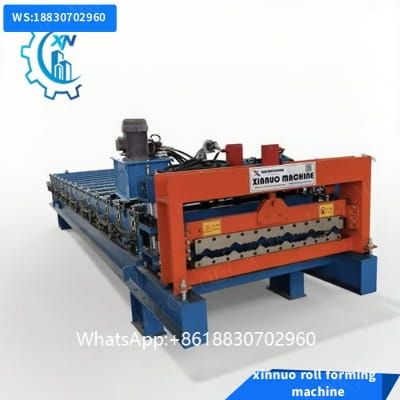

1.Model: glazed tile forming machine
2.Min.Order Quantity:1 Pieces
3.Dimensions:6500×1800×2000 mm (L×W×H)
4.Working speed:10-20m/min
5.Email:xinnuo05@xinnuomachine.com
6.whatsapp：+8618830702960

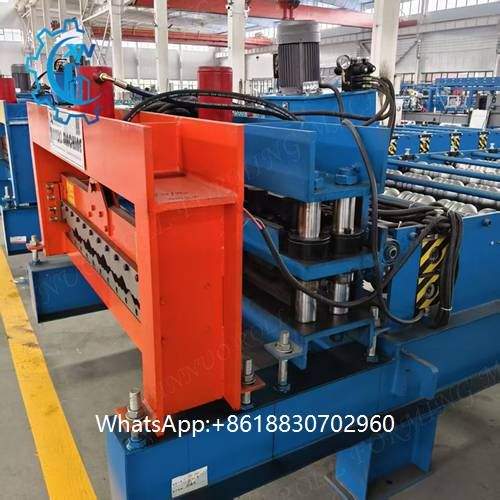

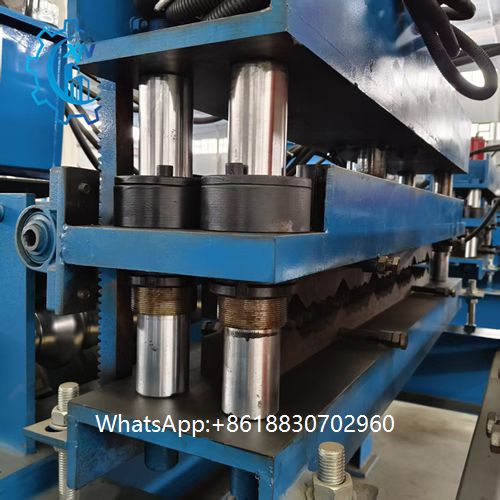

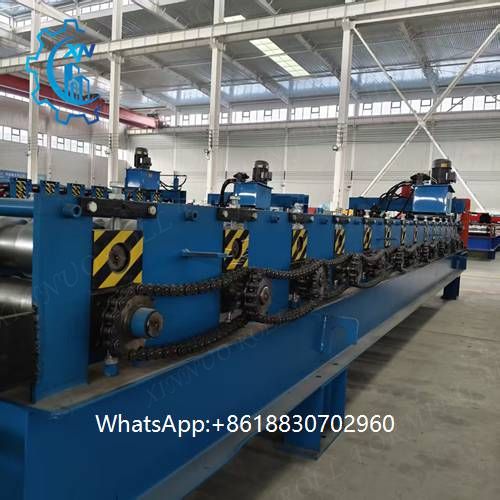

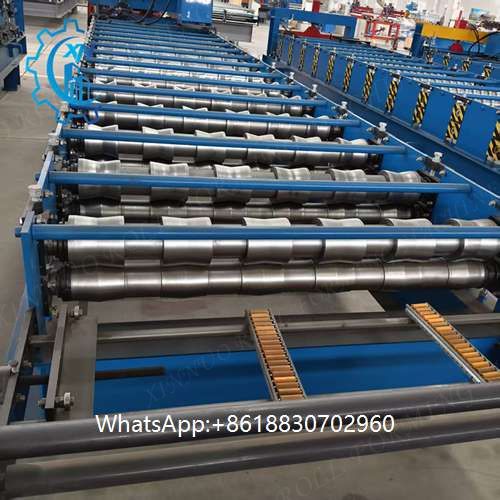

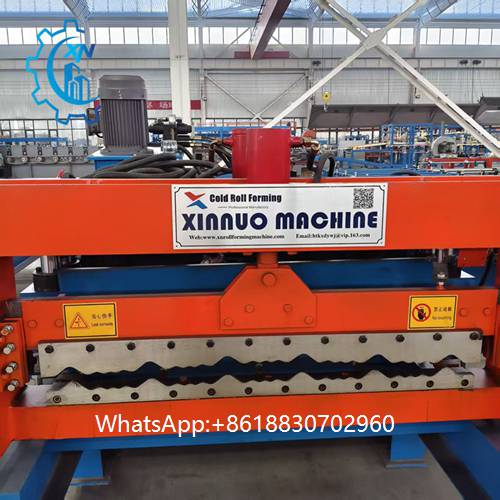

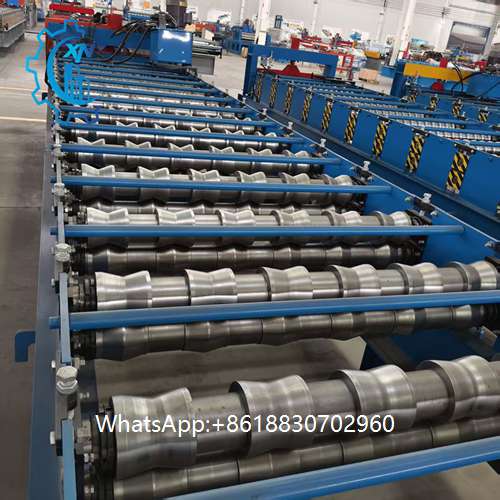

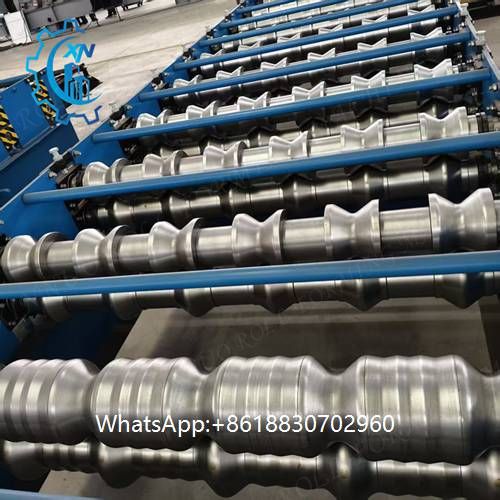

This glazed tile roll forming machine is a professional device for continuous production of glazed tiles. It integrates automatic uncoiling, roll forming, glazing pre-pressing, and cutting functions, ensuring consistent tile shape, smooth surface, and uniform glaze adhesion. With adjustable roll gaps and forming speed (8-15m/min), Made of high-strength steel rollers and PLC control system, it offers stable performance, low energy consumption (≤15kW), and high production efficiency.
| Forming Speed | 0-8 m/min (stepless speed regulation) |
| Power Rating | ≤15 kW (380V/50Hz, three-phase) |
| Roll Material | High-strength 45# steel (quenched & tempered) |
| Control System | PLC + touch screen (automatic/manual mode) |
| Tile Thickness Range | 6-12 mm (adjustable via roll gap) |
| Overall Dimensions | 6500×1800×2000 mm (L×W×H) |
| color | customized |
| Origin | China |
Workflow

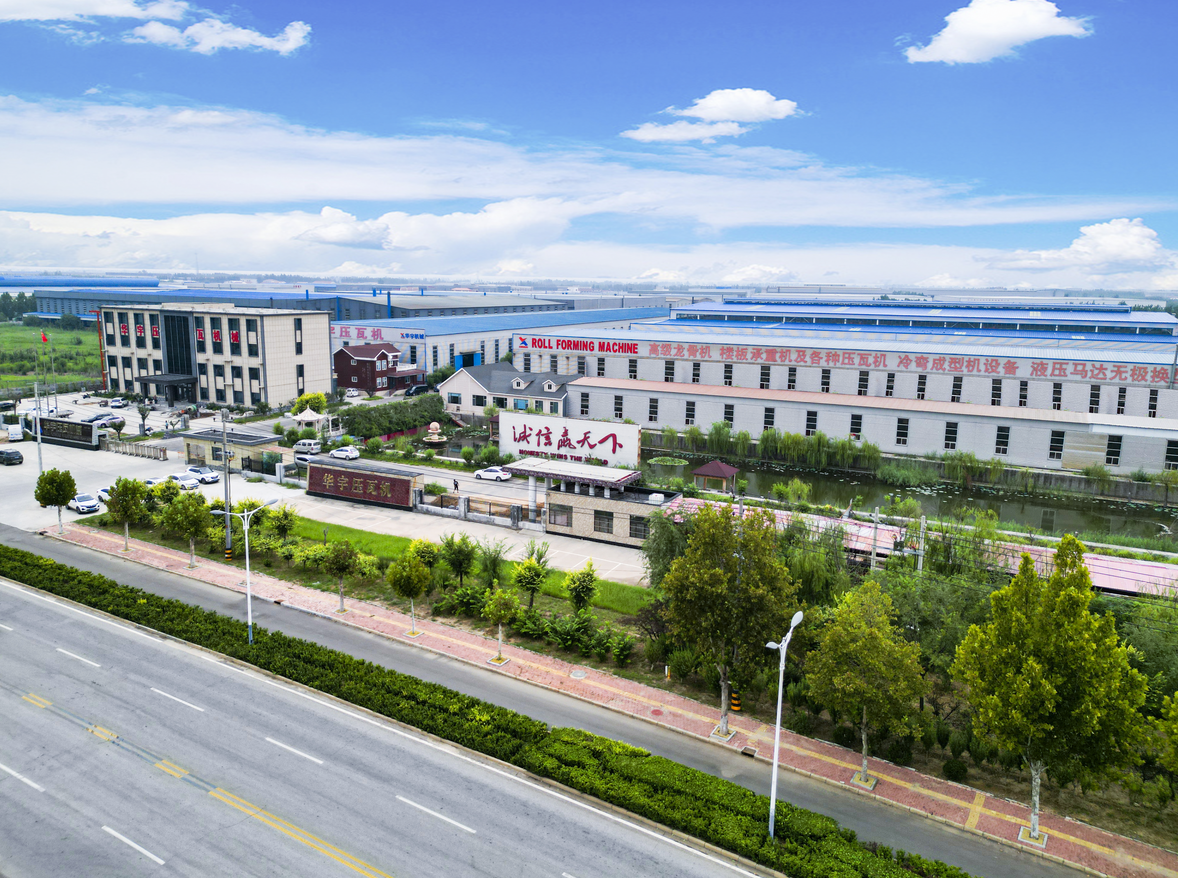

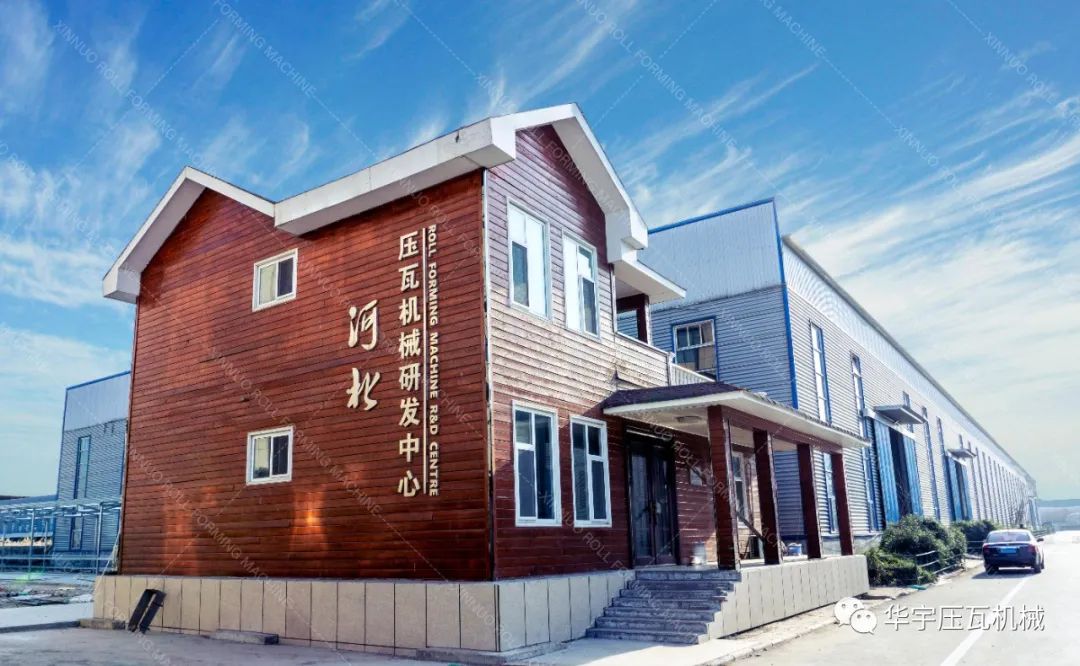

Our Company
“Diverse Products, Global Standards”
The company offers intelligent cold roll forming equipment, including:

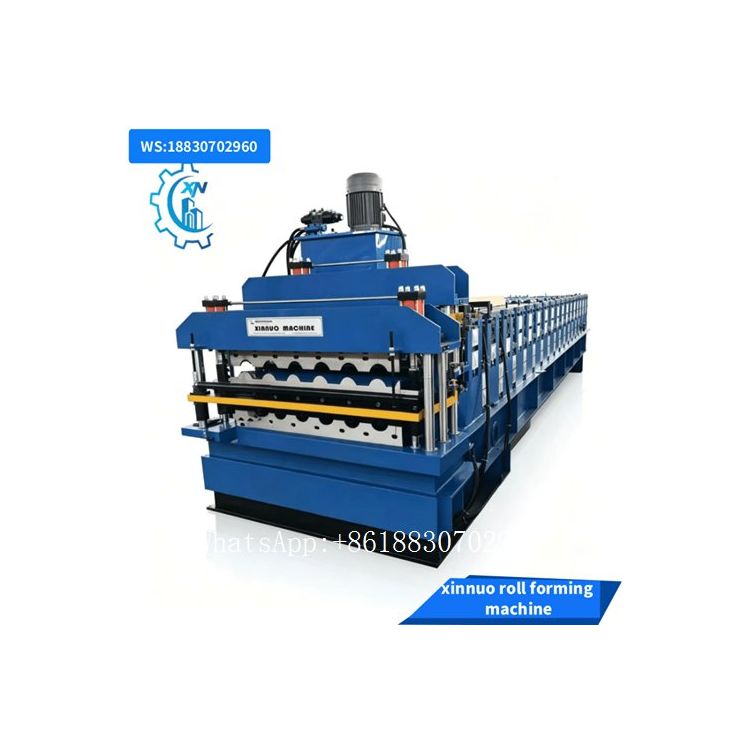

- Fully automatic tile pressing machines (double-layer, arched roof, CNC models)
- Advanced building material systems (floor deck panels, insulated sandwich panels, highway guardrails)
- Steel structure equipment (CIZ purlin machines, CNC shearing/bending machines)
- Environmental dust removal and anode plate production lines
All products comply with ISO certifications and utilize 3D simulation-optimized designs to ensure structural integrity and precision meeting international standards.
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
