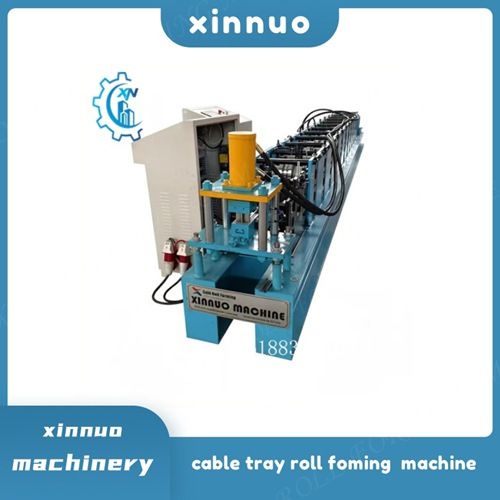

perforated cable tray roll forming machine

Cable tray s used to support and protect when wre electricty. electic power, communication control and instrumentationcable.

XINNUO compose this machinery as a cassette replacement type or automatic width control type in accordance with product.

And we supply equipment that is suitably designed for the use of product which can be formed ater perorating a partition andother panels.

Kinds of cable tray

Ladder type

Consist of both longitudinal side rails connected by individual transverse members called rungs.

Solid bottom type

Consists of both longitudinal side rails connected with a reinforced solid bottom.

Solid bottom trays are most often used to provide electrical or magnetic shielding forvery sensitive communications and signal circuitry.

Perforated type

Consist of both longitudinal side rails connected with a perforated bottom.

Perforations in the tray bottom allow for maximum airflow to cables, so they can staycool and won't build up heat.

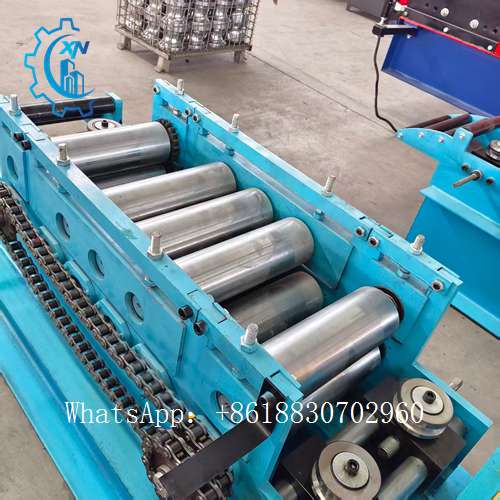

CABLE TRAY ROLL FORMING MACHINE – LEVELING SECTION (5 UPPER / 6 LOWER ROLLERS)

1.BASIC CONFIGURATION

• Total Rollers: 11 working rollers (5 upper + 6 lower)
• Roll Arrangement: Upper rollers are staggered with lower rollers; lower rollers are driven, upper rollers are pressure-applied
• Roll Material: GCr15 bearing steel, quenched & tempered, surface hard chrome-plated (HRC 55–60)
• Roll Diameter: φ80–90 mm (customizable per material thickness)

  2. CORE FUNCTION

•


  • Eliminate coil curvature, waves, and internal stress in galvanized/cold-rolled steel strips (0.8–2.0 mm thickness)
  • Ensure flatness and straightness before punching and roll forming
  • Achieve stable feeding and consistent profile quality

Composition

Uncoiler, Coil car

NC leveler and feeder

Power press and piercing mold

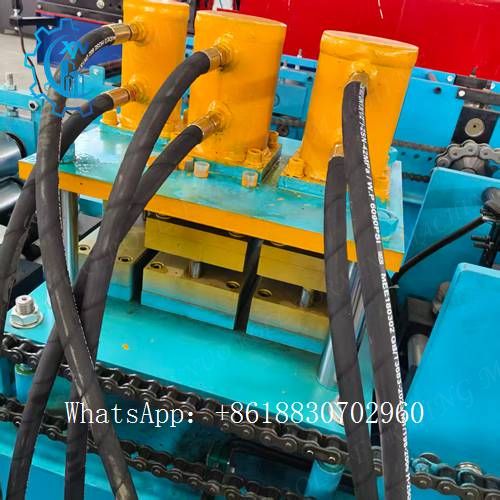

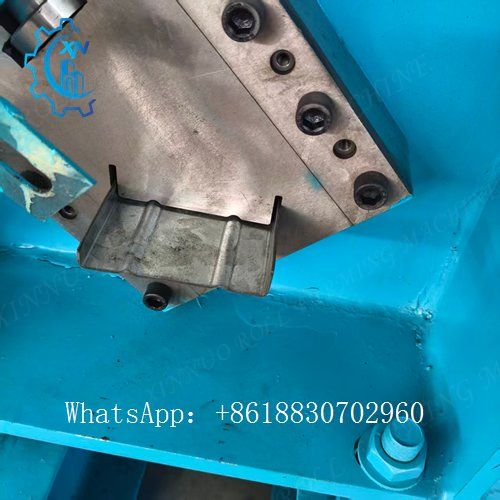

Shearing machine

Roller conveyor

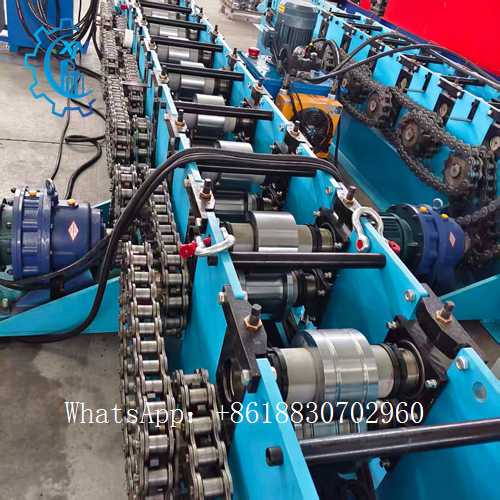

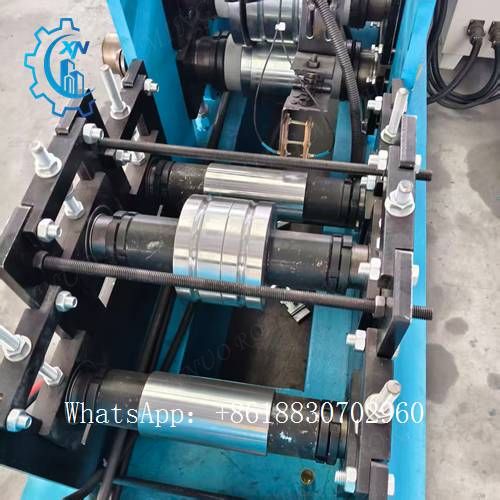

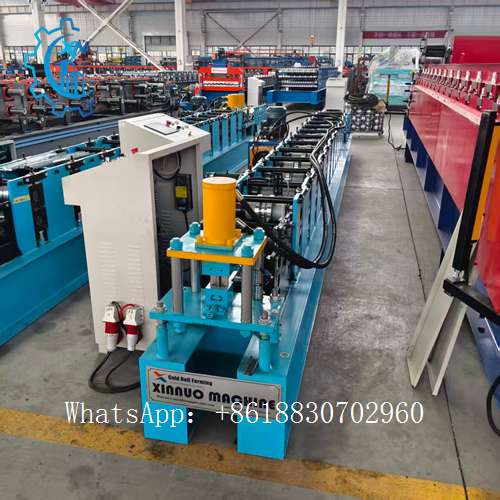

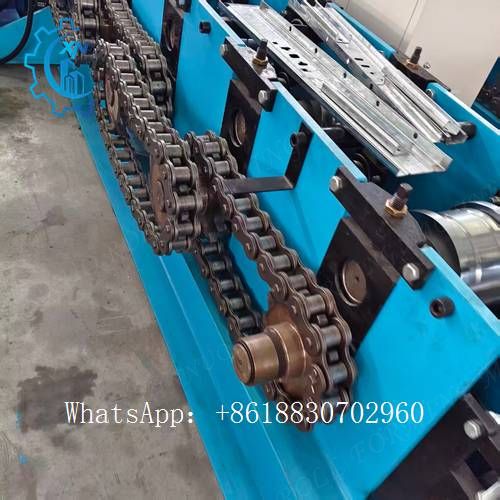

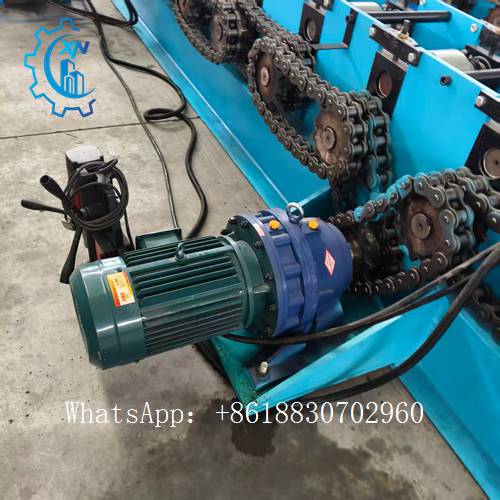

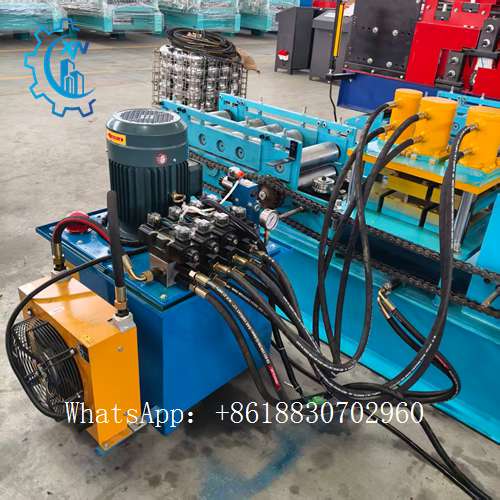

Roll forming machine

Out conveyor
