Model:cable tray roll forming machine
Min.Order Quantity:1 Pieces
Develivry time:45-60 workdays
Working speed:8-25m/min
Payment Terms:40% T/T in advance,60% when shipping
WhatsApp：+8618830702960
Cable tray roll forming machine also called multi-size cable tray roll forming machine.That’s meaning one this cable tray forming machine can production various lengths and heights cable tray,suitable for thicknesses of 1.0-2 mm.
Our company with extensive experience in different punching designs, we cater to the diverse demands of different industries, providing flexible and precise solutions.
Technical Parameters Table
| Item | Specification |
|---|---|
| Model | XN-Cable Tray Series |
| Material Thickness | 0.8–2.0 mm |
| Material Type | Galvanized steel, carbon steel |
| Roller Stations | 15–22 stations |
| Forming Speed | 8–15 m/min |
| Main Motor Power | 15–37 kW |
| Control System | PLC automatic control |
| Operation System | Touch screen |
| Cutting System | Hydraulic flying cutting |
| Voltage | 380V 3Phase 50Hz (or customizable) |
| Dimension | Custom as per profile |
| Weight | About 8–15 T |

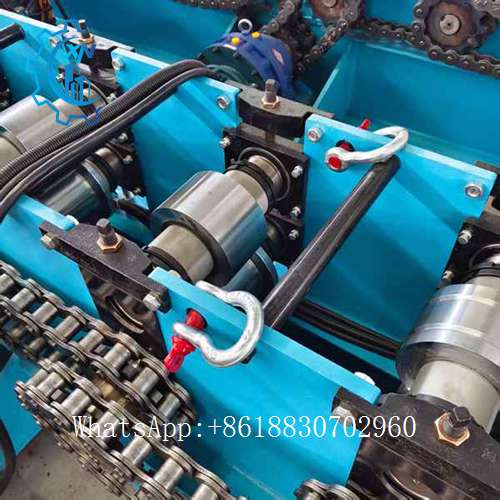

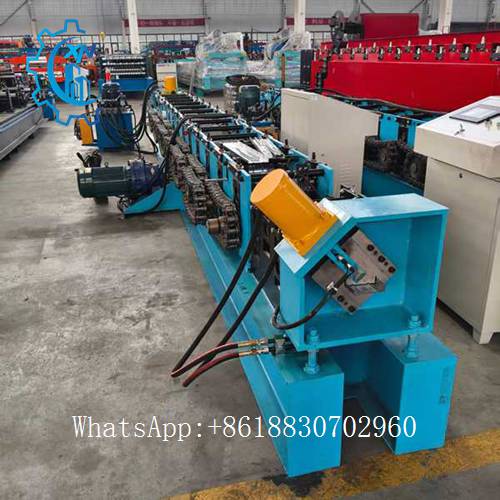

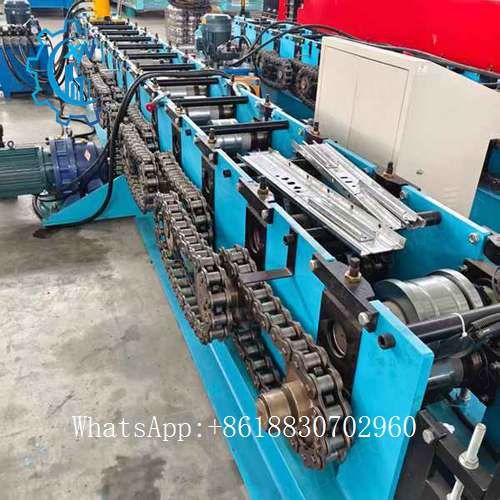

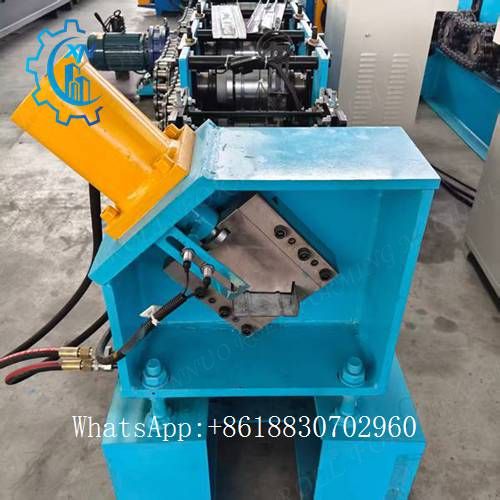

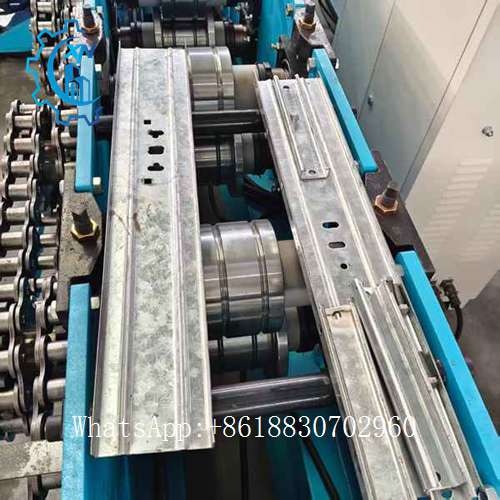

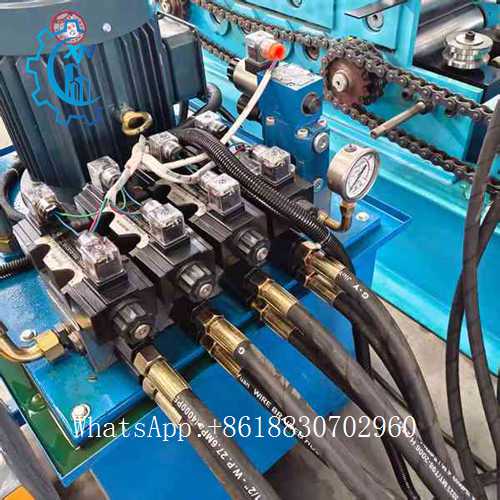

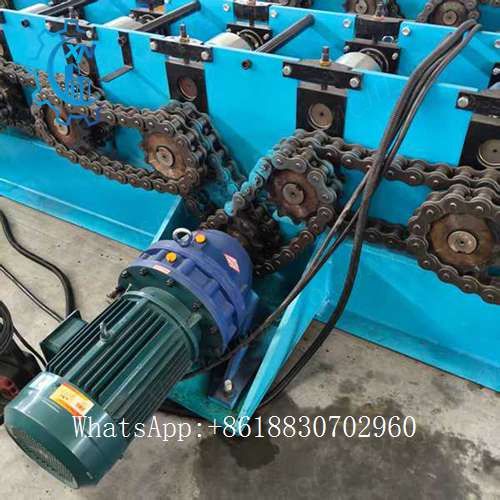

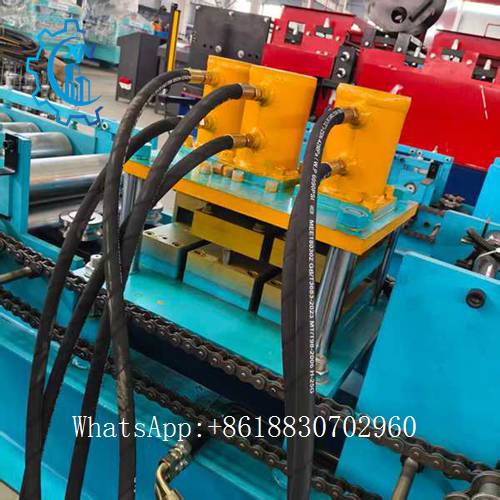

Cable tray roll forming machine detailed images for reference
| 1 | 5T Uncoiler | 1. Maximum load-bearing capacity: 5T 2. Maximum roll width: 120-850mm 3. Inner diameter of roll: ф460-520 mm 4. Outer diameter of roll: ≤1200mm 5. Hydraulic tensioning, electric unwinding |
 |
| 2 | Leveling servo feeding machine | 1.5 roller leveling 2. Leveling roller diameter: 90mm 3. Leveling motor: 4KW |
 |
| 3 | 250 Ton punching machine | 250 Tons press machine |  |
| 4 | Punching molds | Machine use the punching molds |  |
| 5 | High-speed platform | 1. Heavy-duty roller feed: 6 meters 2. Main motor power: 1.5KW 3. Electric opening and closing motor power: 0.37KW |
 |
| 6 | Roll forming part | 1. Shaft diameter φ65mm 2. Shaft material 45# steel 3. Forming pass number 20 4. Main motor power 5.5KW×3 5. Automatic opening and closing motor 1.5KW×3 5. Roller material Cr12 6. Roller hardness HRC58-62 |
 |
| 7 | Discharging platform | 1. 3m platform 2. Roller type 3. No power |
 |

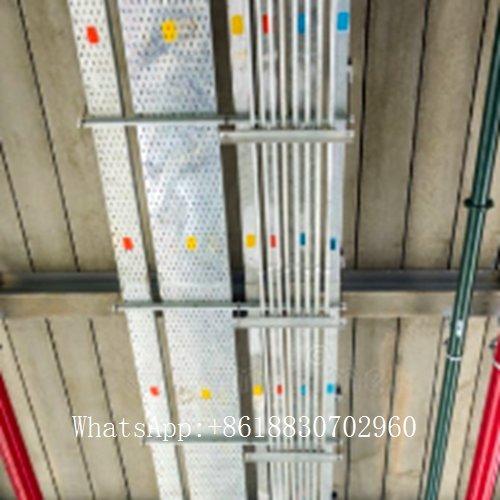

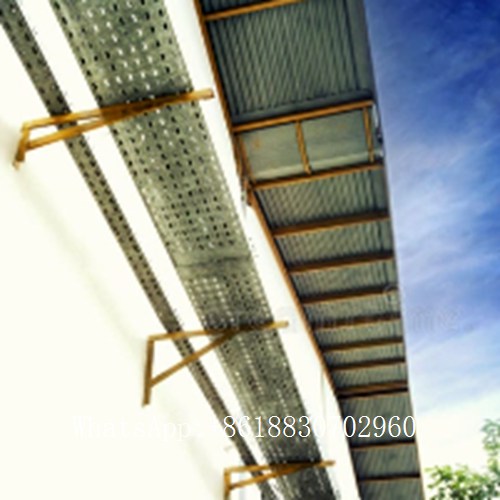

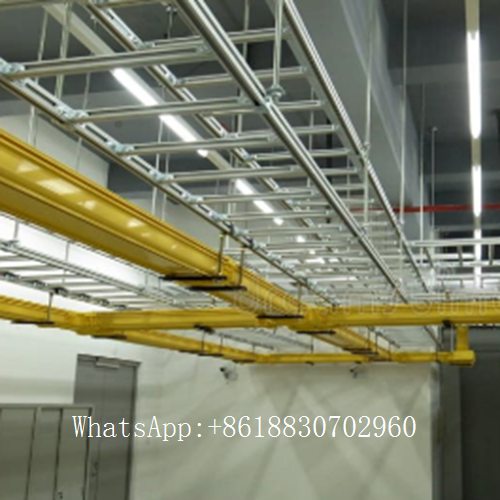

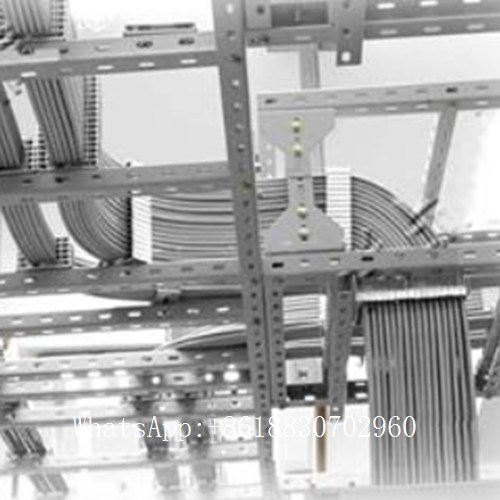

About cable tray applications
Cable tray are essential structures used to support insulated electrical cables for power distribution, control, and communication.They serve as an efficient alternative to open wiring
or electrical conduit systems, providing a secure pathway for cables in various environments. Cable trays are ideal for running large quantities of data cables overhead or under-floor
and are commonly referred to as baskets, trunking, or cable ladders.
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
8618830702960
