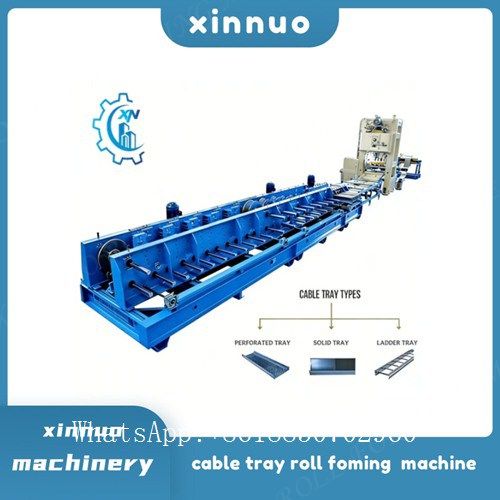

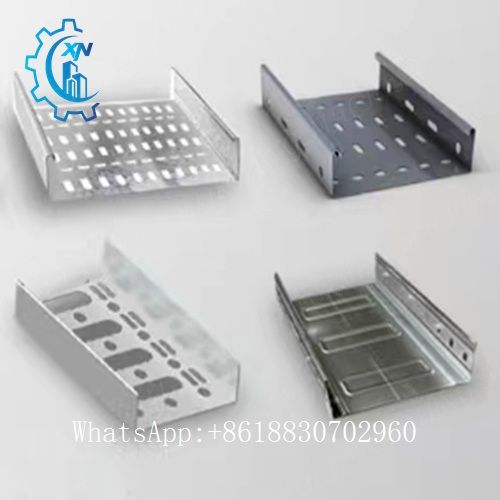

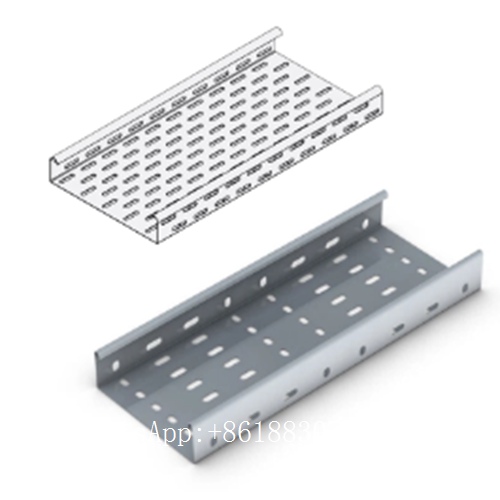

cable tray roll forming machine supplier

1. Overview of cable tray roll forming machine structure

      1.1 Unwinding machine

         Technical parameters: sheet width: 150-1050mm;material thickness 0.8-2.Omm;

       Inner diameter expansion and contraction range 460-510 mm,

        Roll diameter: o1200mm; carrying weight: ≤7 T

     1.2 leveling machine

       a. Number of work rolls: nine-rollers leveling machine

       b. Structural features: The rigidity and surface roughness of the leveling roller

          are greatly improved after quenching and tempering andchrome plating;

         it is composed of a pinch roller and a leveling roller, thepinch roller can be

         adjusted separately, and the leveling upper roller isadopted

        The overall structure is equipped with two adjustmentpoints at the front and rear,

        which can form a certain inclination angle, which isconvenient for improving the

       leveling quality. The feeding end of the leveling machineis equipped with a pair

       of guiding flat rollers and two pairs of guiding vertical rollers.

     The guiding vertical rollers can move in the center and atthe same time.

1.3 NC1050 servo feeder

a. Function: feeding

b. Structural features: Driven by servo motor. Multi-stagefeeding: 10 groups of differentfeeding

lengths can be input, LCD touch display isconvenient to change and set varioustechnical parameters.

The automatic induction startsystem is linked with the punch(control the start of the punch).

1.4 JH21-400B stamping machinePunching machine: The machine body is welded by steelplate,

with good rigidity andbeautiful appearance. It adopts combined pneumaticfriction clutch.

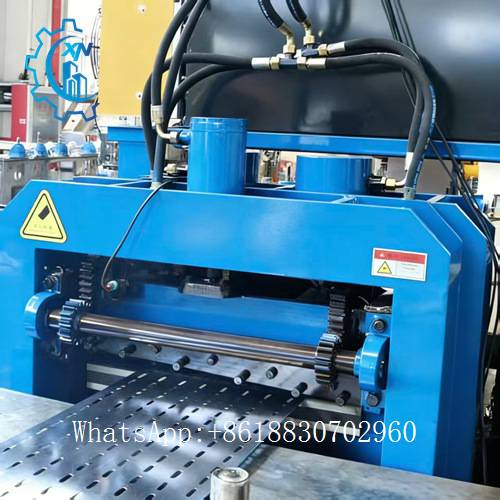

1.5 Conveying guide table

a. Form: Power roller type (conveying material)b. Function and structure: the sheet metal after the

guidepunching and cutting entersthe roll forming machine smoothly. The guiding device ismainly

composed of an air cylinder.The guide wheel can be easily adjusted to adapt todifferent widths of sheets.

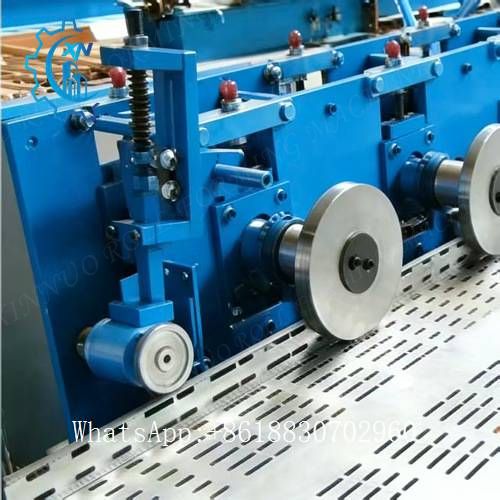

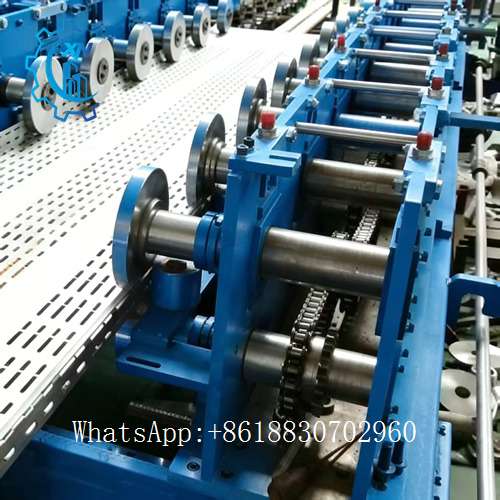

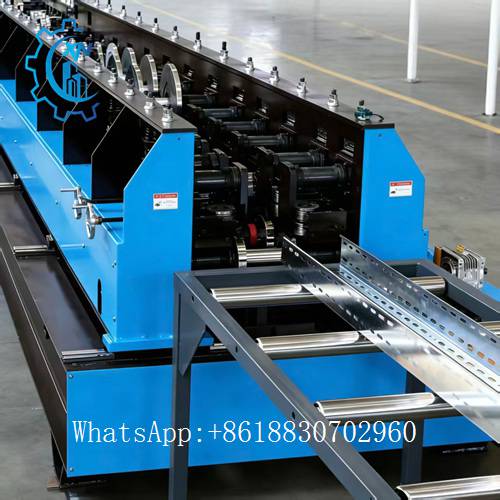

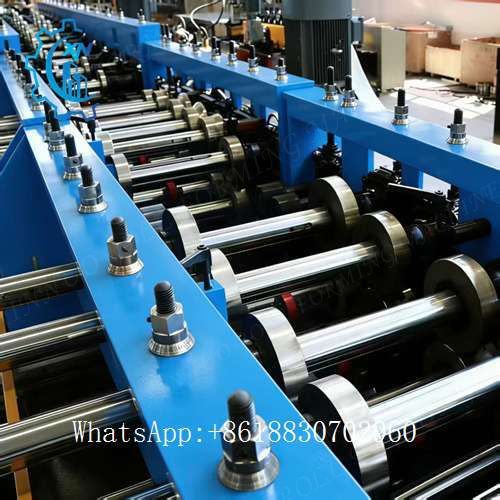

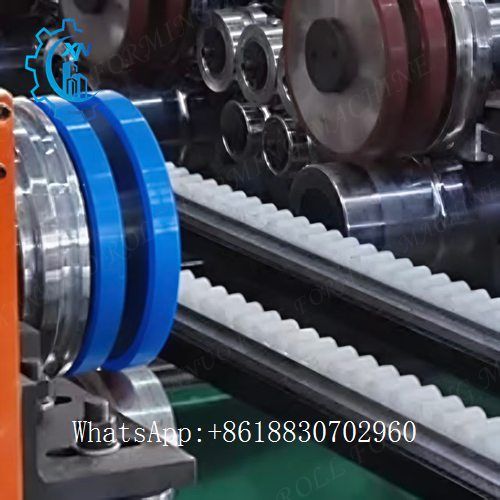

1.6 Forming host

     1.6.1. 22 passes of forming frame (double row)

      1.6.2 Width adjustment method: electric control

      1.6.3 Roller shaft diameter: c 65 mm

      1.6.4. Roll die material: Gcrl5, quenched, HRC58-62°

      1.6.5 Two 11kw variable frequency motors Roll material:GCr15

 1.7 run-out table

      Structure: roller type, no power

 1.8 Electrical Control System

        The whole line adopts imported PLC control, 8" LCDtouch screen, man-machineinterface.

         It realizes the interaction between human andPLC.

         The operator automatically runs through the set program(programmable control)

         and monitors the control process, so that the operatorcan control the production line.

         And modify the control parameters, and can monitor theequipment operating status,

        operating parameters and fault indications in real time.The length of the parts can be set digitally,

        and thelength of the parts can be adjusted.Real-time monitoring of the equipment running statusand fault indication.

Automatic feeding-initial leveling-feeding (servo)-punching-cutting-conveying material-forming-discharging- Decoiler

- Precision leveler

- 20otons high speed punch press with punch moulds

- Servo feeder

Main roll forming station

Hydraulic shearing station

- Products stacker

-Electrical & Hydraulic system
