Cable Tray Roll Forming Machine
Our Cable Tray Roll Forming Machine is a high-performance, intelligent production solution engineered to manufacture high-quality metal cable trays for diverse industrial, commercial, and infrastructure
applications. As a professional manufacturer, we integrate advanced cold roll forming technology with smart automation, enabling continuous, precise, and efficient production of various cable tray types
to meet the ever-growing demands of global cable management systems.
Designed for versatility and reliability, this machine is capable of processing multiple raw materials, including galvanized steel, stainless steel, aluminum, and pre-painted steel, with a material thickness range
of 0.6mm to 3.0mm (up to 4mm for heavy-duty models) and width adjustable from 150mm to 850mm according to customer requirements. It seamlessly produces all common cable tray profiles—ladder-type,
perforated, solid-bottom, trough, and channel-type—eliminating the need for multiple machines and significantly reducing production costs and workshop space occupancy.

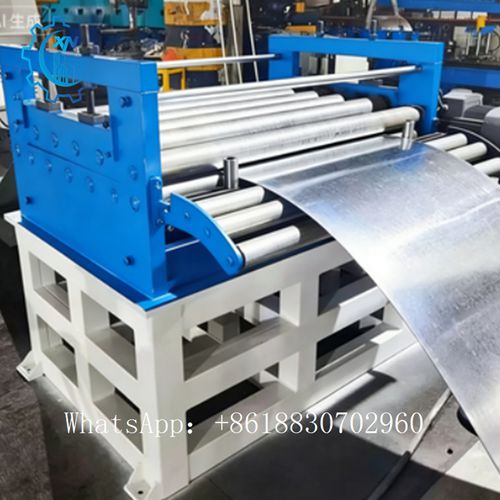

Equipped with a PLC control system (optional Mitsubishi or Siemens) and a user-friendly touchscreen HMI, the machine achieves full automation from decoiling, leveling, and servo feeding
to punching, roll forming, precise cutting, and automatic stacking. The intelligent control system allows for quick parameter adjustment, enabling fast profile changeovers and supporting up
to 10 preset length settings, which is ideal for large-scale, multi-specification production needs. With a forming speed of 10-30 meters per minute, it ensures high throughput while maintaining
exceptional dimensional accuracy (tolerance ≤±0.5mm) and a smooth surface finish, meeting strict international quality standards.

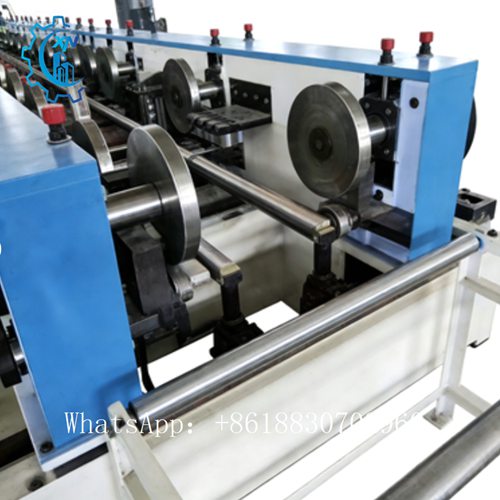

Durability and stability are at the core of our machine’s design. The frame is constructed with welded H-steel and cast iron pillars for strong load-bearing capacity, while the rollers are made of GCR 15 or SKD-11 steel,
quenching and tempering treatment to resist wear and ensure long-term stable operation. The integrated hydraulic punching and cutting system (optional pre-cut or post-cut) achieves synchronized punching and forming,
reducing material waste to less than 1% and improving production efficiency significantly. Additionally, the machine is equipped with a fault diagnostic system for real-time monitoring, minimizing downtime and simplifying
maintenance.
This cable tray roll forming machine is widely applied in various industries, including electrical and telecommunication infrastructure, industrial plants (oil & gas, chemical, mining), commercial and
residential buildings, transportation hubs (airports, metro stations), and renewable energy projects (solar and wind farms). It provides a reliable cable management solution for organizing power cables,
data cables, and fiber optics, ensuring safe and orderly cable laying in both indoor and outdoor environments.
We offer fully customizable solutions tailored to your specific drawings, tolerance requirements, and budget, including optional configurations such as hydraulic decoiler, Siemens motor, and automatic stacking system.
Our service commitment includes 2 years of warranty, pre-delivery testing, on-site installation and worker training by professional technicians, and lifetime after-sales support, ensuring worry-free operation and long-term
value for your investment. Choose our Cable Tray Roll Forming Machine to elevate your production efficiency, product quality, and market competitiveness in the global cable management industry.
