Fully Automatic Cable Tray Roll Forming Machine

Introduction

Fully Automatic Cable Tray Roll Forming Machine is designed to produce perforated cable tray product, which is used to protect and support for the wire electricity, electric power, communication control and instrumentation cable.

The perforated cable tray machine can produce cable tray with width from 100-800mm,  thickness from 1.2-2.0mm. Fully automatically controlled by PLC control system, you can operate the machine the machine easily that you just

need set the cable try width and production quantity on touch screen, then the machine will run automatically.  The whole line covers an area about 20 meters long and 2 meters wide. The whole cable tray machine line speed about

8-20 meters per minute.  This cable tray roll forming machine is composed of 5 ton hydraulic decoiler with coil car, leveler, hydraulic punch, hydraulic cutting, transport table, main roll forming machine with width adjustment structure,

outer table, hydraulic station, and PLC control system.

Working Process:

5 Ton hydraulic decoiler- leveler- hydraulic punch- hydraulic cutting- transport table- main roll forming- outer table

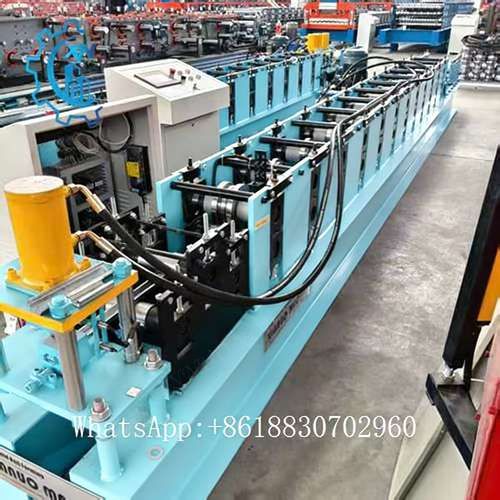

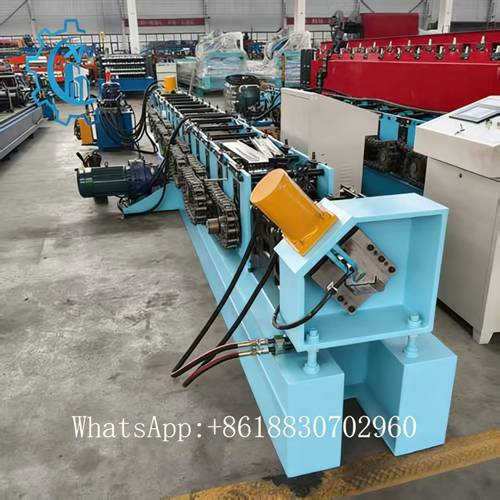

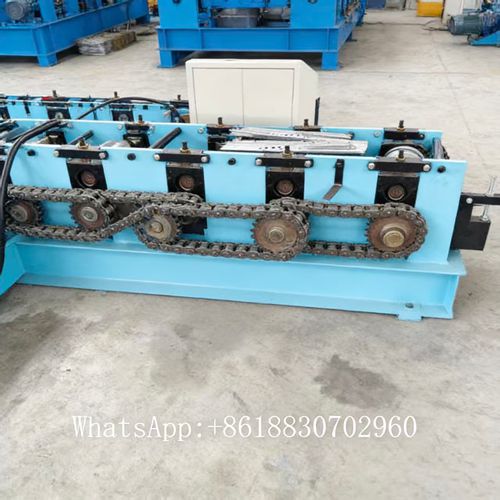

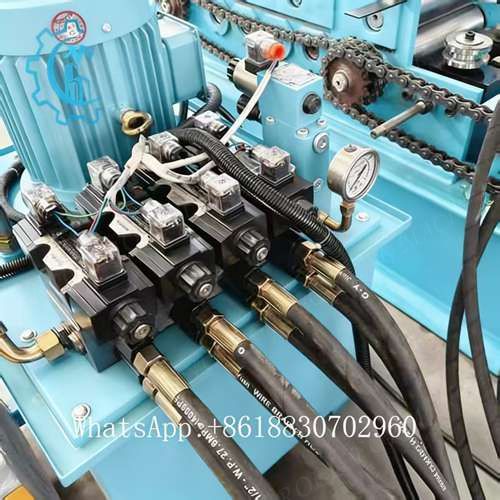

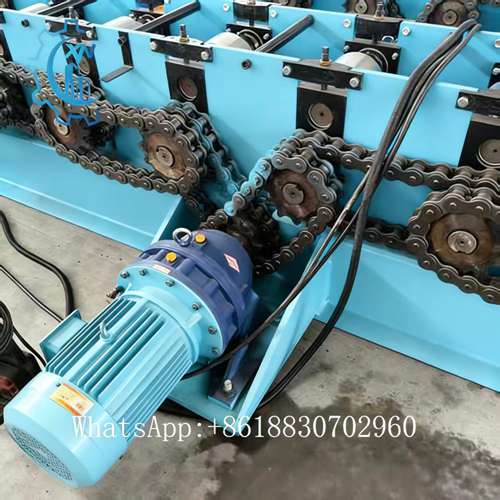

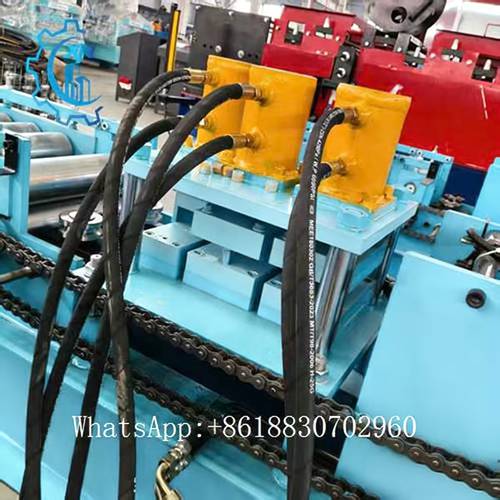

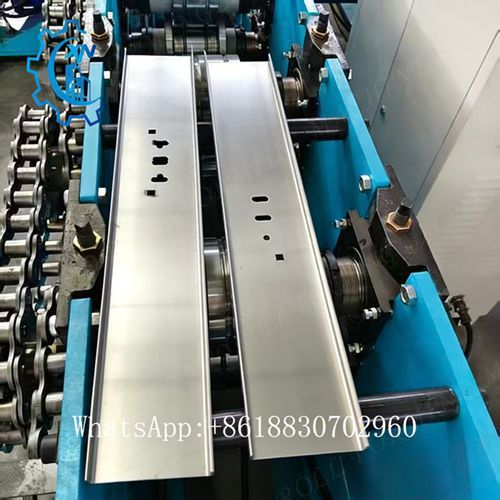

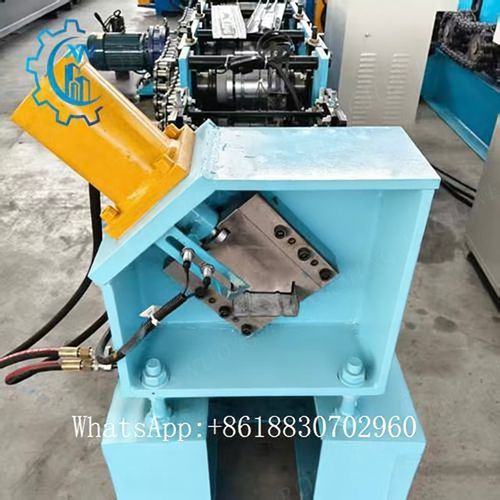

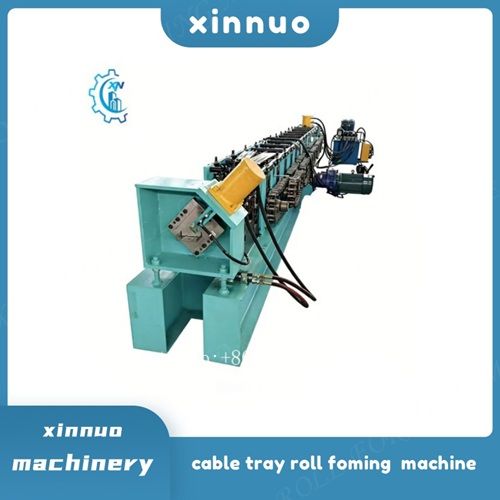

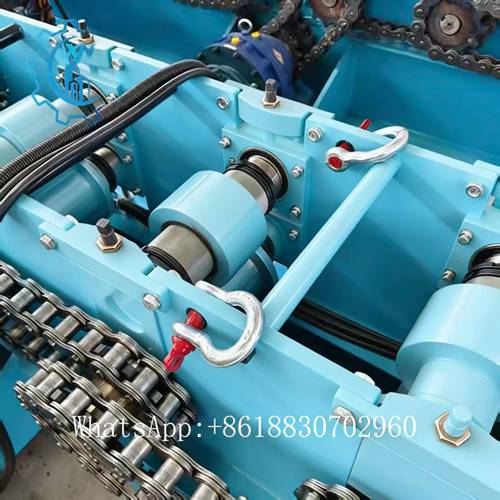

Machine Photo

Applications of Cable Tray

1. Q: How many experience do you have for producing cable tray roll forming machine ?

A: We have rich experience in designing and manufacturing cable tray roll forming machines, with hydraulic punch or press punch. We have  exported many cable tray machine to local China and abroad, including India, Vietnam, South Africa, USA, etc.

2. Q: Can I produce cable tray cover machine  on the same machine?

A: Yes, absolutely you can produce also cable tray cover machine on this perforated cable tray line.

3. Q: What is machine production speed?

A: Machine roll forming speed about 15m/min, running speed after punch and cutting about 8m/min.

4. Q: What is delivery time of Cable Tray Roll Forming Machine ?

A: About 45-60 workdays after contract confirmation.

7. Q: What is your after-sales service system?

A: We offer 1 years warranty period for  machine mechanical part, and whole life with  7x 24 hours after sales service. Fast help customer solve the problem during production is what we do always for our customers.
