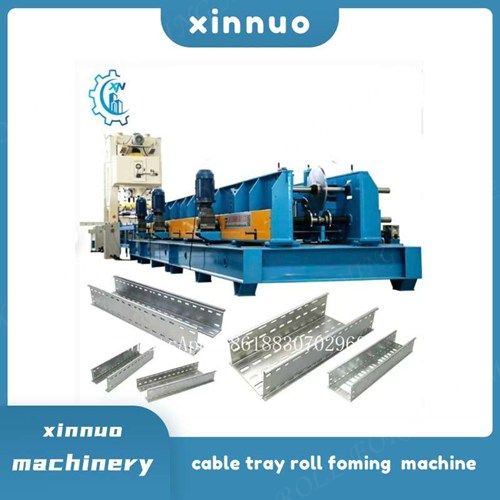

CABLE TRAY ROLL FORMING MACHINE
Product Introduction

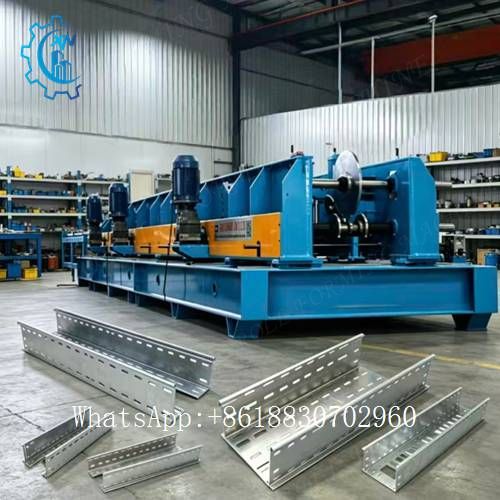

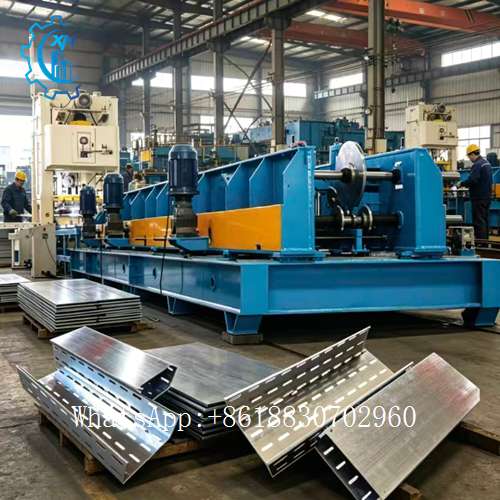

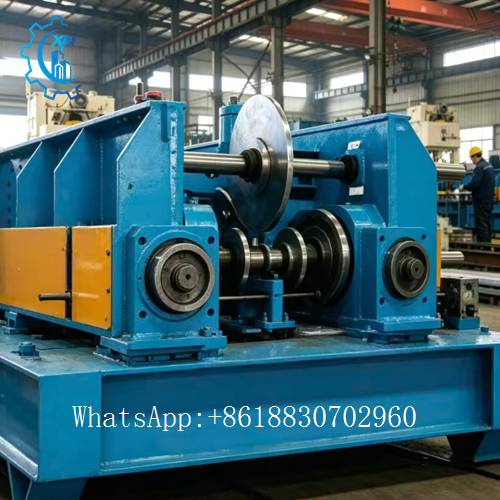

The Cable Tray Roll Forming Machine is a fully automatic, high-efficiency cold roll forming equipment specially designed for producing various types of cable trays (perforated cable trays, ladder-type cable trays, solid-bottom cable trays, etc.). It integrates uncoiling, leveling, pre-punching, roll forming, fixed-length cutting, and stacking, realizing one-stop automated production.
Equipped with a PLC control system and touch screen operation, the machine supports automatic size adjustment and profile switching, enabling fast production of cable trays with different widths, heights, and hole patterns. It is widely used in power engineering, construction, data centers, and industrial facilities, ensuring stable, high-precision production of cable management components.
Technical Parameter
| Item |
Specification |
| Processing Material |
Galvanized steel coil, cold-rolled steel, stainless steel |
| Material Thickness |
0.8–2.0 mm (customizable) |
| Forming Speed |
8–15m/min |
| Forming Roller Stations |
18–22 stations |
| Roller Material |
45# steel, quenched and hardened (HRC 58–62) |

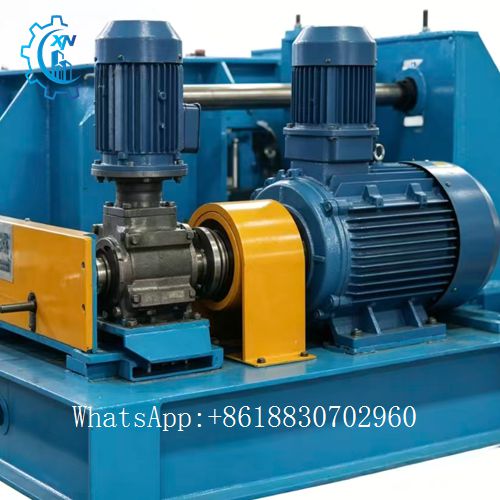

| Main Motor Power |
15 kW |
| Hydraulic System Pressure |
16 MPa |
| Punching System |
Hydraulic pre-punching, round/slot holes, adjustable hole spacing |
| Cutting Method |
Hydraulic flying shear, cutting tolerance ±0.5 mm |
| Control System |
Delta PLC + 10-inch touch screen, automatic operation |
| Uncoiler Capacity |
5-ton hydraulic uncoiler (with loading car optional) |
| Total Weight |
Approx. 9.2 tons |
| Overall Dimension (L×W×H) |
9000×1500×1700 mm |
| Voltage |
380V 3P 50Hz (customizable to local standards) |
| Certification |
CE, ISO 9001 |
Product Advantages
✅
High Automation & Efficiency
Fully automatic production line from coil to finished product, one operator can manage the whole line, greatly reducing labor costs and improving production efficiency by 30% compared with traditional manual processing.
✅
Precise Forming & Stable Performance
Adopts high-precision quenched rollers and reinforced welded frame, ensuring consistent profile size and flatness of cable trays, with long service life and low maintenance frequency.
✅
Flexible & Customizable
Supports quick size adjustment and profile switching, can produce various cable tray types (perforated, ladder, solid-bottom) with different specifications, meeting diverse project requirements.
✅

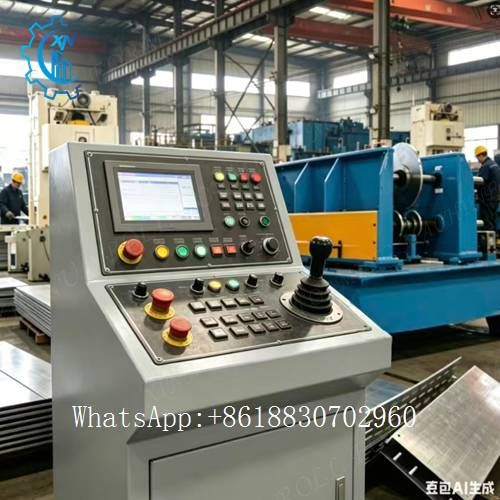

Intelligent Control System
PLC + touch screen control with parameter storage, fault diagnosis, and automatic counting function, easy to operate and maintain, with high production stability.
✅
Reliable Quality & Certification
All core components are from well-known brands, the whole machine passes strict factory testing, and is certified with CE and ISO 9001, ensuring compliance with international quality standards.

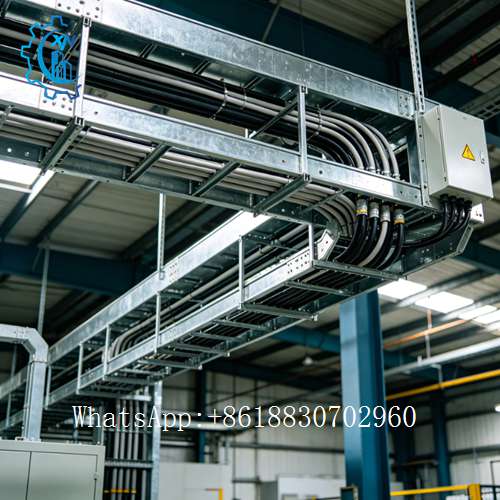

Application Scenarios

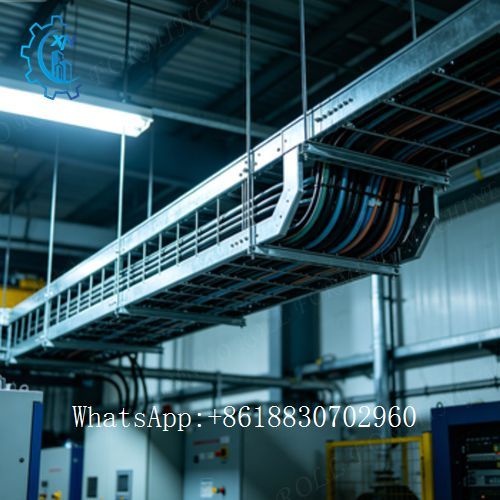

- Data Centers & Server Rooms: Cable laying and management for large data centers, ensuring safe and orderly power and signal transmission.

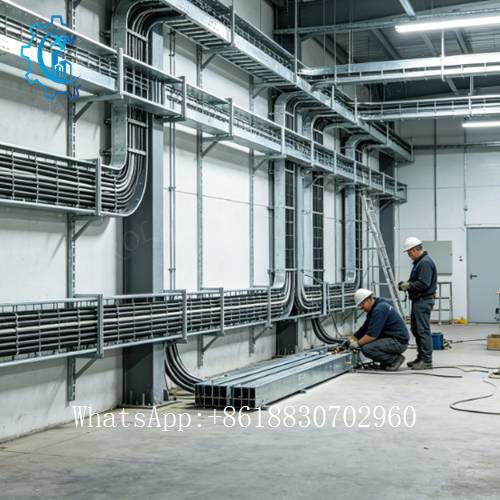

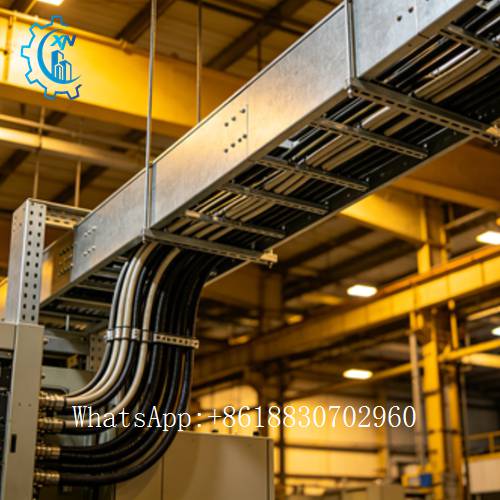

- Industrial Plants & Factories: Cable support systems for manufacturing workshops, chemical plants, and industrial parks, adapting to complex industrial environments.
- Commercial Buildings & High-Rises: Cable management for office buildings, shopping malls, hotels, and residential high-rises, hidden and beautiful cable laying.
- Infrastructure Projects: Power distribution systems for subways, airports, bridges, and tunnels, with high load-bearing and corrosion-resistant performance.
- Renewable Energy Projects: Cable management for solar power stations, wind farms, and energy storage projects, adapting to outdoor harsh environments.
- Warehouses & Logistics Centers: Cable support for automated logistics warehouses and cold chain facilities, ensuring stable power supply for equipment.
Company Profile
Hebei Xinnuo Roll Forming Machine Co., Ltd. is a professional manufacturer dedicated to cold roll forming equipment for over 20 years. We focus on R&D, production, sales, and after-sales service of roll forming machines, with a modern production workshop and a professional technical team.
Our products strictly follow international quality standards, pass CE and ISO 9001 certification, and are exported to more than 80 countries and regions worldwide. We provide customized solutions, on-site installation guidance, and lifelong after-sales service for global customers, helping them improve production efficiency and product quality.
