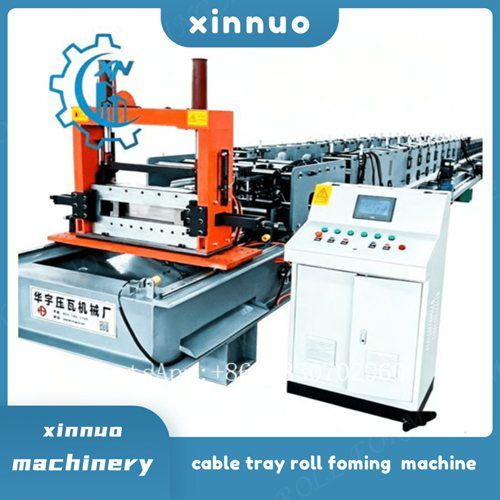

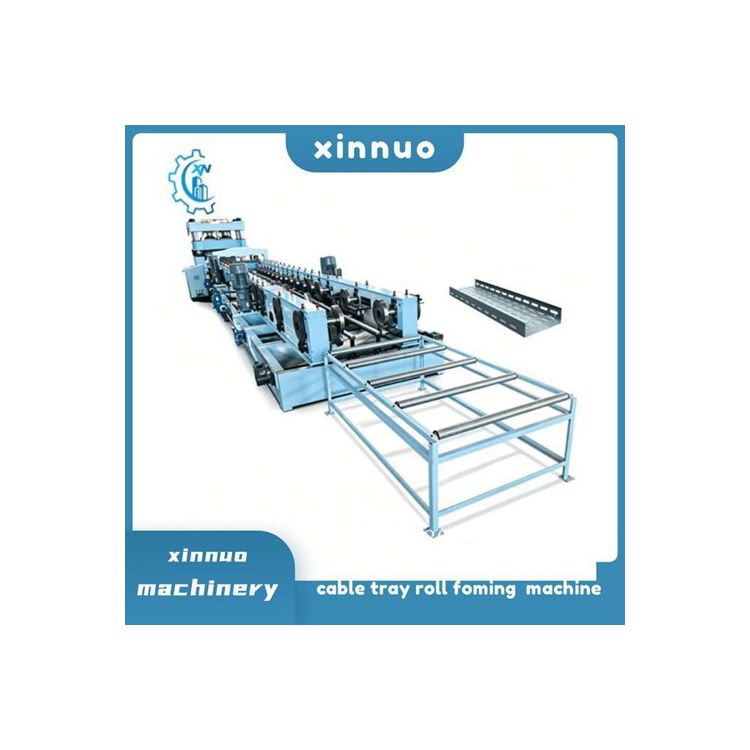

High Precision Cable Tray Roll Forming Machine

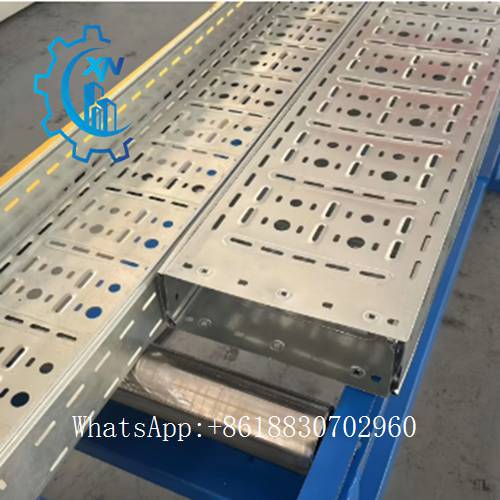

XINNUO Roll Former cable tray roll forming machines are capable of producing cable

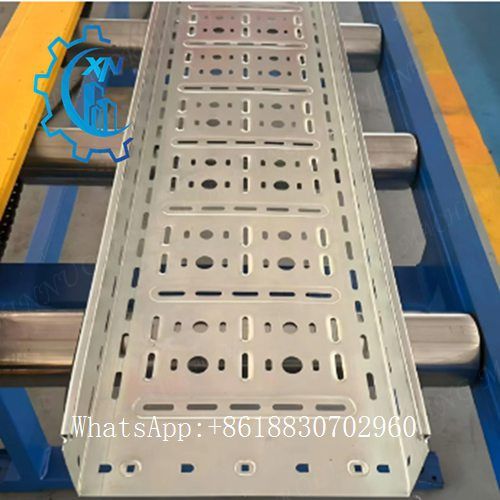

trays in various shapes and specifications- including cable ladders, perforated cable
trays, trough cable trays, solid-bottom cable trays, and cable tray covers-designed
specifically for supporting and organizing electrical wiring.

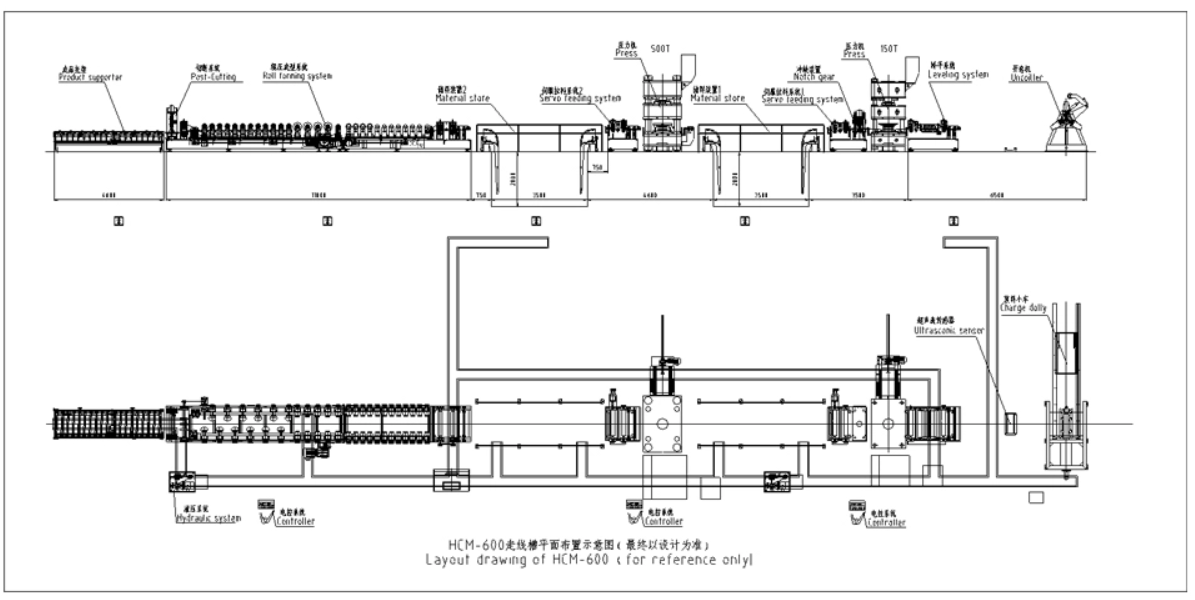

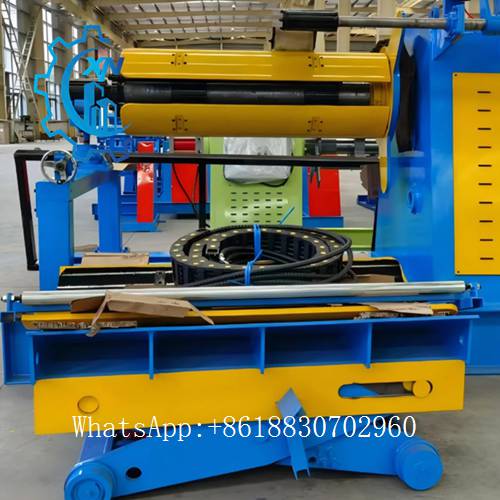

Our Cable Tray feeding system includes Decoiler, Loading Car, Straightener and Feeder, with the help of servo control we ensure precision feeding on our cable tray machinery line.

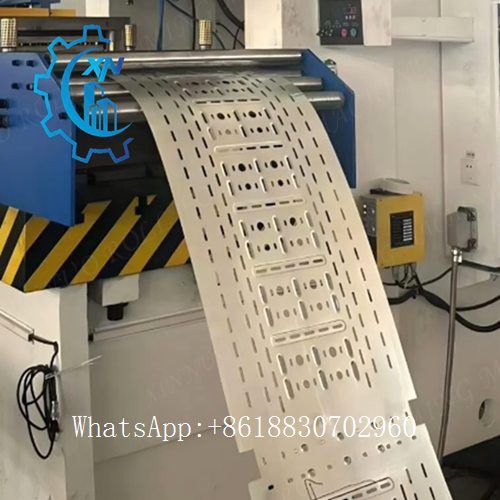

With the help of our experience, we offer for our customers optimum solutions on cable tray eccentric press and cable tray punching molds for our customer’s cable tray machine line, having perfect cable tray punching on our cable tray manufacturing machine will be pretty easy for our customers.
As cable tray roll former machine line unit, we provide for our customers options also feeding for cable tray from directly sheet or from coil, there is width and heigth adjustment on our cable tray roll forming machine. We produce out cable tray roll former with different station quantity and shaft diameter according to our customer’s cable tray design. We provide the optimum solution for our customers for their cable tray roll form line.
If our customer’s require to work from coil on cable tray roll forming line, we are adding the cable tray cutting unit after cable tray roll former according to our customer’s requirement and cable tray design.
Coupling unit is helping to open the outlet on cable trays, adding outlets during cable tray production is becoming pretty helpful during assembly of cable tray.
| Item | Specification |
|---|---|
| Material requirements | Q235 cold rolled plate |
| Board material thickness | 1.6~2.5mm |
| Cable tray width | According to production needs, a variety of cable trays with a strip width of 150mm≤§≤1000mm can be formed. |
| Production Speed | Continuous forming speed 0~6m/min. |
| Production line | Fully automatic PLC control with Touch screen operation |
| Roll Forming stands | 22 Rollers station |
| Forming rollers materials | GCr15 quenching treatment |
| Driving method | Gearbox driving |
| Electrical control system | PLC control |
| Total installed capacity | about 95kw |
| Dimension | 322.31.8M (LWH) |
Flexible Solutions
According to cable machine necessary work, we offer different combinations of steel sheet cable tray production machine lines. We offer our production line with different speed range, width and thickness range, cable tray tool and price range.
Low Energy Consumption
With the help of modern technology and our perfect metal cable tray production machinery line designs We offer to our customers to do same cable tray production work with minimum energy consumption if compared with our competitors.
Easy to Use
With the help of cable tray production machinery lines practical control panel, software and work adjustments, using of our cable tray machine line is pretty easy. Understanding to working mentality and starting to work with our cable tray machinery line will be pretty easy. Operator will have easily full control on our cable tray machine lines.
Different Speed Solutions
We offer alternative solutions on our cable tray production line, for matching different speed levels on our cable tray machine lines. Such as different cable tray roll forming unit design, faster or slower pres stroke alternatives according to customer’s budget. We can offer and provide for our customer different price and metal cable tray machine speed range.
Precision Work
With the help of our great experience on cable tray machine lines, we inform and offer alternative solutions for our customers on our cable tray machine lines according to their job requirements. We share our knowledge and offer our customers the most suitable cable tray manufacturing machine line according to their needs.
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
