Technical specication
| Coil Width | 150-1000 mm |
| Coil Thickness | 1.0-2.0 mm |
| Power | 380 V, 50 Hz, 3 phase |
| Line Speed | 10-15 m/min |
| Electical Contral | PLC |
| Hydraulic Punching | As per customer drawing |
Each part technical parameter
| 1. Automatic hydraulic decoiler | |||||||
| 1 | Loading capacity | 8T | |||||
| 2 | Steel coil I.D. | φ480-φ520mm | |||||
| 3 | coil O.D | max φ1800mm | |||||
| 4 | Cantilever width | 1250mm | |||||
| Feature: With hydraulic expansion, it can adjust to coil inner diameter during produce. | |||||||

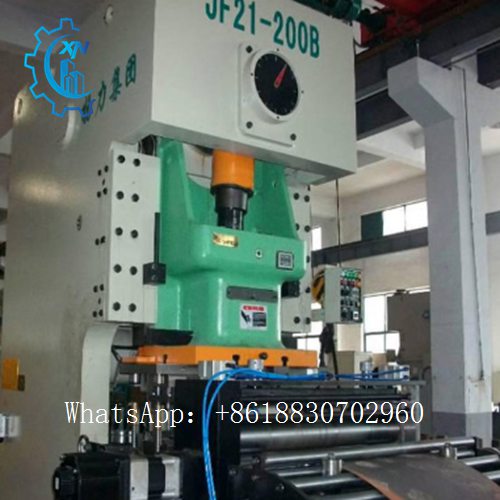

| 2. Perforating station | |||||||
| 1 | Perforating sets | 2 sets | |||||
| 2 | Die qty | 4 sets | |||||

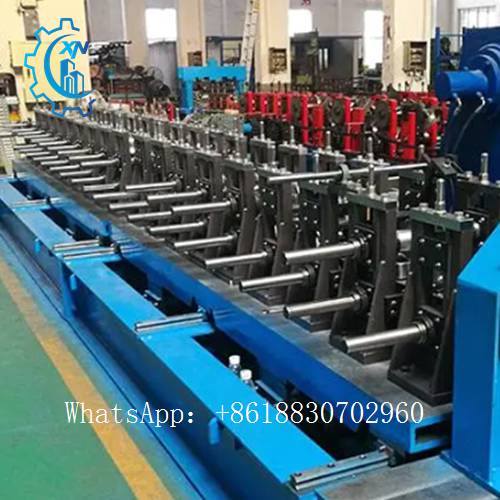

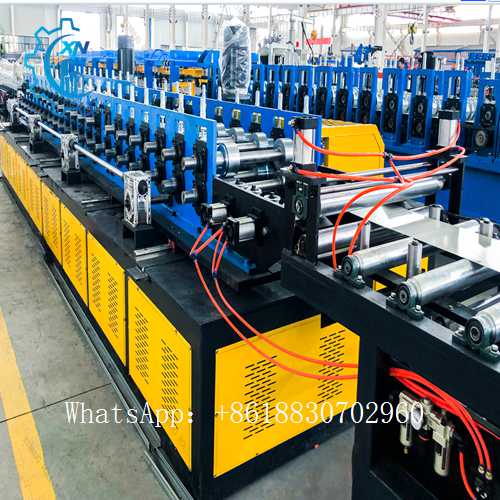

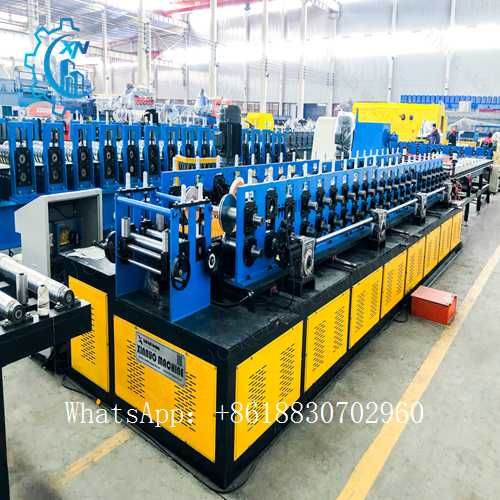

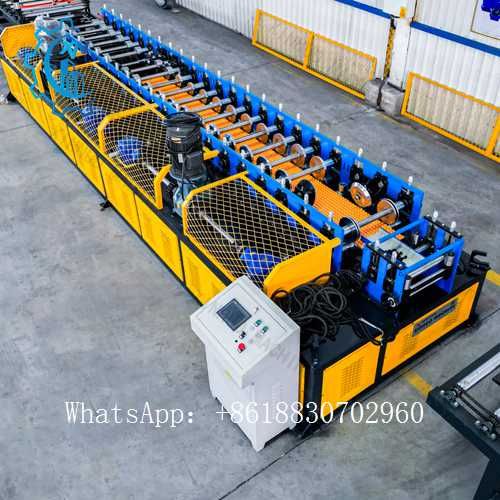

| 3. Roll Forming Machine | |||||||
| 1 | Roller groups | 23 stations | |||||
| 2 | material roller | GCr15 with heat treatment, HRC58-62° | |||||
| 3 | Roller shaft dia. | Φ85mm | |||||
| 4 | Shaft material | 45# Steel with quenching and tempering | |||||
| 5 | Motor | 5.5KW+11KW | |||||
| 6 | Transmission way | Chain with automatic changeable size | |||||
| 7 | Machine frame body | Welded by 500BH H-beam, Stress-Relieving | |||||
| 8 | Roller supporter | duplex | |||||
| 9 | bearing | HRB, NU1108 | |||||
| 10 | Automatic moving motor | 1.5KW * 4 sets | |||||
| 6. Hydraulic cutting unit | |||||||
| 1 | Cutting way | Stop cutting | |||||
| 2 | Length measure | Encoder with Borescope instrument | |||||
| 3 | Cutting die | Cr12MoV with quenching treatment | |||||
| 4 | Die unit | Combination die | |||||
| 7. Hydraulic Pump Station | |||||||
| 1 | Motor power | 22KW | |||||
| 2 | Cooling way | Fan wind | |||||
Cable Tray and Fittings system
Guiding, feeding, and leveling
workflow
FAQ:

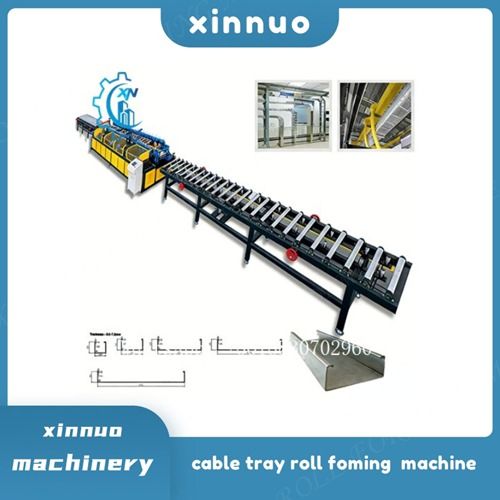

1. What is a Cable Tray Roll Forming Machine?
A Cable Tray Roll Forming Machine is a high-performance production line designed to manufacture metal cable trays used for supporting and organizing electrical cables in industrial and commercial buildings. It forms steel coils into perforated or solid cable trays with precise dimensions and strong structural integrity.
2. What materials can be used in cable tray production?
LOTOSFORMING machines can process galvanized steel, stainless steel, pre-painted steel, and aluminum coils, typically ranging from 0.6 mm to 3.0 mm in thickness.

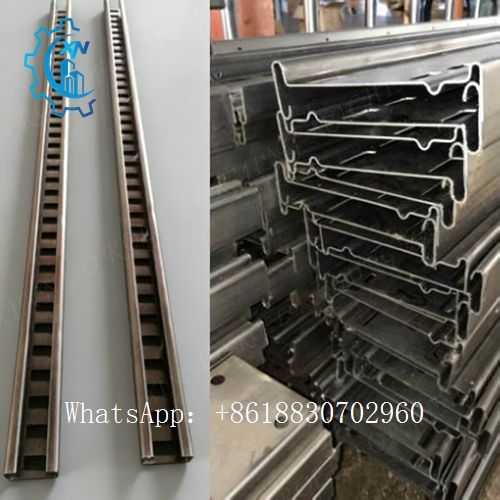

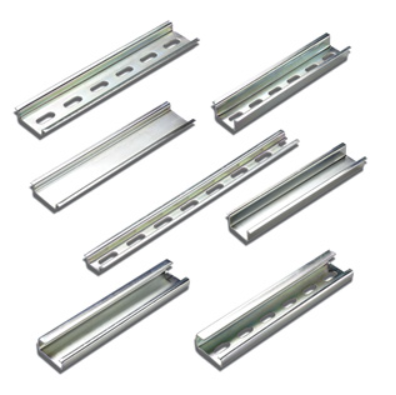

3. What are the main types of cable trays produced by the machine?
The system can produce various styles such as:

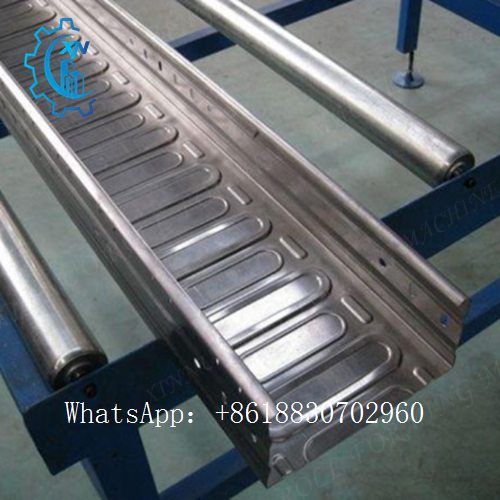

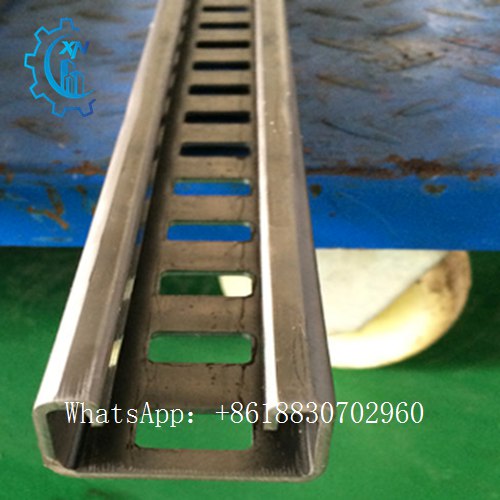

Perforated cable trays
Ladder type cable trays
Solid-bottom cable trays
Wire mesh type (optional)
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
