Develivery time:45-60 wordays
Model:XN- Perforated cable tray 100-800mm
Payment:40% T/T deposit,60% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :1 years for machinery warranty
WhatsApp:+8618830702960

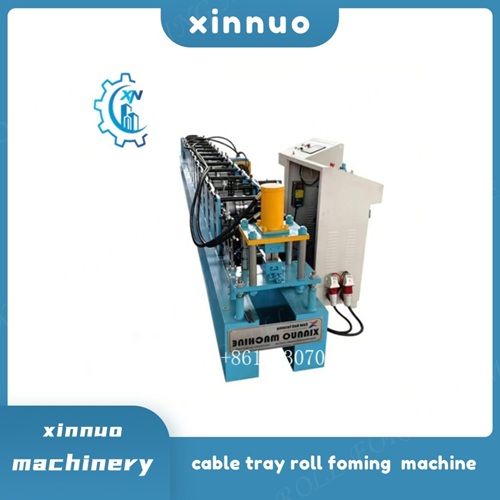

Cable tray forming machine belong to continuous roll forming: Through multiple passes (typically 10-20 or more) through forming rollers, coiled material (such as galvanized sheet or stainless steel)
is gradually and continuously bent into the designed bridge cross-sectional shape (such as stepped, trough, or tray-shaped). This process is uninterrupted, with production speeds reaching 10-25 meters
per minute, significantly improving production efficiency and reducing labor costs.
Machine Specifications
| 1 | Equipment area | About 8.5×1.5×1.6m |
| 2 | Equipment feeding direction | In left and out right |
| 3 | Voltage | 380V 50HZ 3Phase |
| 4 | Hydraulic oil | 46# hydraulic oil |
| 5 | Gear oil | 18# hyperbolic gear oil |
| 6 | Rolling strip width | 450-950 mm |
| 7 | Rolled strip thickness | 1.0(±0.03)—2.0(±0.03) mm |
| 8 | Rolled strip material | Q235B cold rolled strip steel,hot rolled strip steel |
| 9 | Rolling workpiece length | 3000 mm |
| 10 | Online punching production speed | 6-8 m/min |
| 11 | Motor explosion-proof grade | ExdIICT4 |
| 12 | Motor protection grade | IP55 |
| 13 | LCD display | Display Electric |
| 14 | Total installed capacity of equipment | About 30KW |
| 15 | Electrical low voltage control components Control system |
Delixi or Chint |
| 16 | Frequency system | INVT |
| 17 | Bearings | Harbin Bearing |
| 18 | Reducer | Hebei xinnuo machinery Co., Ltd. |
| 19 | Length Tolerance | ±2mm |

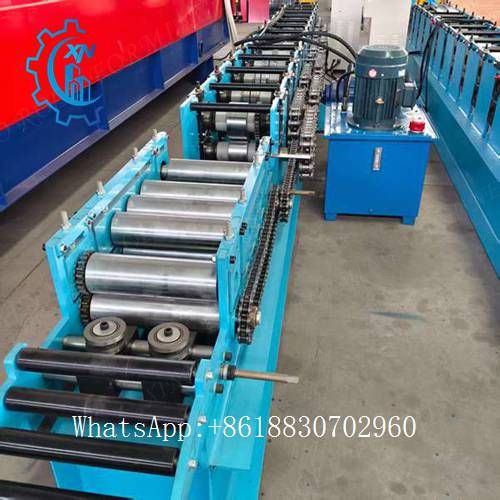

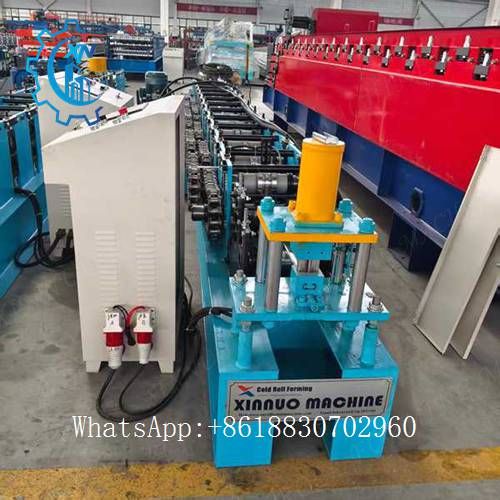

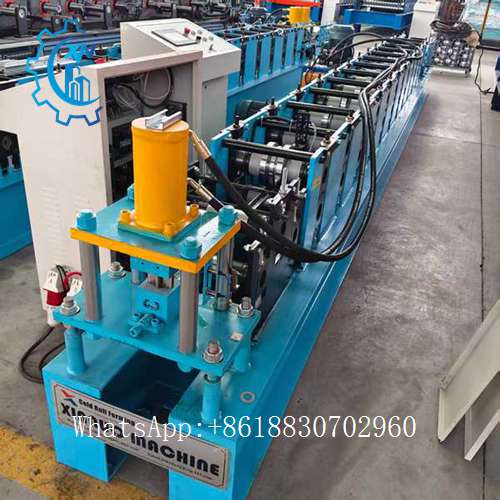

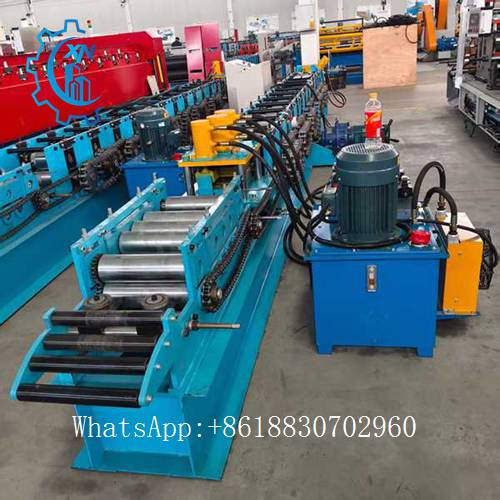

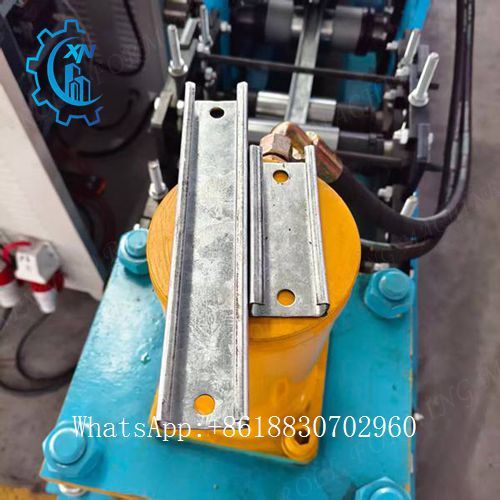

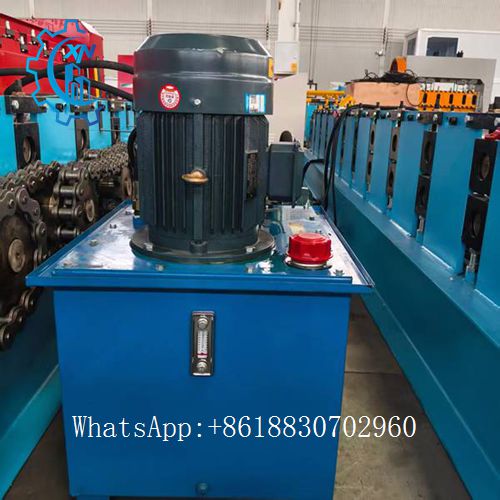

Cable tray punching machine price detailed images for reference
A.5T Uncoiler Decoiler
1. Maximum load-bearing capacity: 5T
2. Maximum roll width: 120-950mm
3. Inner diameter of roll: ф460-520 mm
4. Outer diameter of roll: ≤1600mm
5. Hydraulic tensioning, electric unwinding
B.Leveling servo feeding machine
1.5 roller leveling
2. Leveling roller diameter: 90mm
3. Leveling motor: 4KW

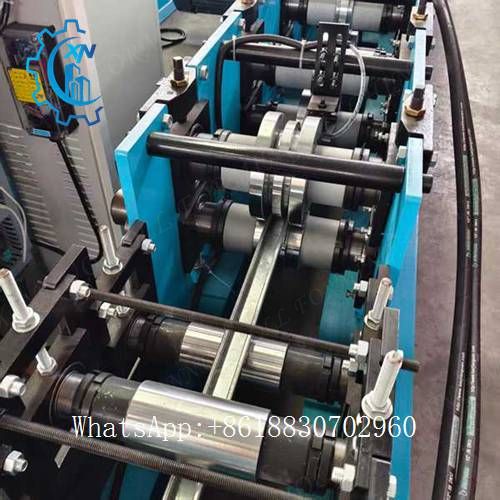

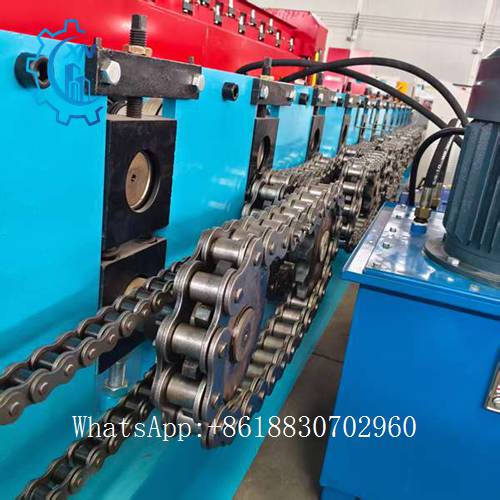

C.Roll forming part
1. Shaft diameter φ65mm
2. Shaft material 45# steel
3. Forming pass number 32
4. Main motor power 7.5Kw*2
5. Automatic opening and closing motor 1.5KW*2
5. Roller material Cr12
6. Roller hardness HRC58-62

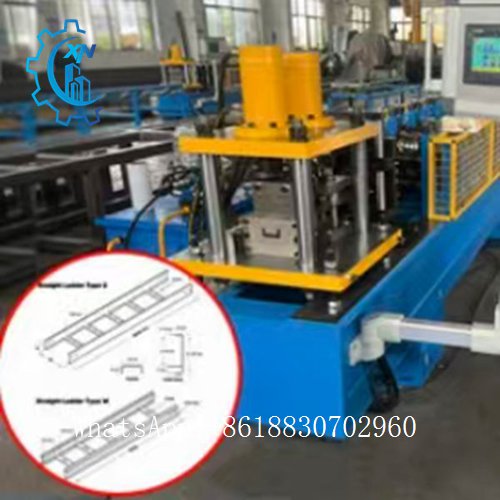

Drawing Model：Bottom:100-800 Waist high:50-200

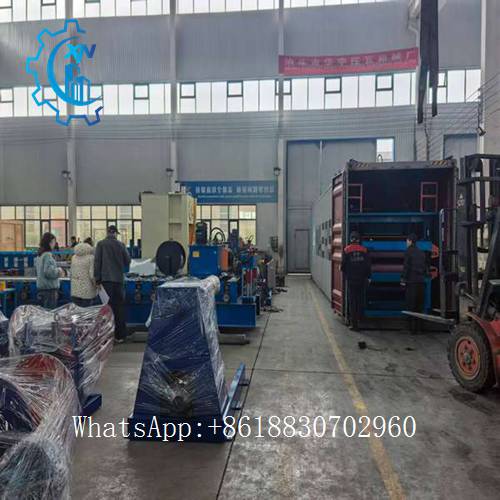

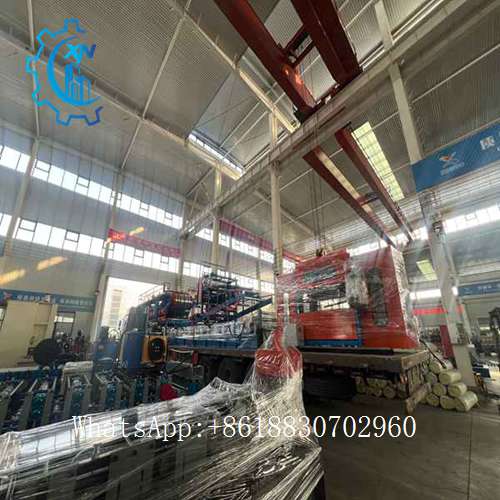

Cable tray punching machine price loading and shipment
| Host packaging | Naked in a container, or with a steel structure base and fixed with a wooden box or wooden frame |
| Electronic control system | Packed in protective film or placed in individual wooden boxes |
| Precision parts | They are usually placed in special wooden boxes and filled and wrapped with foam, paper scraps or oil paper. |
| Spare parts and tools | All spare parts are placed in wooden boxes |
| Packaging labeling | There are usually clear markings on the outside of the box |
About our service for cable tray forming machine
| Pre-sales consultation and customization | Provide equipment selection suggestions and production line configuration solutions based on your needs (such as bridge type, material, specifications, and output), and accept customized designs |
| Equipment installation and debugging | Professionals will come to install the equipment and conduct on-site debugging to ensure the normal operation of the equipment and the production of qualified products. |
| Technical training and operation | Provide training for your operation and maintenance personnel, including equipment operation, programming (such as touch screen settings), daily maintenance, simple troubleshooting, etc. |
| After-sales service and support | Provide warranty period (usually 1 year or as agreed), remote technical guidance, fault response, and regular return visits. |
| Repair and spare parts supply | Provide equipment maintenance services and supply original spare parts (such as rollers, dies, wearing parts, etc.) to ensure the service life and accuracy of the equipment. |
