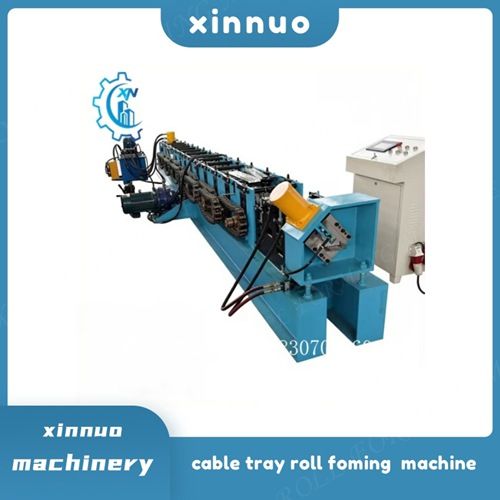

galvanized cable tray making machine

Cable Tray production line

hydraulic decoiler:

• Width of material:max 1000mm
•  hydraulic inner expansion and motorized decoiling
• The inner diameter of the coil: φ508mm
• inner expansion range: ф460-520 mm
• Outer max. diameter: φ1500mm
• Decoiling speed:8-18m/min
• Max. loading capacity: ≤5T
• Motor:5.5kw made in China

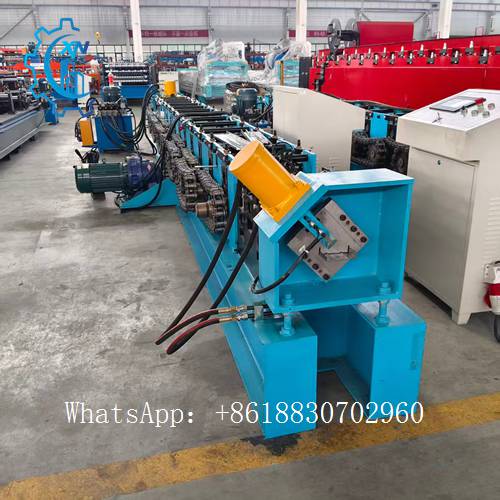

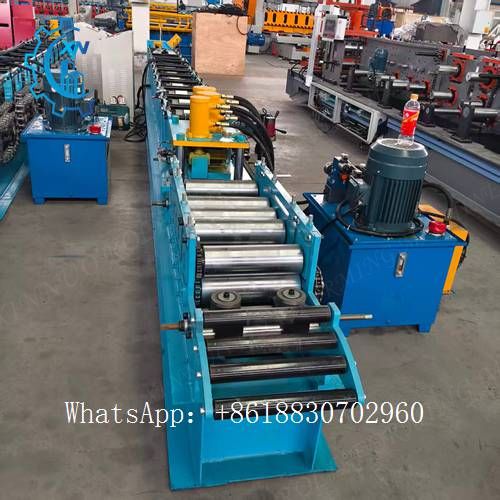

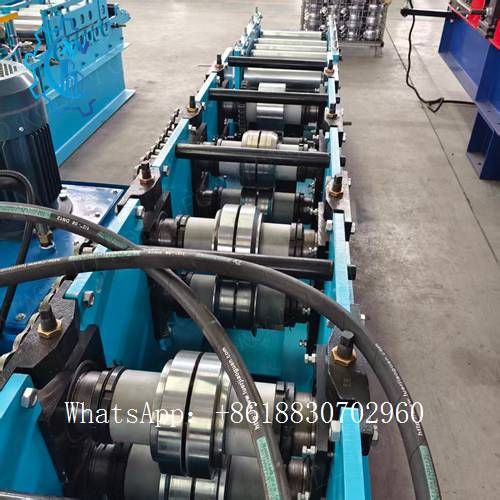

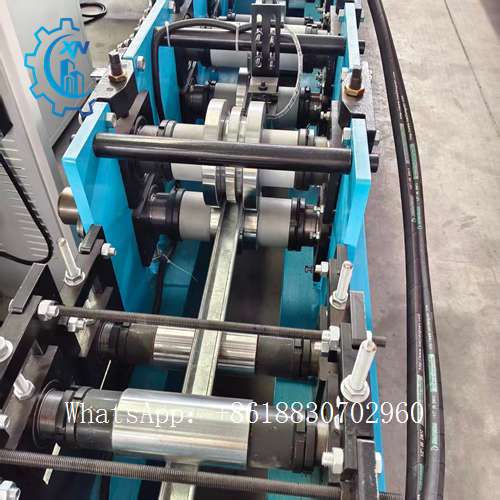

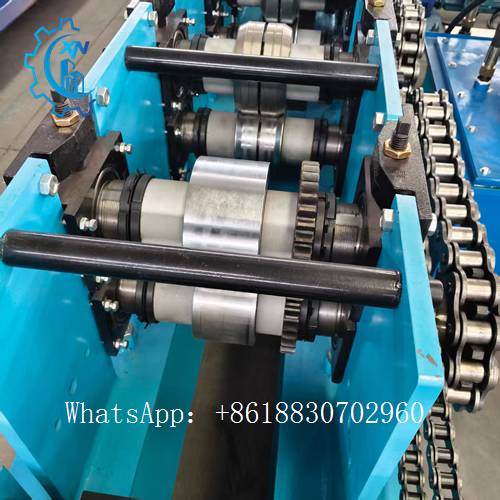

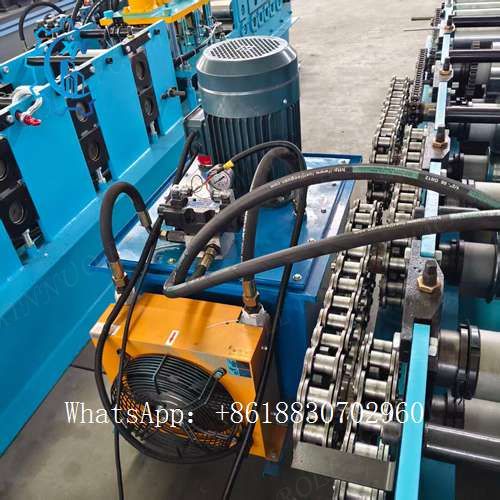

Cable Tray forming machine

Cable Tray and Fittings system

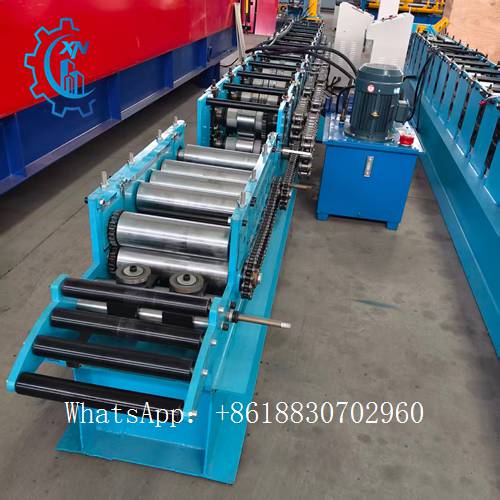

Guiding, feeding, and leveling

• We adopt 2 pinch rolls and 11 rolls leveling ( upper 5 rolls and bottom 6 rolls)
• Pinch rolls and leveling rolls material:40Cr,quenched,heat treatment, HRC55–58,Pinch rolls diameter 96mm,leveler rolls diameter 64mm
• Leveling rolls width:max 800mm
• Materials thickness:0.5–2.5mm steel grade G350Mpa
• Motor power:7.5kw made in China
• A way of a drive: gear drive
• Upper leveling rolls are adjusted by the screw rod with measures meter
• The press button “start” and “stop”
• Voltage requirements:380V,50Hz,3Ph

Servo feeder system:

•  Servo-feeder model: SRF-800B
• Function: For material feeding into the press punching machine
•  Feature: Uses servo motor-driven.
• capability Feeding :width800mmx0.5-2.8mm coils
• Feeding speed: max 20m/min
• accuracy Feeding:≤±0.1mm（within200mm）≤±0.2mm（within 500mm）
• Max feeding step distance:≤9999.99mm
• Feeding rolls diameter:2-Φ95mm, we adopt rubbers as upper rolls, bottom  rolls material is 40Cr, high-frequency tampered treatment, HRC55-58, chrome on the surface
• Pneumatic style to tighten or relax

Cable Tray Punching Machine

• Model of punching press: JF21-315T
• Punching press: Uses the steel plate welding fuselage, the rigidity is strong with a good appearance.
• Uses the combined type of air-operated friction clutch.
• punched 25-35 times per min
• Worktable size:max 1000mm
• thickness Worktable:180mm
• Motor power:15kw
• Weight:8,000kgs

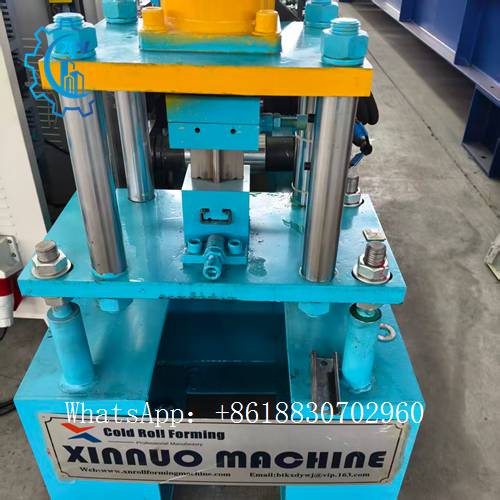

Lateral holes and width holes punching:

• • Punching mold material: Cr12 Mov, HRC58-62
  • The holes size can be adjustable and the punching head is controlled by the cylinders.
  • There are totally 1 set of punching mold

Cable Tray Machine Manufacturer

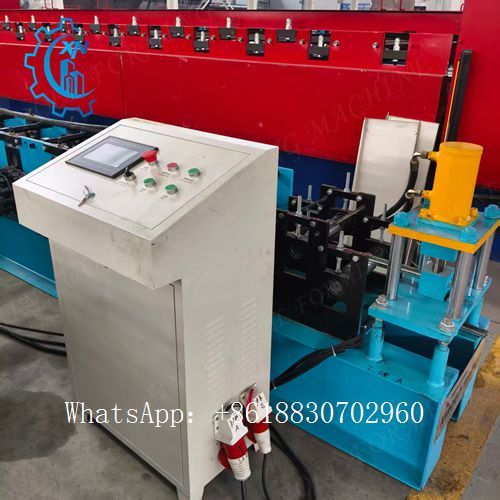

Electric control system:

• The full line is controlled by the PLC control system(Siemens brand)，touch screen operation to achieve the human and PLC interactive. The operator

           can monitor the setting program (programmable control)and modify the para5meter to control the line. Also can check the running status, parameter

          and error indication, etc.

• Operation type: manual /auto two type switch.  In manual position: can run each part of the machine. In auto position: can run the full line. The emergency

         stop ensures the safety of the equipment and operator.

• The machine side is equipped with a manual operation control panel for a convenient worker to operate.
• Entire line surveillance function:  to reach surveillance production line movement condition, realizes to various locations production condition surveillance.
• Has the failure detection function: Carries on to the production line signal succession examines, the checkup according to sequence, discovers the mistake,

          and gives the alarm to stop the machine.
