cable tray roll forming machine manufacturers

Cable tray roll forming machine is commonly used for cable management in commercial and industrial construction. This intelligent roll former could produce different types of cable trays like:

Solid bottom cable tray, Trough cable tray, Channel cable tray, Perforated cable tray, Non perforated cable tray and Trunking cable tray etc. with different raw materials like: hot-dip galvanized

steel, pre-galvanized steel, hot-rolled and cold-rolled steel, stainless steel and aluminum. Thickness range of material is 0.6mm-1.2mm or 1-2mm. You could set up 10 different lengths for cable tray.

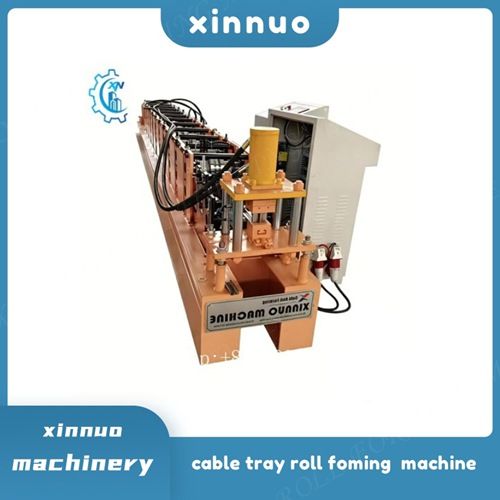

The main component of the cable tray roll forming machine includes a hydraulic uncoiler, a leveler, a punching and pre-cutting machine, a fast speed transport table, a roll forming machine, and a runout table.

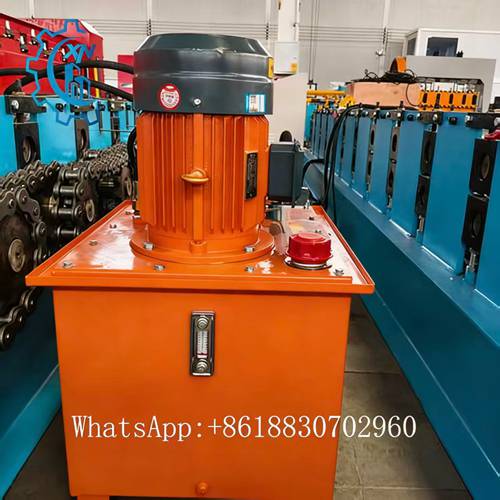

1. The hydraulic decoiler is used to make the steel coil decoil. The decoiler mandrel expands and shrinks, controlled by the hydraulic station. The decoiler is driven by an electric motor.
2. Leveler, punching, cutting machine

   Levelling rollers: up 5 + down 6, total 11 levelling rollers

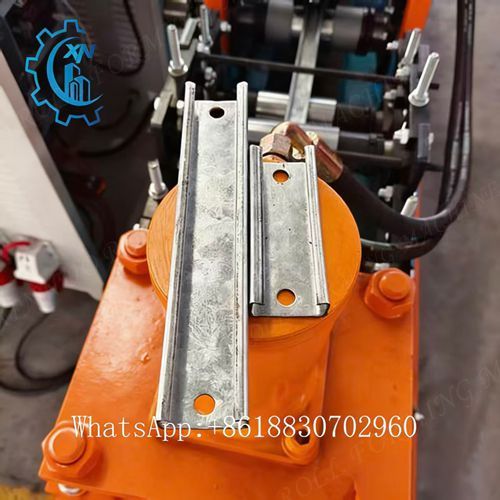

   The hydraulic punching with one set of punching moulds, the mould material is SKD11(Cr12MoV).

   The cutting blade material is Cr12MoV.

3.  Fast speed transport table, it is used to transport the sheet to the roll forming machine.

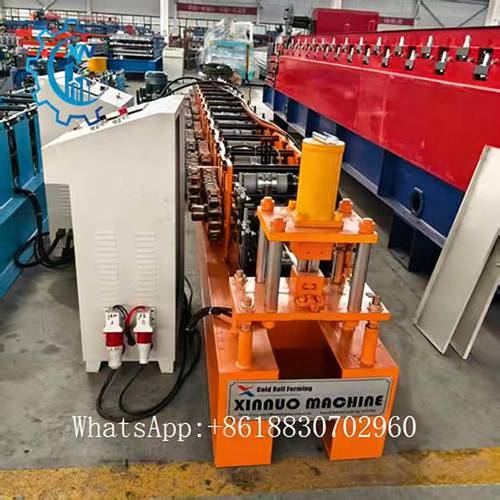

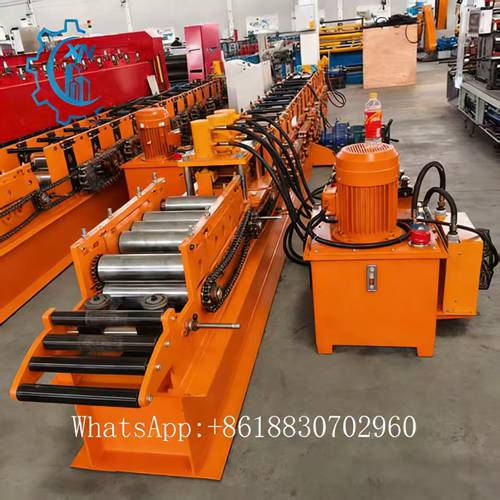

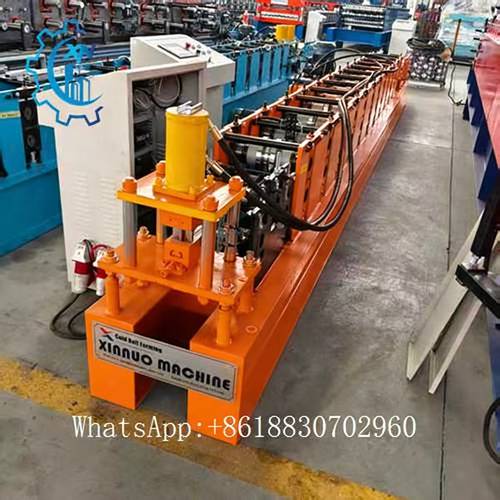

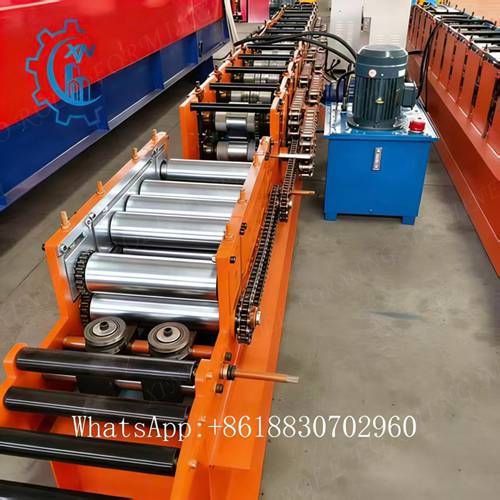

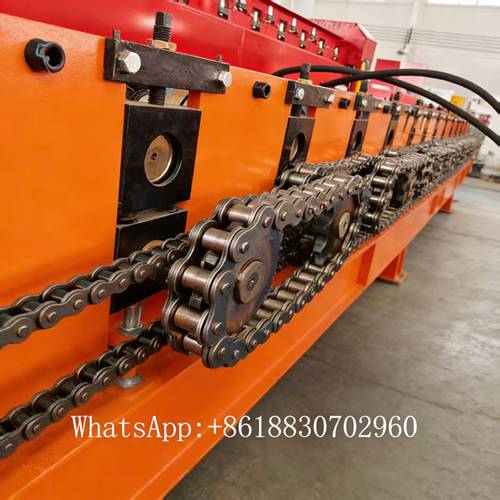

4. The cable tray forming machine

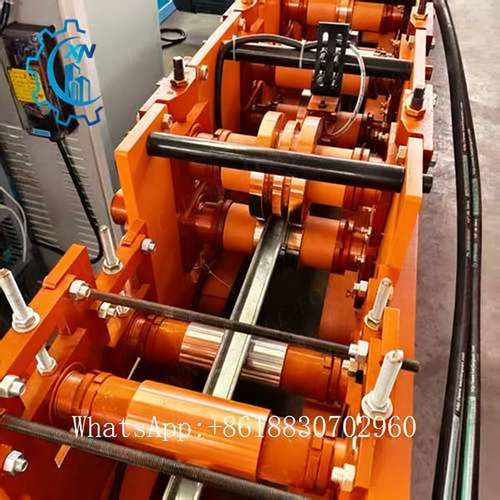

   rolling station: 26 rolling stations

   The shaft material is high-quality C45 steel, and the shaft diameter is 65mm.

   The roller material is Cr12 steel, through quenched treatment, HRC 58-62.

   The main motor power: 5.5KW X2 sets

   Changing size controlled by an electric motor, power 0.37KW x 2 sets

The Advantage of This Cable Tray Machine

• High precision molding ensures stable size and consistent profile of finished cable trays.
• Fast production speed, high efficiency, effectively improving output and reducing production cost.
• Wide compatibility, can produce various types of cable trays (tray type, ladder type, trough type) by changing molds.
• Stable operation, low noise, simple operation and maintenance, suitable for long-term continuous production.
• High degree of automation, with PLC control system for easy adjustment and high safety performance.
• Durable structure with high-quality steel and components, long service life and low failure rate.

• Flexible customization to meet different thickness, width and profile requirements of customers.
