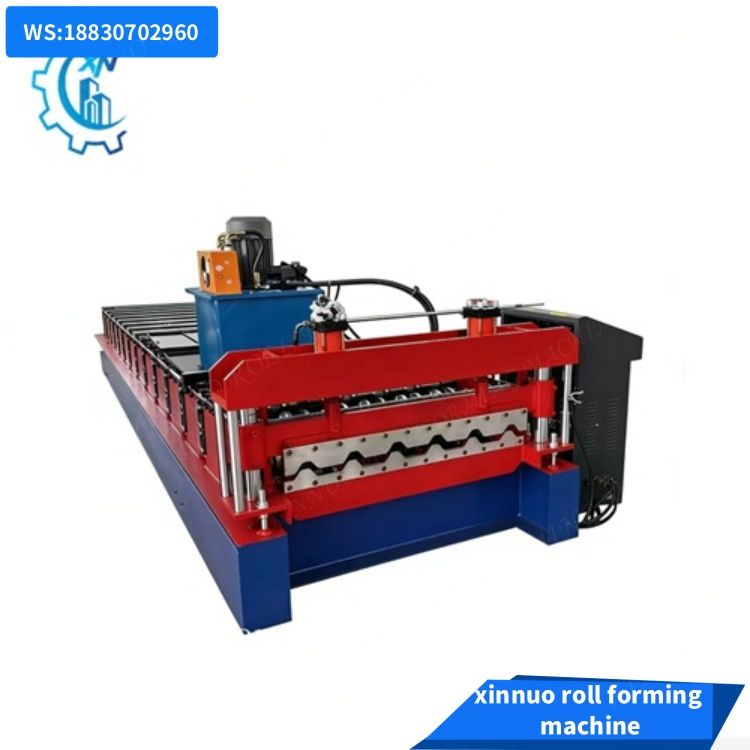

The Factory Price Trapezoidal Metal Roofing Panel Steel Sheet Roll Forming Making Machine is a highly advanced and efficient solution for producing high-quality steel roofing sheets. Here are its key selling points:
High-Quality Output: Designed to produce durable and aesthetically pleasing glazed steel roofing tiles, which are widely popular in European markets for their weather resistance and longevity.
Versatility: Capable of processing various materials, including galvanized steel, aluminum, and color-coated coils, allowing for customization to meet diverse customer needs.
Advanced Automation: Equipped with PLC and HMI systems, ensuring precise control, easy operation, and minimal manual intervention.
Energy Efficiency: Designed to minimize energy consumption, reducing operational costs and environmental impact.

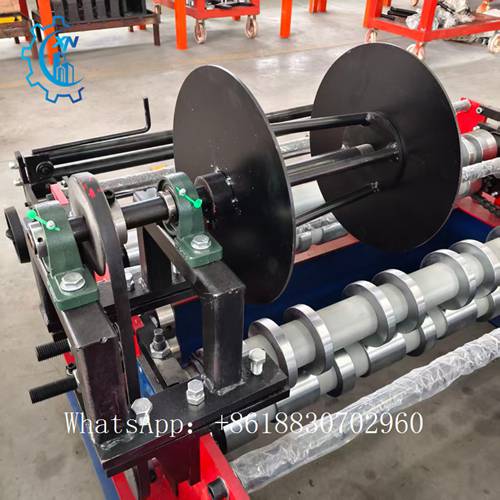

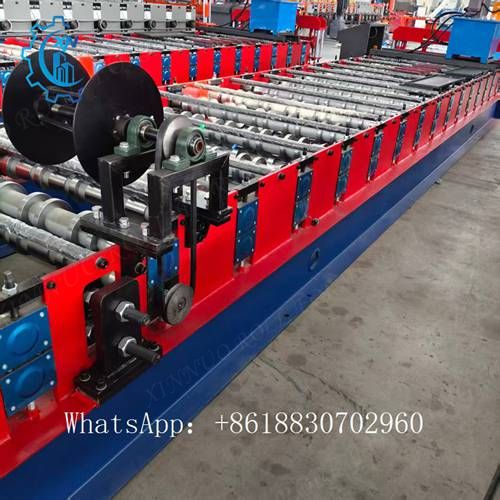

Machine Dtailed Picture

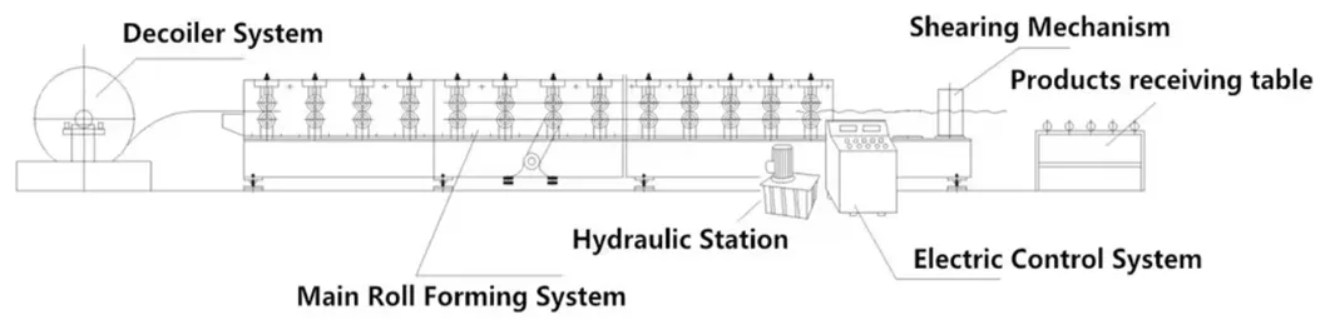

Working Process

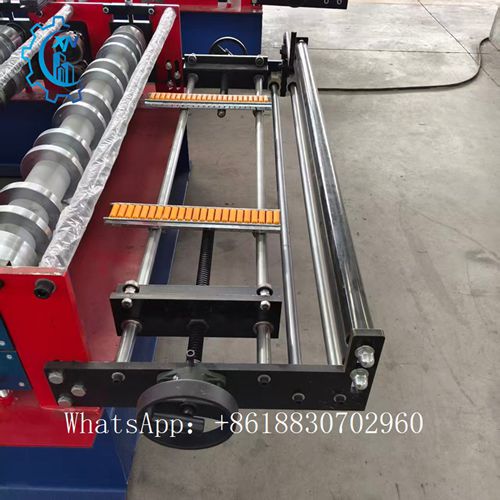

Uncoiling → Feeding material into machine →Roll forming → Hydraulic cutting →Products receiving table
Machine Parameter Table
|
Raw Material |
Coil Type |
PPGI,PPGL,GI |
|
Width |
1000/1200/1250mm |
|
|
Thickness range |
29-22 Gauge (0.3-0.6mm) |
|
|
Power Requirement
|
Voltage |
380v/3ph/50hz(Customized) |
|
Main Motor power |
5.5kw |
|
|
Cutter power |
4kw |
|
|
Forming speed |
8-20m/min |
|
|
Machine Frame |
350mm H Beam Structure |
|
|
Thickness of structure |
18 mm Welded Steel Middle Support Plate |
|
|
Forming shaft |
75mm solid shaft with heat treatment |
|
|

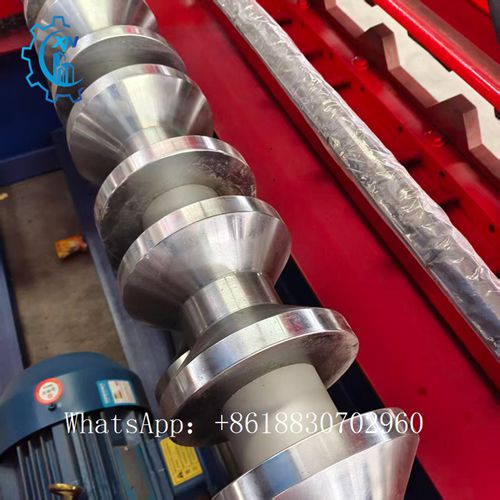

Material Of Rollers |
High Grade 45# Forged Steel |
|
|

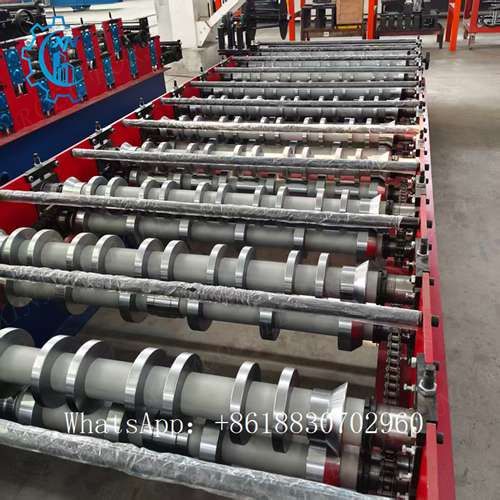

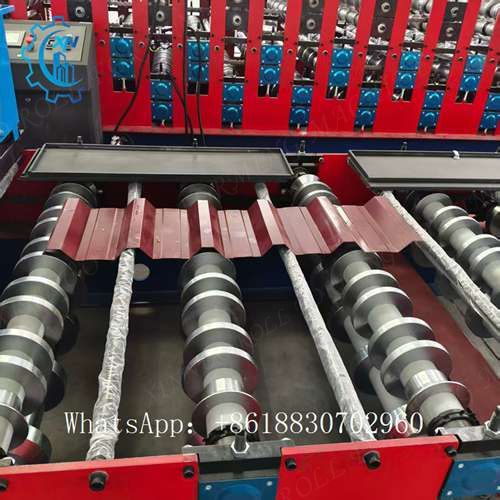

Forming stations |
14-18 rows Rolling Type: Separate rolling design concept, It can release Internal stress from the fheets, Then the sheet will be in good shape and high precision |
|
|
Transmission Way |
Chain drive 1 inch (Double Chain) |
|
|
Type of cutting |

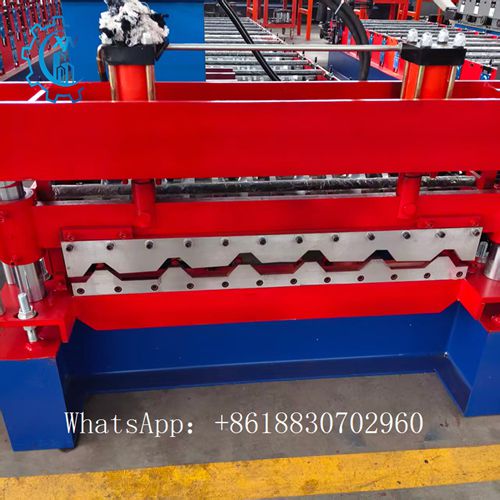

Hydraulic Pillar type and length-set cutting |
|
|

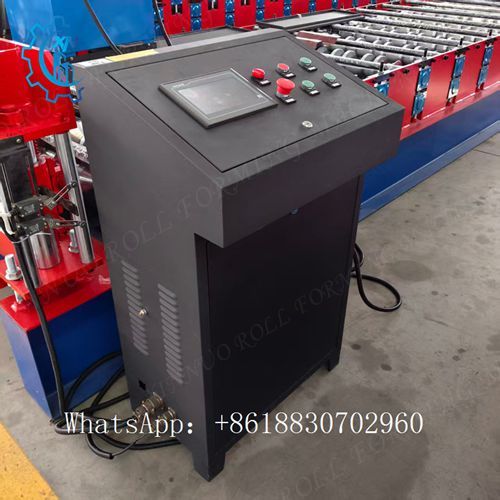

Control system |
PLC Delta and Inverter Delta |
|
|
Screen |
Touch screen |
|
|
Dimension(Approx) |
8.0m×1.5m×1.2m |
|
|
Total weight (Approx) |
5.6T |
|

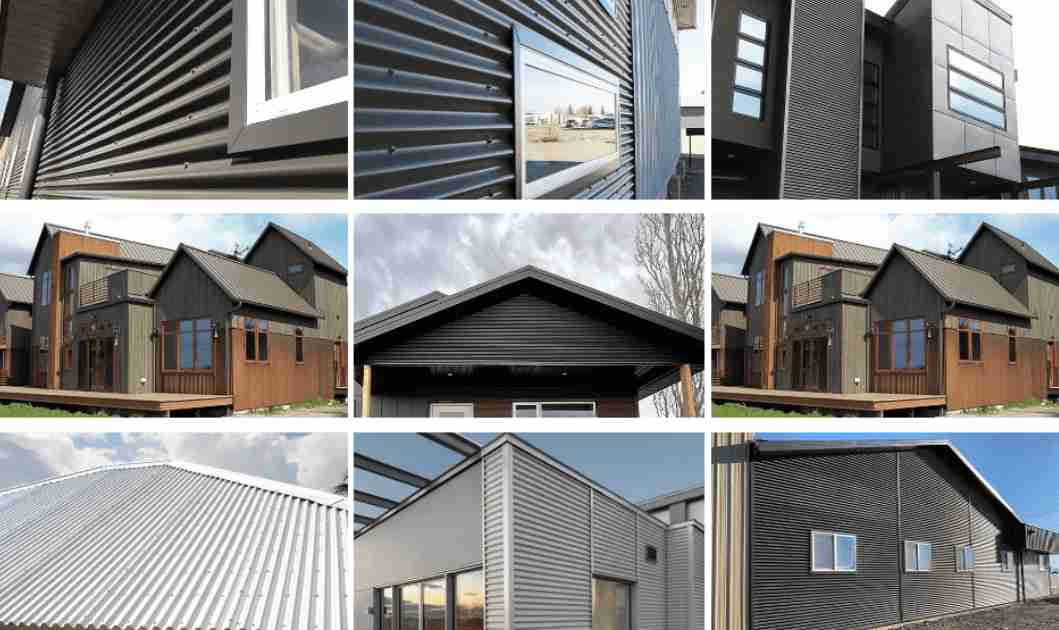

Applications of Roofing Sheet Forming Machine
This series of the profile is designed to be economical roofing panels for residential, industrial, and commercial projects.
A minimum of 0.30mm and a maximum of 0.8mm gives more resilience to damage.
Anti-Corrosion Protection: Spraying anti-corrosive oil on rollers to prevent oxidation during shipping, ensuring long-lasting performance.
Oxidation Prevention: Wrapping the entire machine with isolation film to safeguard against oxidation during transit.
Cost-Effective Shipping: Optimized space planning to minimize transportation costs for customers.
Secure Transit: Properly fixed and secured to prevent any damage during transportation, ensuring the machine arrives in perfect condition.
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
