Raw material for Trapezoidal Profile Sheet Bending Machine
Material type: Color coated Steel, Galvanized Steel, Aluminum sheet, stainless steel
Thickness: 0.3-0.7(mm)
Yield Strength: 230-300/350/550-675(MPa)optional
Width: 1000/1200/1250(mm)
Technical Parameters (Standard Model)
|
Parameter Item
|
Specification
|
|---|---|
|
Applicable Materials
|
Galvanized steel, color-coated steel (PPGI/PPGL), aluminum-magnesium-manganese, stainless steel
|
|
Material Thickness
|
0.3–0.8 mm (customizable 0.3–1.2 mm)
|
|
Feeding Width
|
1000 / 1220 / 1250 mm (customizable)
|
|
Effective Plate Width
|
760–1100 mm (depending on plate type)
|
|

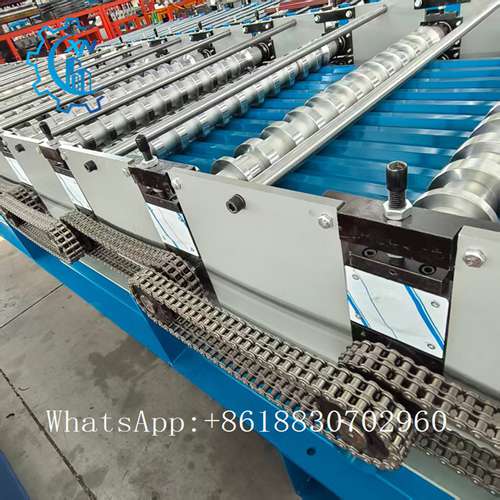

Number of Forming Stations
|
16–24 stations
|
|

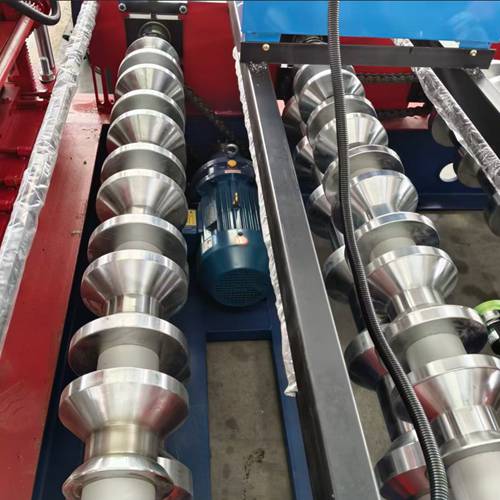

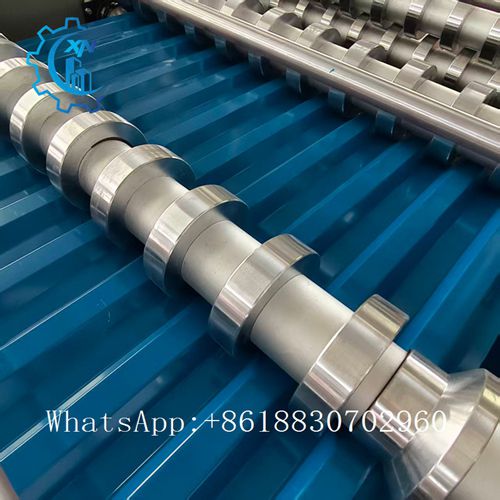

Roll Material
|
GCr15 forged steel, quenched and chrome-plated
|
|
Spindle Diameter
|
Φ70–80 mm solid 45# steel
|
|
Production Speed
|
10–25 m/min (adjustable)
|
|

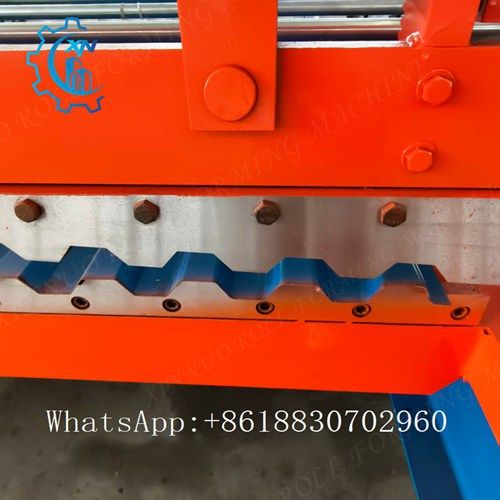

Cutting Method
|
Hydraulic fixed-length cutting / flying shear
|
|
Blade Material
|
Cr12MoV (quenched HRC60–62)
|
|

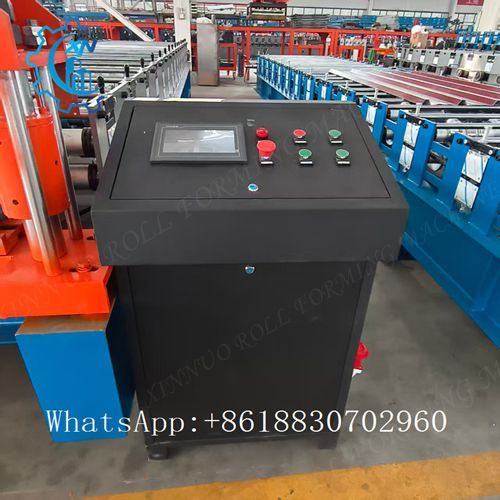

Control System
|
PLC + touch screen (Siemens/Delta)
|
|
Total Power
|
9.5–11.5 kW
|
|
Power Supply
|
380V/50Hz/3P (customizable)
|
|
Equipment Dimensions
|
Approx. 8500×1500×1600 mm
|
|
Equipment Weight
|
5.5–7 tons
|
|
Cutting Precision
|
±1 mm
|
|
Noise
|
≤70 dB
|
|
Cooling/Lubrication
|
Air cooling / automatic/manual lubrication
|
|
Warranty
|
1 year
|

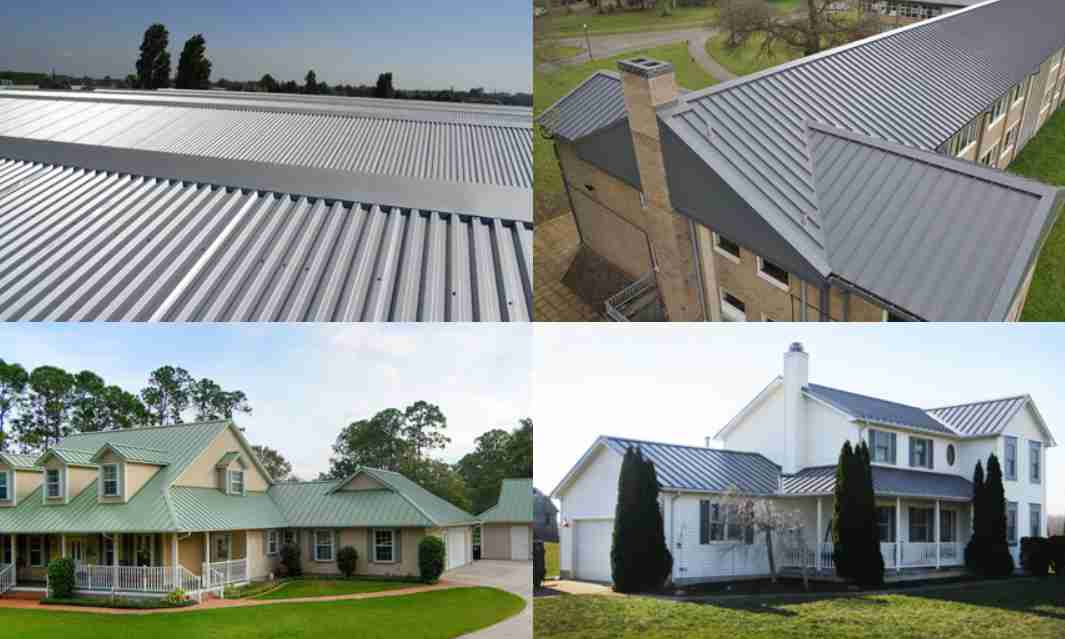

Application of Trapezoidal Profile Sheet Bending Machine
This profile is designed for commercial and industrial roofing; which is suitable for low pitch roofing as wellas curved roofing.Sheets with higher ribs and bold ribs, making exceptionally
attractive and high-performance roofing and cladding product forvarious Light Steel structure construction, civil construction, and mansions Building.
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
