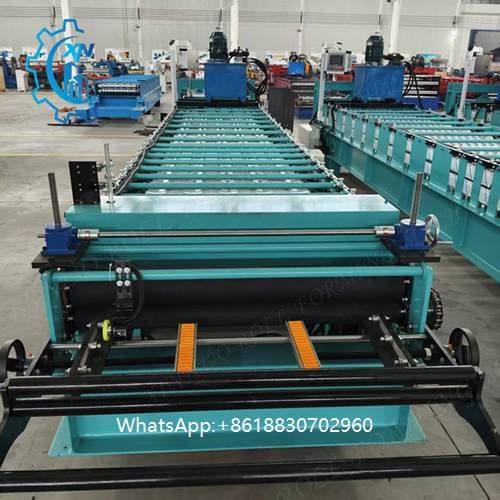

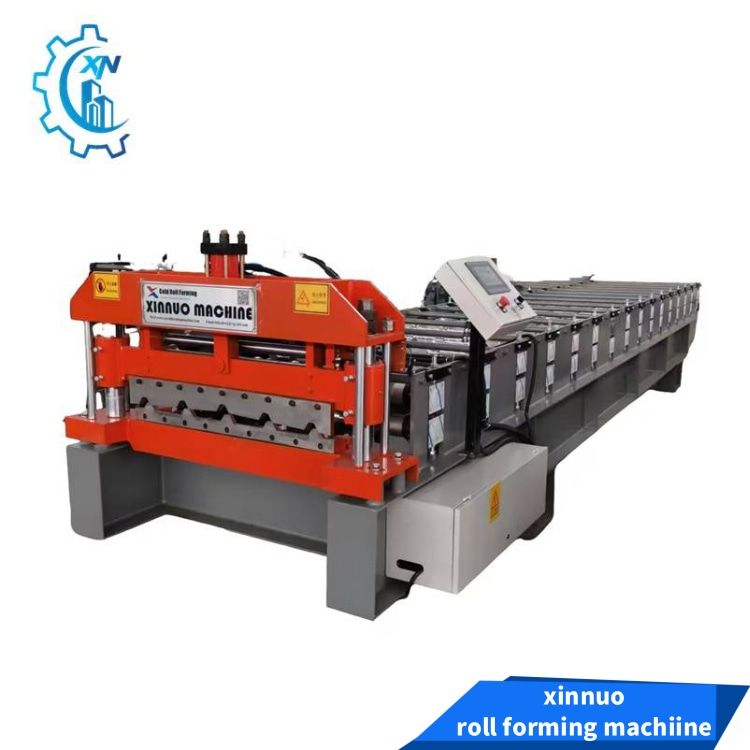

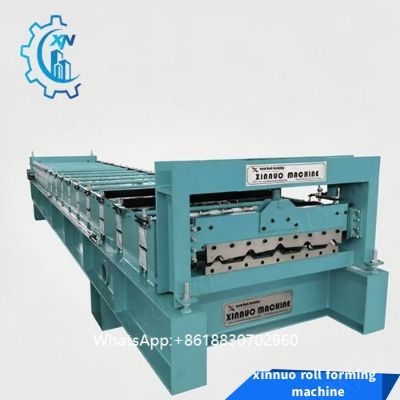

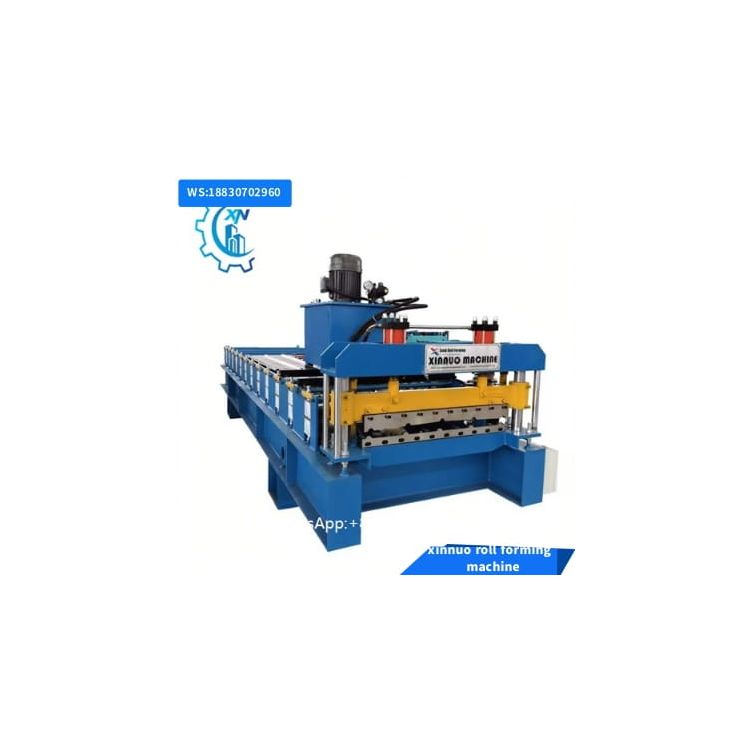

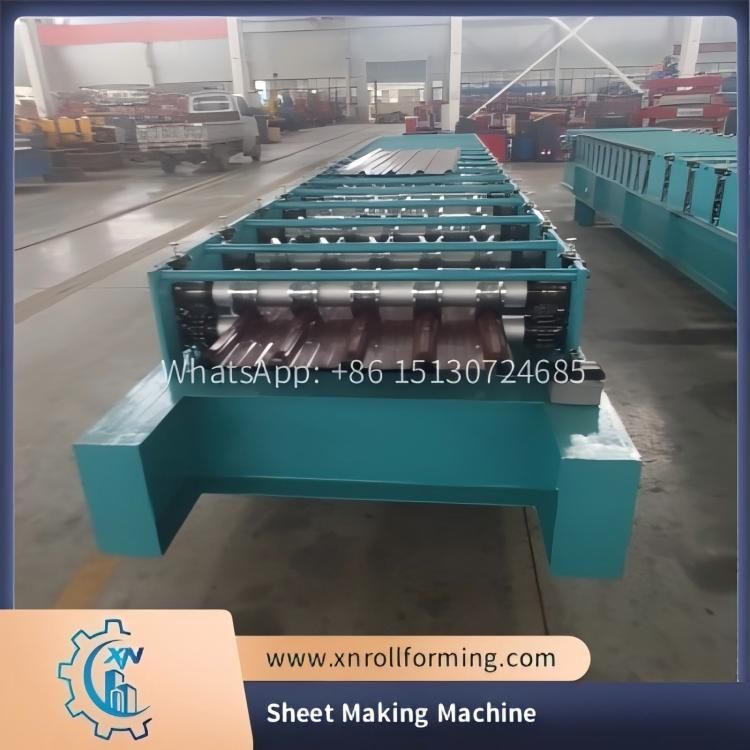

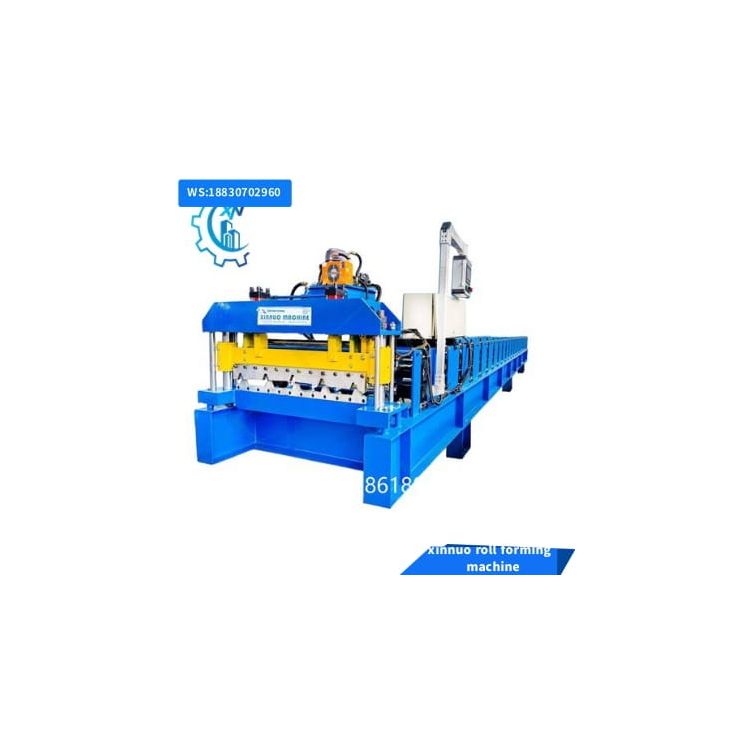

metal trapezoidal sheet forming machine

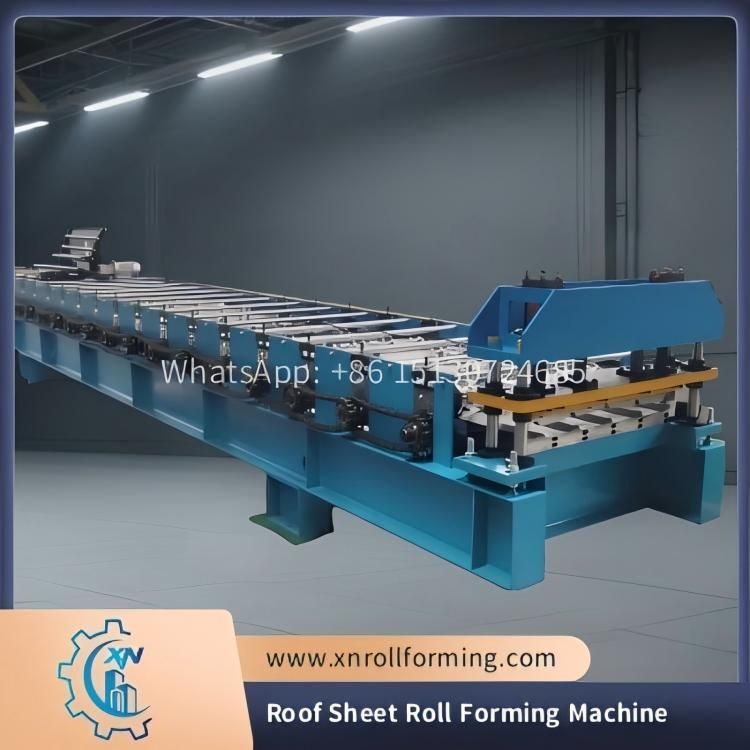

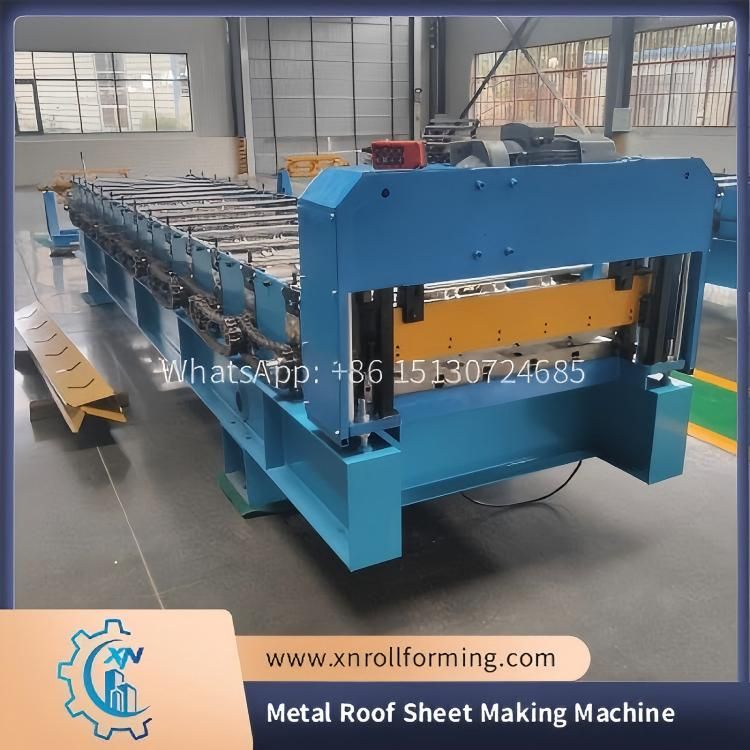

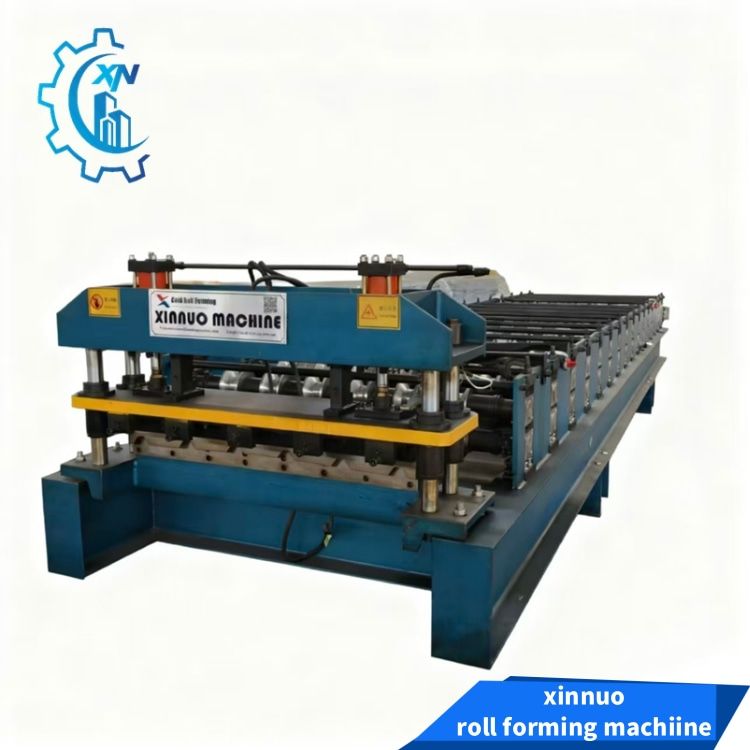

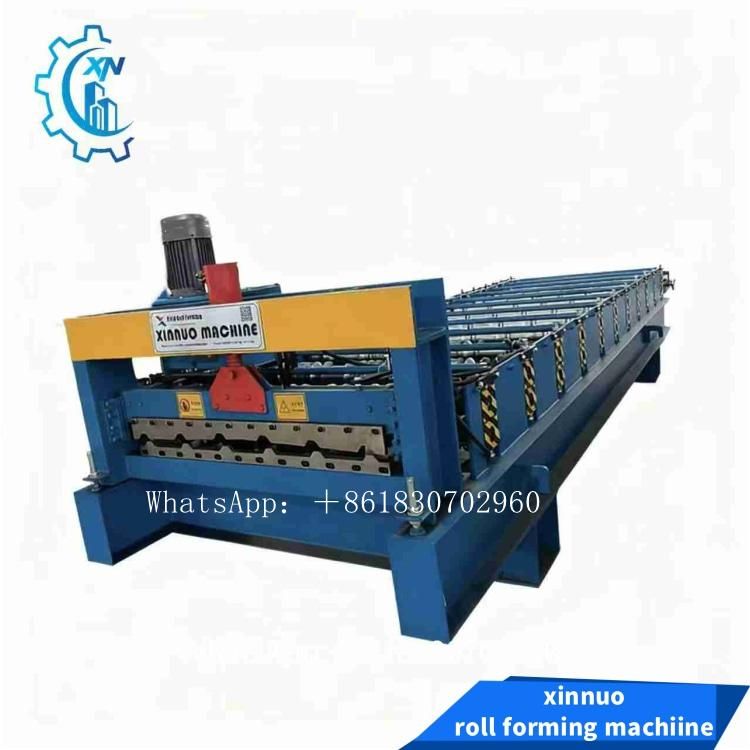

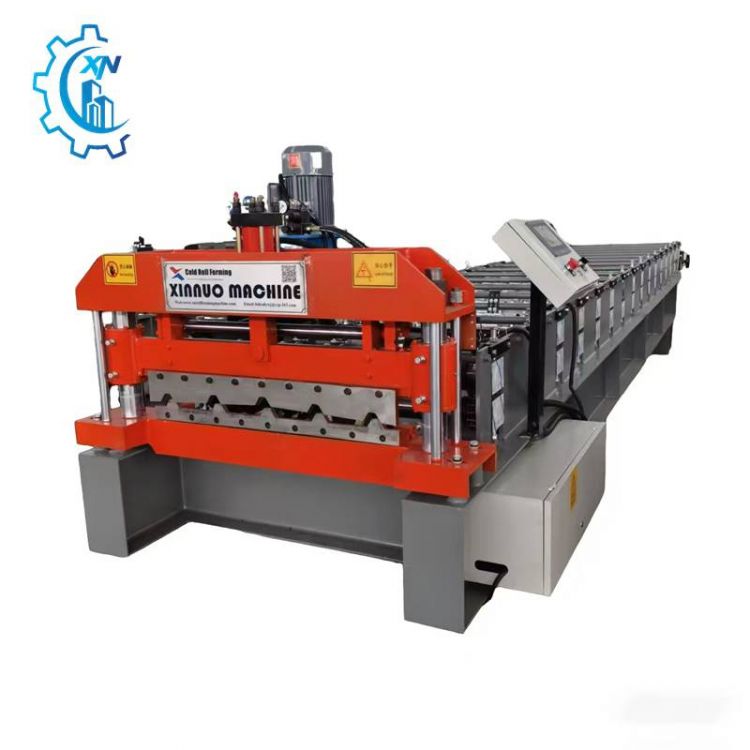

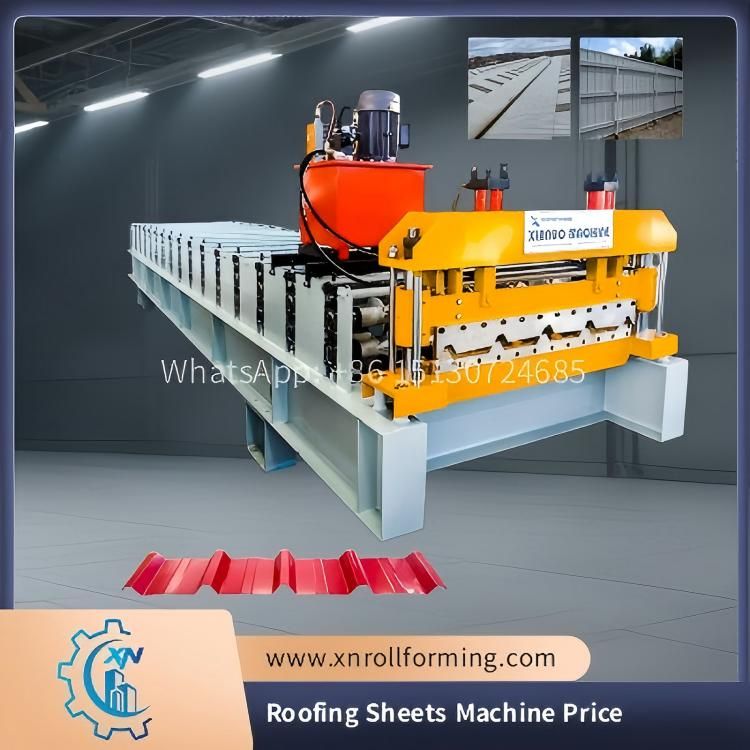

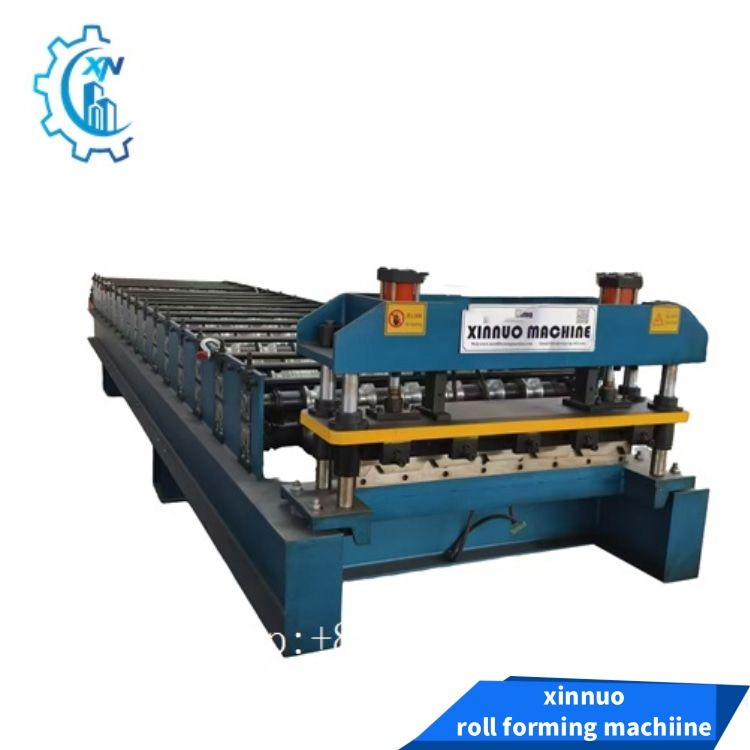

Trapezoidal Roll Forming Machine is mainly used to produce wall panel and roof, rolling steel into required shape and length. It features high coverage, strength and automation, while offering good performance, lower cost and longer lifetime.

Metal Trapezoidal Roof is widely applied in commercial metal buildings and housing. This machine is composed of uncoiler, roll forming machine, cutting machine, PLC computer and hydraulic system.

Operation and Maintenance:

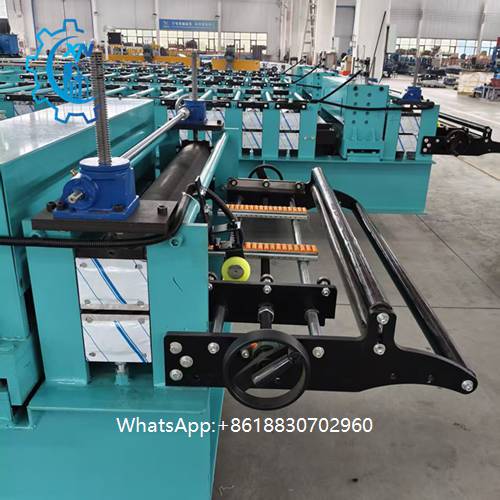

1. Uncoiler: Mechanical uncoiling, can be adjusted to different coiler’s radius. Capacity up to 5 ton;

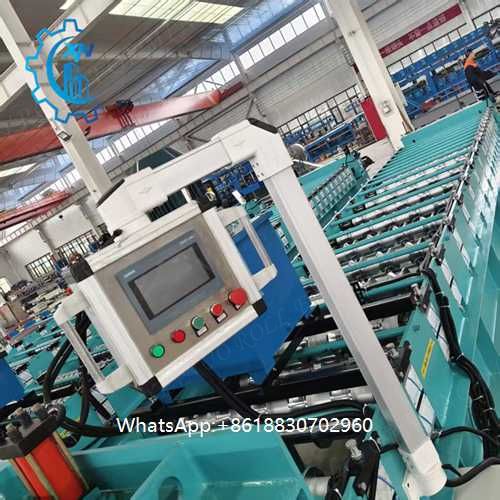

2. Automation System: The electric panel offers the option for manual or automatic work. Totally controlled by PLC with digital interface, it’s easy to operate (just enter related production data, such as size and quantity);

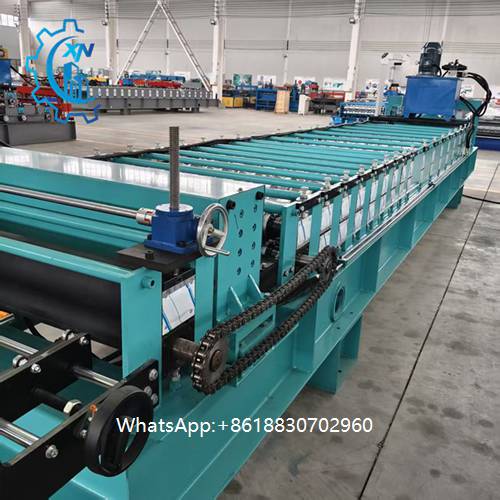

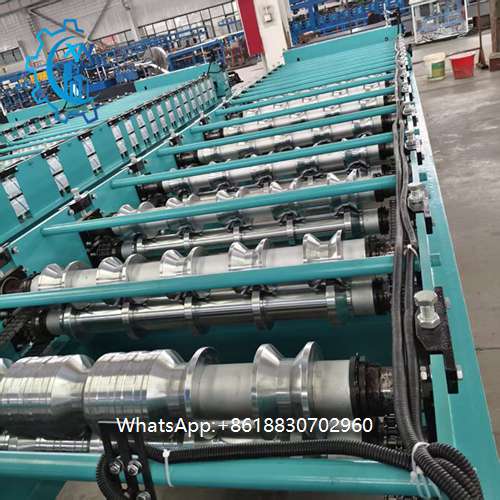

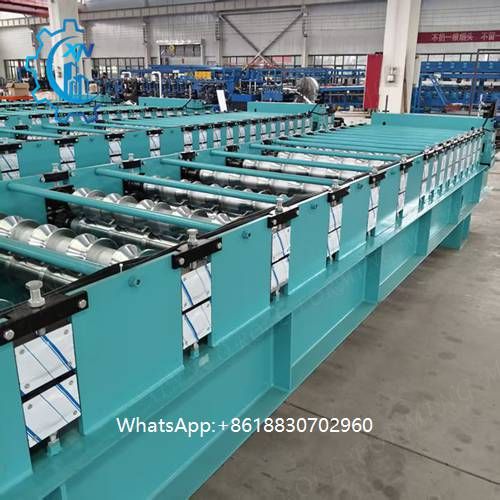

3. Roll set: Built in SAE 1045 steel - hard chrome plated – confering larger durability and greater wear resistance to the rolls and optimal shape to the product. The transmission is made through chains and a 5.5hp motor power. Regular lubrication is required;

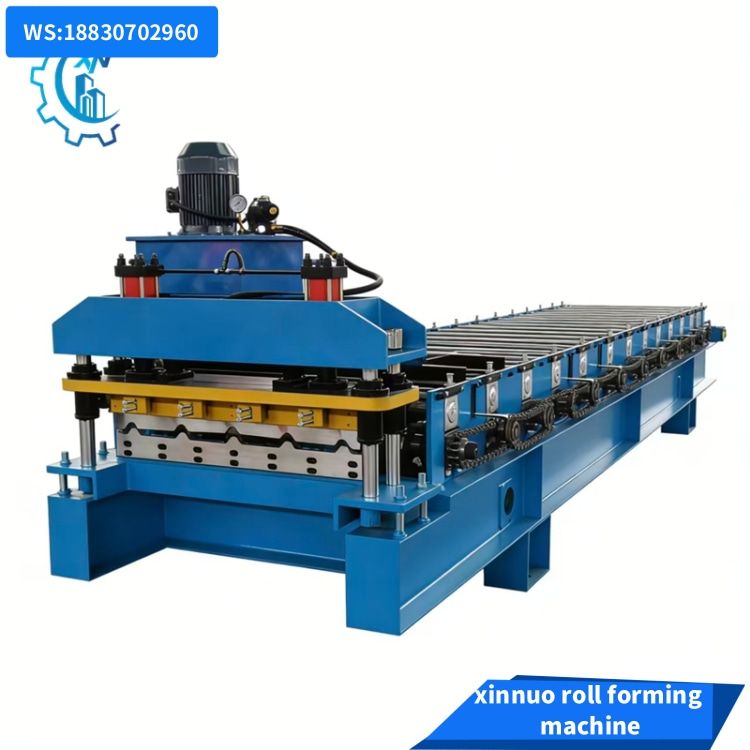

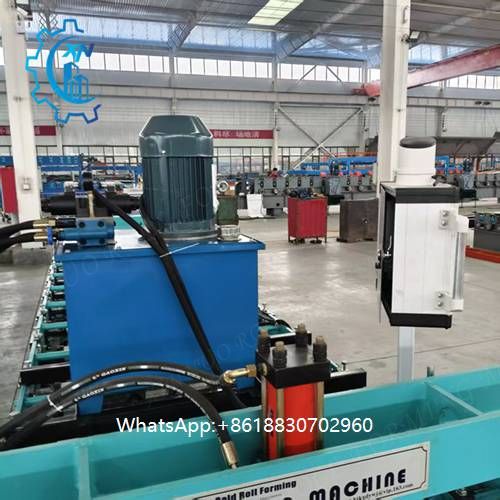

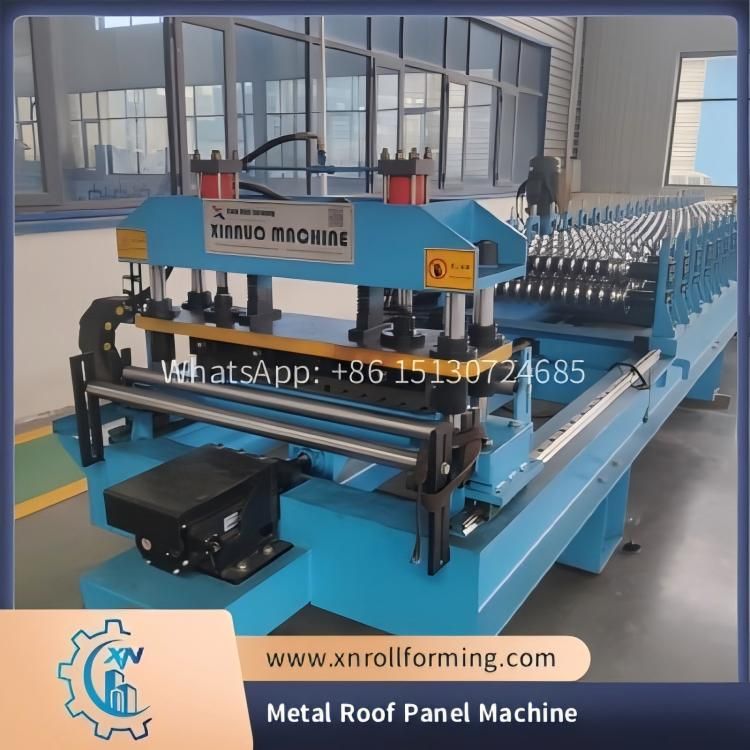

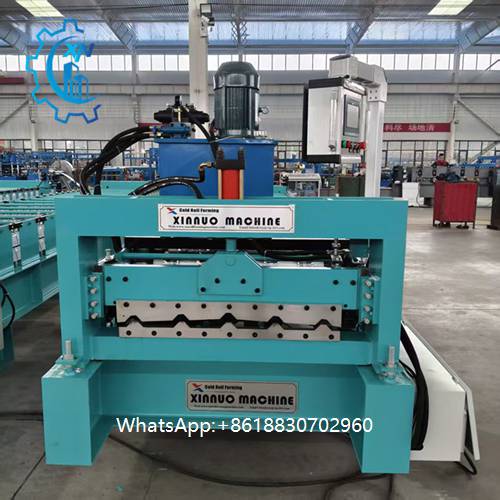

4. Cutting System: Automatic cutting system by hydraulic guillotine (4hp). The cutter follows perfectly the related shape, ensuring excellent finish to the workpiece;

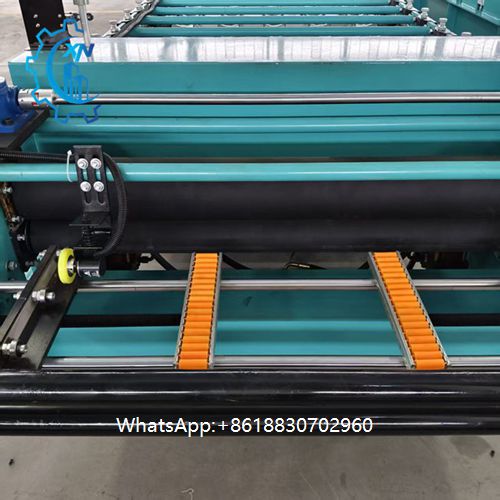

5. Output Table: Simple roll table, 3 meters;

Designed for rolling galvanized, prepainted and galvalume steels, it has a processing precision within 2.00mm and operates with low noise.

  machine parameters

Our Company

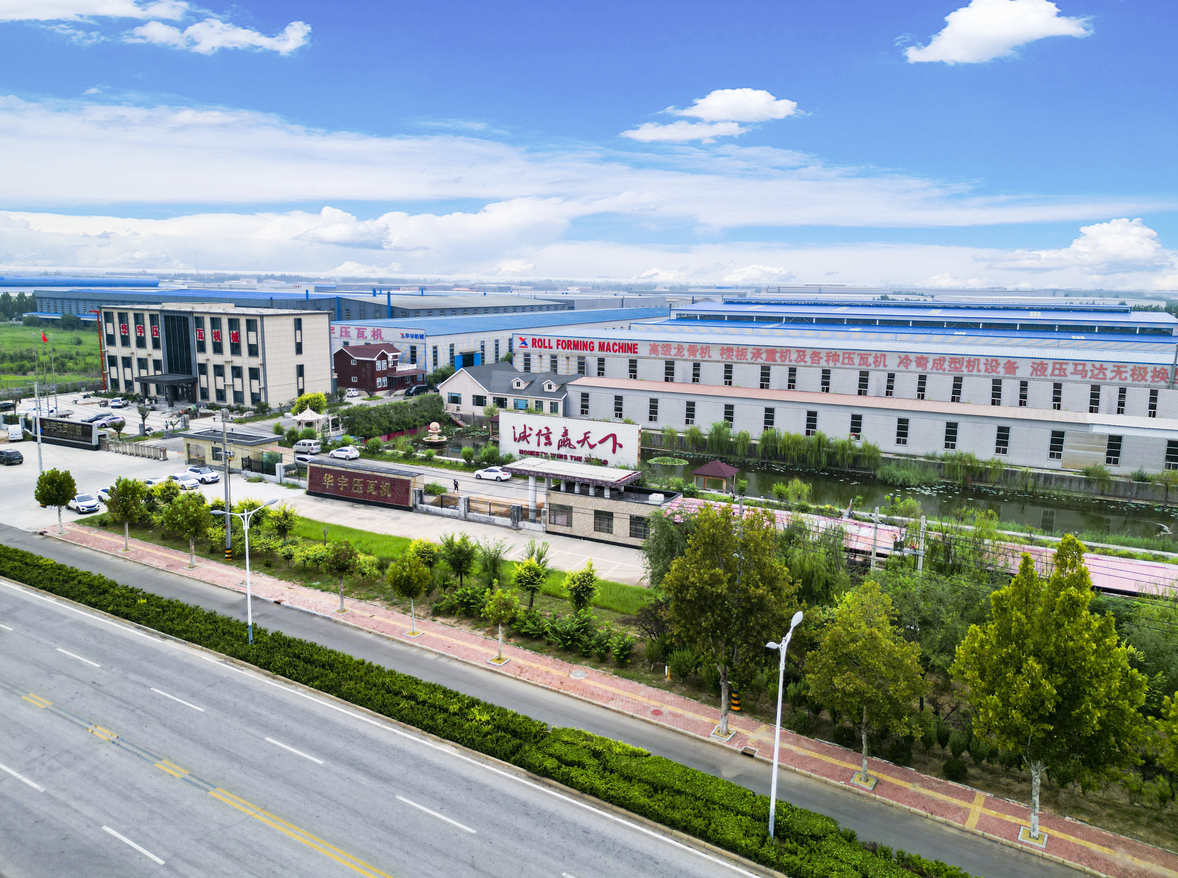

    Hebei Xinnuo Roll Forming Machine Co., Ltd is a industry and trade integration company,  which is on the basis of original Botou Huayu Roll Forming Machine Factory The company located in botou city, that has superior geographical and convenient traffic.It is the professional manu-facturer for metal sheet roll forming machines with seniority qualifications and experience.

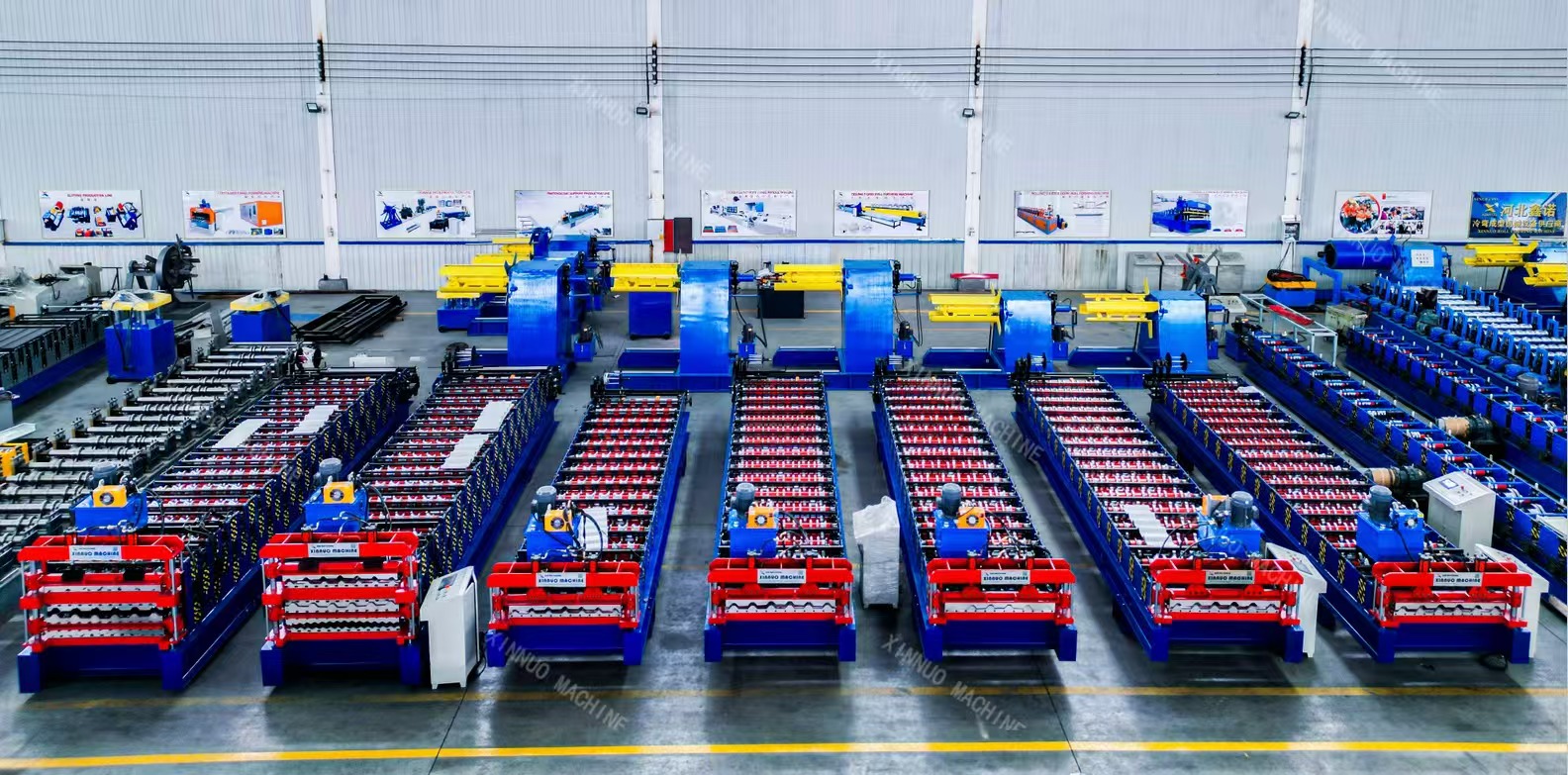

    We have high technological background, advanced and mature production equipment and perfect means of inspection. We not only produce different type of roll forming machine, but also developed automatic production line of roll forming machine, roof panel, wall panel forming machine series, Glazed tile roll forming machine series, Floor deck roll forming machine series, Highway barier forming equipment, double-deck color steel tile roll forming machine series, C, Z shape steel purlin machine series. precipitator anode plate forming machine, achcamber machine series, cutting machine and bending machine series, insulated sandwich panel machine on the base to traditional forming machine. Our machines are exported to demestic and foreign markets and are highly praised by new or old customer by their good-looking appearance, fair frame and standard model. We have prepared experienced professional workers and skilled staff for you. We could design different type of cold roll forming machine according to clients requirement.

After Sales Service

1. Warranty :One year,and we will provide technical support for whole life of the equipment.

2. Delivery time: Within 45-60 workdays after deposit receipt your payment

3. Guarantee period: 24months free service/ pay service all the machine life

4. Installation and training

If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your

workers/technician face to face.
