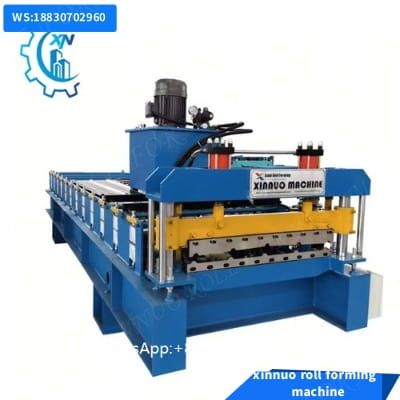

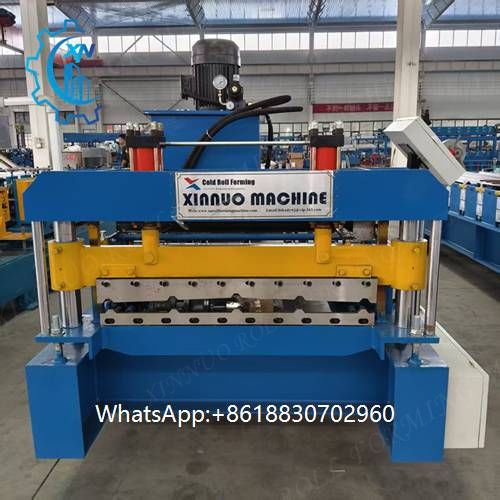

trapezoidal pannel roll forming machine

Product Attributes :

1.Machine Dimension (L×W×H):8000mm×1800mm×2200mm

2.Weight:5000kg - 7000kg

3.Payment Terms:30% T/T in advance,70% when shipping

4.Email:xinnuo05@xinnuomachine.com

5.whatsapp：+8618830702960

Product Description

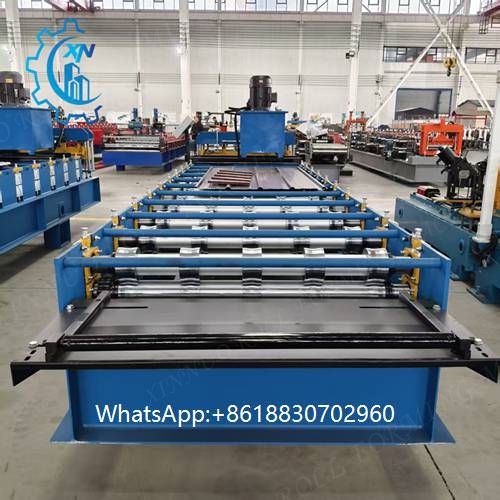

The Trapezoidal Panel Forming Machine is a high-performance and fully automated equipment specifically designed for the continuous production of high-quality trapezoidal metal panels. Widely applied in the construction industry for manufacturing roof panels, wall panels, and floor decking, this machine integrates advanced mechanical transmission, precise electrical control, and intelligent operation systems. It can process various metal coils such as galvanized steel, color-coated steel, and aluminum coils with thickness ranging from 0.3mm to 1.2mm, converting them into trapezoidal panels of customized widths and heights. Equipped with a multi-station forming mechanism, it ensures uniform panel thickness, smooth surface, and excellent structural stability, effectively reducing material waste and improving production efficiency. The machine also features a user-friendly touchscreen interface for easy parameter setting, real-time production monitoring, and fault diagnosis, making it suitable for both large-scale industrial production lines and small to medium-sized manufacturing workshops. With its robust structure, low noise operation, and long service life, the Trapezoidal Panel Forming Machine provides a reliable and cost-effective solution for metal panel processing needs.

Applicable Material	Galvanized steel coil, color-coated steel coil, aluminum coil
Material Thickness Range	0.3mm - 1.2mm

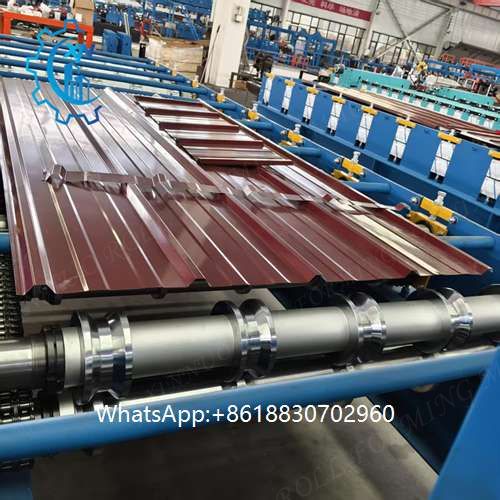

Forming Panel Type	Trapezoidal panel
Panel Width Range	500mm - 1200mm (customizable)
Panel Height Range	20mm - 80mm (customizable)
Production Speed	5m/min - 15m/min
Total Power	15kW - 22kW
Voltage	380V/50Hz (three-phase)

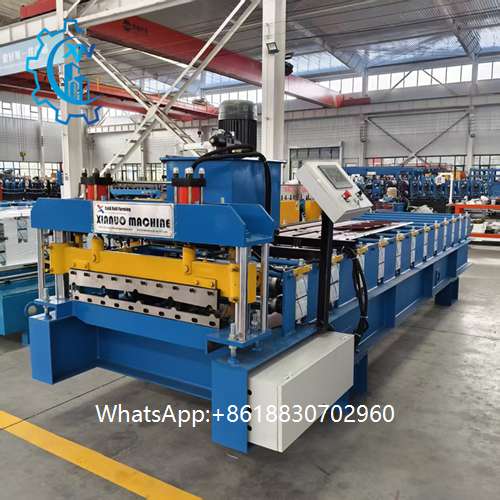

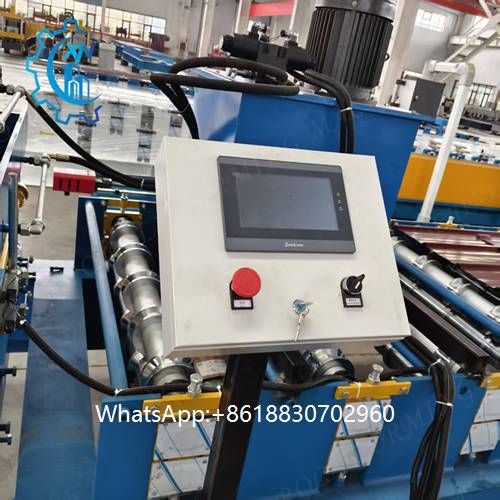

Control System	PLC control with touchscreen interface

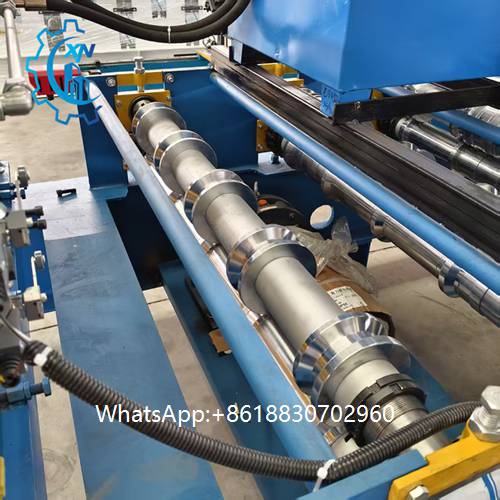

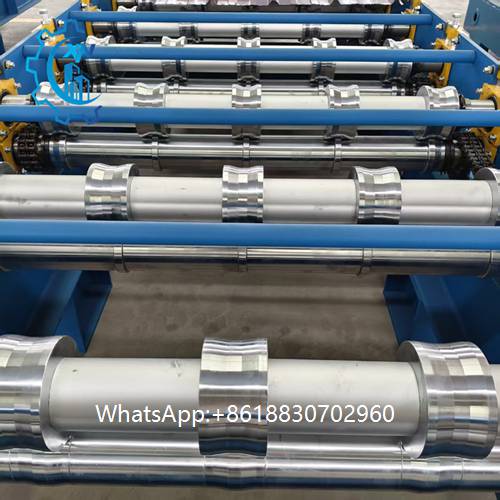

Forming Stations	12 - 16 stations

Package

For different machines or production line parts, we have different packing solutions:

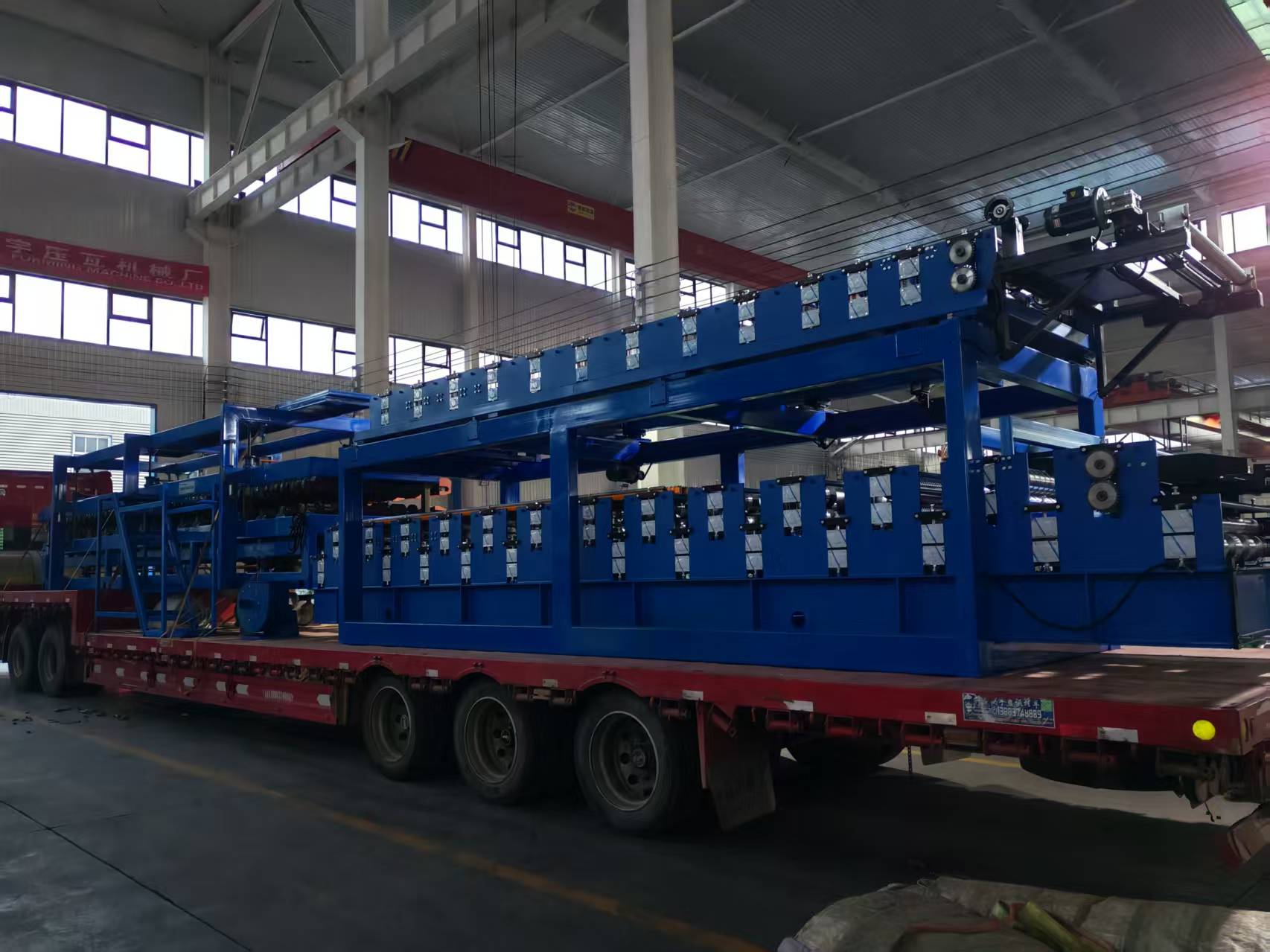

a. For the machine or production line, we will use plastic film to cover and wrap. Then will be loaded to the container by

forklift or crane

b. For the key parts such as the roll forming rollers set, we will use the metal frame to package.

C. For the electrical cabinets, molds set, we will use wooden carton to package and load.
