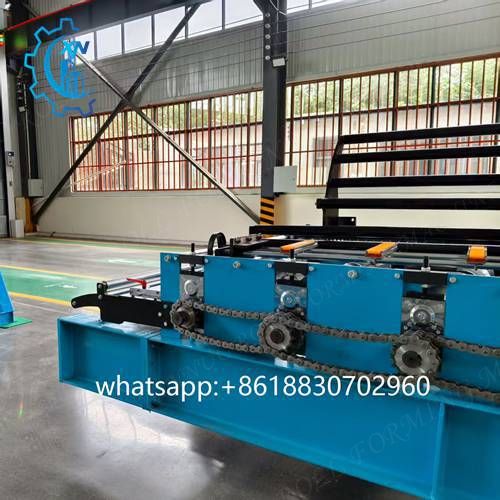

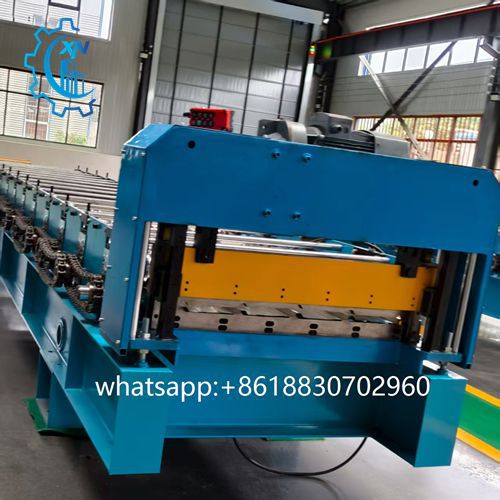

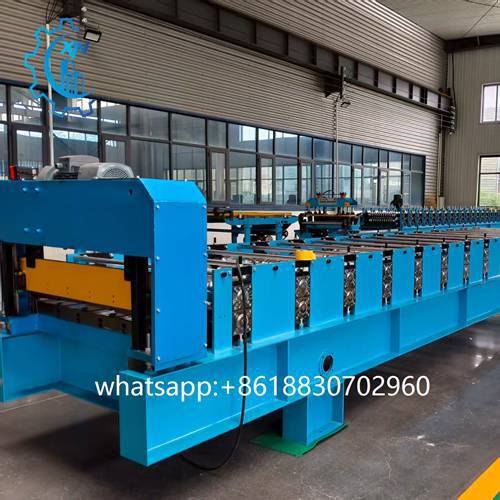

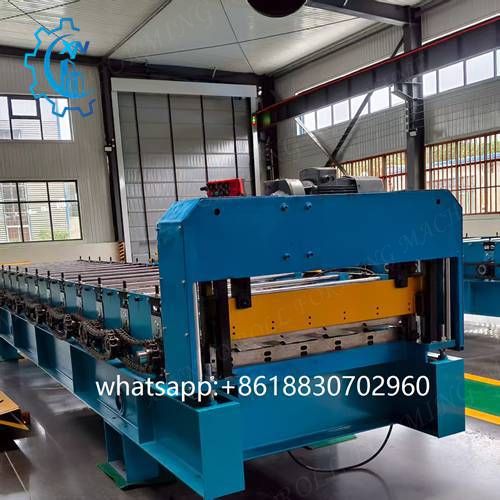

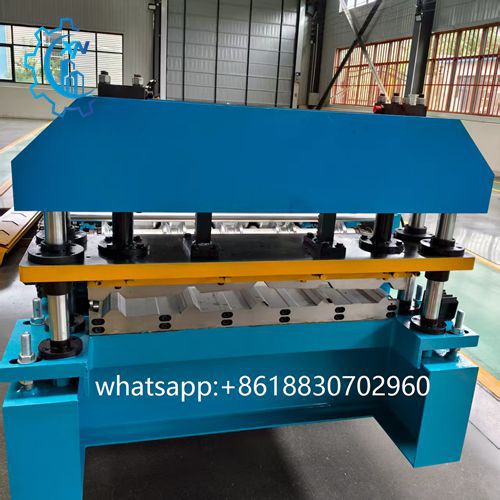

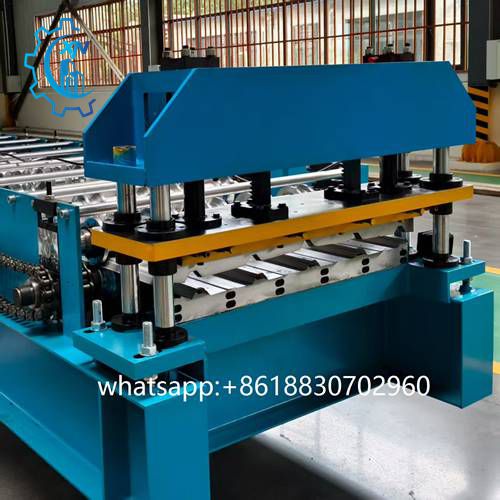

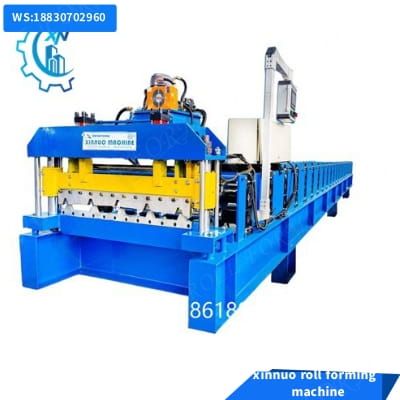

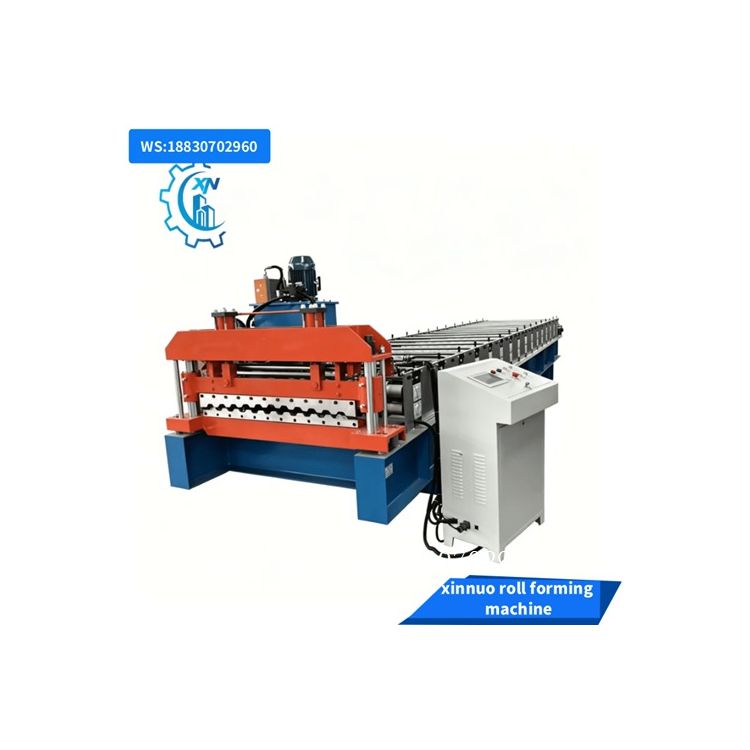

Trapezoidal Plate Forming Machine

High-performance equipment for manufacturing trapezoidal steel plates, suitable for roofing, wall cladding, and structural panels in industrial buildings, workshops, and commercial projects. The machine integrates automatic feeding, roll forming, and cutting systems, enabling precise production of trapezoidal plates with thicknesses of 0.3-1.5mm from galvanized steel, aluminum, or color-coated coils.

Equipped with hardened steel rollers and a PLC-controlled touchscreen interface, it ensures dimensional accuracy (tolerance ≤±0.5mm) and adjustable parameters for plate width, height, and length. The production speed reaches 15-30 meters per minute, with safety features like emergency stops and protective covers. Its compact design saves space, while low energy consumption makes it ideal for large-scale manufacturing, enhancing efficiency in construction material production.

Forming Material	Galvanized steel, aluminum, color-coated steel
Material Thickness	0.3 - 1.5 mm
Forming Speed	15 - 30 m/min
Dimensional Tolerance	≤±0.5 mm
Control System	PLC with touchscreen interface
Main Motor Power	7.5 - 15 kW
Voltage	380V/50Hz (customizable)
Machine Dimensions (L×W×H)	Approx. 8000×1500×1600 mm
Machine Weight	4000 - 8000 kg

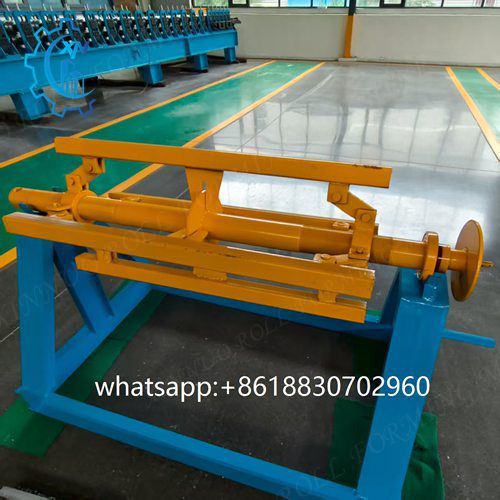

Decoiler Capacity	3 - 8 tons
Safety Features	Emergency stop, protective covers, overload protection
Noise Level	≤75 dB (at 1m distance)

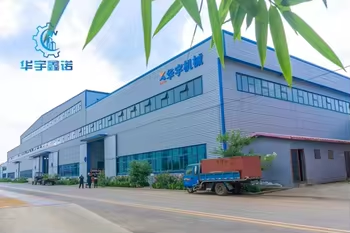

        Specializing in roll forming machinery for 30+ years, Hebei Xinnuo designs and manufactures tile press machines, C/Z purlin forming equipment, trapezoidal plate machines, etc. Equipped with advanced CNC technology, its products feature high-precision forming (tolerance ≤±0.1mm), efficient output (up to 40m/min), and wide material compatibility (galvanized steel, aluminum). Serving global clients in construction, the company ensures reliable after-sales support, CE-certified quality, and customized solutions for diverse industrial needs.
