| Trapezoidal sheet roof panel roll forming machine |
| Model:roof panel roll forming machine |
| Min.Order Quantity:1 Pieces |
| Develivry time:45-60 workdays |
| Working speed:12-20m/min |
| Payment Terms:40% T/T in advance,60% when shipping |
| Email:xinnuo05@xinnuomachine.com |
| WhatsApp：+8618830702960 |

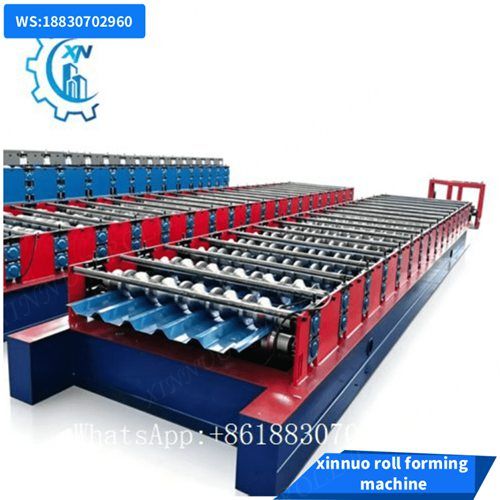

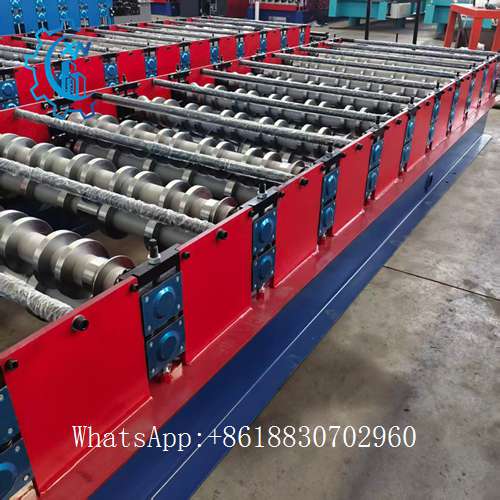

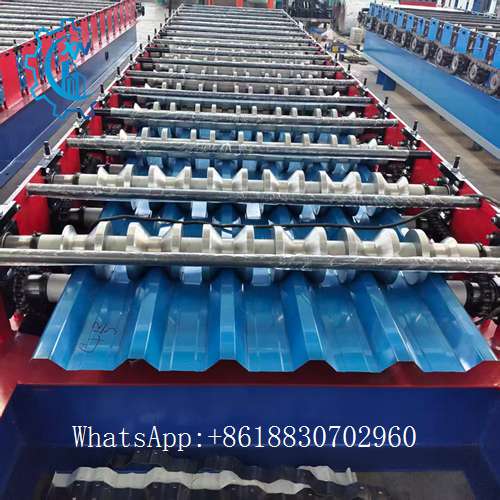

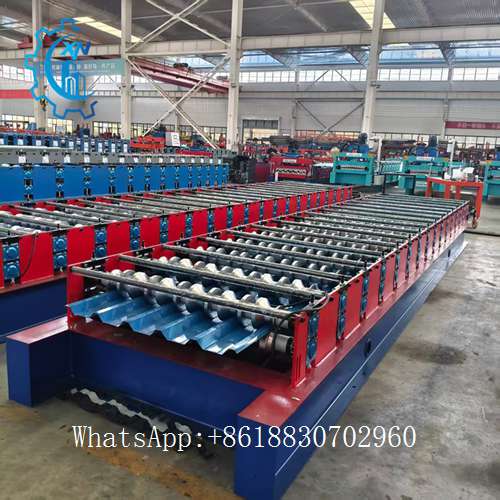

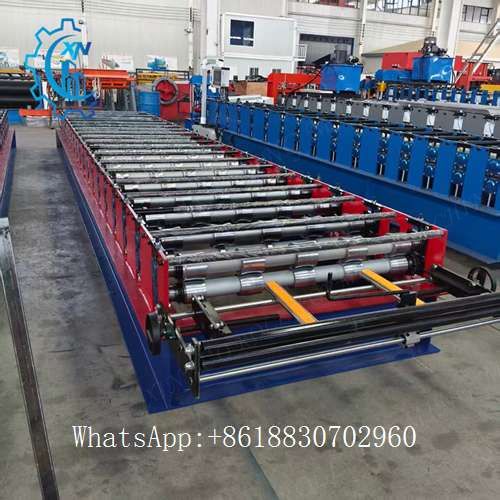

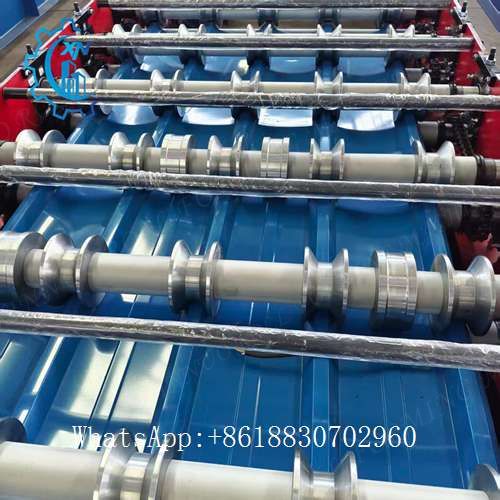

This semi-automatic trapezoidal roof panel forming machine is a cost-effective classic roll former for building roofing materials. It features simple operation and low failure rate, widely used for manufacturing roof sheets of steel structure workshops, warehouses, farm sheds, temporary buildings and market canopies. It processes pre-painted color steel coils and galvanized steel coils into standard trapezoidal roofing panels in one continuous pass, ideal for small processing factories and individual metal workshops. Configuration can be customized as required.
| Item | Specification |
|---|---|
| Applicable Material | Pre-painted galvanized steel coil, color steel coil, galvanized strip |
| Material Thickness | 0.3–0.8 mm |
| Effective Cover Width | 840mm trapezoidal roof panel |

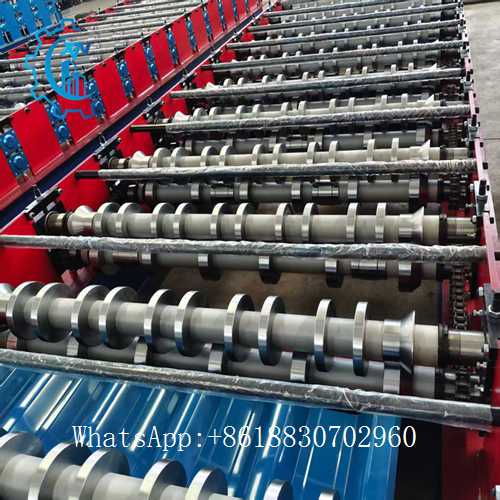

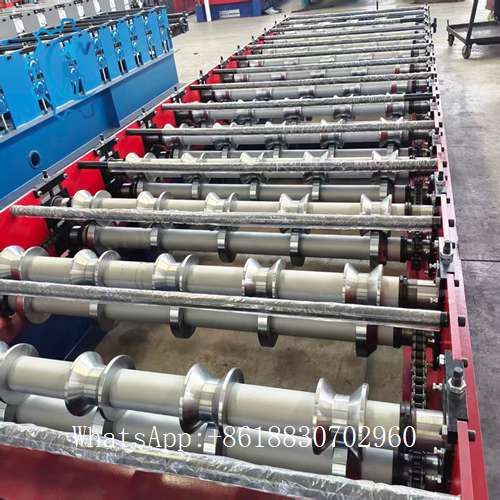

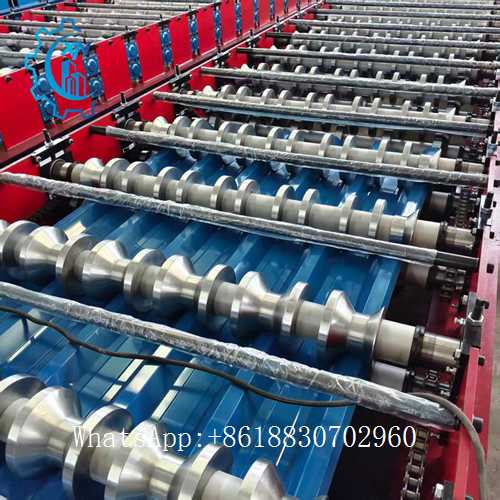

| Forming Stations | 13 rows of forming rollers |
| Roller Material | 45# forged steel, high frequency quenched & hard chrome plated, polished surface |
| Main Shaft Diameter | Φ70mm quenched solid shaft |
| Main Motor Power | 5.5 kW copper core motor |
| Cutting Type | Hydraulic fixed-length shear (semi-automatic cutting) |
| Control System | Basic PLC control box, length preset & piece counting function |
| Forming Speed | 8–12 m/min adjustable |
| Overall Dimension | 6800×1500×1000 mm |
| Machine Weight | Approx. 4.2 tons |
| Power Supply | 380V/50Hz 3-phase (220V/60Hz/440V customizable) |
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
