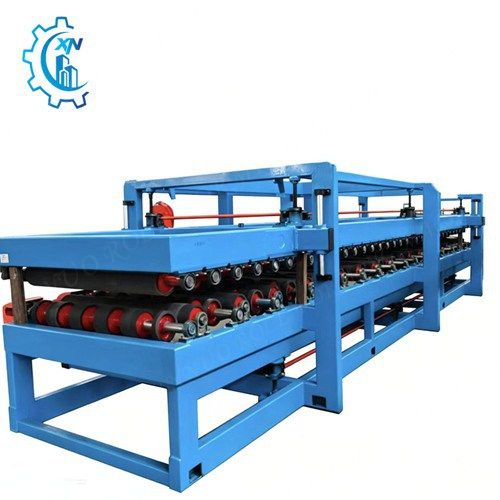

Xinnuo Rock Wool & Foam Sandwich Panel Production Line is a fully automatic continuous system for manufacturing color steel faced rock wool and EPS foam composite panels, widely used in factories, cold storages,
warehouses and prefabricated buildings. The integrated line consists of uncoiler, roll forming, gluing, double-belt hot pressing, servo tracking cutting and automatic stacking, all centrally controlled by PLC for stable
synchronous operation and adjustable speed. It features high forming precision, firm bonding and smooth cutting. The finished panels excel in fire resistance, thermal insulation, sound absorption and light weight high strength.
Supporting quick specification changeover, the line ensures stable 24-hour production with high efficiency and labor saving, ideal for steel structure enclosure panel manufacturing.
Parameter
- Applied Panel: Rock Wool Sandwich Panel
- Effective Width: 950–1200 mm
- Panel Thickness: 50–200 mm
- Panel Length: 2–12 m (adjustable)
- Working Speed: 3–8 m/min (frequency adjustable)
- Face Sheet Thickness: 0.4–0.7 mm
- Rock Wool Density: 80–120 kg/m³
- Control System: PLC + Touch Screen Full Automatic
- Total Power: About 90–110 kW
- Power Supply: 380V 3Ph 50Hz
- Line Length: About 60–75 m
- Cutting Precision: ±1 mm

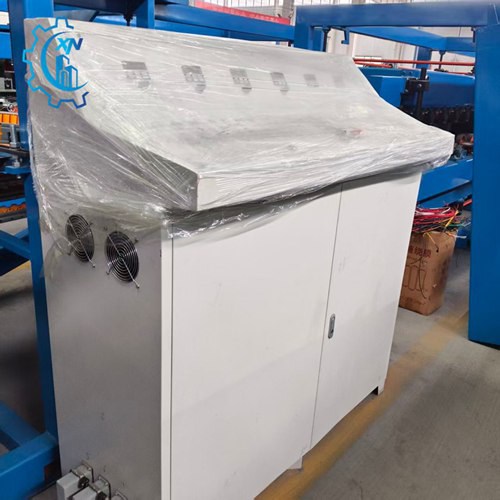

PLC Control Cabinet for Rock Wool Sandwich Panel Roll Forming Machine
-
Core Control System
Adopts famous brand PLC as main controller, with strong anti-interference ability, stable operation and long service life.
-
Human-Machine Interface
Equipped with 10-inch color touch screen, supports Chinese-English switching, easy to set length, speed and production parameters.
-
Automatic Control
Realizes fully automatic coordination of uncoiling, roll forming, gluing, laminating, pressing and fixed-length cutting.
-
High Precision
Servo tracking cutting system ensures cutting tolerance within ±1 mm, high efficiency and stable product size.
-
Safety Protection
With emergency stop, over-current, over-voltage, phase loss and limit protection, ensures safe operation.
-
Fault Diagnosis
Automatic fault detection and alarm function, clear error prompts, easy maintenance.
-
Stable Performance
Standard electrical components, reasonable wiring, good heat dissipation, supports 24-hour continuous working.

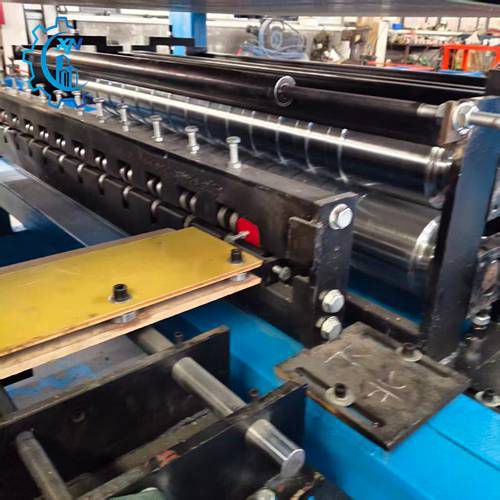

The main forming part of our roll forming machine can be configured as either a double layer or a single layer. It integrates
rollforming machinery, electrical components, and hydraulic systems, ensuring high working efficiency and fully automatic
operation. The primary structural form of the rollforming machines is Cantilever type.

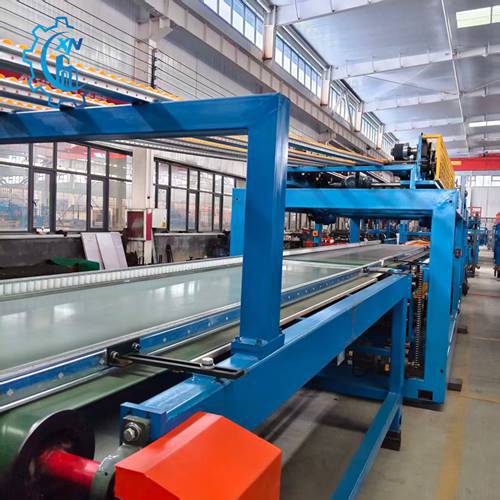

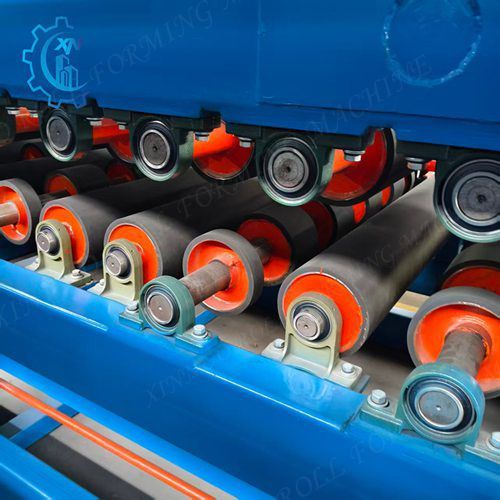

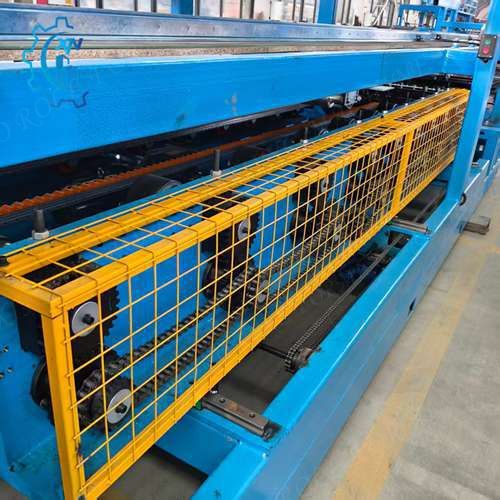

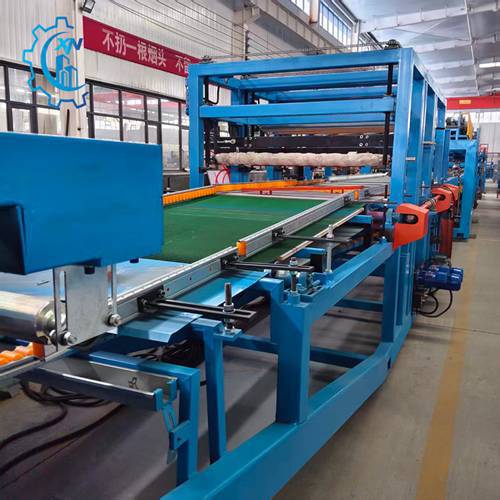

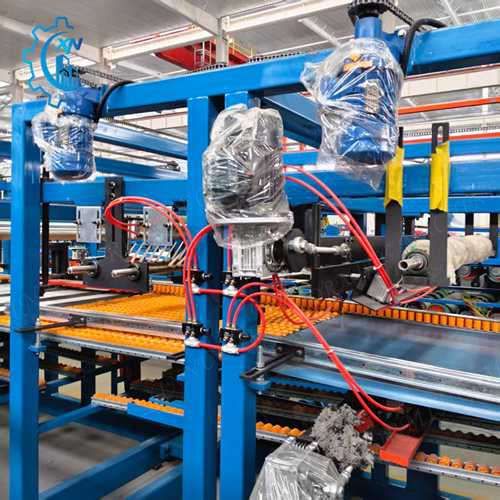

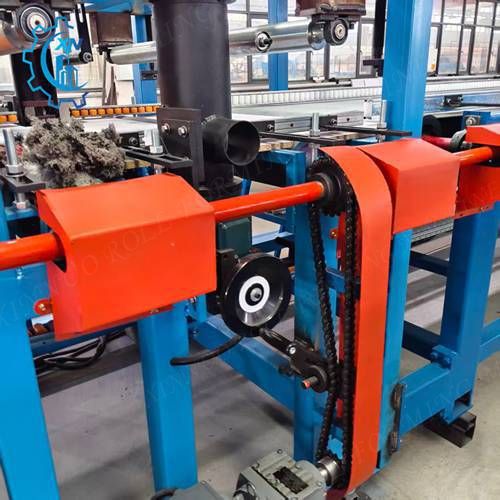

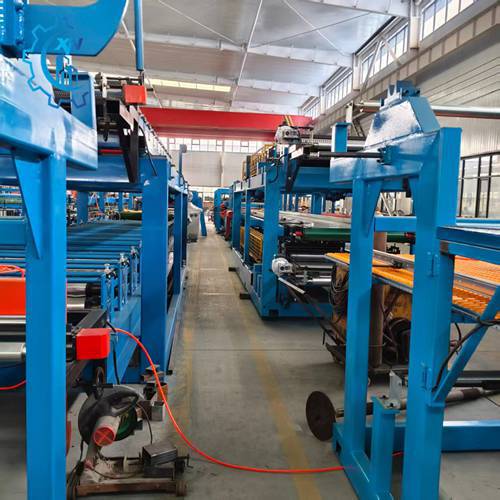

Product Pictures

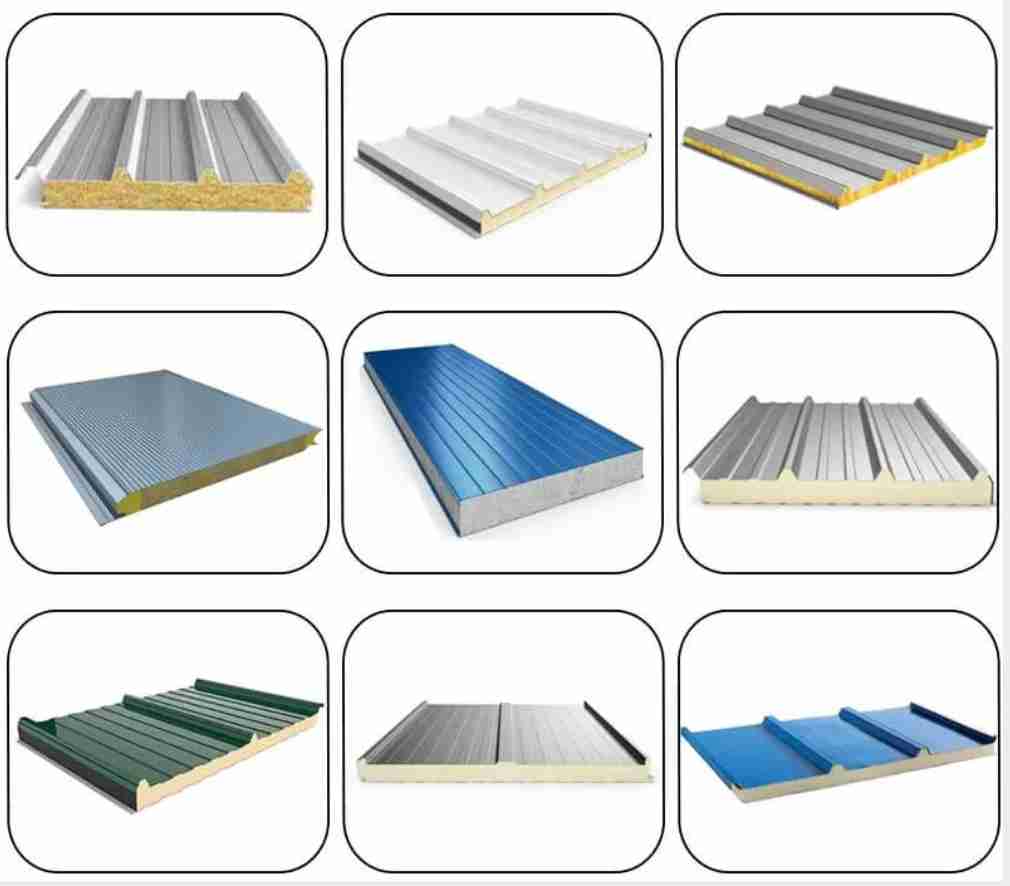

Product Applications
- Applied to industrial workshops, warehouses and steel structure buildings for roof and wall enclosure.
- Ideal for cold storages, constant-temperature rooms and clean workshops with insulation needs.
- Suitable for prefabricated houses, temporary buildings and modular construction projects.
- Used in agricultural greenhouses, breeding plants and heat preservation facilities.
- Applied to shopping malls, stadiums, logistics centers and public construction.
- Perfect for building renovation, energy-saving reconstruction and fireproof wall systems.
