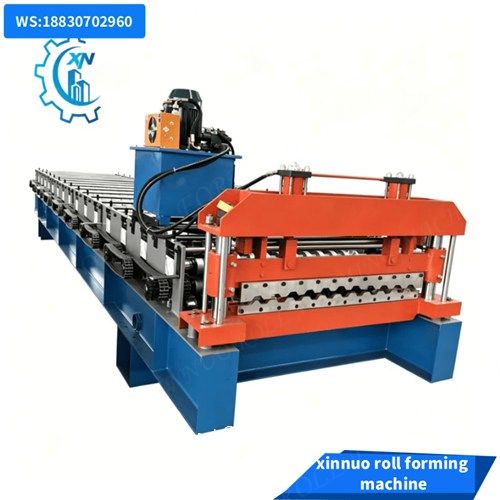

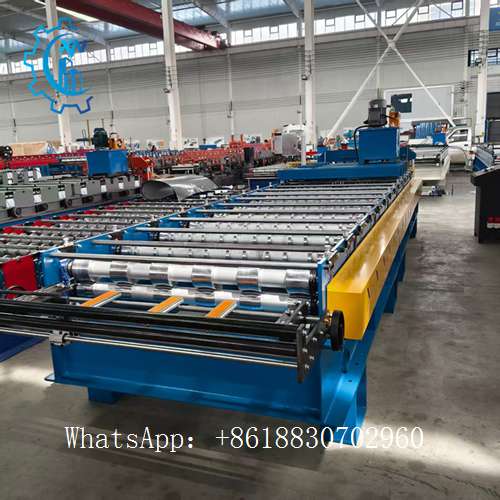

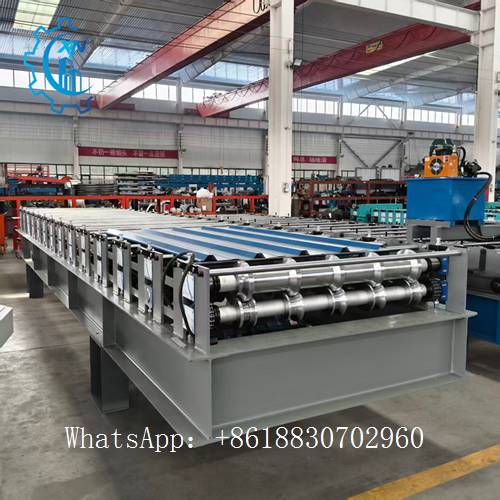

Roof/Wall Panel Roll Forming Machine
Metal roof/wall panel roll forming machine is a specialized equipment used in the construction industry to produce metal panels for roofing and wall applications. Our economic roof or wall sheet roll forming machine has a solid frame with guide column shaft bearings. This enables you to forming raw material from thickness 0.4mm to 0.7mm. Production speed varies from 20 meters per minute to 35 meters. Every line has PLC control which you can set the length and blocks you want to produce and the roll former will start producing as the set parameter. Thus it is a quite efficient metal panel making line. As one of top roof roll forming machine manufacturers in China, Smartech Machinery Company offers high efficient corrugated panel roll forming machine, sheet metal roofing machine for sale and other siding panel roll forming machines to satisfy your need.
|
Item
|
Standard Specification
|
|
Applicable Material
|
PPGI, GI, Galvalume, Aluminum Coil
|
|
Material Thickness
|
0.3mm – 0.8mm (Customized thickened type available)
|
|
Input Coil Width
|
1000mm / 1200mm / 1250mm
|
|
Effective Cover Width
|
840/900/1000/1050mm (Customizable)
|
|
Forming Stations
|
16 – 20 Roller Passes
|
|
Roller Material
|
GCr15 Steel, High-frequency Quenched & Hard Chrome Plated
|
|
Shaft Diameter
|
Φ75mm Solid Precision Shaft
|
|
Main Motor Power
|
7.5kW
|
|
Hydraulic Station Power
|
4kW
|
|
Cutting Blade Material
|
Cr12MoV Mold Steel, Quenched Treatment
|
|
Production Speed
|
10 – 18m/min
|
|
Control System
|
Delta PLC + 7-inch Touch Screen, English Interface
|
|
Transmission Mode
|

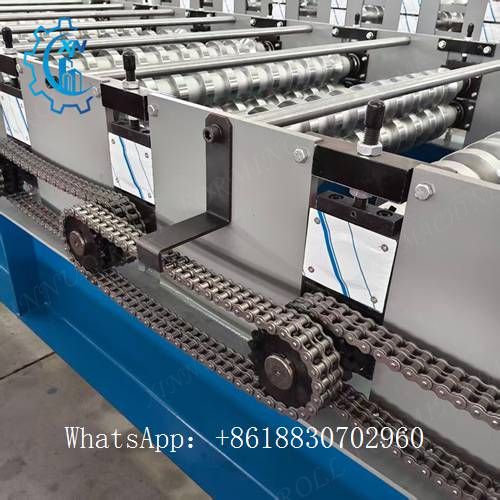

Gearbox Drive (Heavy Chain Drive Optional)
|
|
Overall Dimension
|
7800×1600×1700mm
|
|
Machine Weight
|
6.8 Tons
|
|
Supporting Decoiler
|
5-ton Hydraulic Automatic Uncoiler
|
|
Working Voltage
|
380V/50Hz 3 Phase (Customized for global standards)
|
|
Warranty Period
|
2-year Full Machine Warranty (Excluding Wearing Parts)
|
Standard Machine Configuration List
-
5-ton hydraulic automatic uncoiler
-

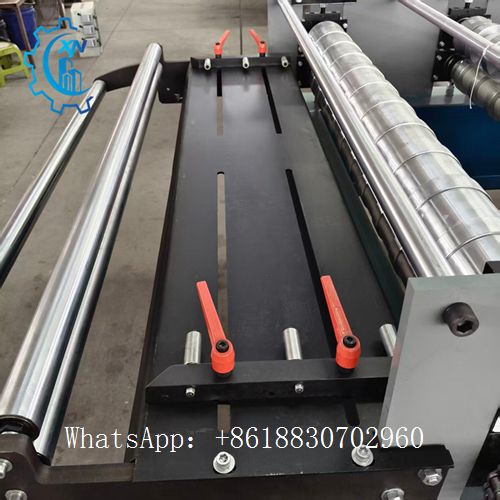

Material feeding guiding platform
-

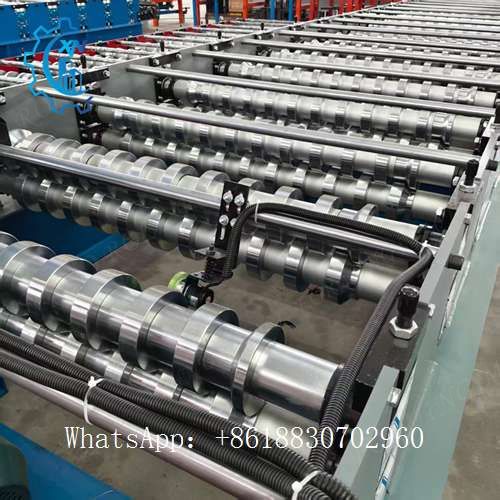

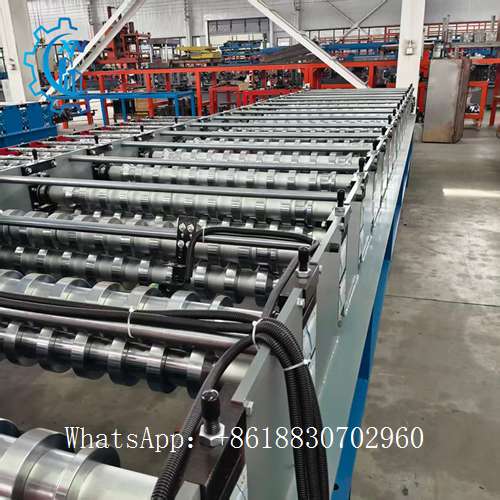

Main forming host with 16–20 roller stations
-

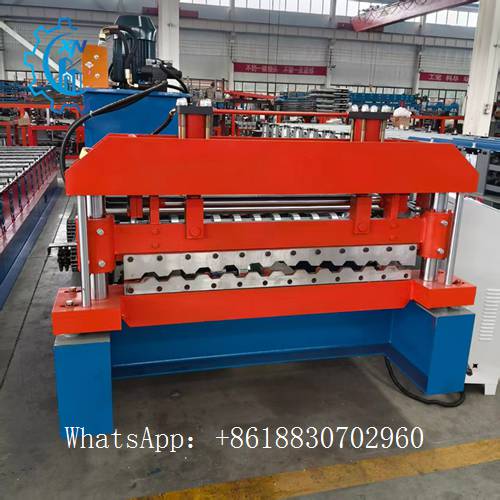

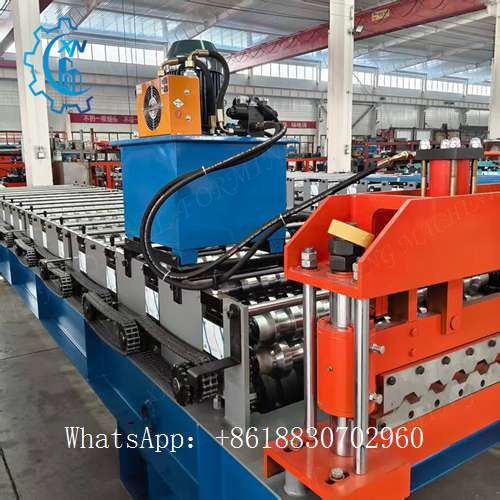

High-precision hydraulic cutting device
-

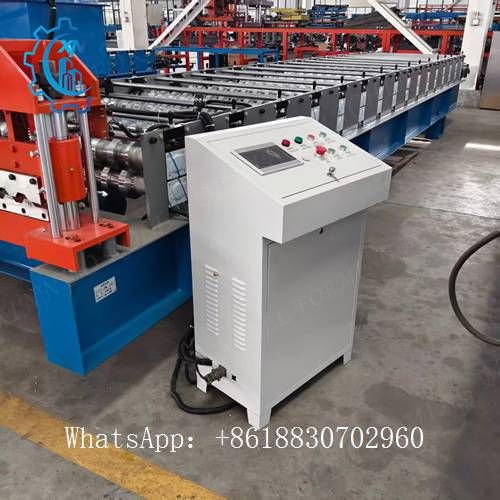

Intelligent PLC touch screen control cabinet
-
Finished sheet output support table
-
Complete hydraulic power unit
-
Set of spare wearing parts (blades, sealing rings, chains)
-
Operation manual, installation drawing and factory test video
Roof/Wall Panel Roll Forming Machines Advantages
High Efficiency: Continuous production and high-speed operation significantly boost productivity.
Precision: Ensures accurate dimensions and consistent quality, reducing material waste.
Cost-Effective: Lowers labor costs and minimizes material waste, making the process economical.
Versatility: Customizable designs and material flexibility cater to various architectural needs.
Durability: Produces strong, weather-resistant panels ideal for long-lasting applications.
User-Friendly: Advanced control systems and low maintenance requirements enhance ease of operation.
Service Guarantee
1. Customized Service
We provide one-to-one mold customization according to customers’ local profile drawings. Double-layer integrated trapezoidal roof panel machines are also available to meet multi-functional production needs.
2. Strict Factory Inspection
Every machine undergoes 4-hour continuous load running test before delivery. Complete test videos and machine inspection reports will be provided to customers together with the goods.
3. Professional Packaging & Logistics
The whole machine is painted with anti-rust coating. Key roller parts are wrapped with protective film, and the whole equipment is fixed with steel structure to ensure safe sea transportation in containers.
4. Perfect After-sales Support
-
24-hour online technical guidance and remote debugging service
-
Overseas engineer on-site installation and training service available
-
Free replacement of non-human damaged parts within warranty period
-
Lifelong cost-price supply of original machine accessories
FAQ
Q1: Can one machine produce multiple trapezoidal sheet profiles?
A: A single standard machine is fixed with one set of rollers for one profile. If you need multiple profiles, you can choose a double-layer forming machine which can produce two different sheets with one machine. For mass production of multiple profiles, separate single-profile machines are more stable.
Q2: What thickness of aluminum coil can this machine process?
A: The standard model is suitable for 0.3mm–0.8mm aluminum coil. We can customize heavy-duty models with reinforced rollers and higher-power motors for 0.8mm–1.2mm thick aluminum sheets.
Q3: What is the delivery time?
A: Standard 840/1050 model machines are in stock and can be delivered within 7 days. Customized mold machines take 25–35 working days for production.
Q4: What are your payment terms?
A: We accept 30% deposit for production arrangement and 70% balance payment before delivery. TT telegraphic transfer and L/C letter of credit are acceptable.
