trapezoidal roof panel forming machine
trapezoidal roof panel forming machines, as core equipment for producing trapezoidal roof panels, occupy an important position in the building materials industry, especially in countries such as Mexico, Costa Rica, Honduras, Guatemala, and Colombia.
Trapezoidal roof panel forming machines, as core equipment for producing trapezoidal roof panels, occupy an important position in the building materials industry, especially in countries such as Mexico, Costa Rica, Honduras, Guatemala, and Colombia. With their stable performance and wide applicability, they have become the preferred equipment for local steel structure buildings, factory construction, and other projects, providing strong support for the efficient supply of roofing materials.
roof sheet making machine parameters
| Formed Material | GI/GL, PPGI/PPGL |
| Thickness | 0.3-0.6mm |
| Width | 1220mm(customized) |
| Decoiler | Manual decoiler(will give you as free) |
| Roller station | 16 rows (As your requirement) |
| Diameter of shaft | 70mm solid shaft |
| Material of rollers | 45# steel, forging with chromium plate 0.05mm |
| Cutter | Cr12 Mov quenched treatment 58℃-62℃ |
| Power | 5.5+3KW |

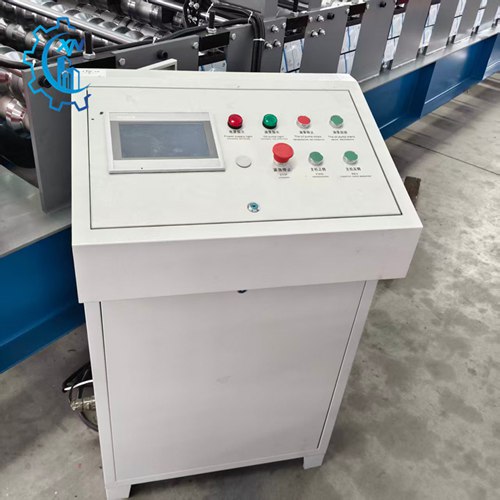

| Control system: PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. |
| Control system Language | English, Spanish, etc.(Support multiple languages) |
| Voltage | 380V, 50Hz, 3Phase (customizable) |
| Forming Speed | 8-15m/min (The speed depends on the shape of the tile and the thickness of the material.) |
High precision and high automation are the outstanding features of this equipment. It adopts a Mitsubishi or Siemens control system to achieve fully automated and precise production. Combined with the

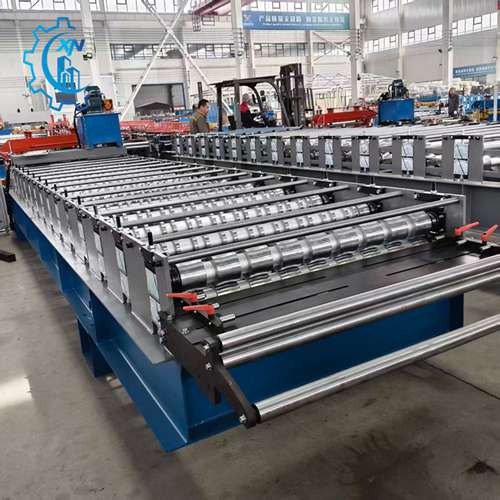

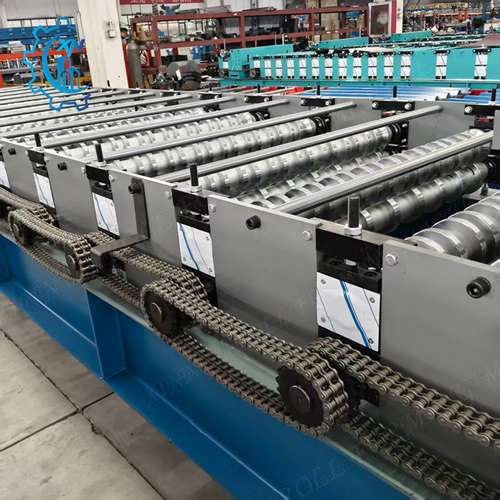

scientific design of 26 rolling stations, it effectively ensures the flatness and precision of the R101 trapezoidal plates. The equipment weighs approximately 11 tons, with a stable structure, providing reliable
assurance for long-term continuous production and reducing product errors caused by equipment vibration.

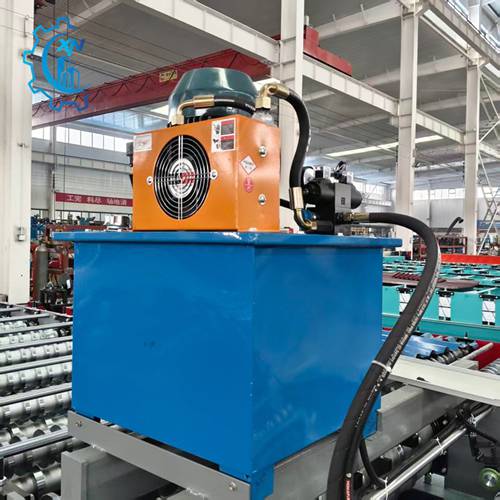

This hydraulic power unit is the core driving component of roll forming machines, specially customized for roof panel, wall panel and purlin forming equipment. Equipped with high-efficiency cooling fan,
stable hydraulic valve group and thickened integrated oil tank, it provides steady power for cutting, punching and bending procedures during metal sheet forming. Featuring low noise, stable pressure output
and long service life, it effectively guarantees continuous, high-precision running of the whole roll forming line.
The core configuration of the equipment ensures production stability, mainly consisting of a 5-ton manual uncoiler, a forming main unit with post-shearing function, a PLC controller, a hydraulic station, and a discharge platform. These components work together to build a complete and efficient production line, achieving seamless integration from raw material uncoiling and forming to shearing and discharge, significantly improving production efficiency.
