rockwool continuous sandwich panel production line

The rockwo sandwvich pane production ine s one contnuous and automatc ine that integrates mechanism electrcal contollng hydraulic system and poyurethane chemicareaction technology.

The rock wool sandvich panel production machinery adopts advanced international ollforming technolgy digital servo technolgy frequency conversionvector technology and hydraulic controlling

technology, automatic stacking technology.

The advantages of this rock wool sandwich panel machine are the following:

1) High automatization. The whole rockwoo production line adopts one full computer integration contoling system of digtal servo technology, frequency conversion vectorechnolgy end hydtraule contoling technology,

which rcealzes whl connecton colecting conte and coecing menagement Adpt the cuting syle of out to length wthoutmachine stop, so that realize full automatically.

2)High effcienoy .The production sped of fookwo sandwvich panel machine is 3- Bm/min (adjustable acording to product forming requiremen). The anual roduct capaciy ofthis line can reach to 800000 M2 (count on the base of

250work days per year and 10 work hours per day)

3)Easy peration. Adopt cllecting contoling system, using man machine conversation After preparing for the raw material and fnishing other production requirements, nputrequired parameters, then the machine can make the

product automatically.

4)Low production cost. Develping the rockwol machine's automatization, the whole line only neds 5 8 perators to perate the machinefuly, which saves much labor cost and

production management cost for enterprises

Main Parameters of Rockwool Continuous Sandwich Panel Production Line

Sandwich panel specification:

Length: Min cutting length is 2.5 mMax cutting length is 12mWidth: (see profile drawing)

Thickness: (see profile drawing)

Raw material specification:

coil thickness: 0.4 ~ 0.6 mm (steel be flat without ups and downs, deformation and bending)

sheet yield stress: s235MPa

coil max width: 1250 mm (tolerance±2mm)

coil max weight: 5T

coil 1D:0500 and 600 mm

coil 0D:01000 mm

Rock wool material. fiber length is >100mm, and the fber should be arranged verticaly,volume density is 7okg/m3, one-piece lengthis 3m.EPS material volume densty is 18kg/m3 each edge nonstaighinesis smm/n,radian is 3mm/m,

the pane surface should be fat roughness is <1.5mm/m, EPS pane one

piece length is >3m.

EPS material width: min width is 1/2mm of the sandwich panel width.

Machine rockwool specification:

Work line speed: 4000m/min (adjustable)

Machine length: about 70 m

Working height: 1050 mm (panel output height)

Laminating effective length: 7.5m

Control way: adopt industrial computer PLC

Total power: about 45 kwPower: 380V/3phase/50 Hz

control voltage: 24 V/110 V/220 Vpneumatic: 0.7 Mpa (self-prepared by the factory)

best working temperature: around 25°C

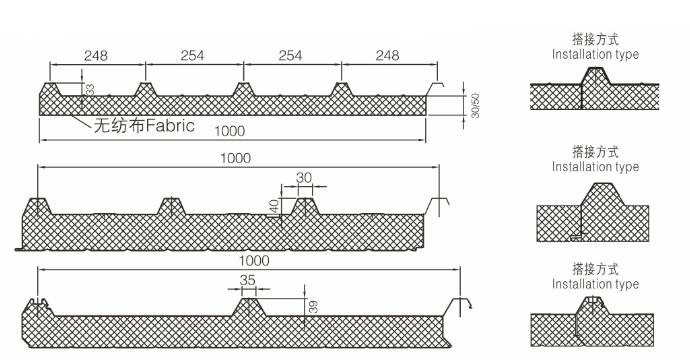

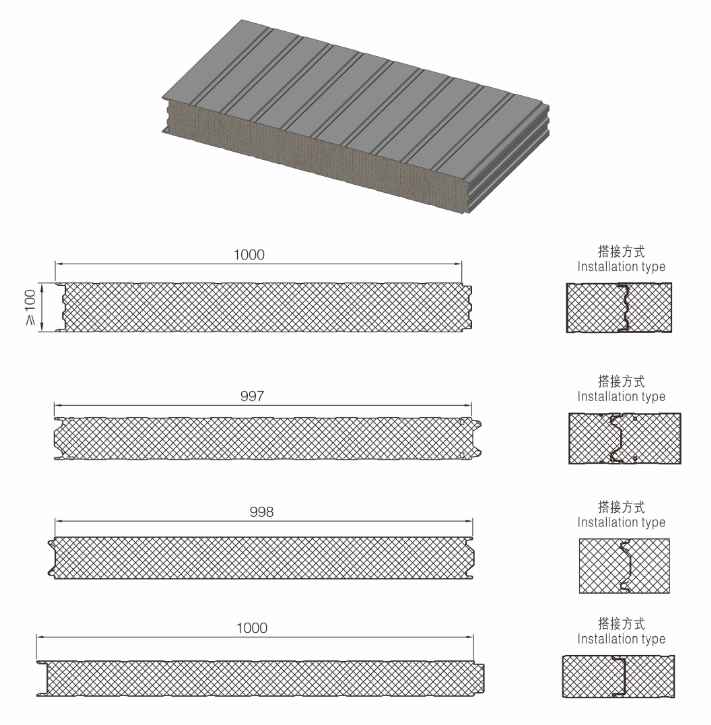

Rock Wool Sandwich Panel & Connection Methods:

Application of Rockwool Continuous Sandwich Panel Production Line

Stone/concrete/rook wall panel cold storage wall aluminum fol surface decoration, ock wool panel with PU sealing, dor panel, te roof panel rockwool box ype wall PU softsurface panel, PU roof panel
