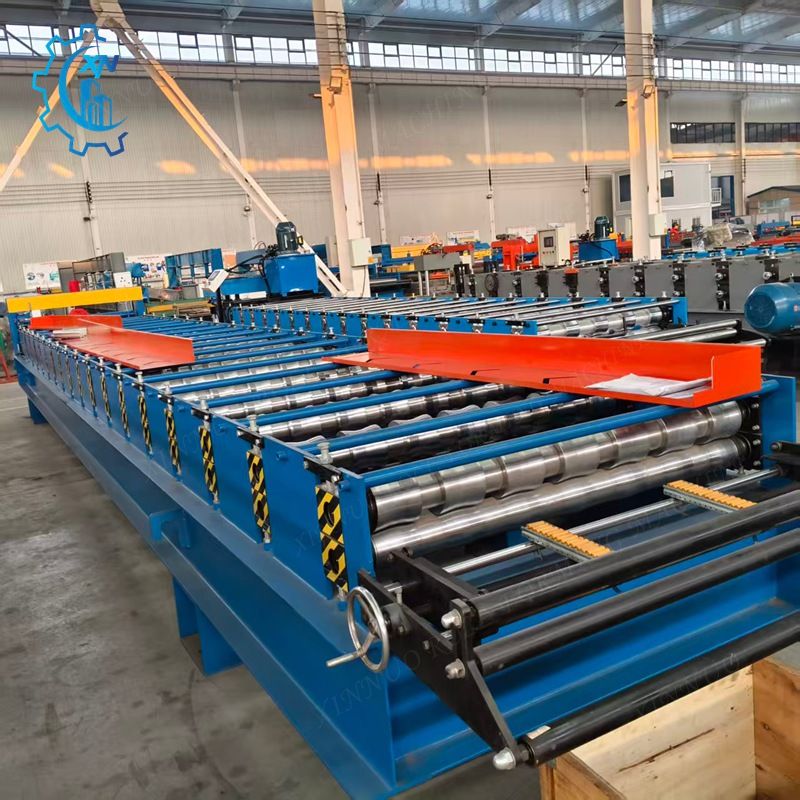

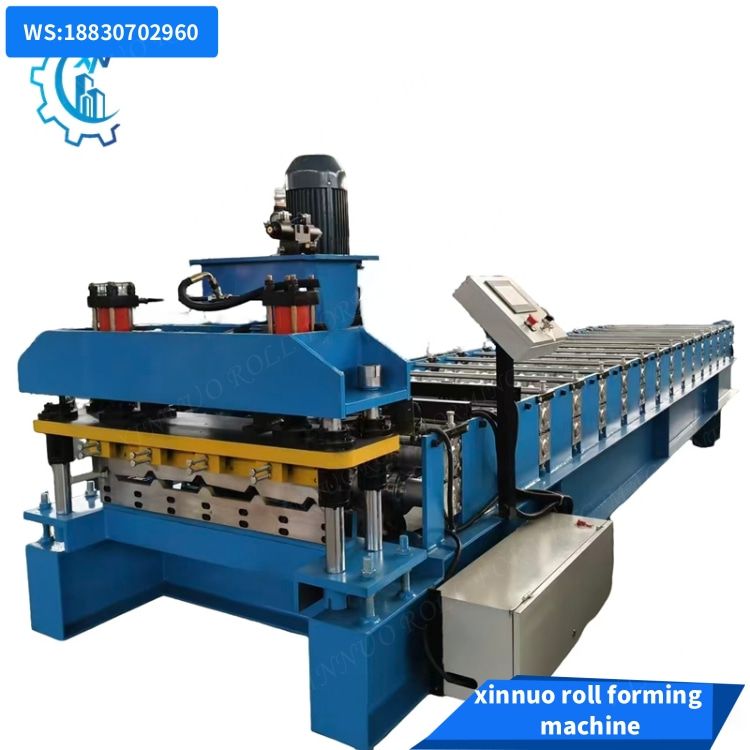

Trapezoidal Roof Sheet Roll Forming Machine

Product Overview

Technical Specifications

Key Features

• High Precision Forming

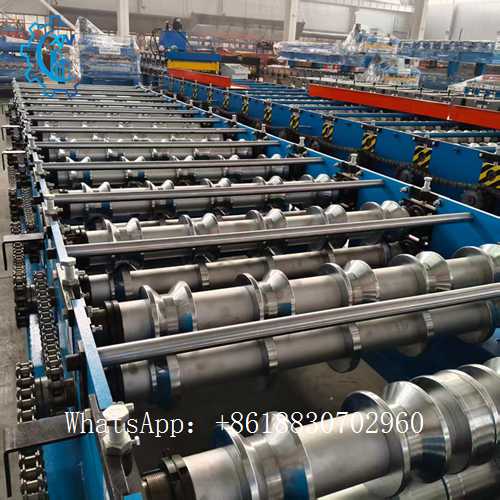

  Rollers made of 45# forged steel with hard chrome plating and heat treatment (HRC55–60), ensuring smooth surface, no scratches, and stable profile.
• Intelligent PLC Control

  PLC + touch screen control system, supporting one‑key setting of length, quantity, and speed; automatic fixed‑length cutting with error ≤ ±2 mm.
• Heavy‑Duty Frame

  Integrated welded H‑beam structure with high rigidity, low vibration, and stable performance for 24‑hour continuous production.

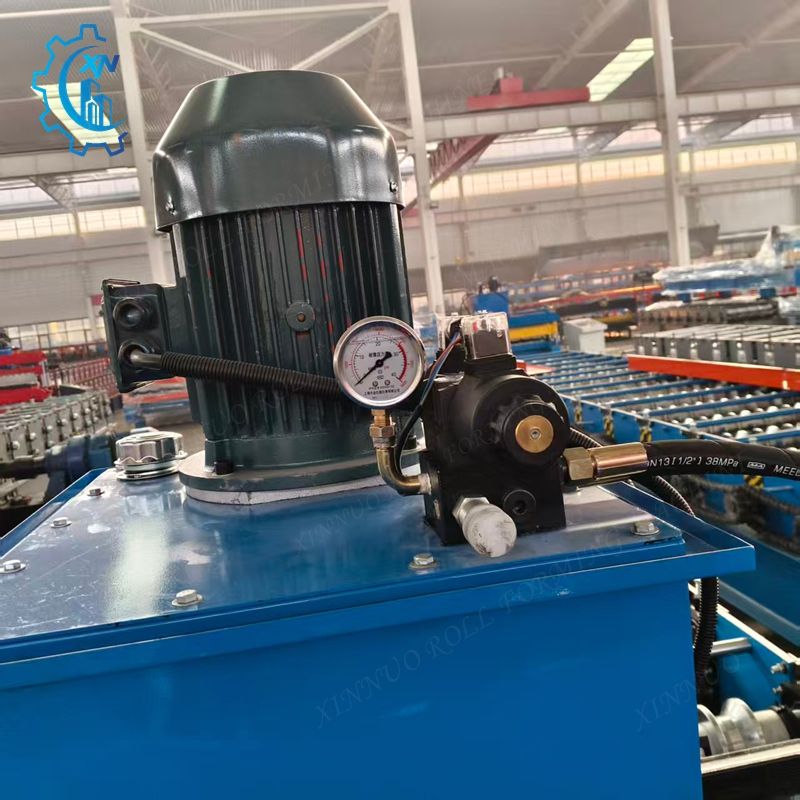

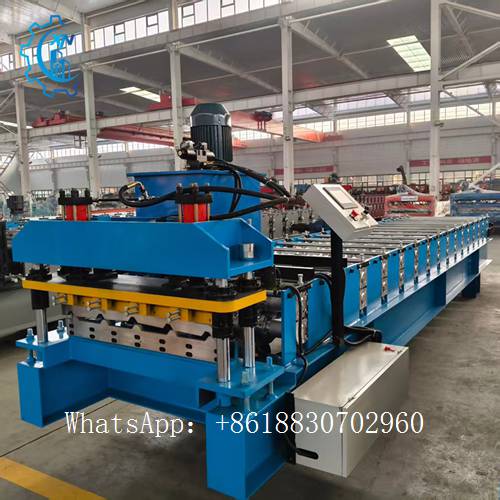

• Efficient Hydraulic Cutting

  Cr12MoV alloy cutting die, durable and sharp; hydraulic system with stable pressure and fast response.
• Wide Applicability

  Compatible with PPGI, GI, PPGL, aluminum coils, thickness 0.3–0.8 mm; supports multiple trapezoidal profiles (840/900/1000/IBR etc.).
