roof/wall panel roll forming machine

Product Attributes :

Steel Metarial : Coated Steel , Galvanised Steel etc.
Metal Thickness : 0.3– 0.8 mm
Sheet Width : 1250 mm Max.
Max. Coil Weight : 6.5T

Roll Forming Station Qty. : 15 roll forming stations (Opt.)
Roll Forming Speed : 8-15 m/min

Product Description

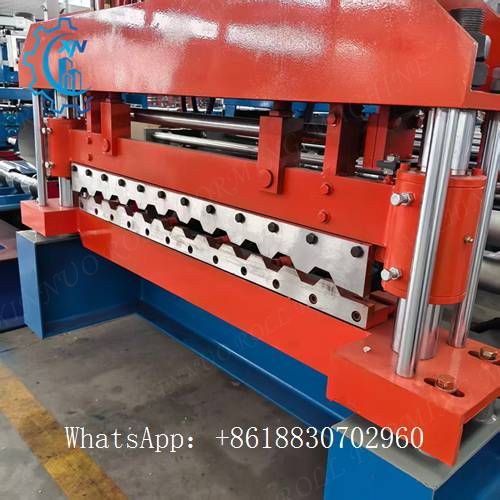

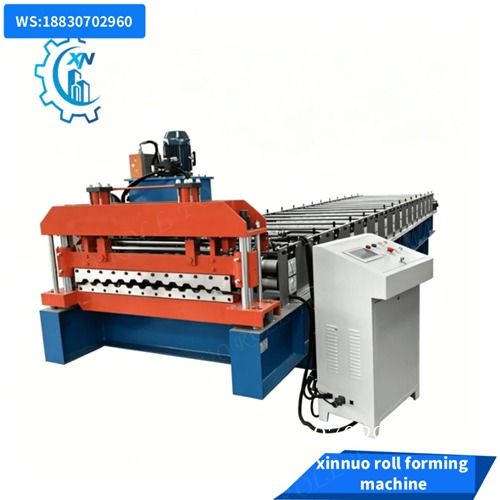

Full auto trapezoidal roof panel roll former for PPGI/GI/aluminum coil, produce IBR trapezoidal sheets for factory roof, PLC touch screen, customized profile, CE certified, 1-year warranty.

Trapezoidal roof panel roll forming machine is a continuous cold bending equipment, which forms galvanized steel, PPGI, aluminum coil into high-strength trapezoidal roof sheets via continuous rolling & hydraulic fixed-length cutting.

Finished panels feature stiff ribs, tight overlap, excellent waterproof & wind resistance, widely used for steel factory, warehouse, farm, market shed, stadium roofing.

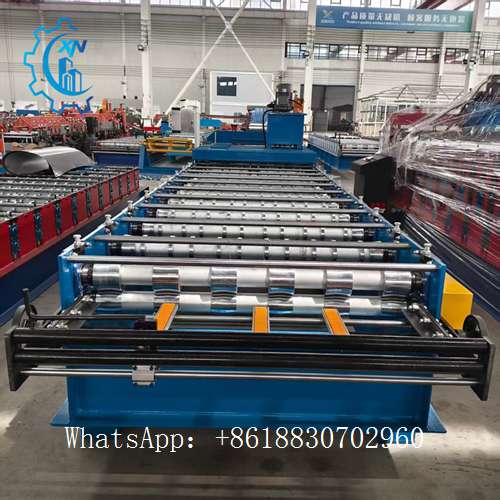

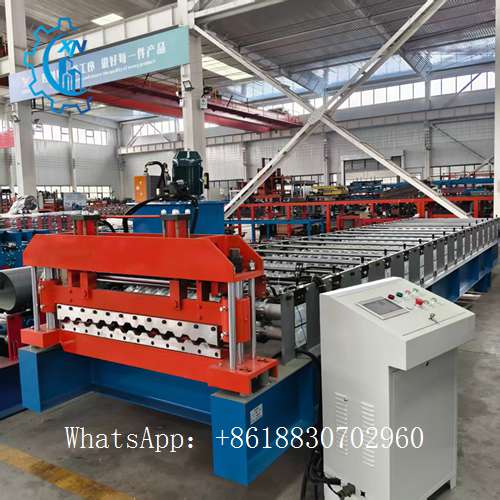

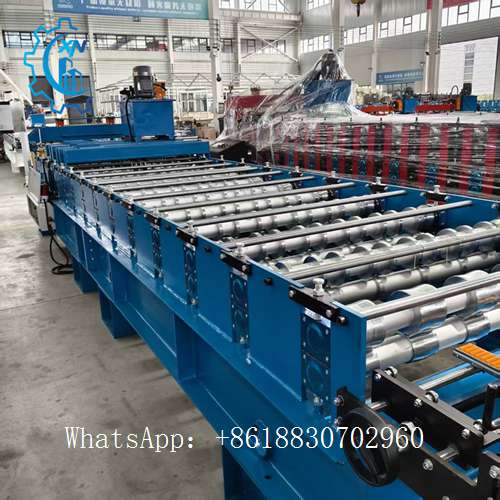

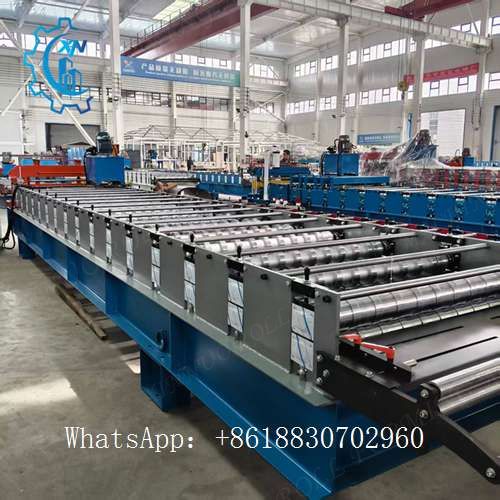

The machine adopts integral H-beam welded frame, multi-pass progressive forming rollers, full auto PLC touch control with auto length counting & cutting. Gearbox or heavy chain drive for stable running, scratch-free surface. Compatible with 0.3–0.8mm metal coil, standard profiles: 840/900/1000/1050, fully customized available

Workflow

Decoiler (5T hydraulic uncoiler) → Feeding guide → Multi-pass roll forming → Length encoder measuring → Hydraulic cutting → Output table

Item	Standard Parameter
Raw Material	PPGI, GI, Galvalume, Aluminum coil
Material Thickness	0.3–0.8mm
Input Coil Width	1000/1200/1250mm
Effective Cover Width	840/900/1000/1050mm, customized
Forming Passes	16–20 roller stations
Roller Material	GCr15 steel, heat treated & hard chrome plated
Shaft Diameter	Φ75mm solid shaft
Main Motor	7.5kW

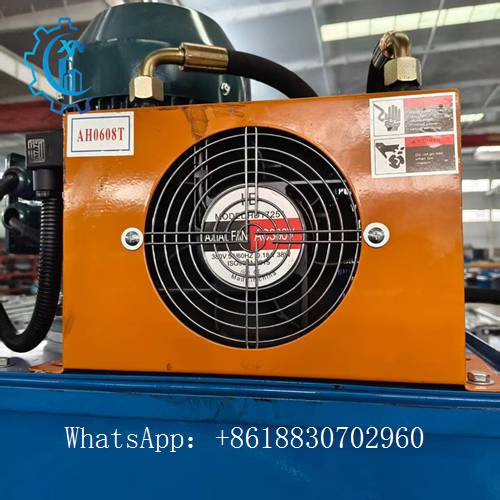

Hydraulic Power	4kW
Cutting Blade	Cr12MoV quenched steel
Production Speed	10–18 m/min
Control System	Delta PLC + 7” touch screen, EN/CN language
Drive System	Gear box drive, chain drive optional
Overall Dimension	7800×1600×1700mm
Machine Weight	6.8 Ton
Matching Decoiler	5 ton hydraulic uncoiler
Voltage	380V/50Hz 3 phase, customized
Warranty	1 years full machine (excluding wearing parts)

Core Advantages

1. Reinforced Integral Machine Body

The whole base adopts thickened steel plate welding and overall gantry milling processing, with high rigidity and strong shock resistance. It ensures no deformation and stable operation during long-term high-load production, greatly extending the machine service life.

2. High-precision Wear-resistant Rollers

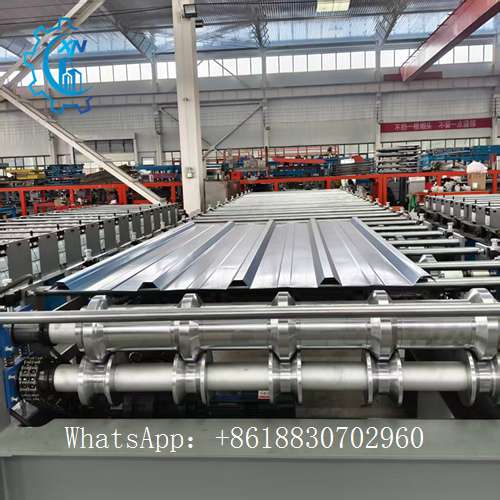

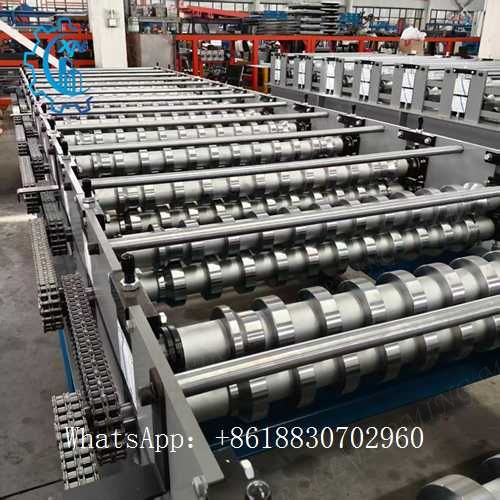

Forming rollers are made of high-quality GCr15 bearing steel or 45# forged steel, processed with high-frequency quenching and hard chrome polishing treatment. The roller surface is smooth and wear-resistant, ensuring zero scratch on the metal sheet surface. The service life of rollers can reach more than 8 years.

3. Fully Automatic Intelligent Control

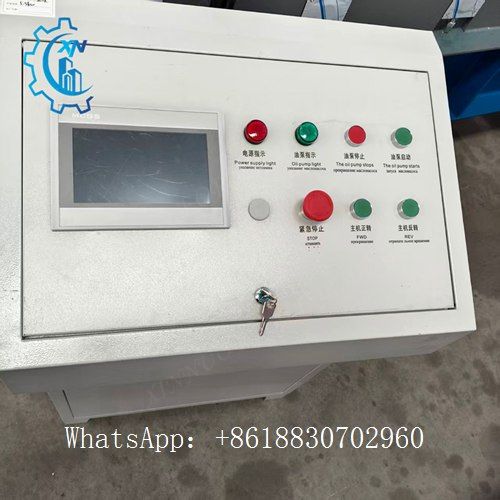

Adopts Delta/Siemens PLC system and 7-inch English touch screen. Operators only need to set the sheet length and quantity to realize fully automatic feeding, forming and cutting. The cutting precision error is controlled within ±1mm. The English operation interface is simple and friendly, easy for new workers to master quickly.

4. Wide Material Compatibility

The standard machine is suitable for processing 0.3mm–0.8mm thick PPGI color steel coil, GI galvanized steel coil, galvalume coil and aluminum coil. Thickened customized models can process 0.8mm–1.2mm heavy plates to meet different engineering needs.

5. Customizable Various Profiles

Supports mainstream standard profiles including 840, 900, 1000, 1050, South African IBR and Australian standard TR6/35 high-rib trapezoidal sheets. We can develop new molds according to customers’ local drawings and market standards.

6. Safe, Energy-saving & Reliable

Equipped with safety guardrail for hydraulic cutting part to avoid operation risks. The whole machine runs with low noise and low power consumption. All machines pass strict no-load and load test before delivery to ensure stable performance.

7. Certified Quality & Complete After-sales Service

The equipment has passed CE mechanical safety certification and ISO quality system certification. We provide 2-year full machine warranty (excluding wearing parts), lifelong technical support and cost-effective original spare parts supply.

Application Scope

The trapezoidal roof sheets produced by this machine are widely applied in industrial and civil construction fields, including steel structure factory buildings, logistics warehouses, agricultural breeding sheds, market greenhouses, station venues,

gymnasiums and light steel villa roofing and wall enclosure systems. The finished sheets feature light weight, high strength, fast drainage, weather resistance and corrosion resistance, suitable for tropical, temperate and frigid zone architectural

projects worldwide.
