high-speed corrugated board forming machine for metal sheet processing
high-speed corrugated board forming machine for metal sheet processing high-speed corrugated board forming machine for metal sheet processing high-speed corrugated board forming machine for metal sheet processing high-speed corrugated board forming machine for metal sheet processing high-speed corrugated board forming machine for metal sheet processing

high-speed corrugated board forming machine for metal sheet processing

Product Attributes :

1.Forming Speed:10 - 15m/min (adjustable in some models)

2.Min.Order Quantity:1 Pieces

3.Develivry time:30-60 days

4.Working speed:8-20m/min

5.Payment Terms:30% T/T in advance,70% when shipping

6.Email:xinnuo05@xinnuomachine.com

8.whatsapp:+8618830702960



Product Description

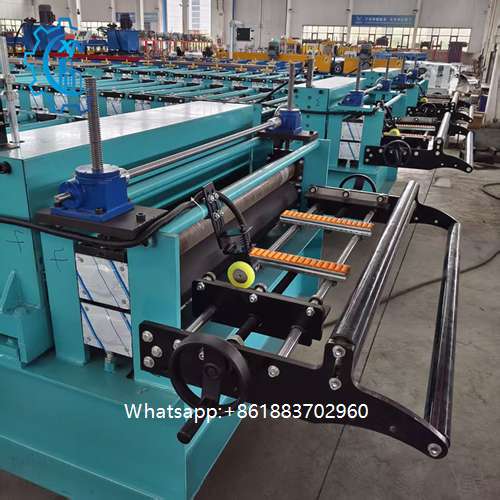

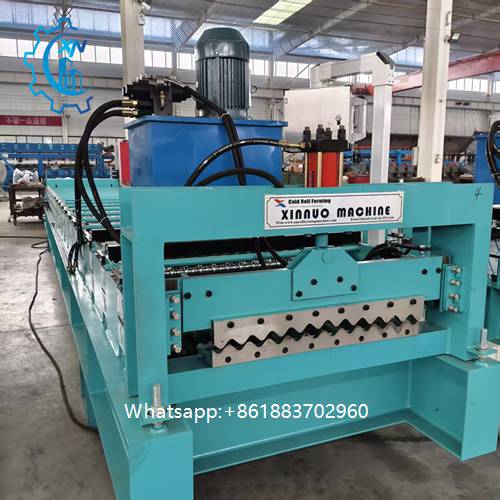

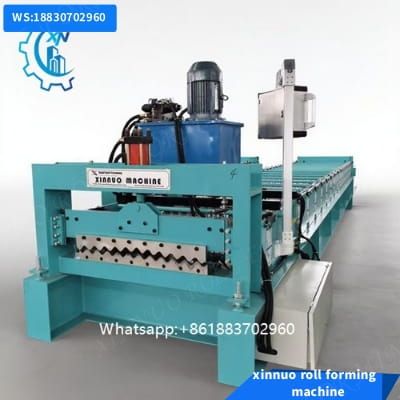

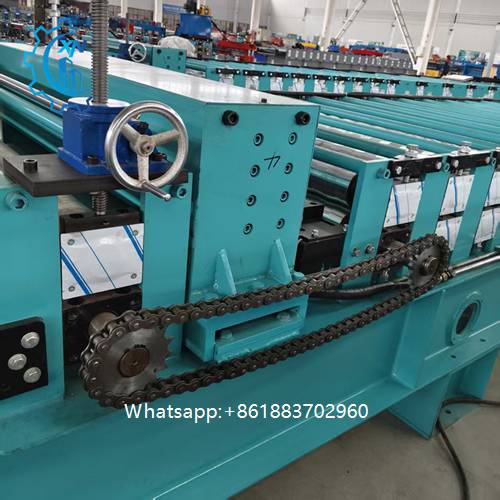

High-Performance Corrugated Sheet Roll Forming Machine

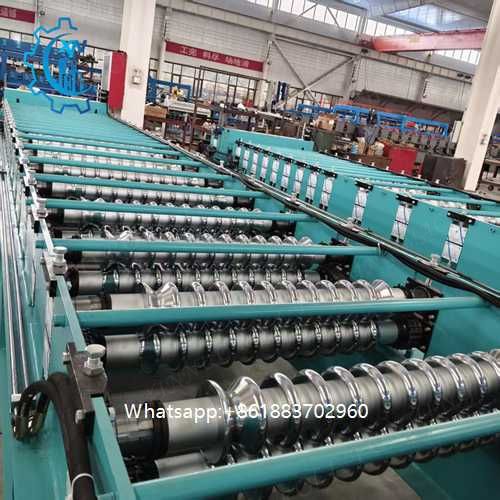

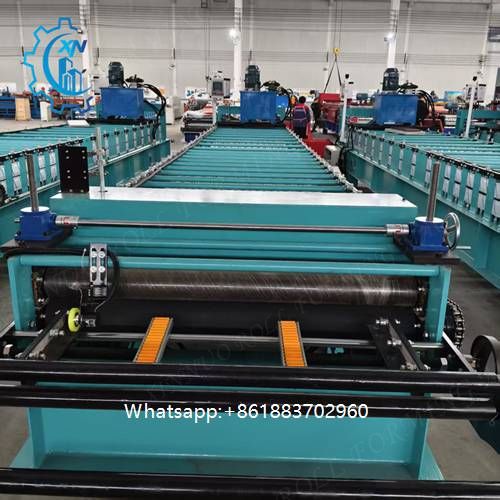

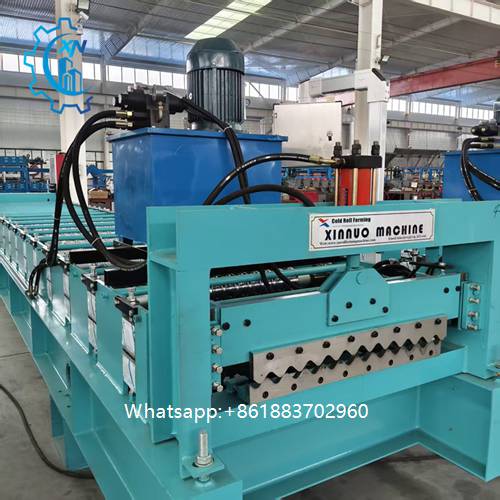

    Xinnuo industrial-grade corrugated sheet roll forming machine is engineered for high-precision, continuous production of corrugated metal/plastic sheets—ideal for roofing, wall cladding, and packaging applications. It features adjustable roll stations, PLC control system for automated operation, and durable carbon steel rollers to ensure consistent corrugation depth (5-30mm customizable). With a production speed of 10-25m/min, it supports various material thicknesses (0.3-1.2mm for metal) and widths (300-1200mm). Equipped with safety guards and easy maintenance design, it boosts efficiency while reducing labor costs, suitable for construction, hardware, and packaging industries.

Power Supply 380V, 50Hz, 3 - phase (or customizable according to buyer's needs)
Forming Speed 10 - 15m/min (adjustable in some models)
10 - 15m/min (adjustable in some models) 0.3 - 1.2mm (varies depending on model and application
Formed Panel Width 600 - 1000mm (customizable for certain models)
Material Type Galvanized steel, color - coated steel, stainless steel, etc.
Main Motor Power 5.5 - 25kW (depends on machine size and production requirements)

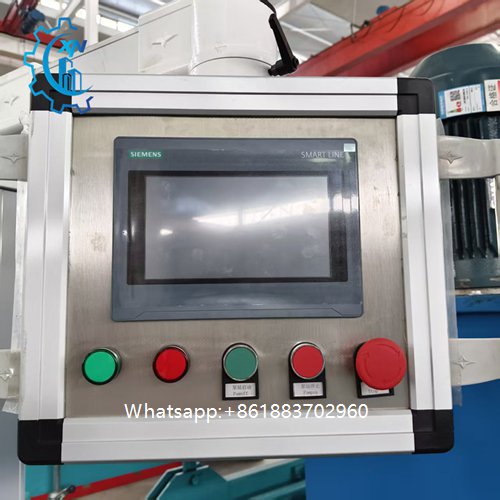

Control System PLC - controlled for automated operation and precision
Forming Stations 16 - 20 stations (for better wave definition and shape consistency)
Wave Consistency Tolerance ±0.3 - 1.5mm (ensuring high - quality and uniform corrugations)
Origin China

Our Company

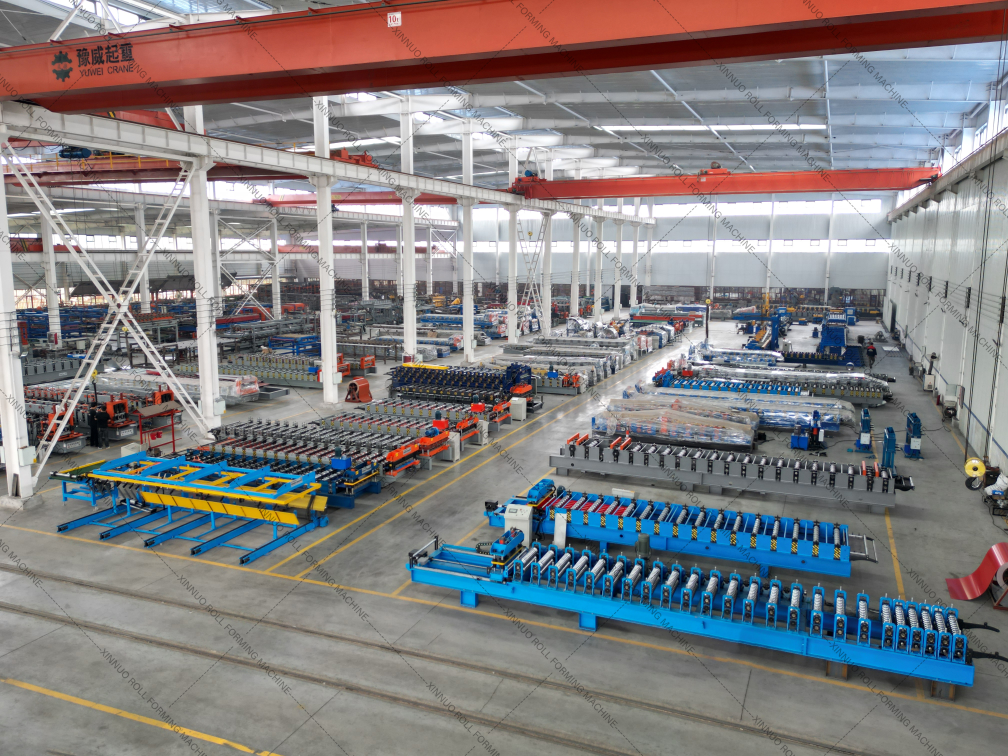

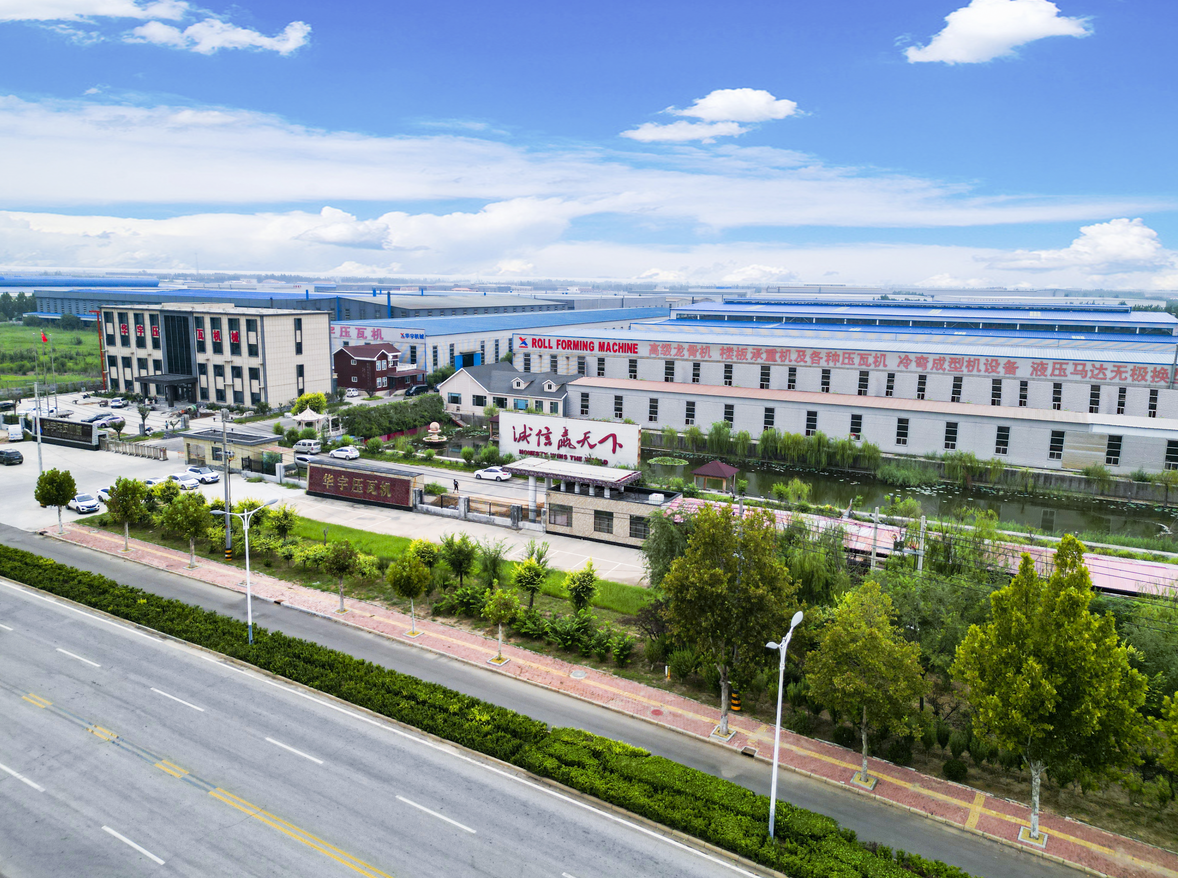

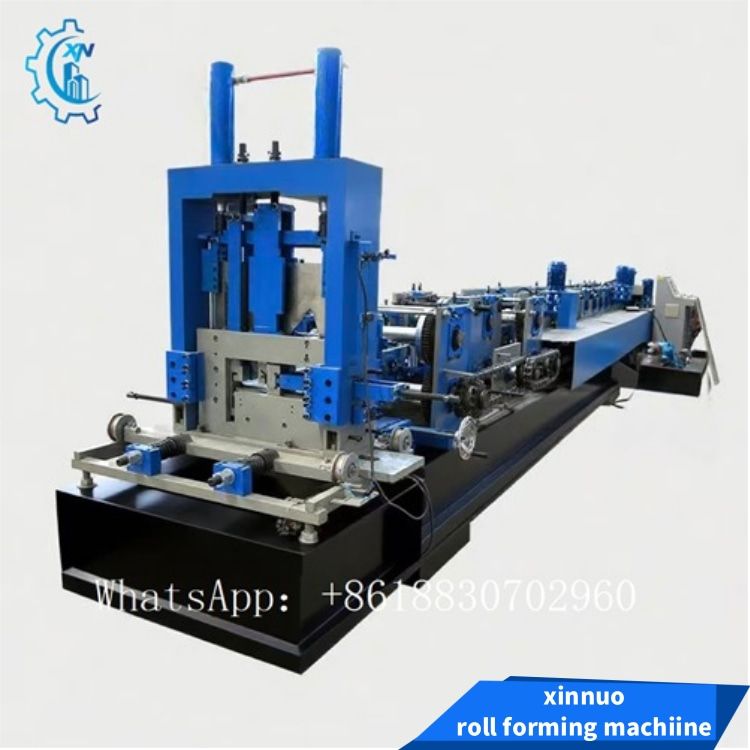

   Xinnuo Roll Forming Machine Co.,Ltd Established in 1998, is a leading manufacturer specializing in the design and production of C/Z purlin roll forming machines, high-speed purlin lines, and other customized roll forming equipment. Our facilities cover over 100,000 square meters, including 2 modern factorys and 12 warehousing bases. Since 2002, Xinnuo machines have been successfully exported to over 180 countries worldwide, earning consistent praise fortheir performance, ease of operation, and our comprehensive customer service. Looking ahead, Xinnuo remains commited to the principle of "Quality First, Service First, Customer First." We continue to focson R&D in energy-saving and intelligent machinery for the construction sector, aiming to deliver fully automated, unmanned production solutions that drive efficiency and innovation for our global partners.

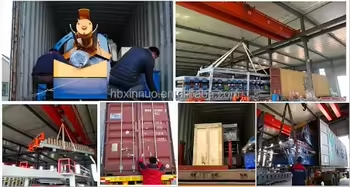

Package

For different machines or production line parts, we have different packing solutions:

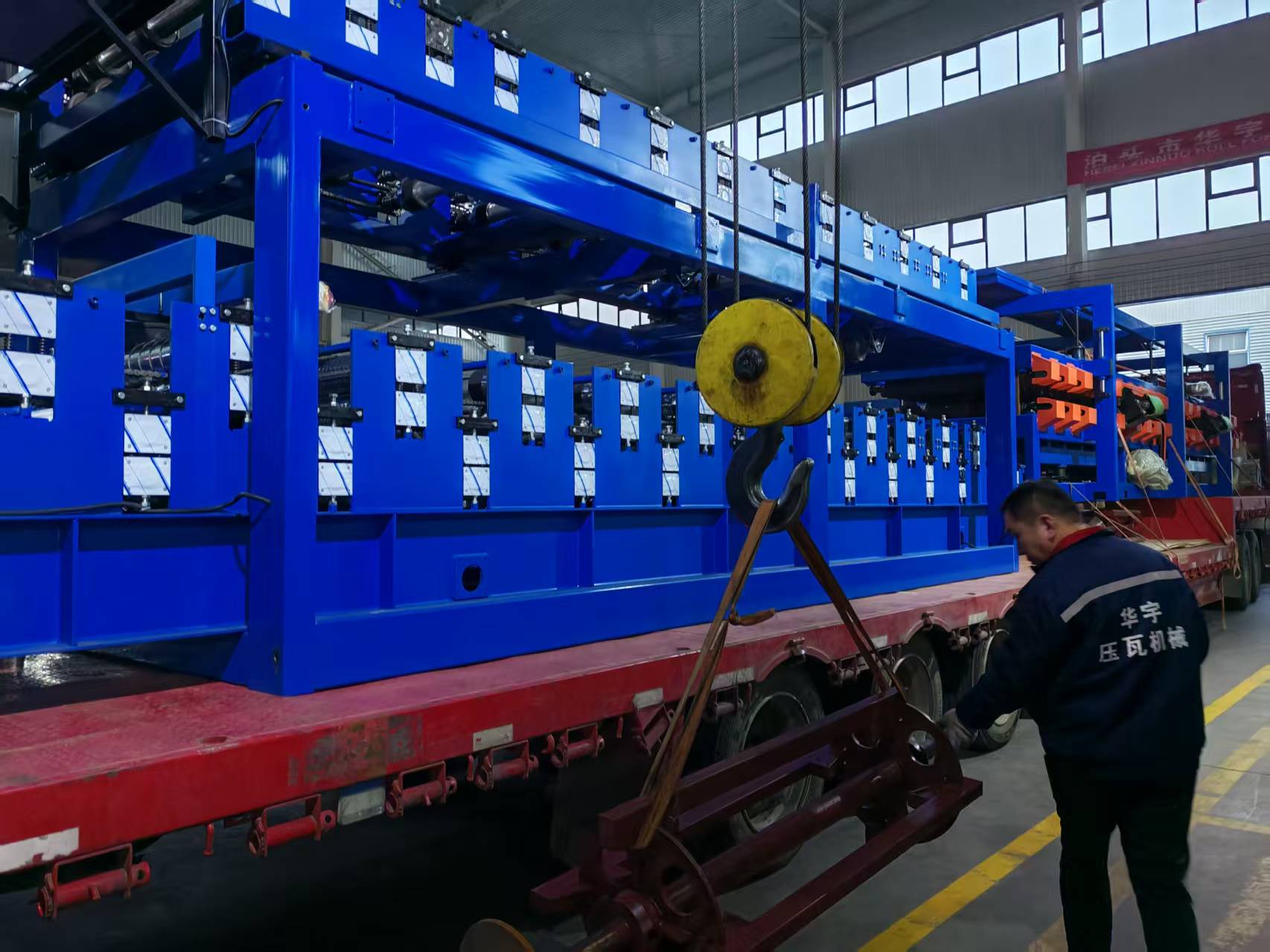

a. For the machine or production line, we will use plastic film to cover and wrap. Then will be loaded to the container by

forklift or crane

b. For the key parts such as the roll forming rollers set, we will use the metal frame to package.



C. For the electrical cabinets, molds set, we will use wooden carton to package and load.

FAQ

1. Q:Are you manufacturer?
A:Yes, we focus on cold roll forming machine manufacture over 12 years.

2. Q: if you can accept OEM? Design and manufacture according our photo.
A: Yes, we can accept OEM,we owned expert engineer team, professional design CAD drawings and use famous brand components
according your demands.

3. Q:What's the warranty for your machine?
A: we provide 2years guarantee and provide lifetime technical support.

4. Q:How many workers is needed for the machine operation
A: One worker is enough, the machine use automatic PLC control system.

5. Do you have after sales support?
A: Yes,Our engineer can supply remote-video technical support and online support teach your worker.

6. Q.Can you be responsible for transport?
A.Yes,we owned expert export team, we can arrangement for you to your destination port or address.

7. Q:What service can you provide before order?
A:About the pre-sale service, We provide professional solutions according your demands,such as design,technical parameter,delivery
flow etc. At the same time, we can supply invitation letter for your visit our factory and showing the machine operationfor you .

8. Q: What is the after- sale service?
A: we will supply lifetime technical support,quick-wear parts within 2years,Also can provide field maintenance and repair service.

9. Q:Any other service?
A: We can help you purchase raw material for machine,help you check ship date,update for you ship date etc

10. Q:Any certification
A:Yes, we have SGS ISO certification.
