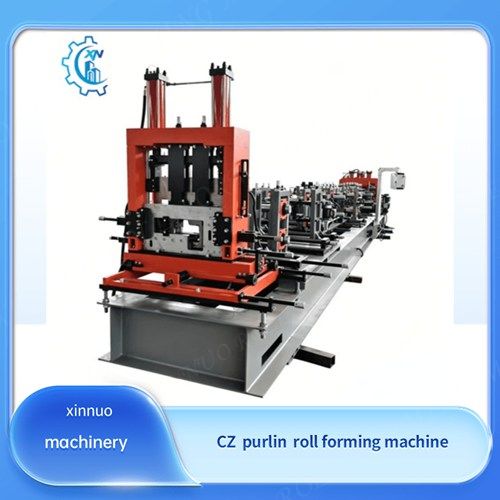

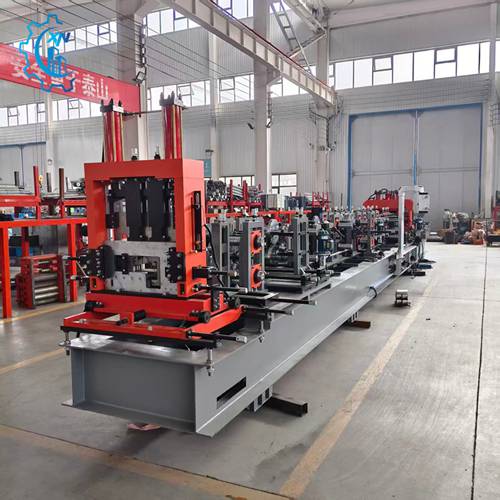

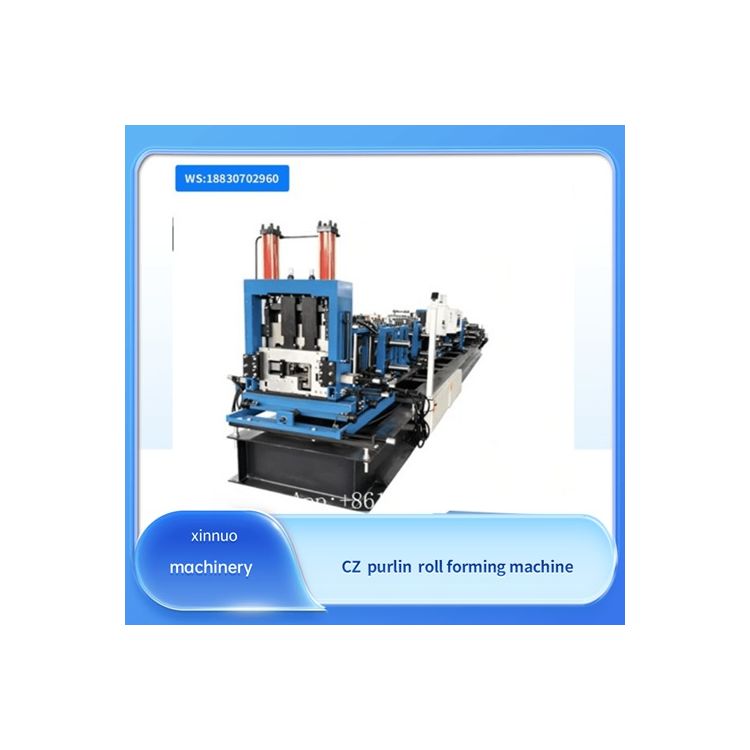

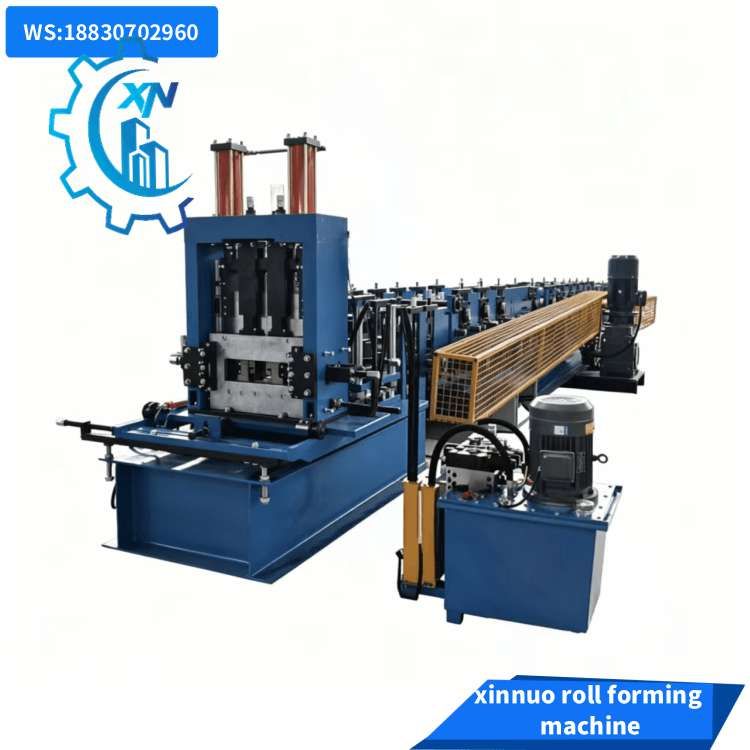

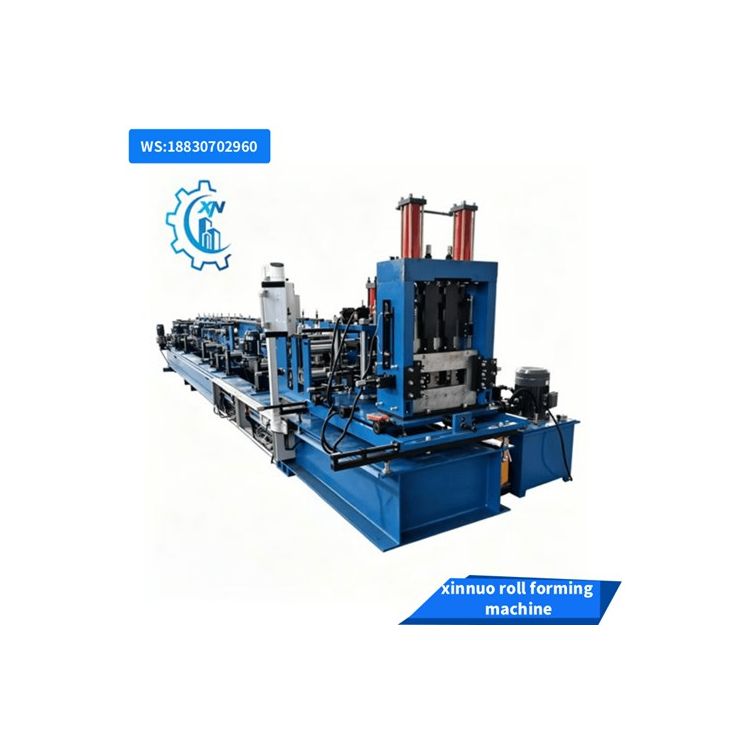

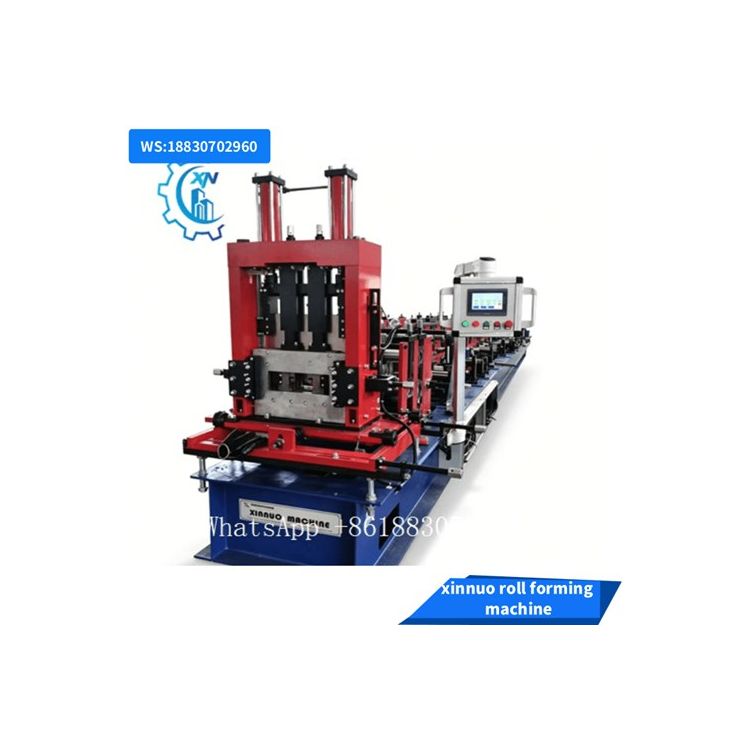

automatic interchangeable cz purlin roll forming machine

Interchangeable  CZ purlin roll forming machine can automatically complete the forming process of  C & Z-shaped steel according to the customized C & Z -shaped steel size.

Easy operating for manual changing C purlin to Z purlin in three minutes.

XINNUO CZ purlin machine roll forming can produce C & Z-shaped purlin finished products of various specifications, generally used to produce thin materials or C & Z-shaped steel with a material thickness of about 1.0-4.0mm.

Features

The Interchangeable CZ interchangeable purlin forming machine has high driving performance. The intelligent version is driven by a 22KW servo motor and can complete the conventional 25m/min

and the comprehensive speed of 12m/min-18m/min.

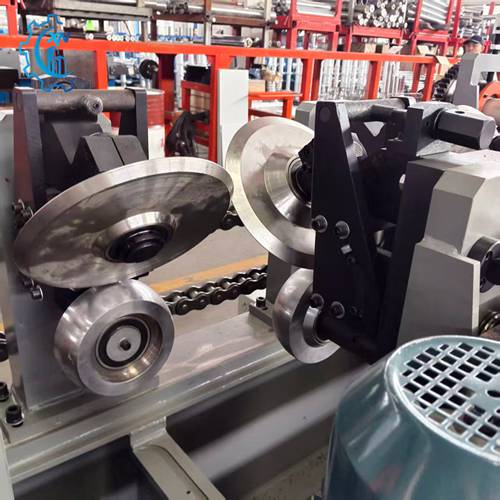

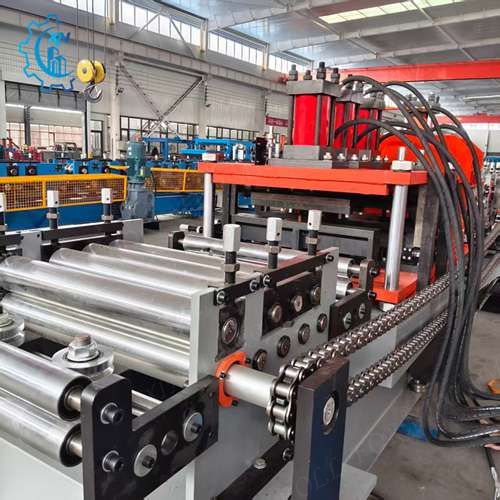

At the same time, it also has an innovative double straightening design, ten-roller CZ special two-axial straightening + four-roller two-axial straightening, which can effectively improve the accuracy of C-type and Z-type purlins.

• One machine has two uses, which can realize the processing and switching of C-type and Z-type purlins.
• The proportional valve is used to switch the flow rate, and the forming speed can be as high as 30m/min.
• The Cr12 material roller is used to extend the life of the whole machine.
• Galvanized strip steel and hot-rolled strip steel can be processed.
• Equipped with a positioning pin, CZ interchange can be achieved in 10 minutes to avoid opening and tail swinging.
• The CZ interchange is completed by rotating 180°, which is easy to operate.
• With infinite shearing and changing functions
• C-type 80-300mm, Z-type 120-300mm width can be changed arbitrarily.

Parameter of CZ purlin roll forming machine

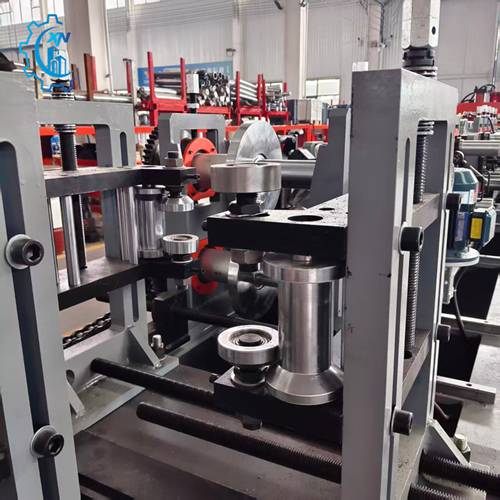

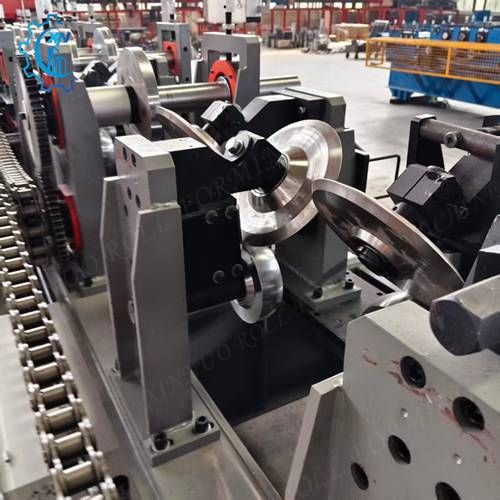

The forming rollers of CZ purlin machine are made of high-quality alloy steel with precision CNC machining and quenching heat treatment. Smooth, wear-resistant surfaces ensure stable molding without scratching steel strips.

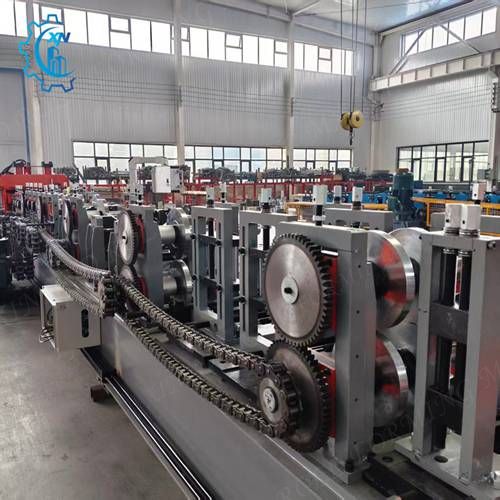

Modular adjustable roller stands support fast size switching between C and Z purlins, delivering precise forming and long service life.

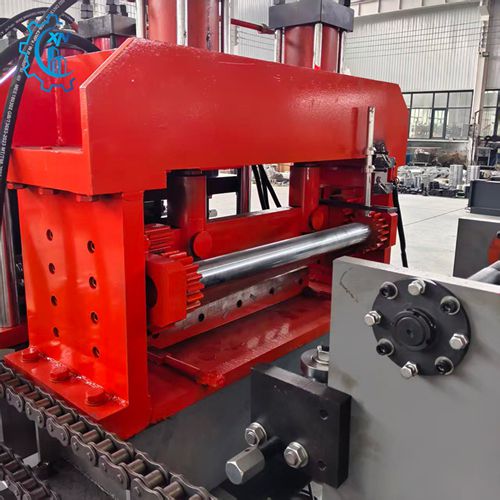

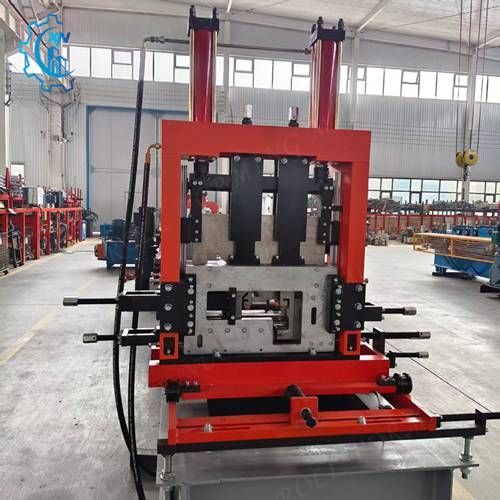

The front hydraulic cutting device of CZ purlin roll forming machine adopts thickened welded frame and heat-treated Cr12 cutter. It cuts steel strips before forming, delivering smooth burr-free cuts and extending blade service life.

It avoids profile deformation caused by post-forming cutting, fits various raw material gauges, runs steadily with hydraulic drive, lowers maintenance cost and ensures precise purlin dimensions.

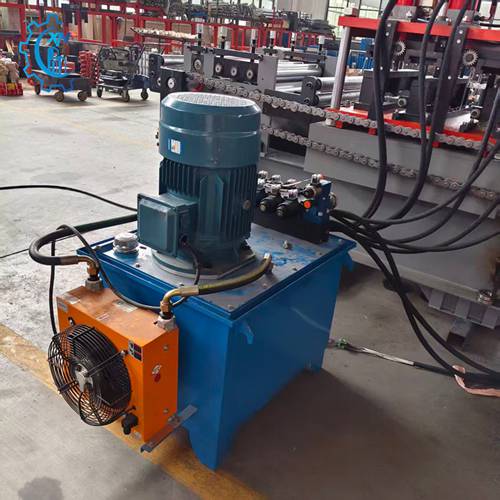

This hydraulic station motor for CZ purlin forming machine is high-power, stable-running and energy-saving. Matched with independent air cooling radiator, it quickly lowers oil temperature to prevent overheating.

Multi-group hydraulic valves provide steady shear & bending power, reducing vibration, extending unit service life and guaranteeing continuous high-speed production.
