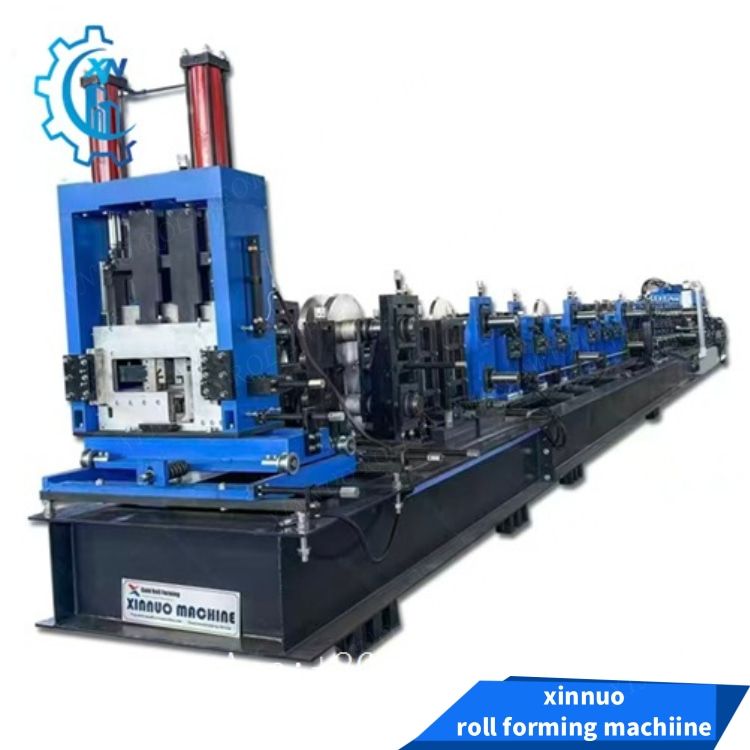

XINNUO CZ Purlin Roll Forming Machine can produce C purlin and Z purlin of different sizes (standard or non-standard Shape Profile) to meet the personalized needs of customers.
| Parameter Item | Specification |
|---|---|
| Formed Profile | C/Z steel purlin (one-click switch) |
| Raw Material | Galvanized sheet, cold-rolled steel sheet, color-coated sheet |
| Material Thickness | 1.5-3.0mm (customizable) |
| Material Width | 100-300mm (customizable) |
| Forming Rollers | 18-22 sets |
| Forming Speed | 8-15m/min |

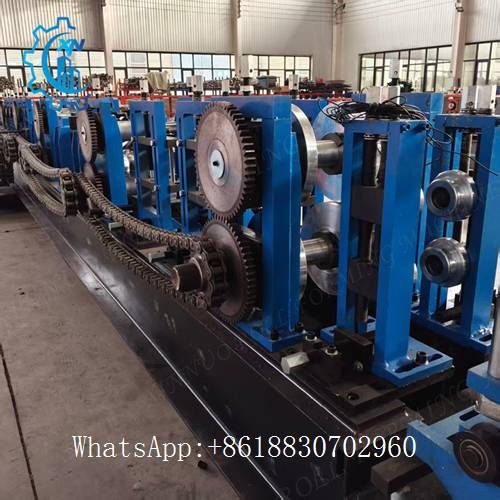

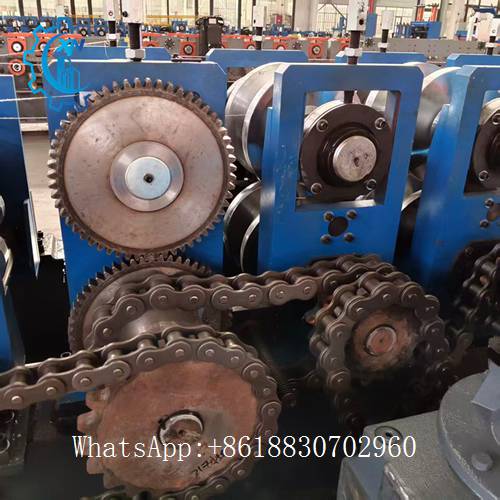

| Transmission Mode | chain drive |
| Control System | PLC numerical control system + touch screen |
| Cutting Mode | Hydraulic cutting, precise fixed length |
| Length Precision | ±1mm |
| Motor Power | 15-22KW (configured by model) |
| Hydraulic System Pressure | 10-16MPa |
| Equipment Weight | 8-12T (customizable) |
| Overall Dimension | 8500×1200×1500mm (L×W×H, customizable) |
| Applicable Voltage | 380V/50Hz three-phase (adaptable to overseas voltage) |

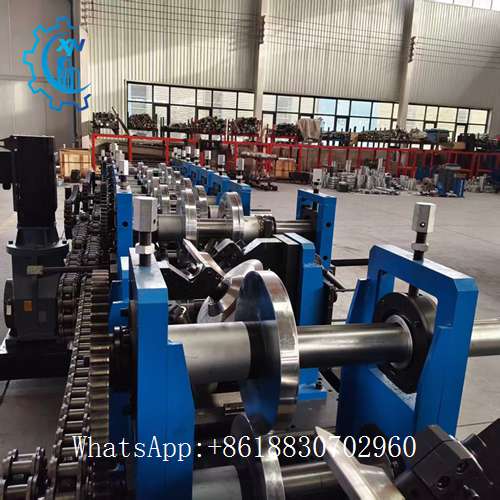

A heavy-duty welded steel plate stand structure, featuring high rigidity and stable load-bearing capacity. The integrated frame design
ensures precise alignment of forming rollers, minimizes vibration during high-speed operation, and guarantees long-term structural stability.

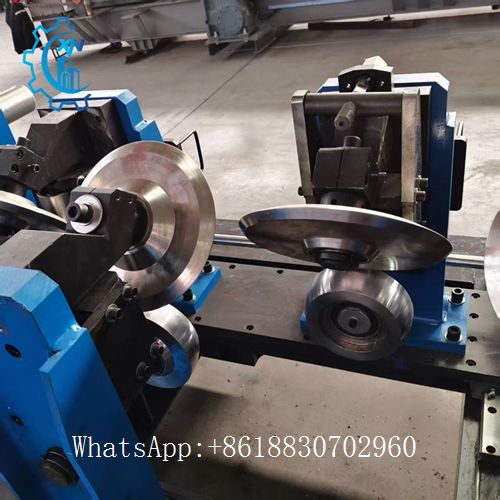

Roller Material: 45# carbon steel (quenched & tempered) + hard chrome plating, HRC58-62, high wear resistance & precision forming.
Working Process
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
