CZ Purlin Roll Forming Machine

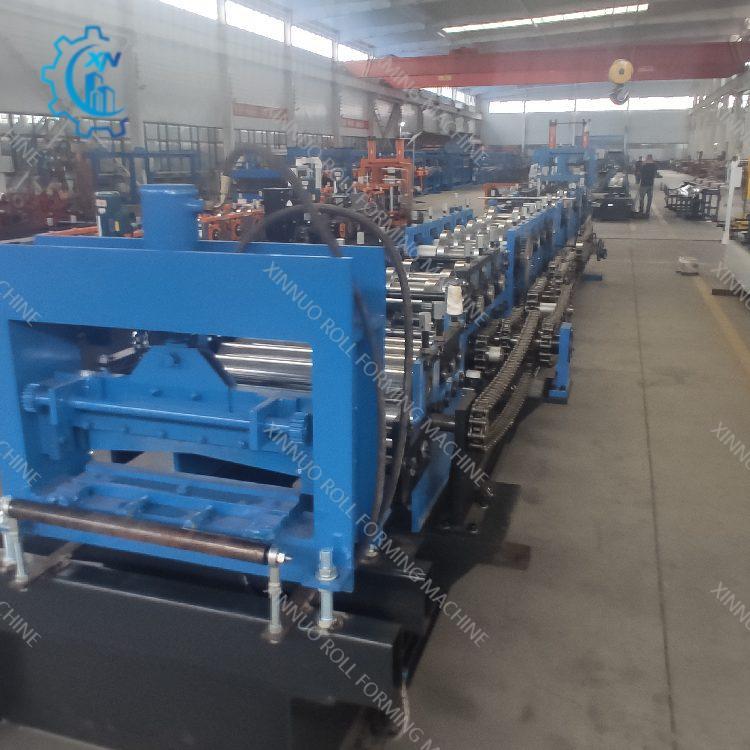

CZ Purlin Roll Forming Machine – Dual-Profile Flexibility for Modern Steel Structures

In today’s steel construction industry, the ability to produce versatile structural members is a decisive factor for manufacturers. Xinnuo’s CZ Purlin Roll Forming Machine is designed to meet this challenge, offering high-efficiency production of both C-shaped and Z-shaped purlins on a single platform. This innovative machine provides builders and fabricators with a flexible, reliable, and cost-effective solution for modern roofing and wall systems.

Dual-Profile Capability

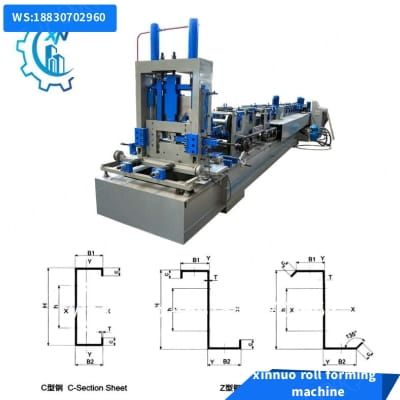

C purlins are widely used for wall supports and small-span roof systems, while Z purlins are ideal for large-span roofs where overlapping sections enhance structural integrity. With Xinnuo’s C&Z Purlin Machine, manufacturers can seamlessly switch between the two profiles without extensive downtime. This dual-profile capability reduces equipment costs and provides maximum adaptability for varying project specifications.

Robust Engineering and Design

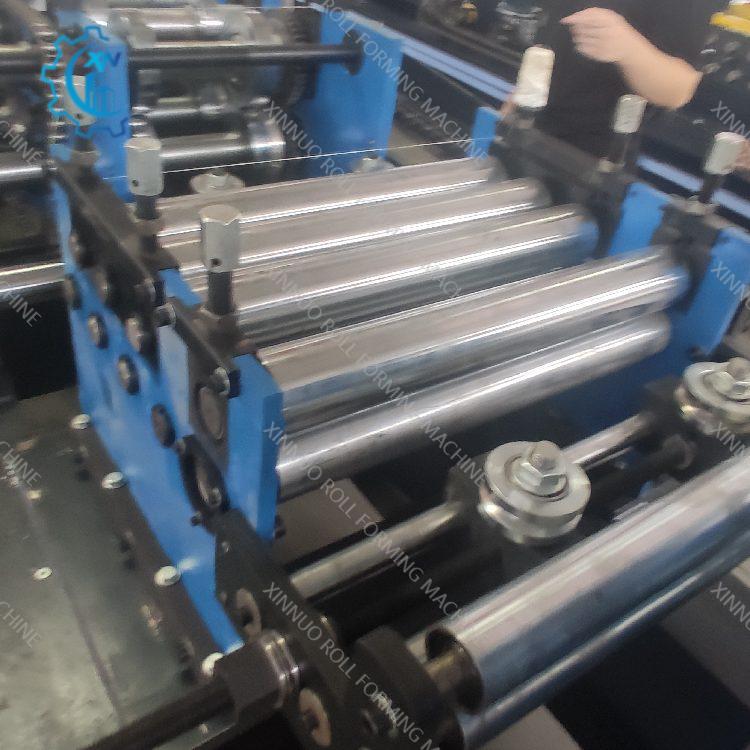

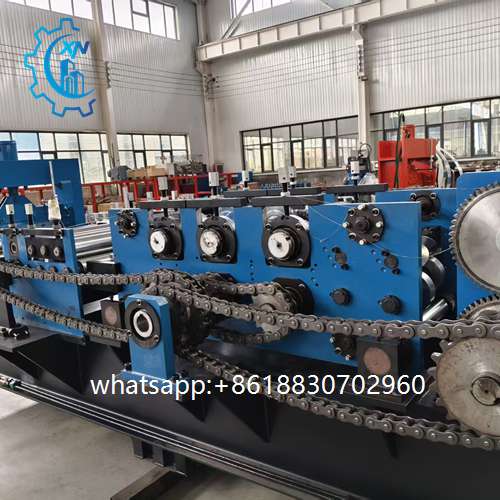

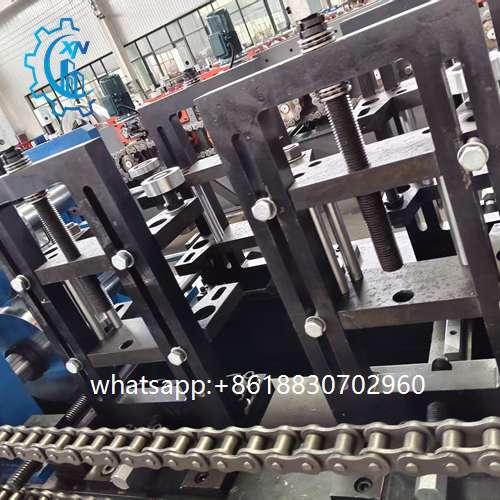

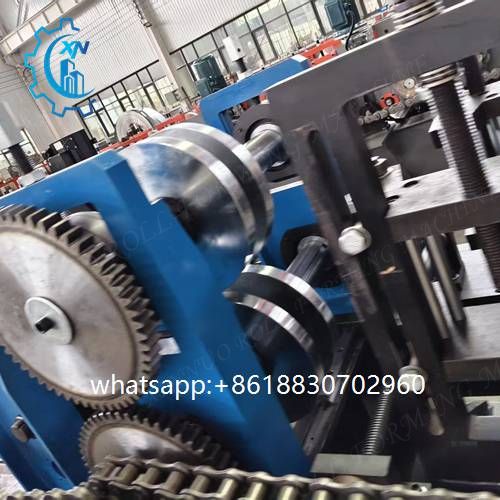

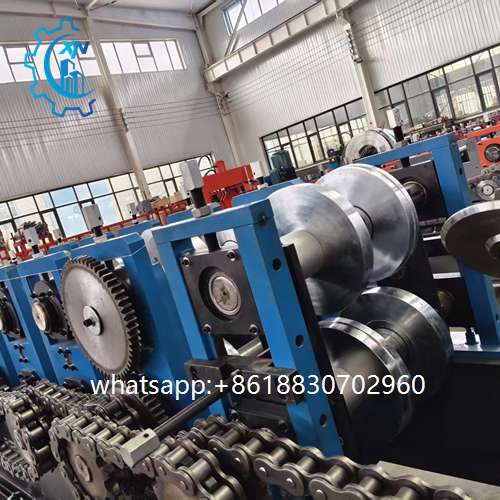

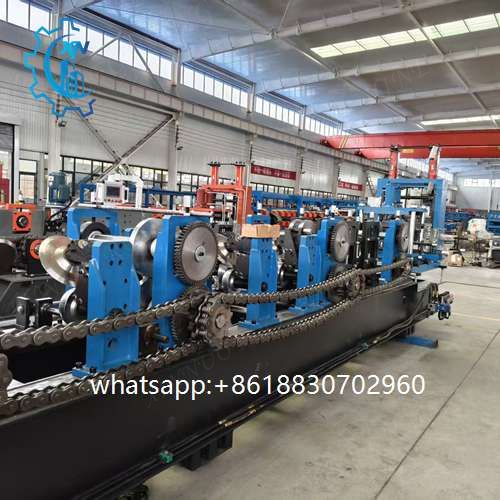

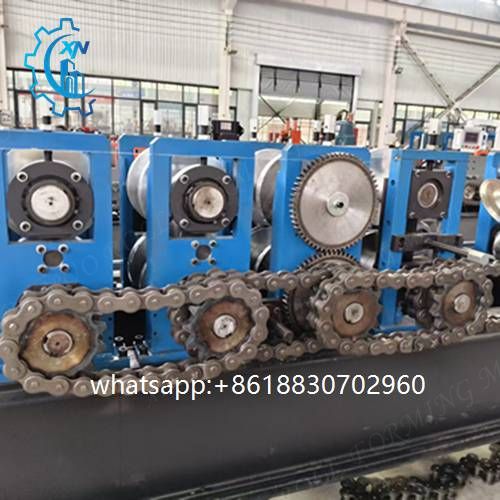

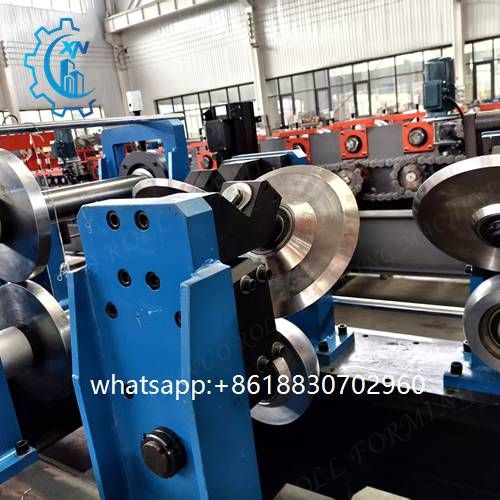

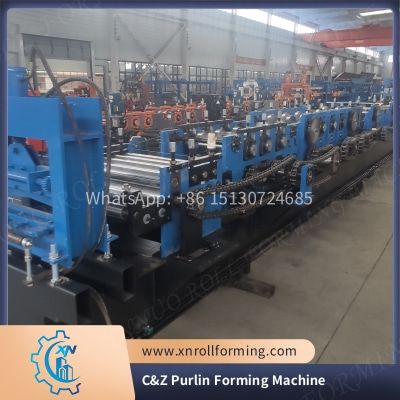

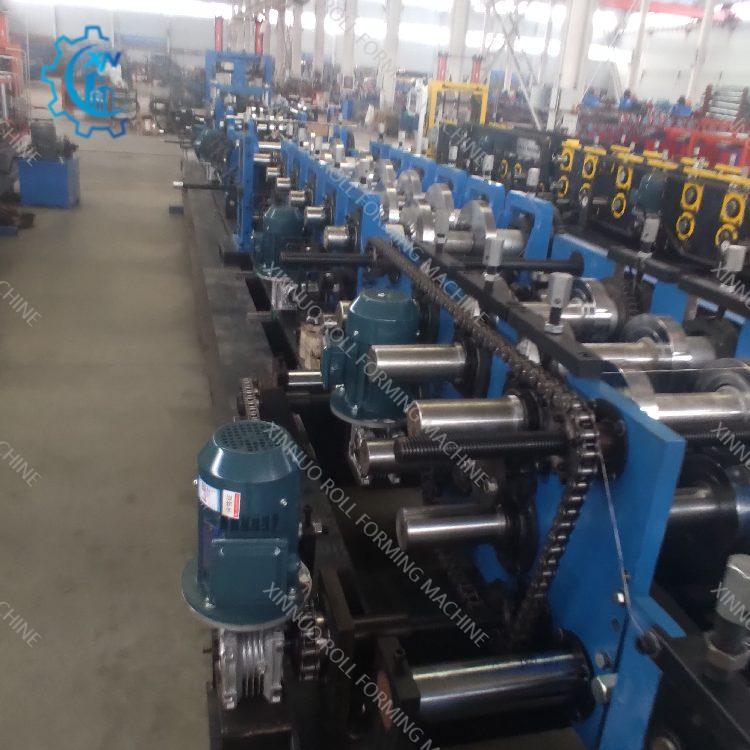

The machine is constructed with a heavy-duty welded frame to ensure stability and reduce vibration during operation. Precision rollers, made of hardened alloy steel, are arranged in multiple forming stations to shape steel coils into accurate C and Z profiles. The modular design allows quick adjustments of web height, flange width, and lip dimensions, enabling the production of different purlin sizes on a single machine.

Automated Operation and Control

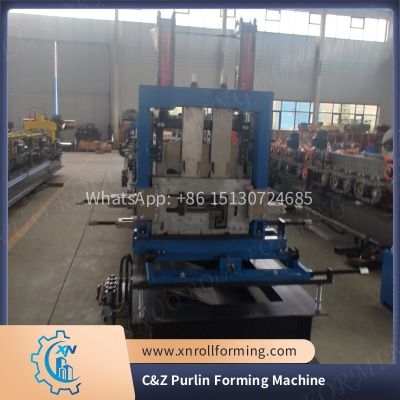

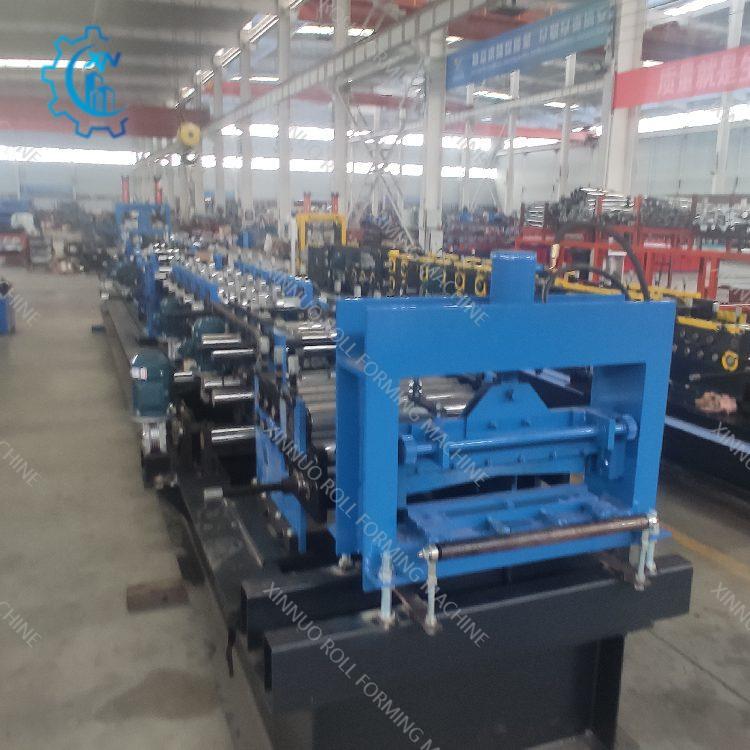

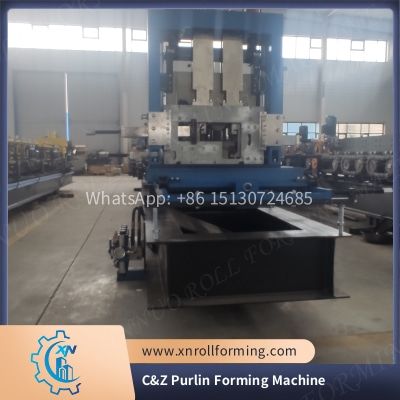

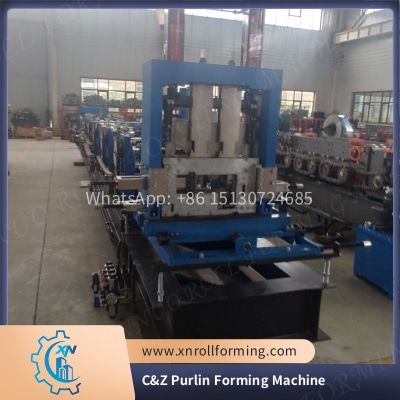

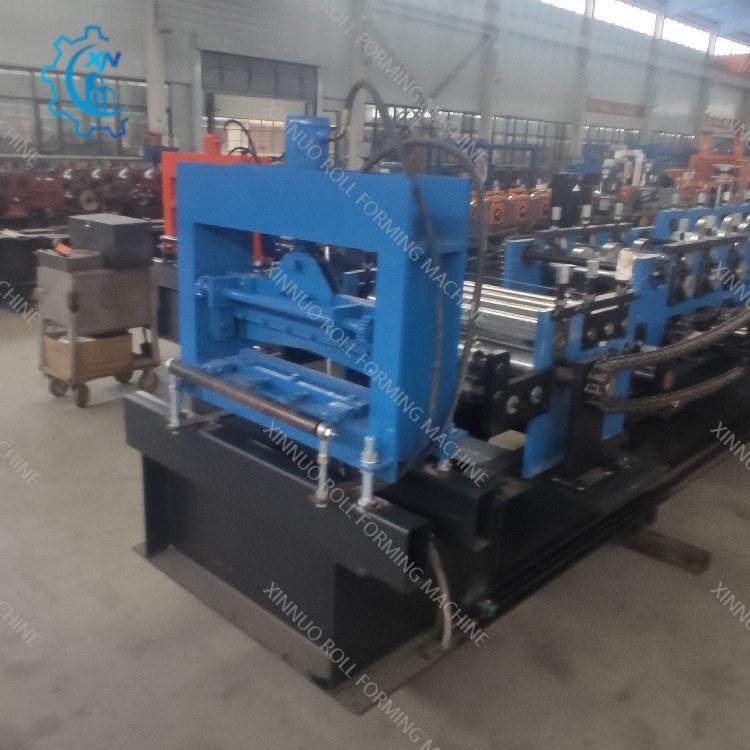

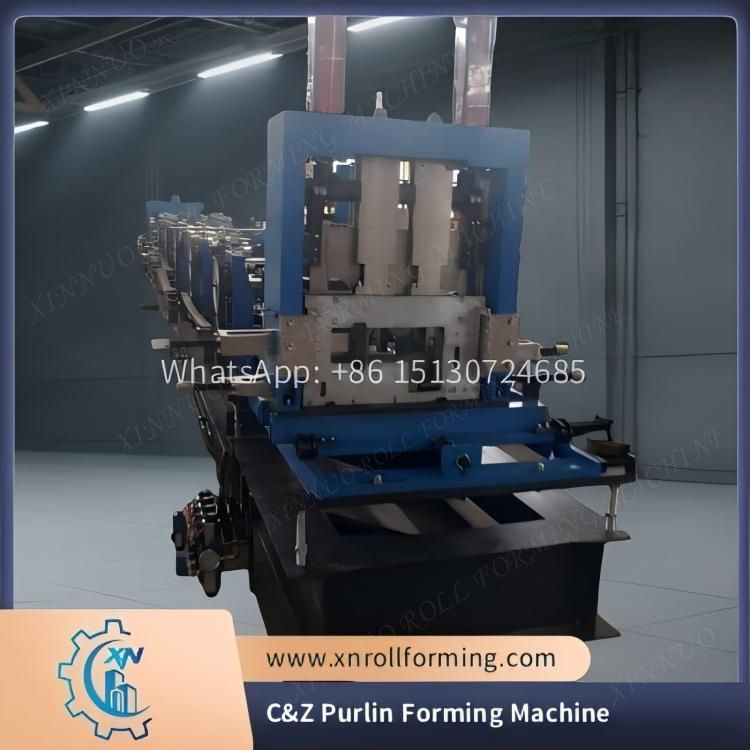

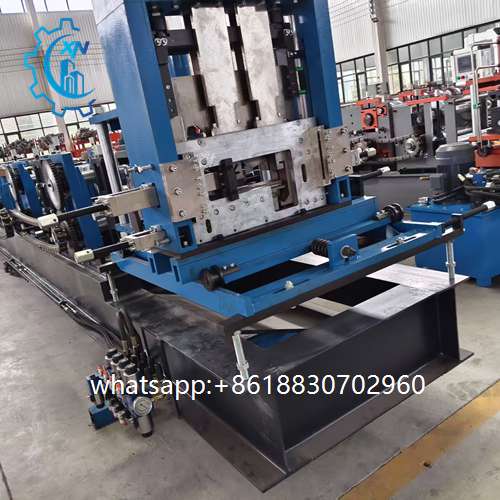

Equipped with an advanced PLC system and touch-screen interface, the machine allows operators to control every aspect of production. Feeding, roll forming, punching, and cutting are fully synchronized to ensure efficient and continuous operation. The hydraulic punching system can pre-drill bolt holes accurately during forming, while the hydraulic or servo-driven cutting unit ensures clean, burr-free cuts at precise lengths.

Efficiency and Productivity
The CZ Purlin Roll Forming Machine is designed for high-speed production, achieving excellent throughput while maintaining tight tolerances. Automatic profile switching minimizes setup time, and the integrated automation reduces labor requirements. Manufacturers can meet large-volume orders efficiently, while consistent profile quality ensures smooth installation on-site.

Applications
Purlins produced by this machine are widely used in:

• Industrial warehouses and factories

• Large-span commercial roofing systems

• Agricultural structures such as barns and greenhouses

• Prefabricated steel building projects

Safety and Maintenance
Operator safety is a priority. The machine features protective covers, emergency stop systems, and well-calibrated hydraulic components. Maintenance is simplified with accessible rollers, cutting blades, and mechanical parts, reducing downtime and extending the machine’s service life.

Why Choose Xinnuo
With years of expertise in roll forming technology, Xinnuo combines innovative automation with durable construction. Each C&Z Purlin Forming Machine undergoes strict quality inspection before shipment, ensuring consistent performance and reliability. The company also provides comprehensive technical support, installation guidance, and after-sales services to maximize customer satisfaction.

Conclusion
The Xinnuo CZ Purlin Roll Forming Machine is more than a production tool—it is a strategic investment for manufacturers seeking flexibility, speed, and precision. By combining dual-profile capability, automated control, and robust engineering, it allows fabricators to produce high-quality C and Z purlins efficiently, reduce operational costs, and respond quickly to diverse construction demands.
