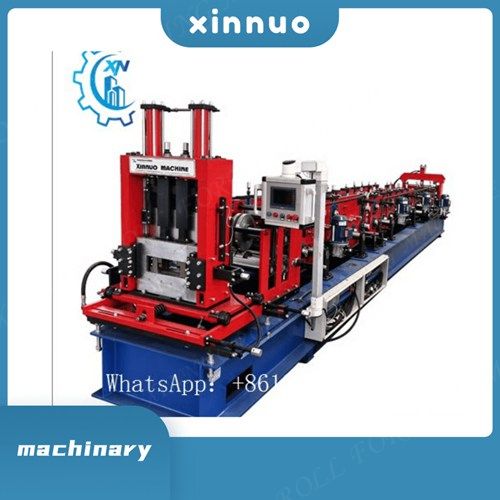

CZ Purlin Forming Machine
Unlike entry-level purlin mills built for spot market fabricators, this Cee & Zee roll forming line is engineered around a single goal: repeating ±1/32" (±0.8 mm) length after length, shift after shift, on 14-gauge ASTM A653 G90 galvanized coil.
It is built for metal building manufacturers, pre-engineered building (PEB) plants, and structural steel fabricators in the USA, Canada, Germany, the UK and Scandinavia — companies that sell purlins into a code-driven market (IBC, MBMA, Eurocode 3) and cannot afford twist, springback, or mis-punched holes.
The line runs both Cee (C-channel) and Zee purlins with a servo-driven quick-change cassette, integrates directly with your existing coil handling and stacking, and is supplied with a CE Declaration of Conformity and optional UL-listed / NEMA 12 electrical package for the North American panel.
What Makes This Line Different (Differentiator Block — not the same bullet list)
- Built for code-driven markets — purlins exit the line straight, dimensionally consistent, and punch-aligned to engineering drawings that carry structural stamps.
- True servo quick-change — HMI-guided Cee↔Zee profile changeover, not manual spacer shimming; profile recipes stored and recalled by job number.
- Forming tolerances you can measure — web height ±0.5 mm, flange ±0.3 mm, sweep <1 mm per 6 m; cut length accuracy ±0.8 mm.
- Mill-stand construction — welded, stress-relieved steel base with side-anchored gearboxes (not chain-drive per stand) to eliminate walk and vibration on heavy gauge.

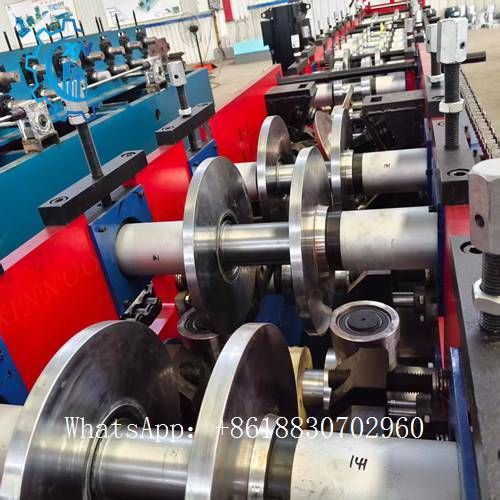

- Tool steel that lasts — D2 / GCr15 rollers, hard-chrome plated, with spare roll set quoted up front for your second profile.
- North American electrical option — NEMA 12 enclosure, 480V/3ph/60Hz, UL-listed motor starters, bilingual (English/Metric) HMI.
- CE-compliant by design — interlocked guarding, emergency stop category 3, sound levels <82 dB(A), CE DoC supplied.
- Integrates with your plant — line exit height, conveyor interface and data export (CSV job logs) specified to tie into your stacker, bundler or ERP.
- Remote diagnostics — built-in VPN router so our engineers can troubleshoot your HMI and drives remotely, without a 30-hour flight.
Standard Line Configuration
- 5-ton (optional 10-ton) hydraulic expansion uncoiler with coil car

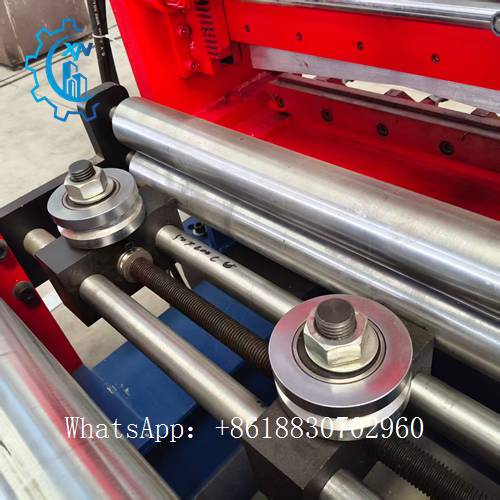

- Peeler & leveler entry section — flattens coil set before forming
- Servo feed & pre-press punch — hole positions indexed by servo, not clutch

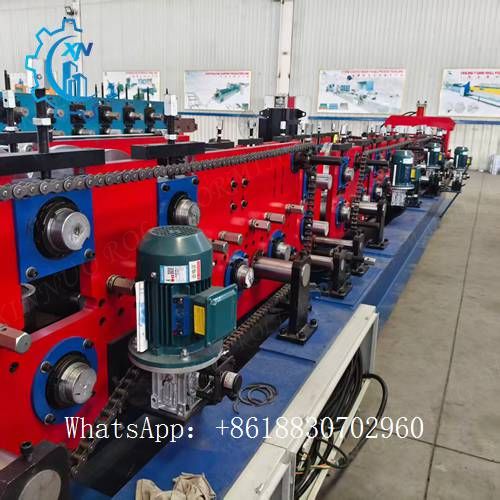

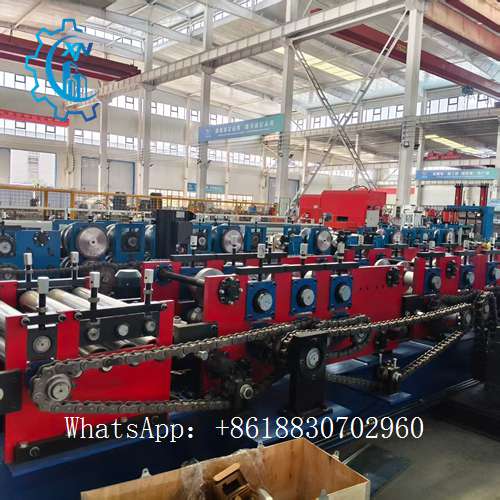

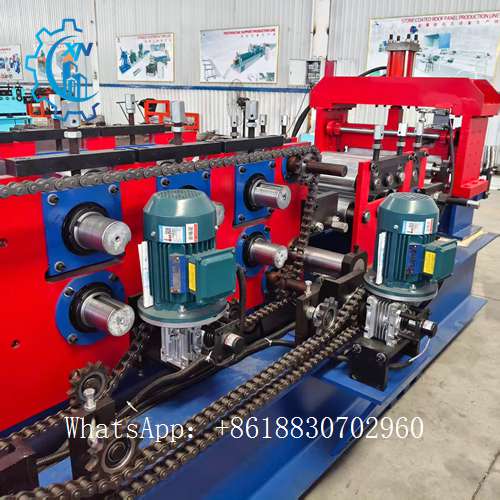

- Heavy-duty roll former — 14–16 stands, side-anchored drive

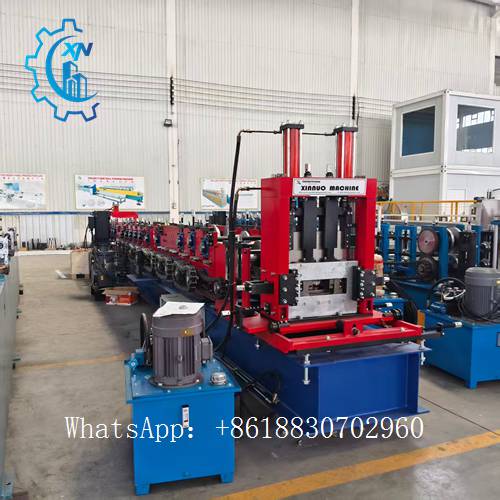

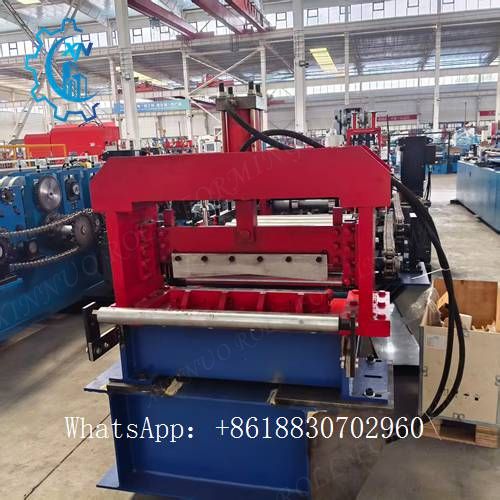

- Flying cut-off — cuts on the fly to maintain cycle time on long runs
- Exit conveyor & run-out table — with automatic counting rack

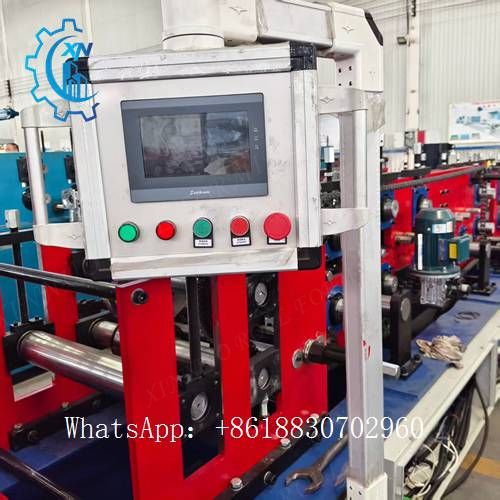

- NEMA / IP54 control cabinet — VFD, PLC, HMI, remote VPN
- Hydraulic power unit — with return filtration and temperature sensor
Typical Applications in NA & EU Markets
- Pre-engineered metal buildings (PEMB) — primary secondary framing for IBC / MBMA-compliant projects
- Agricultural & equestrian buildings — USA/Canada pole barns, riding arenas, hay storage
- Self-storage & retail — box steel buildings across the Sun Belt and Western Europe
- Industrial warehouses & distribution centers — Amazon-style logistics parks in Germany, Poland, UK
- Renovation & retrofit — replacement purlins for existing metal roofs (UK, France, Benelux)
- Solar & racking — utility-scale ground-mount support substructure (optional variant)
Typical buyers: metal building manufacturers in Texas / Ohio / Ontario; steel service centers adding a value-added roll forming line; PEB exporters in Germany, Netherlands, Poland; cladding & envelope contractors in the Nordics.
Compliance, Certification & Documentation (NA/EU focus — new section)
- CE Marking — full technical file, Declaration of Conformity, machinery directive 2006/42/EC, EMC 2014/30/EU, low-voltage 2014/35/EU.
- ISO 9001 quality-manufactured components.
- Optional UL 508A control panel build for the US market (quote on request).
- Documentation supplied: operation & maintenance manual (English / German / French), electrical schematics (CAD), hydraulic P&ID, spare parts list, lubrication chart, CE technical file.
- Installation support: remote video commissioning, or on-site engineer in USA / EU (buyer covers travel & per-diem).
