cz purlin roll forming machine for southeast Asia

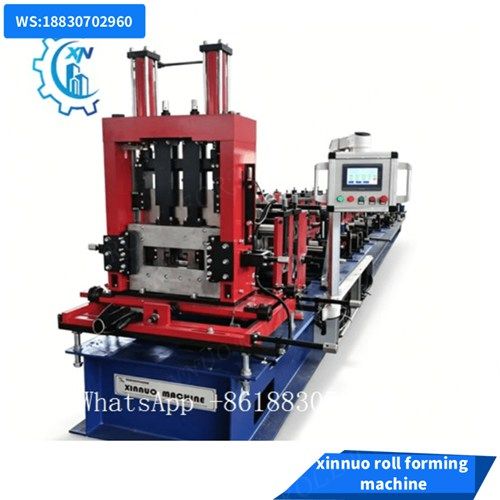

 CZ purlin roll forming machine

The CZ purlin roll forming machine is a high-efficiency cold roll forming line that produces both C-section and Z-section purlins on one machine. It is widely used for steel frame structures, industrial plants, warehouses,

agricultural sheds and solar mounting systems across Southeast Asia. With quick profile changeover, PLC automatic control and stable hydraulic cutting, it delivers consistent profile quality at low production cost.

C & Z Profiles in One Machine — Fast Changeover

One machine produces both C and Z purlins. The profile changeover takes only a few minutes with dedicated changeover tooling — no extra machine investment, no extra floor space. Ideal for fabricators who handle multiple project types:

switch from C purlins for roof framing to Z purlins for wall and beam connections on the same production line.

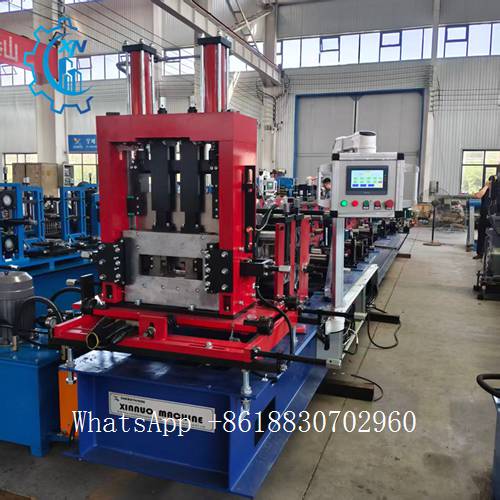

 PLC + Touch Screen Control — Precise & Simple

The PLC control system with touch screen interface enables automatic length setting, batch counting, and multi-profile parameter memory. Operators simply select the profile, input the cutting length and quantity,

and the machine handles the rest. Fault alarms and clear diagnostics reduce downtime, and one operator can run the whole line after basic training.

High Production Speed & Stable Forming

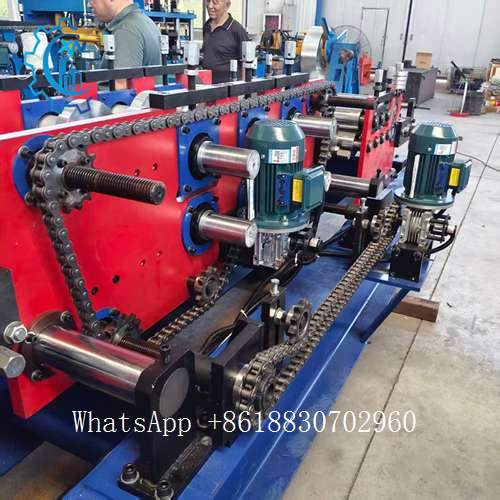

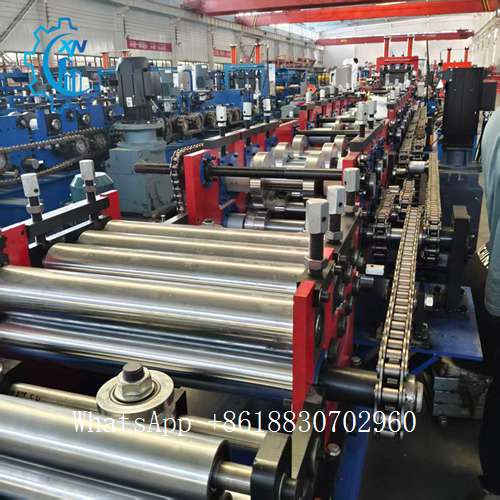

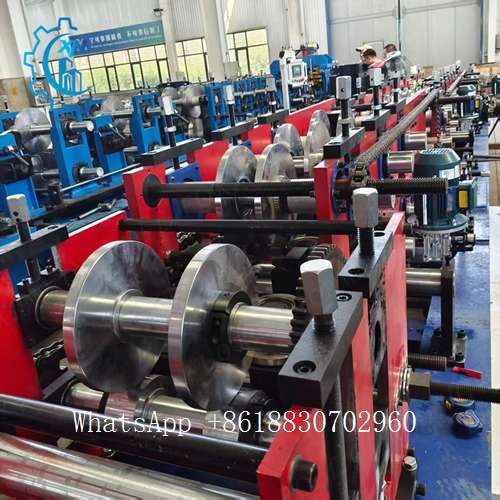

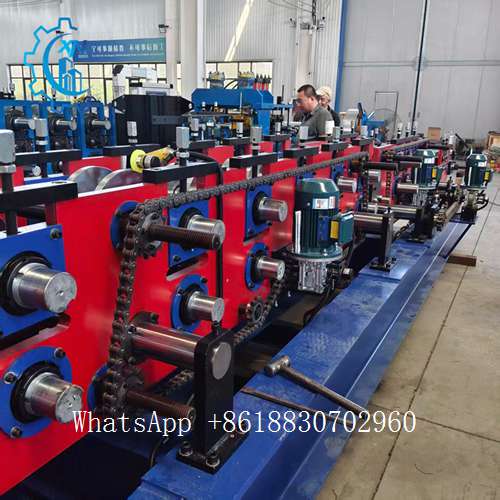

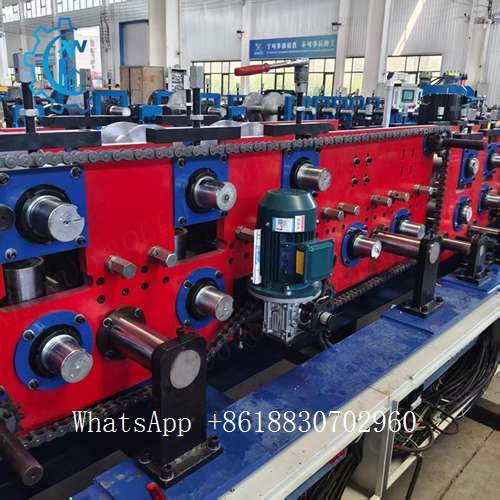

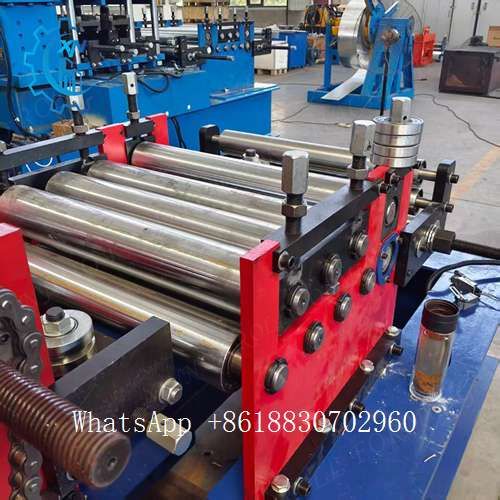

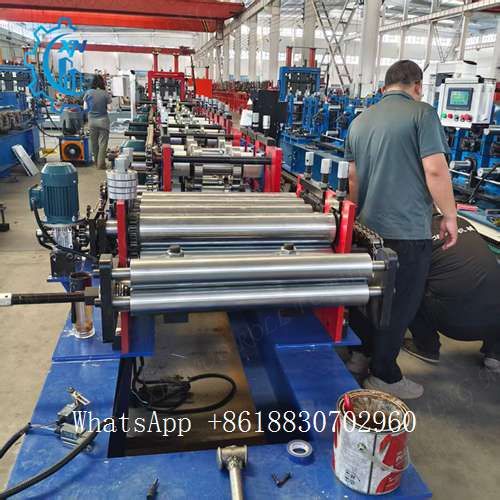

With a production speed of 10–20 m/min and 12–16 precision forming passes, the machine forms galvanized steel strip (1.5–3.0 mm thickness) into accurate, consistent C/Z profiles.

The heavy-duty welded frame and precision-machined rollers ensure stable forming and long service life even under continuous production.

Suitable for Tropical Climate & Steel Frame Construction

Machines and finished profiles are designed for hot and humid environments: galvanized steel coils resist corrosion, and the light steel frame structures built with C/Z purlins perform well in seismic zones common in the Philippines,

Indonesia and other Southeast Asian countries. The lightweight steel frame system is also faster and more economical to erect than traditional concrete construction.

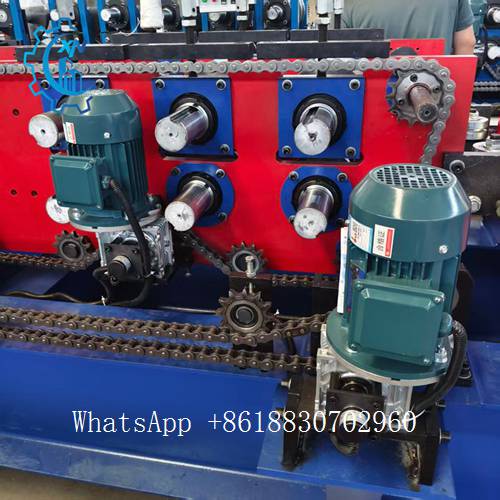

 50Hz Motor — Plug & Run in Most Southeast Asian Countries

The machine is supplied with standard three-phase 380V/50Hz motors, compatible with the power grids of Vietnam, Thailand, Indonesia, Malaysia and Singapore. For the Philippines (60Hz grid), a 60Hz motor option is available.

No extra frequency converter is needed for standard applications — ready to run upon arrival.

 Fast Delivery & Easy Logistics to Southeast Asia

As a factory-direct manufacturer, we offer short production lead times and frequent shipping schedules to major Southeast Asian ports (Ho Chi Minh, Bangkok, Jakarta, Manila, Port Klang). Full export documentation (commercial invoice, packing list, certificate of origin, bill of lading) is provided, and we can advise on local customs clearance procedures.

 After-Sales Support & Spare Parts

Every machine comes with a 12-month warranty. We provide remote installation guidance and troubleshooting via video call, plus prompt spare parts supply for the decoiler, rollers, cutting blades and PLC components. Optional: engineer dispatch for on-site installation and operator training in Southeast Asia.
