1.Factory To Your Port
2.MOQ:Only 1 Piece
3.OEM*ODM Service
4.Suitable For Roofing, Siding,Wall Cladding
5.Payment Terms:40% T/T in advance,60% when shipping
6.WhatsApp:+8618830702960

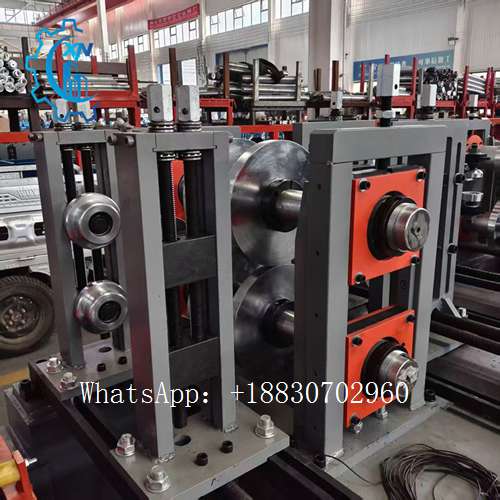

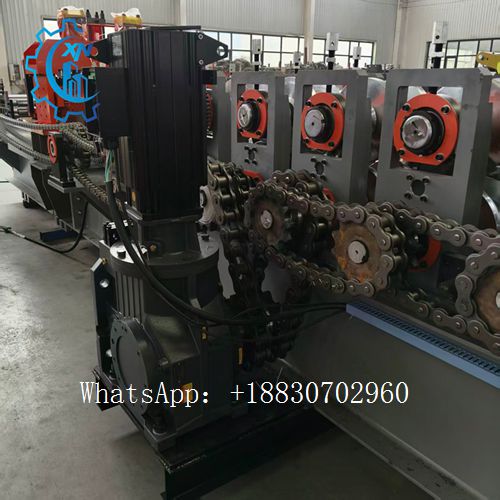

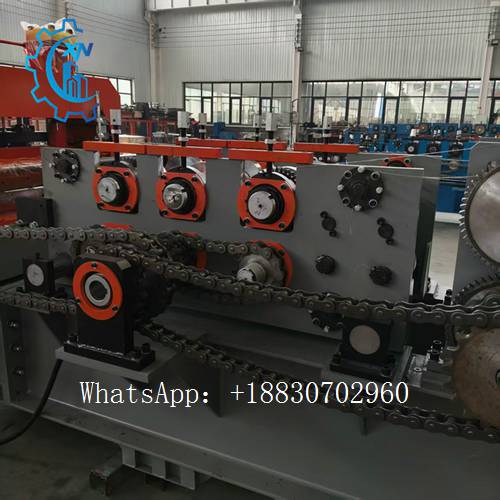

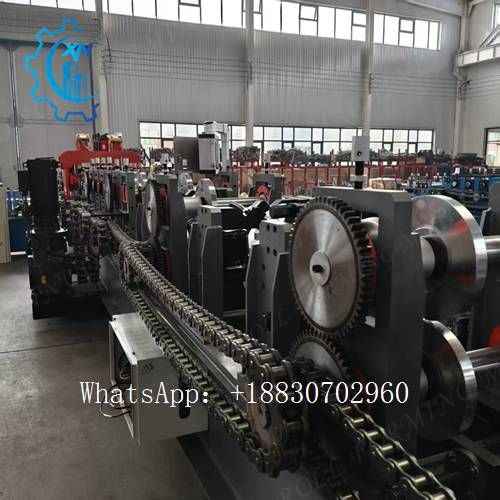

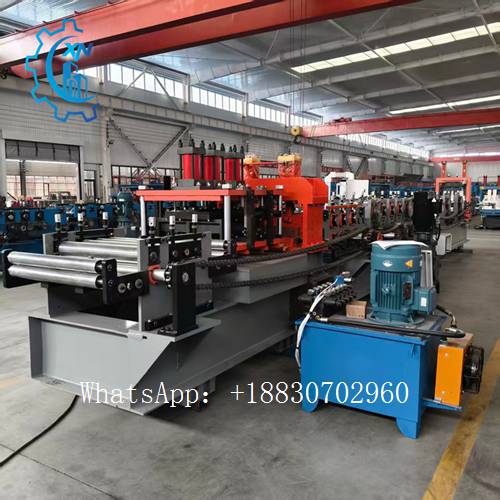

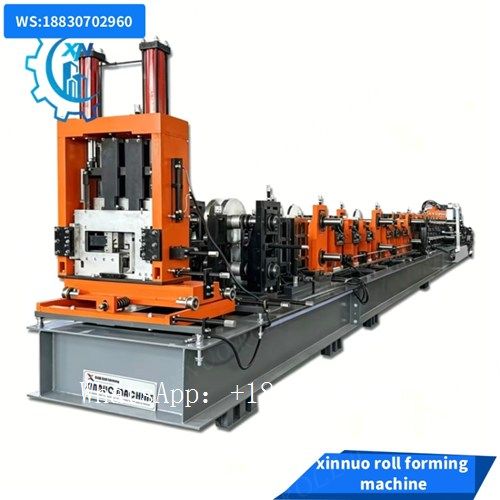

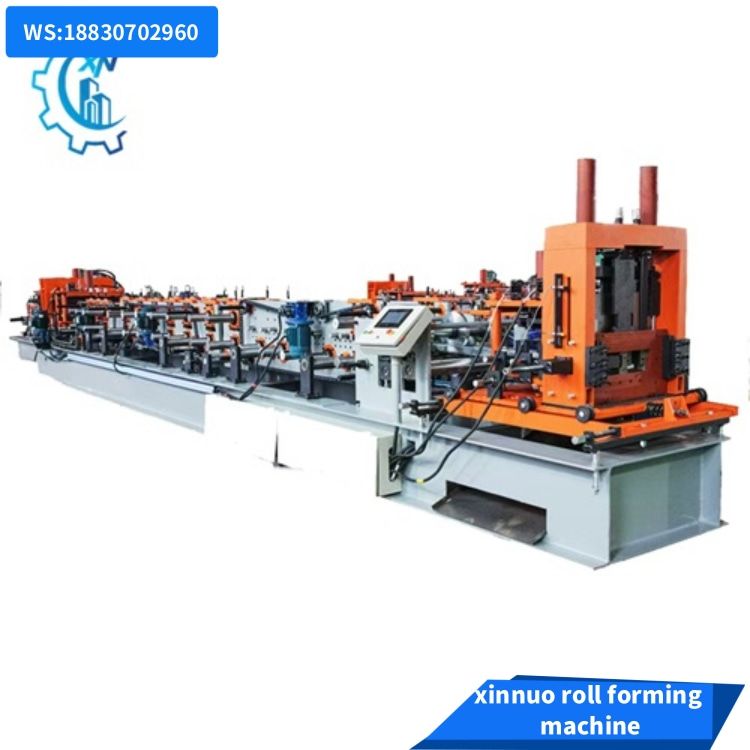

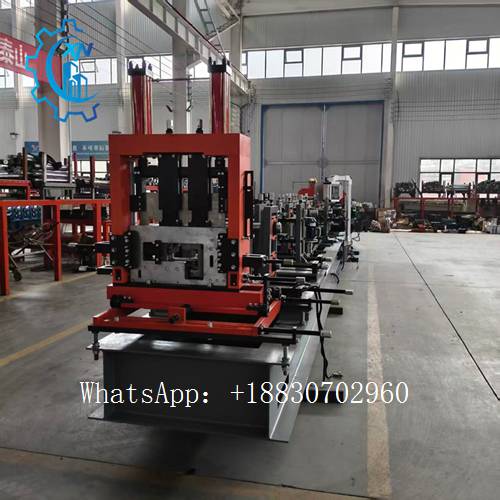

C Z purlin machine
CZ purlin machine is a kind of interchangeable production line. It is mainly used to make C-shaped or Z-shaped purlins after punching, leveling, cold bending, forming,
length fixing and cutting of hot and cold rolled steel strips. Two types of conversion and specification adjustment can be realized through relevant adjustment, including
manual adjustment and automatic adjustment.

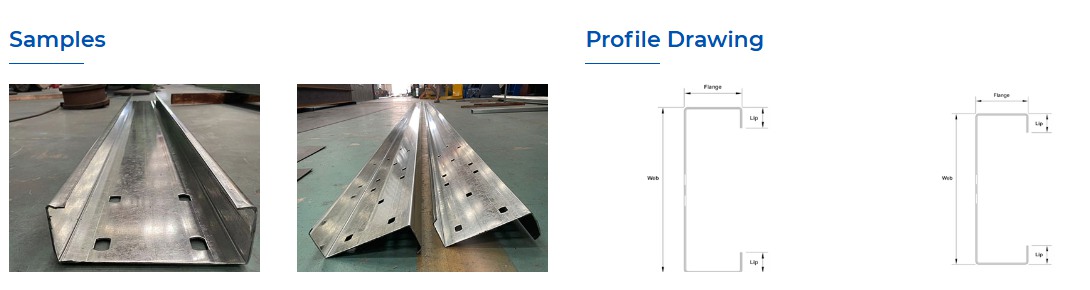

| Profile Model | Section | Thickness | ||
| Web | Flange | Lip | ||
| C100-300 | 100-300mm | 40-100mm | 10-20mm | 1.2-3.0mm |
| Z120-300 | 120-300mm | 40-100mm | 10-20mm | 1.2-3.0mm |
Specifications
| Model | C80-300/Z100-300 |
| Dimension | 8200*1600*1800mm |
| Hydraulic Motor Power | 22kW |
| Forming Steps | 13Steps+3Steps for reshaping |
| Forming Speed | 8m/min,16m/min,25m/min |
| Voltage | 380V/50HZ/3PH or custmized |
| Effective Width | C:80-300mm Z:100-300mm |
| Flange Height of Purlin | C:40-100mm Z:50-100mm |
| Lip of C/Z Purlin | 10-20mm |
| Material Thickness | 1.2-3.0mm |
| Control System | PLC control |
| Rollers | Gcr15 steel with heat treatment,plate hard chrome on the surface of rollers |
| Material for Shaft | 40Cr steel |
| Material for Puncher | Cr12Mov |
| Material for Cutter | Cr12Mov |

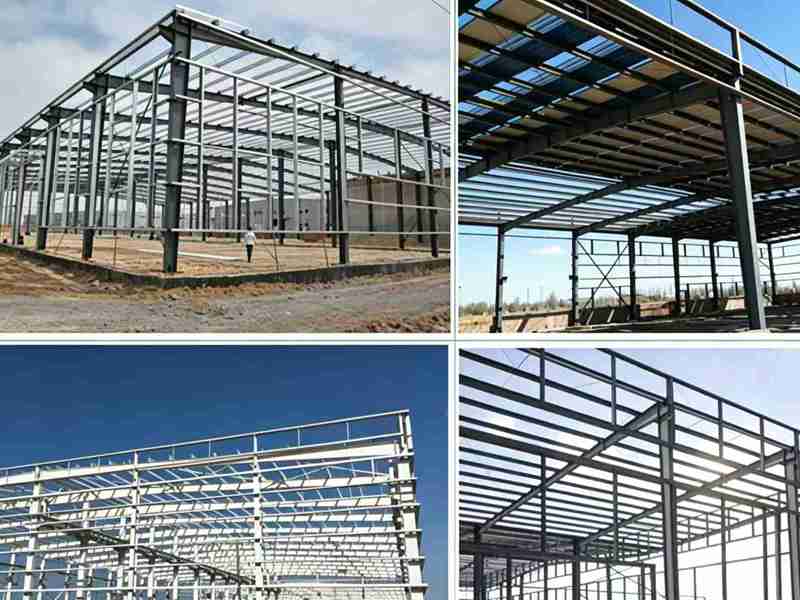

APPLICATION
Purlins are quite popular these days and are available in different shapes and sizes, most commonly use as C purlins and Z purlins.
JSR machinery factory make Purlin forming machine, which can produce both C and Z in the same machine, only change one hour to change between C and Z.
Besides, Purlin machine can produce size between 100-300 with easy adjustment, which take only ten minutes.

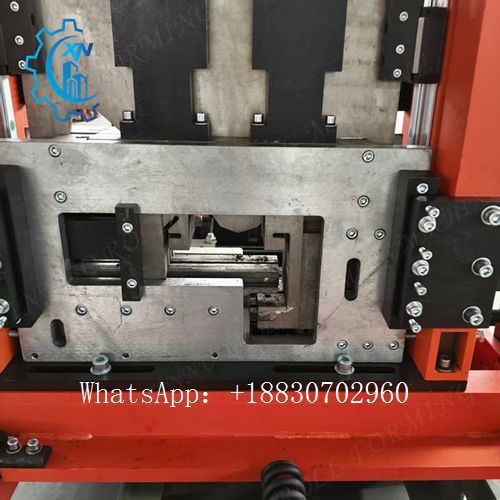

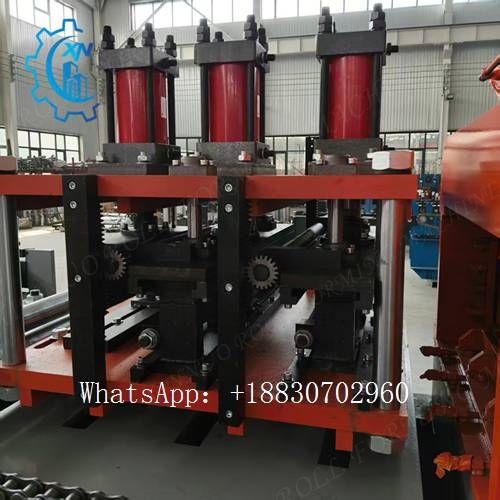

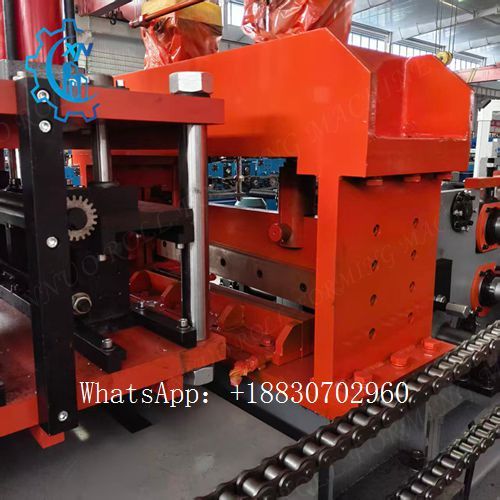

Important, our purlin machine can design with punch device with function of punch holes on purlin for screwing during installation.
Operate easily , work automatically with PLC controller control.
Decoiler- forming- punch – cut – run out
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
