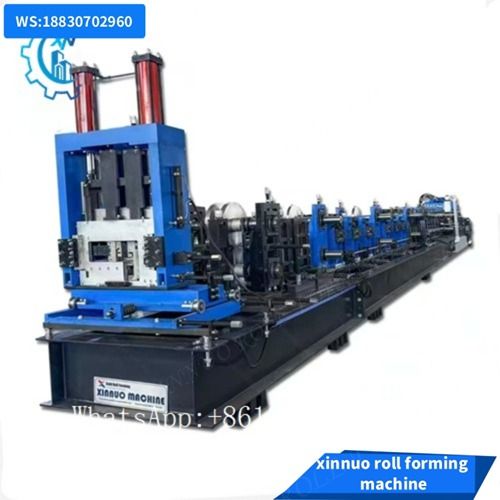

Whole Production Line Configuration Parameters
Complete production line includes: manual uncoiler, leveling device, embossing unit, front cutting frame, punching station, roll forming main machine, hydraulic station and electric control cabinet.
The whole line runs synchronously, realizing one-stop processing from raw material feeding to finished purlin output. High integration, simple layout, convenient daily maintenance.
| Item |
Specifications |
| Processed Material |
Galvanized steel, cold rolled steel, hot rolled steel |
| Material Thickness |
1.2mm–3.5mm |
| Processing Profile |
C purlin / Z purlin, manual quick change type |
| Effective Width Range |
C80–300mm, Z100–300mm |
| Forming Speed |
12–28m/min (adjustable by frequency conversion) |
| Forming Rows |
20–26 groups roller stations |
| Main Shaft Diameter |
Φ85mm solid shaft, high strength |
| Roller Material |
GCr15 bearing steel, quenched, polished and chrome plated |
| Changeover Mode |
Manual adjustment type, no need to replace rollers |
| Auxiliary Device |
Embossing roller, front cutting unit, hydraulic punching system |
| Cutting Type |
Front shearing, hydraulic drive, fixed length cutting |
| Punching Function |
Online hydraulic punching for web and flange holes |
| Control System |
PLC intelligent control + touch screen operation |
| Driving System |
Frequency conversion motor + reducer integrated drive |
| Hydraulic Pressure |
16–20Mpa |
| Total Installed Power |
20–25kw |
| Overall Dimension |
12500×1800×2000mm |
| Machine Weight |
13–15 tons |
| Standard Certificate |
CE, ISO certified |
Manual C/Z Purlin Changeover System

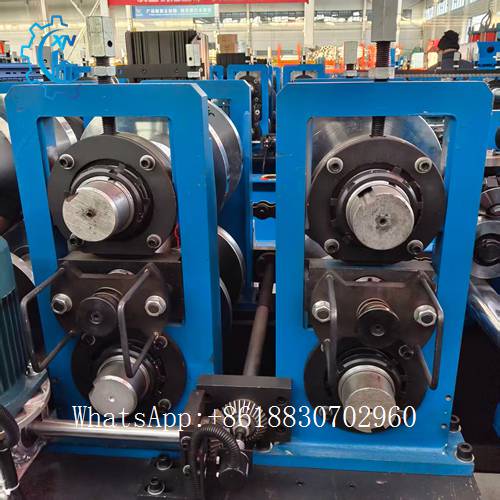

Adopts manual adjustment structure for C and Z purlin switching. By adjusting the upper and lower roller spacing, positioning bolts and flip brackets, operators can finish model conversion quickly.
No complex hydraulic or electric auxiliary structure, low failure rate, low cost and easy operation. Suitable for frequent specification switching in small and medium production.
Working Flow
- Uncoiling: The hydraulic/manual uncoiler loads the steel coil and feeds it into the leveling unit;

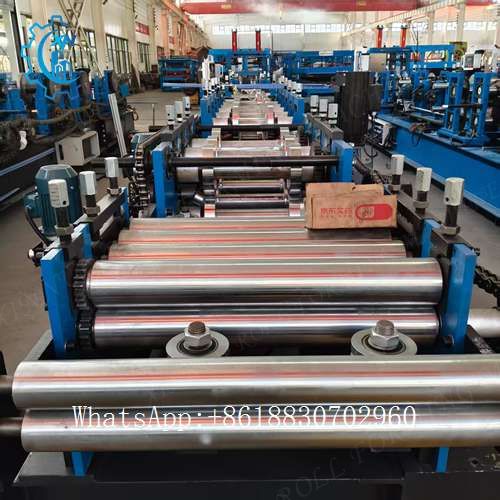

- Leveling: The multi-roller leveling device corrects the material flatness and eliminates internal stress;
- Embossing: The embossing roller processes the required patterns on the material surface;

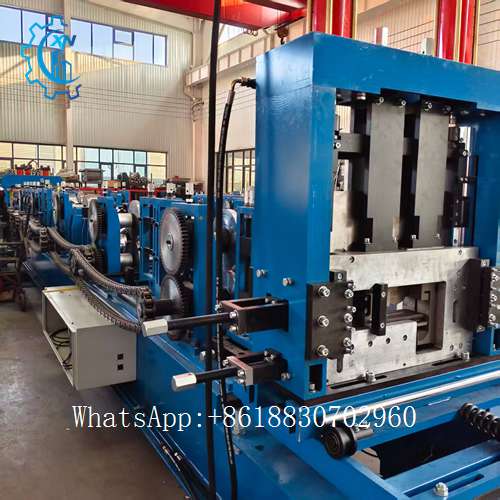

- Pre-cutting: The front-cutting system cuts the material to the fixed length;

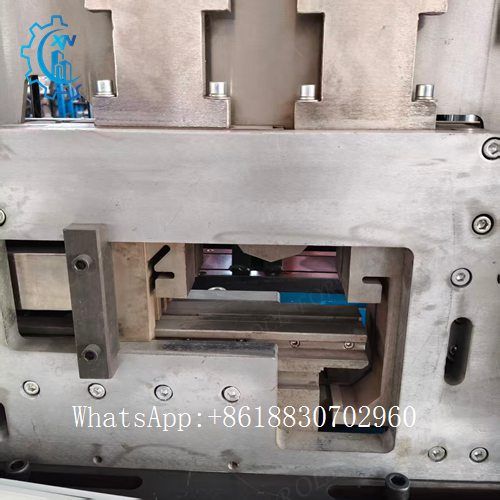

- In-line Punching: The hydraulic punching unit processes web/flange holes according to the set parameters;

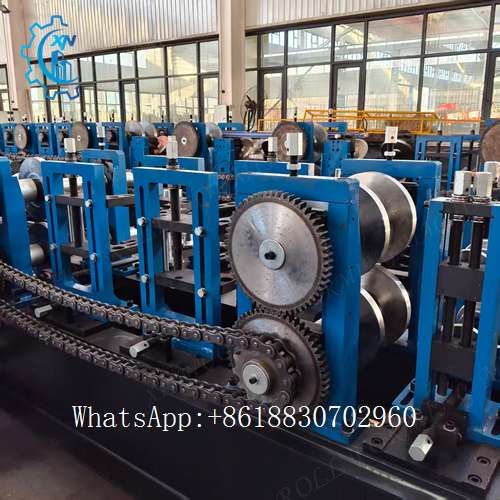

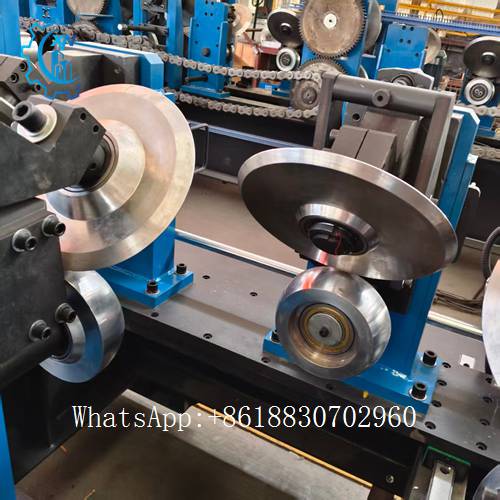

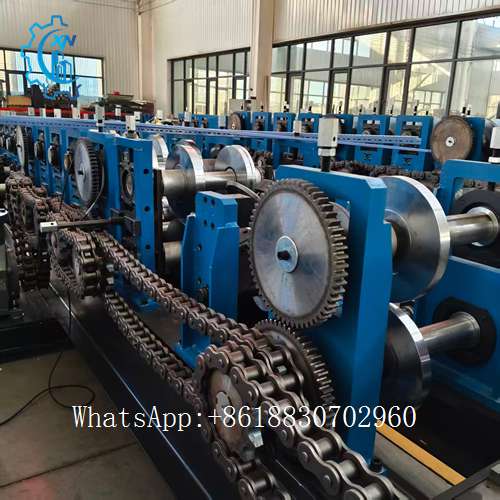

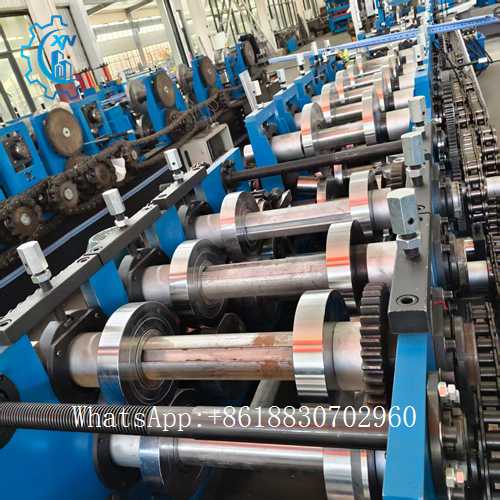

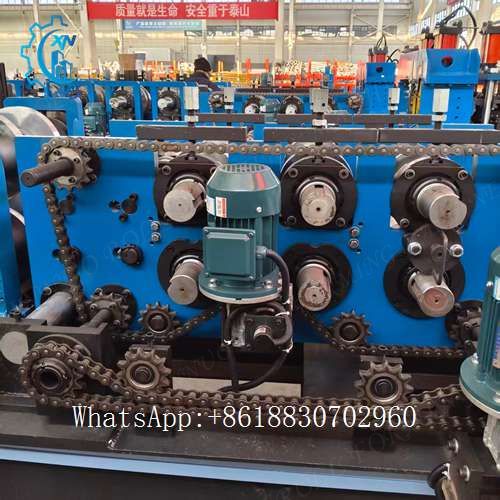

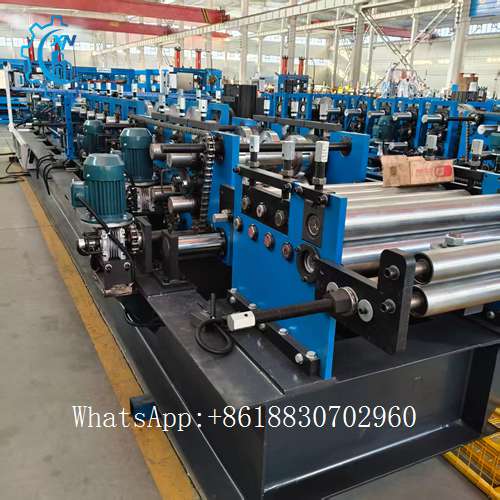

- Roll Forming: The material enters the forming host and is gradually bent into C/Z purlin profile through multiple roller stations;
- Finished Product Discharging: The formed purlin is output via the discharge table, completing the production cycle.
Product Advantages
✅
Manual Changeover for Cost Efficiency: Simple and reliable manual C/Z switching structure, low maintenance cost, suitable for multi-variety and small-batch production;
✅
Embossing Reinforcement Design: Custom embossing patterns enhance purlin strength and anti-slip performance, increasing product added value;
✅
Front Cutting for High Precision: Pre-cutting design avoids forming deformation, ensuring flat end face and accurate length of purlins;
✅
Integrated Punching & Forming: In-line punching realizes one-time forming of holes and profiles, improving production efficiency and precision;
✅
Durable & Stable: Core components are made of high-quality alloy steel with heat treatment, ensuring long-term stable operation;
✅
Flexible Customization: Supports customization of purlin size, thickness, hole pattern, and embossing pattern to meet diverse project requirements.
Application Scenarios
- Steel structure factory building roof and wall purlins;
- Logistics warehouse and industrial storage rack support purlins;
- Prefabricated building and modular house structural purlins;
- Greenhouse and agricultural facility support frames;
- Custom special specification C/Z purlin production.
After-Sales Support
- 12-month full machine warranty, lifetime maintenance for core components;
- On-site installation, commissioning, and operator training services provided;
- 24/7 online technical support to solve operation and maintenance problems in a timely manner;
- Long-term supply of original spare parts to ensure continuous and stable production.
